Corn storage steel silos with flat bottom silos equipped with sweep auger

Product Overview

Description

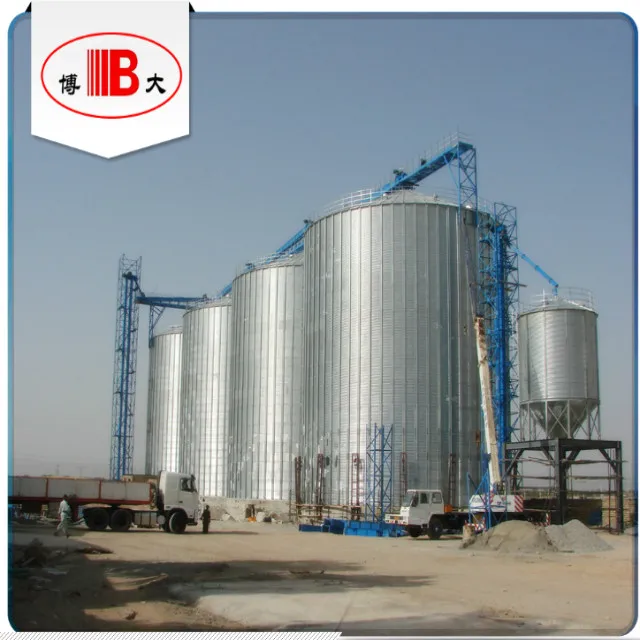

       Here is the picture for 4xTC16518 silos project, the total volume is about 15000m3,for wheat,corn and other kinds of granular material.



All silos include

Boda silo itself includes these components that come free of charge (the silo diameter should be equal to or more than 5.5m)

 Roof Natural vents

 Roof guardrail

 Roof manhole

 Roof ladders

 Silo door

 Silo door platform

 Inside and outside ladders on silo body



       BODA steel silos offer top-quality performance and long service life. BODA enjoy a worldwide reputation for high quality and reliability. We offer you the most innovative design of grain storage systems. Contact us right now for more details.



      BODA bolted steel grain storage silos offer an extensive range of designs; hundreds of size and model combinations; fast assembly and low cost. An extensive range of grain handling equipment and accessories including bucket elevators, drag conveyors, temperature measurement systems, aeration systems and electric control systems. Project planning assistance, foundation design and comprehensive installation instruction manuals are available.



       BODA offer you the best grain storage solution with a complete range of back-up services.



       BODA use only high quality, corrugated galvanized steel plate in the construction of their silo walls. For large capacity silos the bottom rings of wall sheets may be double-thickness to provide additional strength.



       The strong interior or exterior stiffeners on BODA steel silos help your silos efficiently handle the considerable stress and strain of stored grain and roof-mounted equipment.





The advanteges of ZIBO BODA STEEL SILO CO., LTD:

1. Over 15 years Steel Silo Engineering experience and rich expertise;
2. Steel Silo Wide storing capacity range, 5~10000 tons, the silo’s diameter ranges from1.8 to 32 meters;
3. Effective global Steel Silo sales & services network;
4. Steel Silo For storing wheat, feedstuff, corn, sawdust, wooden chips, PE pellets, rice etc., large capacity;

5. Preferable price with best quality; 275g/m2, 350g/m2, 450g/m2 zinc-coated silos are available;
6. BODA company can supply foundation design, steel structure design and production, lifting system, conveying system, cleaning system, drying system, fluidization system, temperature system, full measuring system, fumigation system, ventilation system, automatic controlling system and other professional services in installing or debugging for silos and handling equipments ect. up to personnel training and so on.



General Introduction of BODA Service scope:

1. Steel storage silo(roof degree:30):

  5t-10000t. There're roof vents, manhole, outside ladders, inside ladders, square silo door and platform. The silo roof and body sheets sheets are made of hot dip galvanized sheets in good quality, zinc plated by 275g/m2.

2. Blocked and rotary level indicator:  to indicate if the silo is full or empty

3. Ventilation system: include fan, ventilation pipes/planks, circular ducts(this part could be painted or galvanized, for hopper bottom sheets only)

4. Temperature monitoring system: to indicate if the material stored in a safety condition. Include temperature cables, sensors and thermoscope

5. Roof electric valve: painted or galvanized

6. Discharge manual valve: painted or galvanized

7. Roof catwalk: be suitable for above two silos discharged by roof conveyor. Painted or galvanized. Flow pipes:  usually for one or two silos

8. Roof catwalk support:Assembly, painted or hot dip galvanized

9. Conveying system: 10t-150t/h. roof chain conveyor or discharge chain

conveyor(discharge belt conveyor is for your choice), painted or galvanized

10. Elevator: 10t-150t/h. Always equipped with vertical tower to support elevator, also convenient for people climbing up for equipments’ maintenance.

11. Cleaning system and dust collector system: to remove the impurities away.

12. Drying system: to dry wet material into a safety stored moisture.

13. Electricity controlling system: Could be supplied by BODA or users buy it themselves. Electricity in China: 380V,3phase-4wire. Different requirement from customers can be satisfied. If we offer this part, we take charge of control panel and related load ancillary equipments only,  power systems shall be provided by the users

14. Foundation: Foundation and baseplates shall be made by users. Boda will  supply baseplates distribution drawings.

15. Installation: The company has dedicated professional engineering team and there are installation engineers and technicians, security supervisors, quality inspectors in each team; Two (2) forms of installation are for your reference both in domestic and foreign. For one thing, we are in charge of the whole project (turnkey project), for the other, we are to guide the installation.  That is Boda company will send 1-2 engineering and technical personnel on-site for guidance, so the user shall install silos by themselves using the installation tool user-owned.

16. Package: be put into containers in bulk and fixed by steel wire.

17. Delivery terms:EXW-BODA factory, FOB Qingdao, CIF appointed port, CFR appointed port.

18. Payment:T/T, L/C

19. Guarantee: BODA provides a warranty (guarantee) period of 12 calendar months commencing from the date of putting the goods into operation but not more than 18 months from the date of the last consignment.







Flat Bottom Steel Silo Main Technical Specifications (Grain Density:0.75t/m3)
Capacity	1000 ton	1500 ton	2000 ton	2500 ton	3000 ton	5000 ton	8000 ton	10000 ton
Model	TCK 10014	TCK 12016	TCK 13715	TCK 14617	TCK 16516	TCK 20018	TCK24718	TCK28417
Diameter(m)	10.084	11.918	13.75	14.668	16.50	20.168	24.75	28.418
Total Height(m)	18.69	21.46	20.87	23.37	22.50	25.74	26.99	26.87
Volume (m3)	1335	2116	2701	3434	4141	7003	10735	13639
