Best Choice Hand Operate Grout Pumps / Manual Grouting Pump Machine


Product Instruction & Application

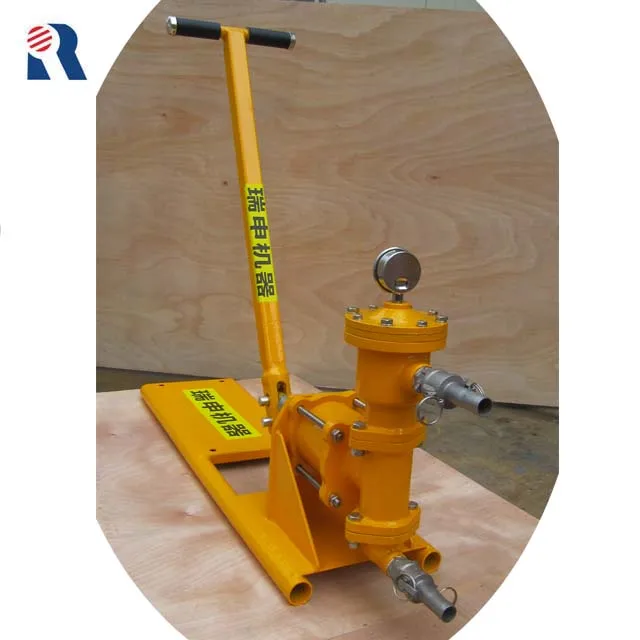

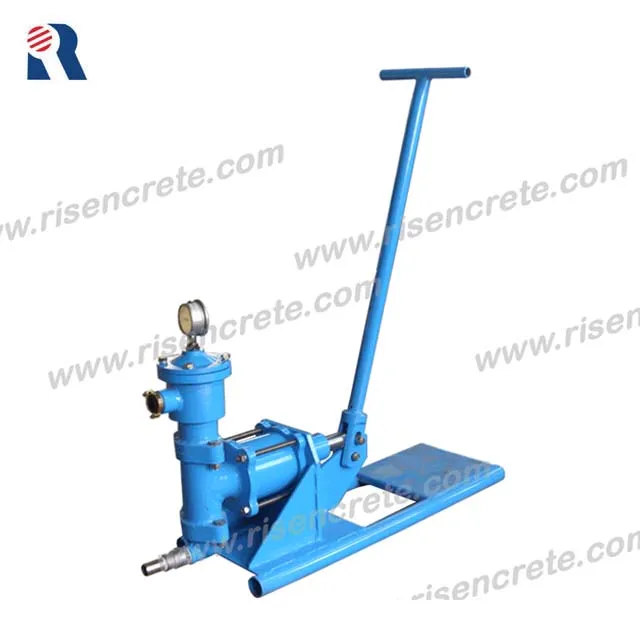

RISEN SB10 hand operate grouting pump is a small piston pump machine. It is mainly used in grouting cement slurry or the similar slurry by hand. It has simple operation and controllable flow.

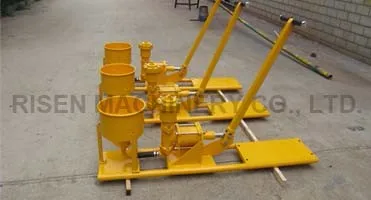

This machine has two types---standard one and special one. The special one is equipped with a hopper.
Application:
Manual grout the cement slurry or similar slurry for the crack repair of the bridge engineering, house construction, etc.

\t
SPECIFICATIONS FOR RISEN SB10
\t
Engine
\t
Manual (Hand  Operation)
\t
\t
\t






Main performance parameters
\t
Working Pressure:
\t
MPa
\t
1 (10bar)
\t
Rated output:
\t
L/min
\t
0~8L/min
\t
Piston Dia.:
\t
mm
\t
110mm
\t
Piston stroke:
\t
mm
\t
42mm
\t
Inlet hose
\t
mm
\t
25mm
\t
Outlet hose:
\t
mm
\t
25mm
\t
Power:
\t
\t
manual
\t
Overall Dimension (LxWxH)
\t
mm
\t
980x290x590
\t
Weight:
\t
KGS
\t
47
\t
Chassis:
\t
\t
Skid

Main Features & Advantages

\tManual grouting, simple operation and controllable flow.
\tSingle-cylinder work, high vacuum degree, and strong self-suction capability.
\tSmall size and light weight, convenient for moving in a small space.
 Repair and maintain easily and fewer consumable parts.
\tStandard seal parts to ensure the excellent seal quality;
\tAll the units manufactured as our special design to ensure the enough strength;

\tPainted after sandblasting for a pretty appearance;

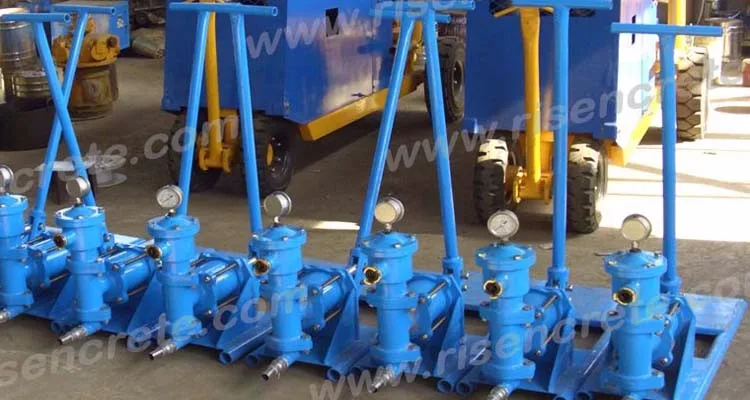

Factory Images

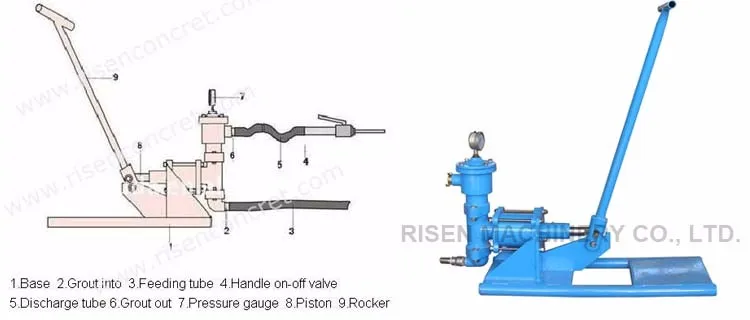

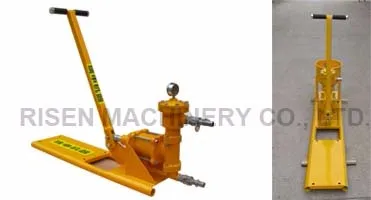

Detailed Images

Machine Parts

Name: Seal Parts (YX sealing Ring, O Ring, etc.)
Original: CHINA
RISEN used the standard seal parts to ensure the excellent seal quality

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
\t
Packaging
\t
Size
\t
1230 (L) * 320 (W) * 620 (H)mm
\t
Weight
\t
60KGS
\t



Packaging Details
\t
The normal package of one SB10 is a carton (Estimated Size: 1230 (L) * 320 (W) * 620 (H)mm ). For several sets shipped by sea, the package can be the plywood crate or according to customers special request.
\t
Packaging
\t
Size
\t
1230 (L) * 320 (W) * 620 (H)mm
\t
Weight
\t
90KGS
\t



Packaging Details
\t
The normal package of one SB10 is a carton (Estimated Size: 1230 (L) * 320 (W) * 620 (H)mm ). For several sets shipped by sea, the package can be the plywood crate or according to customers special request.
