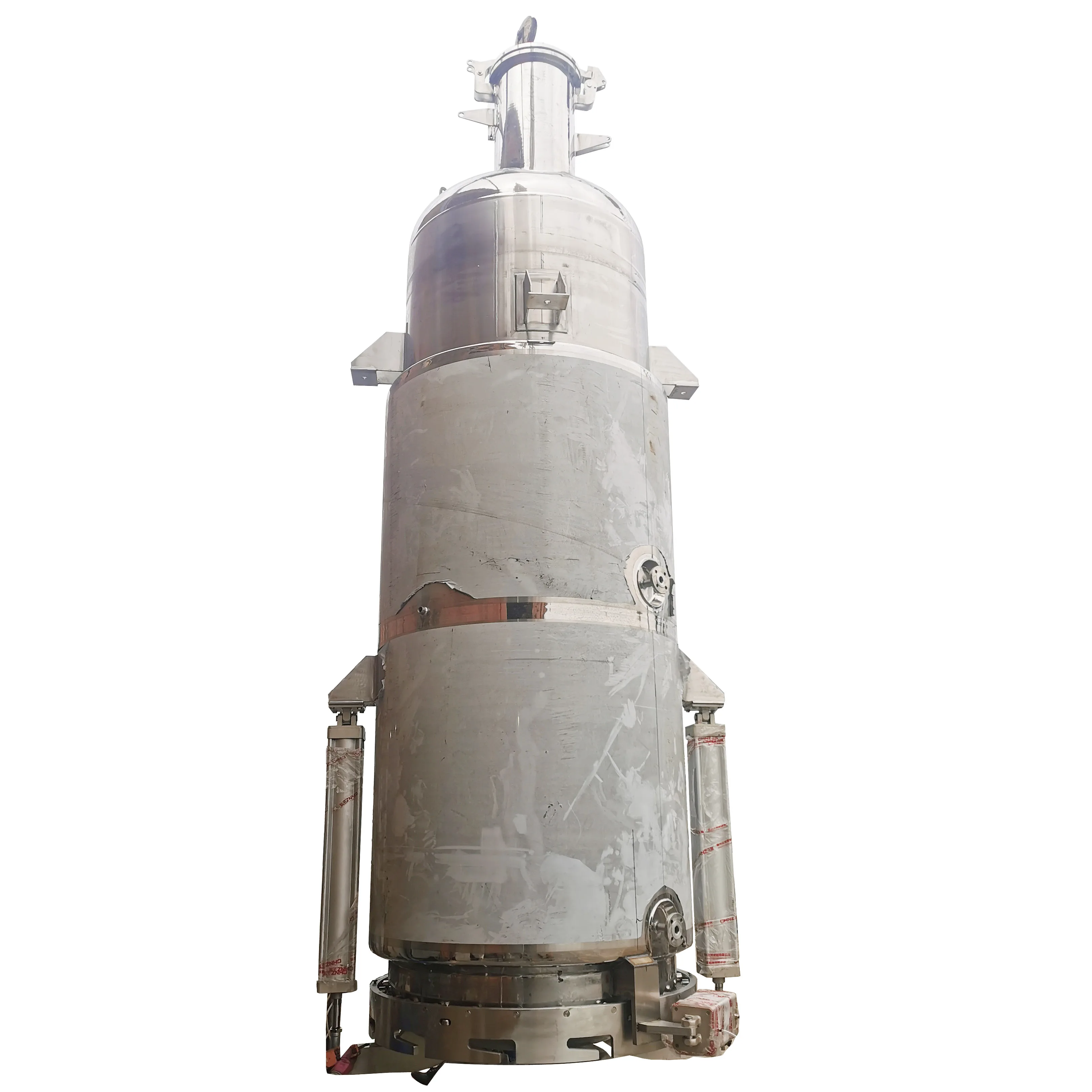

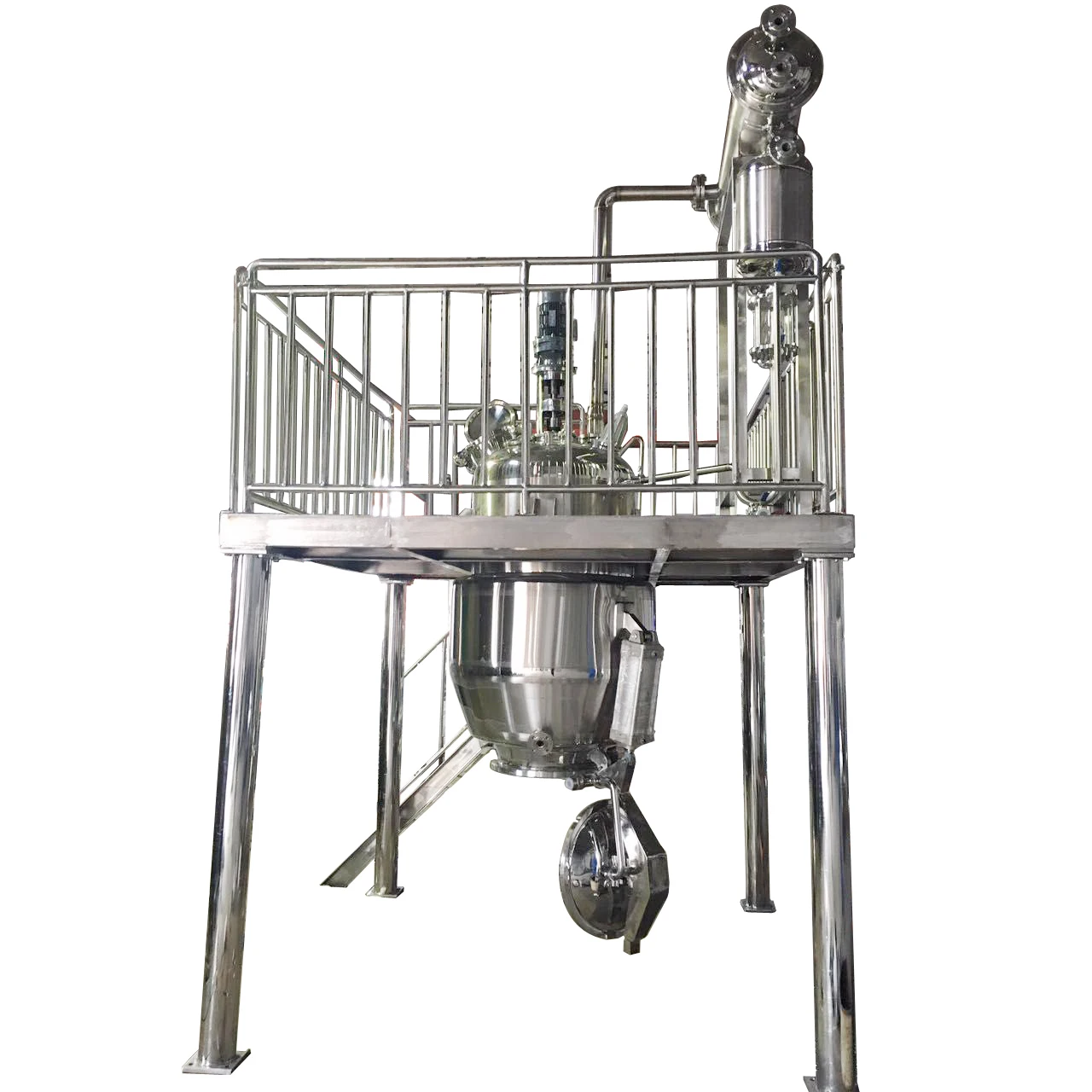

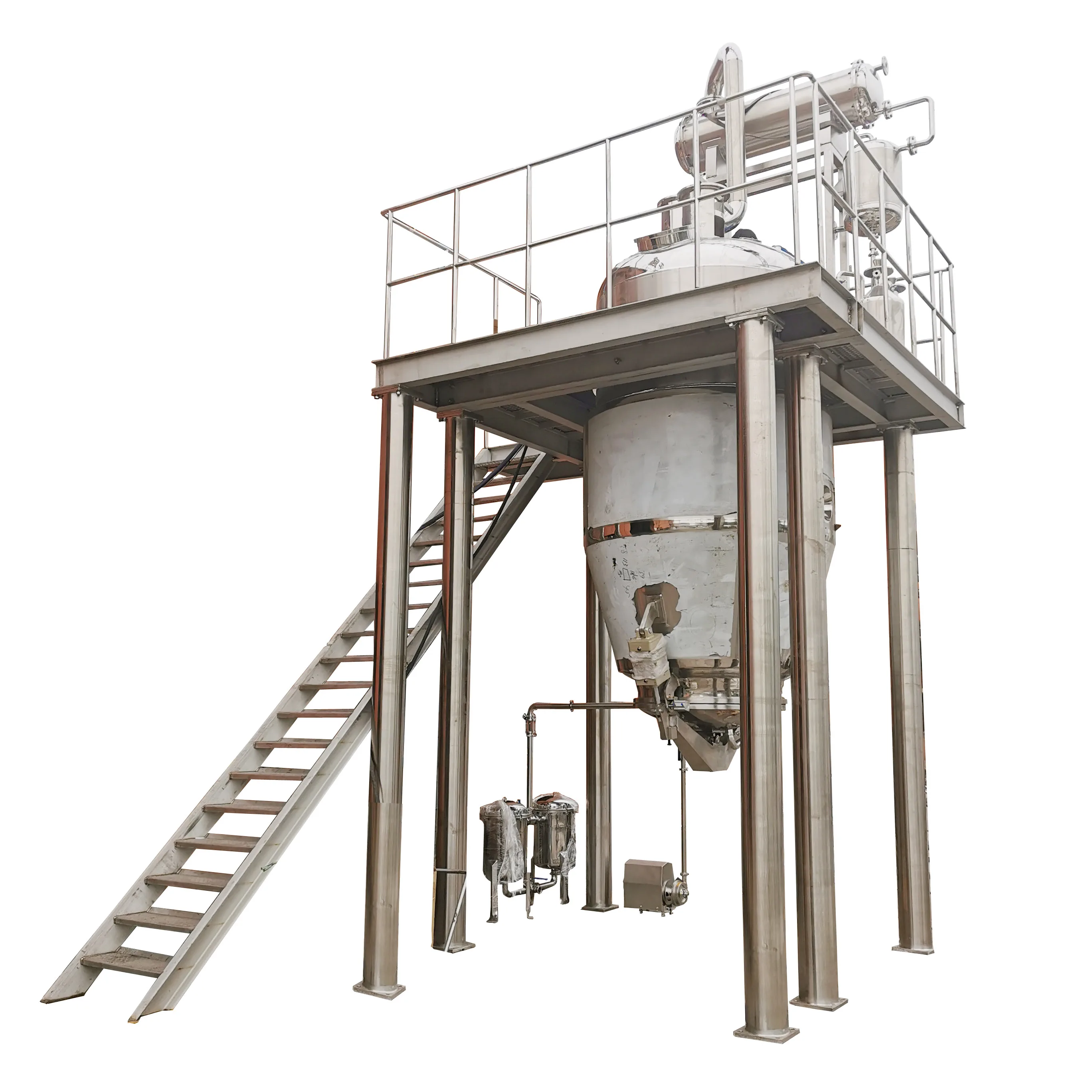

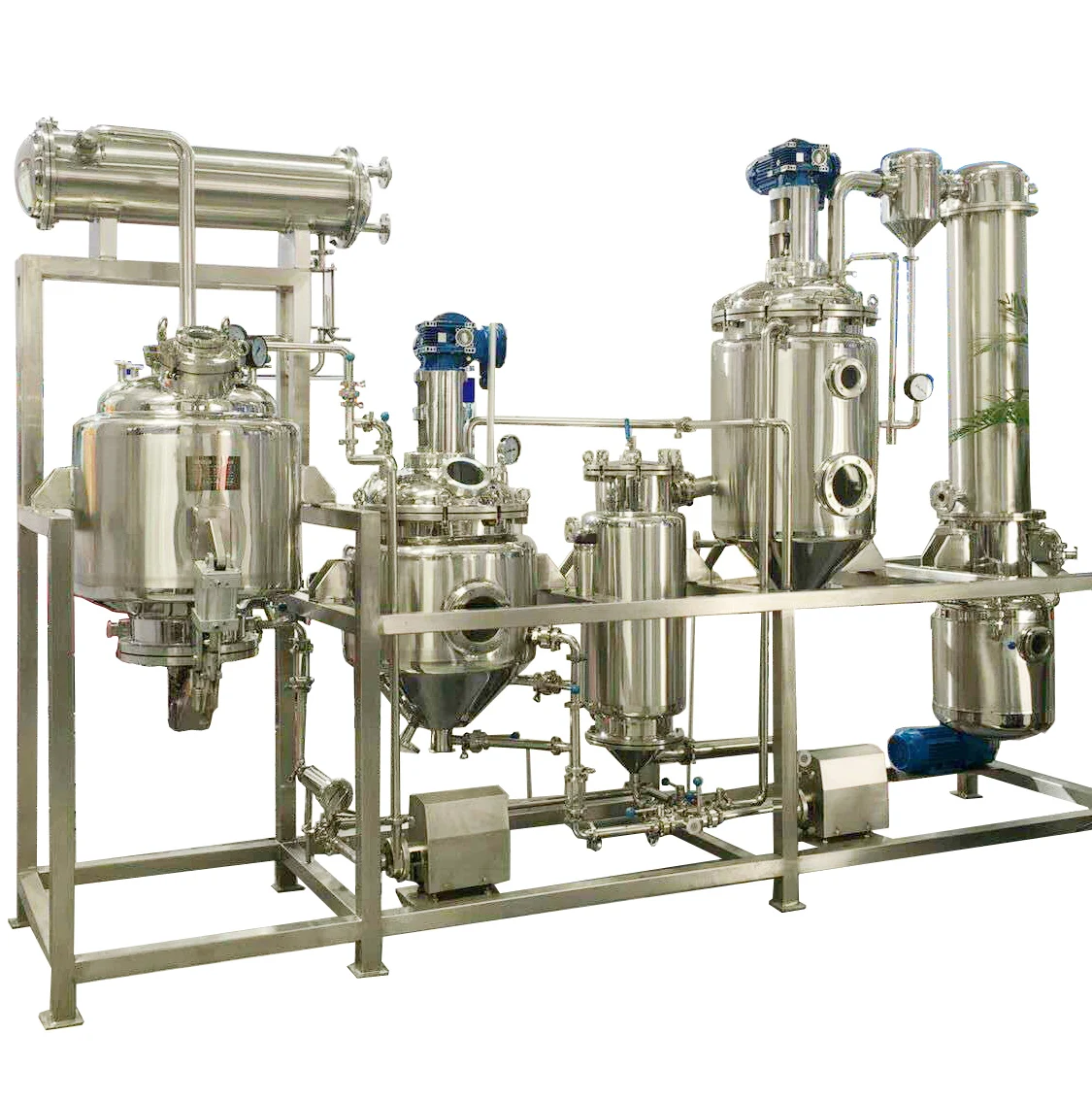

Thermal hot reflux soxhlet extraction and concentration tanks for herb and plant
- Category: Pharmaceutical Machinery >>>
- Supplier: Wenzhou Chinz Machinery Co. Ltd.
Share on (511838330):
Product Overview
Description
Products Description
Thermal hot reflux soxhlet extraction and concentration tanks for herb and plant
multi-functional thermal reflux extractor and concentor machine
1.material is SS304 and SS316L
2.capacity :1000L to 6000L
3.it can used in the water based extractor ,solvent based extractor and steam distill extractor process
4.it can distill flower oil ,herb extractor and fish oil etc .so it is the multifunctional unit

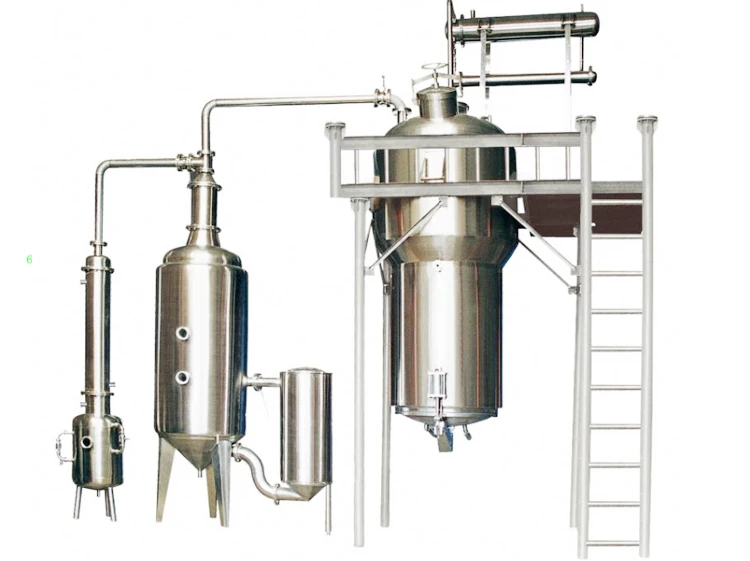

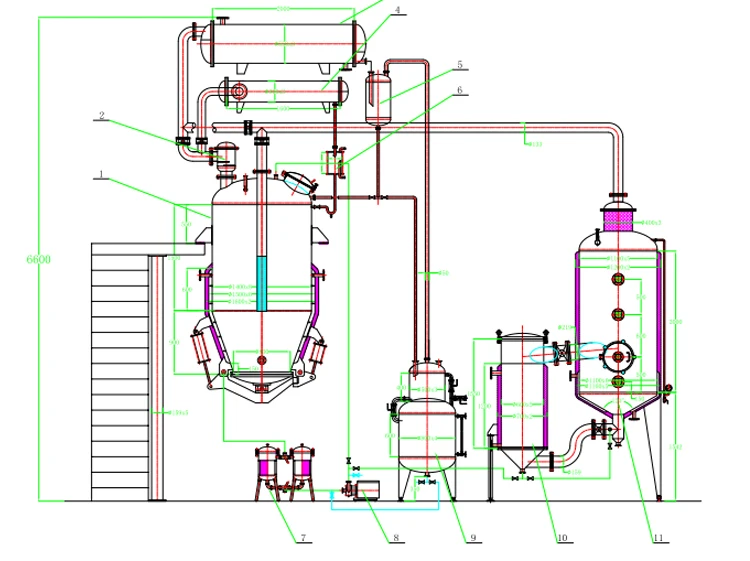

Multifunctional reflux extractor &concentrator machine is our new developed extractor &concentrator machine.This machine adopt traditional extractor ,such as common extractor ,reflux extractor ,dialocation extractor etc. Principle and combine with the external cycle concentrator.It is used widely to extractor and concentrator ,recycle in the chinese herb,food ,chemical field.This machine have the advantage of the large capacity and few solvent low concentrator temperature,high efficiency,energy-saving.
Special for the organic solvent and water extractor
The biggest advantage of this machine is 1)not only it can fit to the organic solvent reflux process,but also it can fit water
reflux extractor in the vacuum condition.2)this machine resolve the question of the reflux process under high temperature ,avoid the destroying medicine which sensitive of the temperature.
1.material is SS304 and SS316L
2.capacity :1000L to 6000L
3.it can used in the water based extractor ,solvent based extractor and steam distill extractor process
4.it can distill flower oil ,herb extractor and fish oil etc .so it is the multifunctional unit
Multifunctional reflux extractor &concentrator machine is our new developed extractor &concentrator machine.This machine adopt traditional extractor ,such as common extractor ,reflux extractor ,dialocation extractor etc. Principle and combine with the external cycle concentrator.It is used widely to extractor and concentrator ,recycle in the chinese herb,food ,chemical field.This machine have the advantage of the large capacity and few solvent low concentrator temperature,high efficiency,energy-saving.
Special for the organic solvent and water extractor
The biggest advantage of this machine is 1)not only it can fit to the organic solvent reflux process,but also it can fit water
reflux extractor in the vacuum condition.2)this machine resolve the question of the reflux process under high temperature ,avoid the destroying medicine which sensitive of the temperature.
Product Paramenters
Volume (L) | 1200 | 2300 | 3200 | 6300 | 8500 | 11000 | |||||
Design Pressure in the Tank(Mpa) | 0.09 | ||||||||||
Design Pressure in the Jacket(Mpa) | 0.3 | ||||||||||
Diameter of Feeding Inlet(mm) | 400 | 400 | 400 | 500 | 500 | 500 | |||||
Heating Area (m²) | 3 | 4.7 | 6 | 7.5 | 9.5 | 12 | |||||
Condensing Area (m²) | 1 | 1 | 1.5 | 2 | 2 | 3 | |||||
Cooling Area (m²) | 6 | 10 | 12 | 15 | 18 | 20 | |||||
Filtering Area (m²) | 3 | 3 | 3 | 5 | 5 | 6 | |||||
Diameter of Drainage Door (mm) | 800 | 800 | 1000 | 1200 | 1200 | 1200 | |||||
Energy Consumption (kgs/hr) | 245 | 325 | 345 | 645 | 720 | 850 | |||||
Equipment Weight (kgs) | 1800 | 2050 | 2400 | 3025 | 4000 | 6500 | |||||

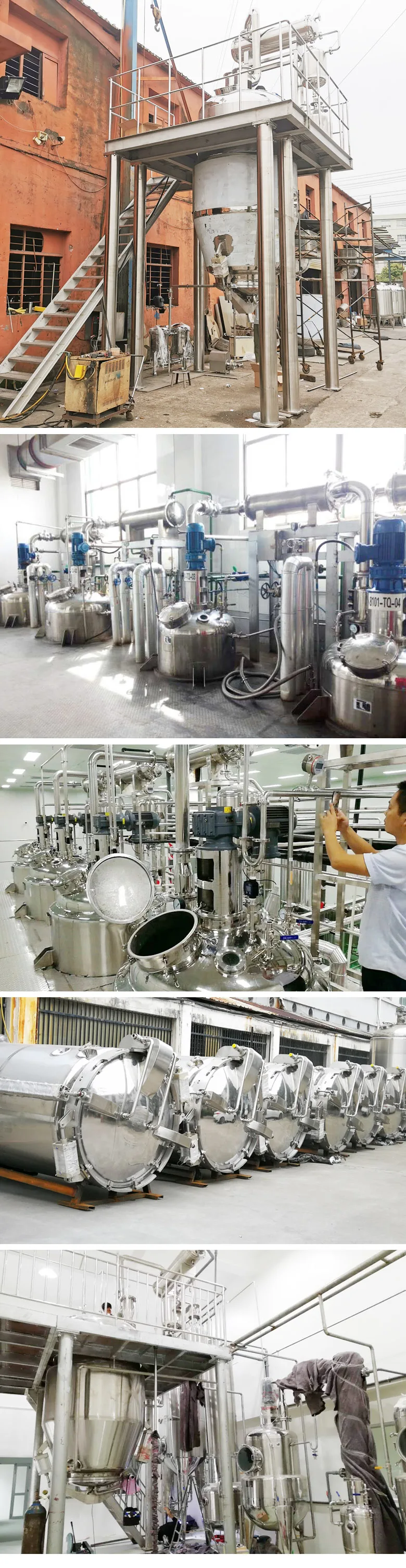

Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents.
Product packaging
Exhibition
FAQ
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
