High speed pneumatic feeder

Product Overview

Description

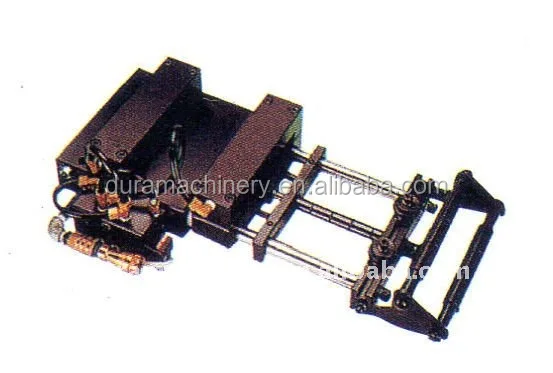

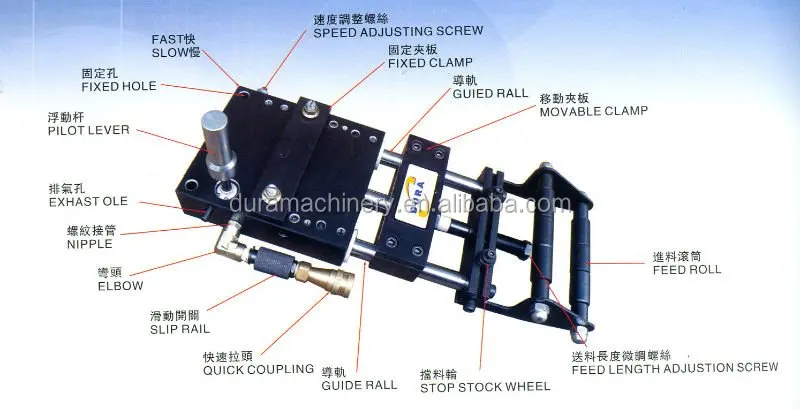

High speed pneumatic air feeder



1. Type of feeder: Standard type, E-type, Standard & R type; E & R type
2. Applicable feeding material: metal strip, tape, plastic strip
3. A buffer is equipped on the models over AF-3C.

Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and it‘s for all industrial production.

Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines.

If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.



Technical Specifications



Model	AF-1C	AF-2C	AF-3C	AF-4C	AF-5C	AF-6C	AF-7C	AF-8C	AF-10C	AF-12C	AF-14C
Width Max.(mm)	50	65	80	100	150	200	250	300	400	500	600
Length Max.(mm)	50	80	80	130	150	200	250	300	400	500	600
Thickness(mm)	0.5	0.8	1.2	1.5	2	2	2.5	2.5	3	3	3.5
Air press(kg/cm2)	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5	4.5
Speed Max.(times/min)	200	160	150	93	80	60	48	40	30	23	20
Weight(kg)	8.8	9.6	12.8	19.6	38.4	52.4	80	95	178	240	200

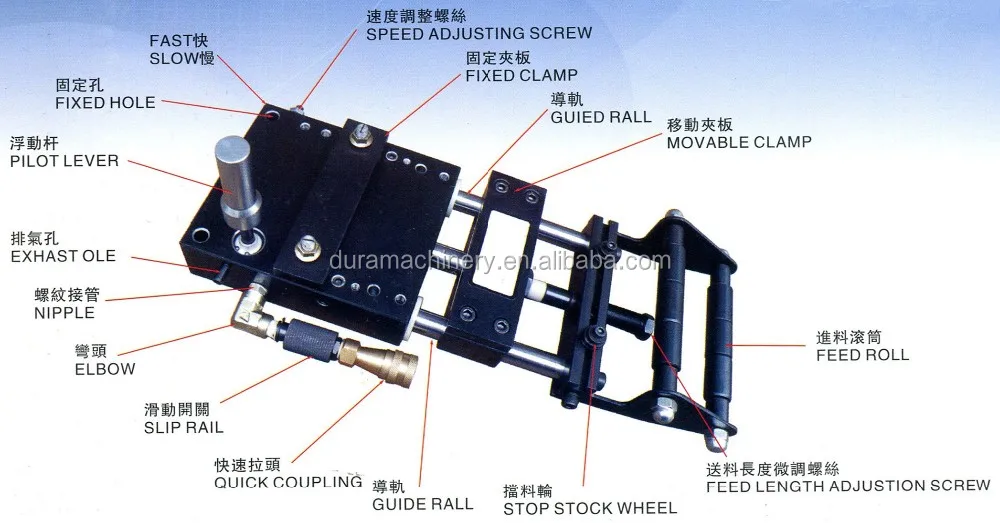

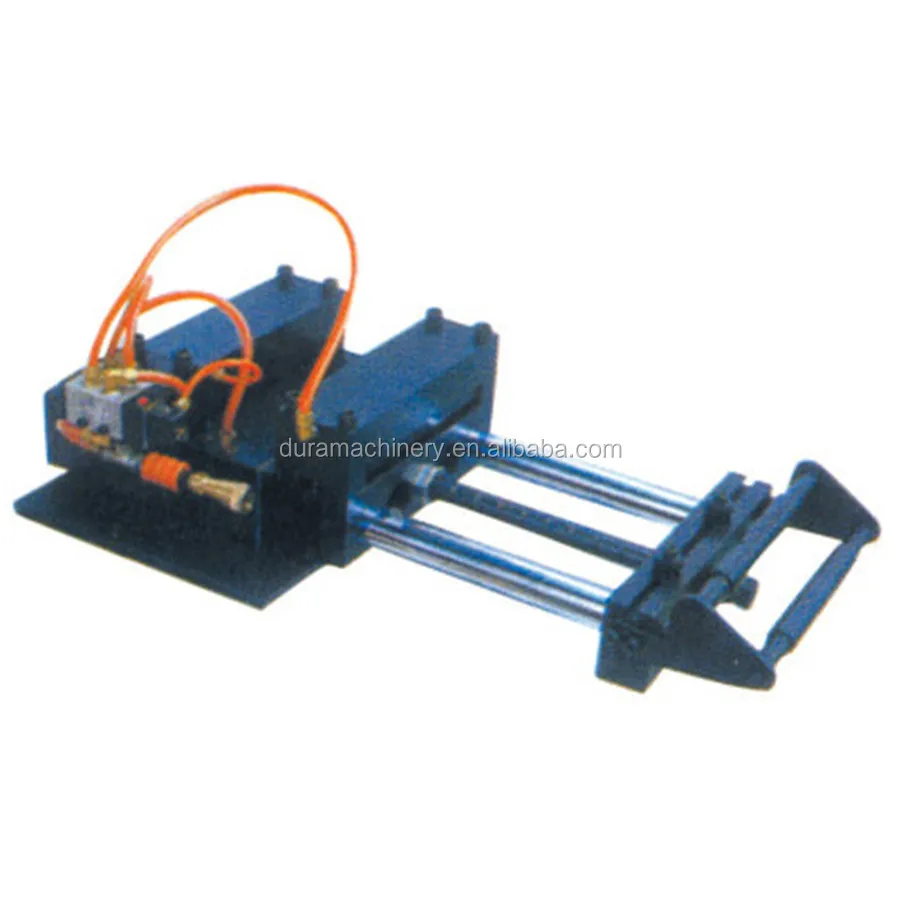

(Standard Type)

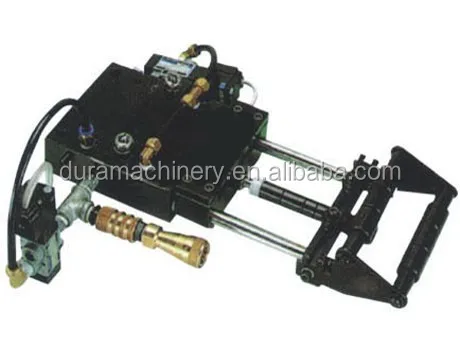

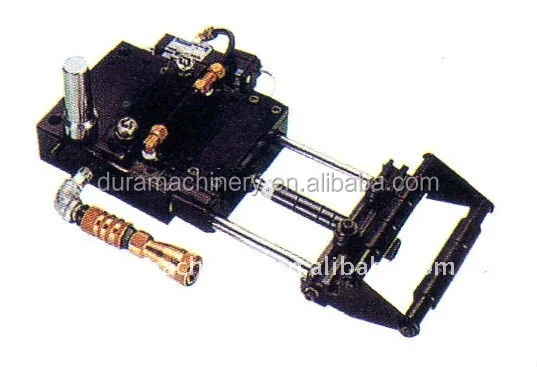

(E&R Type)
