Vibratory Deburring Bowls Finishing Machine
US $750.00-$800.00
Large vibratory descalling tumbling finishing machine
- Category: Metal Polishing Machine >>>
- Supplier: Huzhou Xingxing Abrasive Co. Ltd.
Share on (512159072):
Product Overview
Description
Product Description
It is mainly used for deburring, removing rust, rounding and polishing all sorts of metals, non-ferrous metals and non-metals parts. The workparts after surface finishing, not only remain the shape accuracy of the original state, but also improve the precision of surface roughness of parts. vibratory polishing machine
SPECIFICATIONS FOR VIBRATORY FINISHING MACHINE XXZP-AB650X | ||||||
Vibratory Finishing Machine | Machine Type | XXZP-AB650X | SET | |||
Motor | 7.5 | KW | ||||
Motor Speed | 1450 | RPM | ||||
Main parameters | Machine Size | 1910*1850*1420 | MM | |||
Process Vessel Volume (L) | 650 | L | ||||
Process Vessel Width & Depth | 400X500 | MM | ||||
Other information | Lining | PU lining | PU | |||
Lining thickness | 20-25 | MM | ||||
Voltage | 220V-440V | 3 Phase | ||||
Detailed Images
Product Application & Features
1. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
2. Applicable to process small and medium size workparts in large amount load, with good finish effect and short time needs for processing.
3. No damage to the original shape and size of the workpart.
4, The processing vessel interior surface is lined with PU (polyurethane), avoiding direct damage to the workparts and machine metal, and working life for the machine is extended.
5. Random checking the workparts in the finishing process, easy operation. Option to choose the independent electrical box with converter.
6. A type and AB type machine has the function of separating the workparts and emdias automatically after finishing process. Vibratory polishing machine

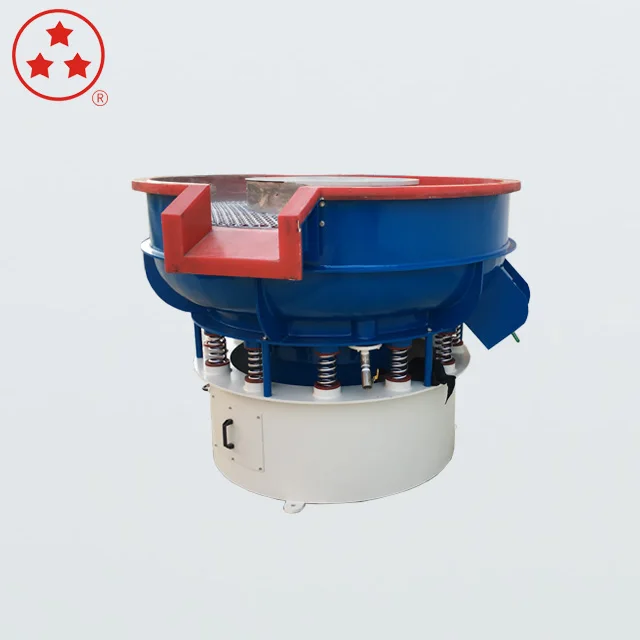

Vibratory Finishing Machine
Name: Vibratory Finishing Machine
Code: XXZP-AB650X
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory finishing machine.
2. Stress relief welding required, heavy duty structure design.
3. Adoption of vibratory motor to produce vibratory force, it makes workparts and medias move in one direction and mass finished interactively in the processing vessel to accomplish the surface improvement.
4. Similar outlook style design as international brand.
5. With independent control panel available.
6. The machine bowl is with floor drain design.
Name: Vibratory Motor
Brand: Xingxing
Original: Zhejiang, China
Brand: Xingxing
Original: Zhejiang, China
1. CE certified vibratory motor.
2. China-Germany joint venture manufacturer made quality product, with consistant reliable quality.
3. With motor fan shape shafts, the intersection angle can be adjusted with the reading of point marks on the shaft. EASY FOR MOTOR VIBRATING FORCE ADJUSTMENT.
4. The motor is capable running the common ceramic medias and metallic medias.
Brand: Xingxing
Original: Zhejiang, China

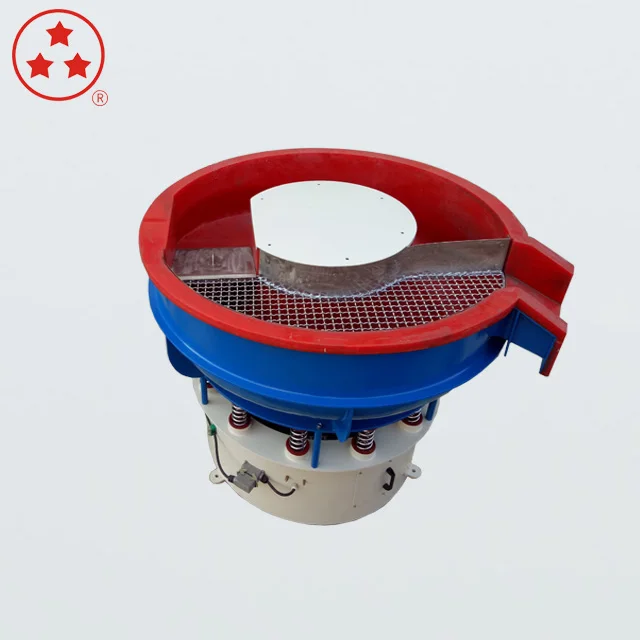

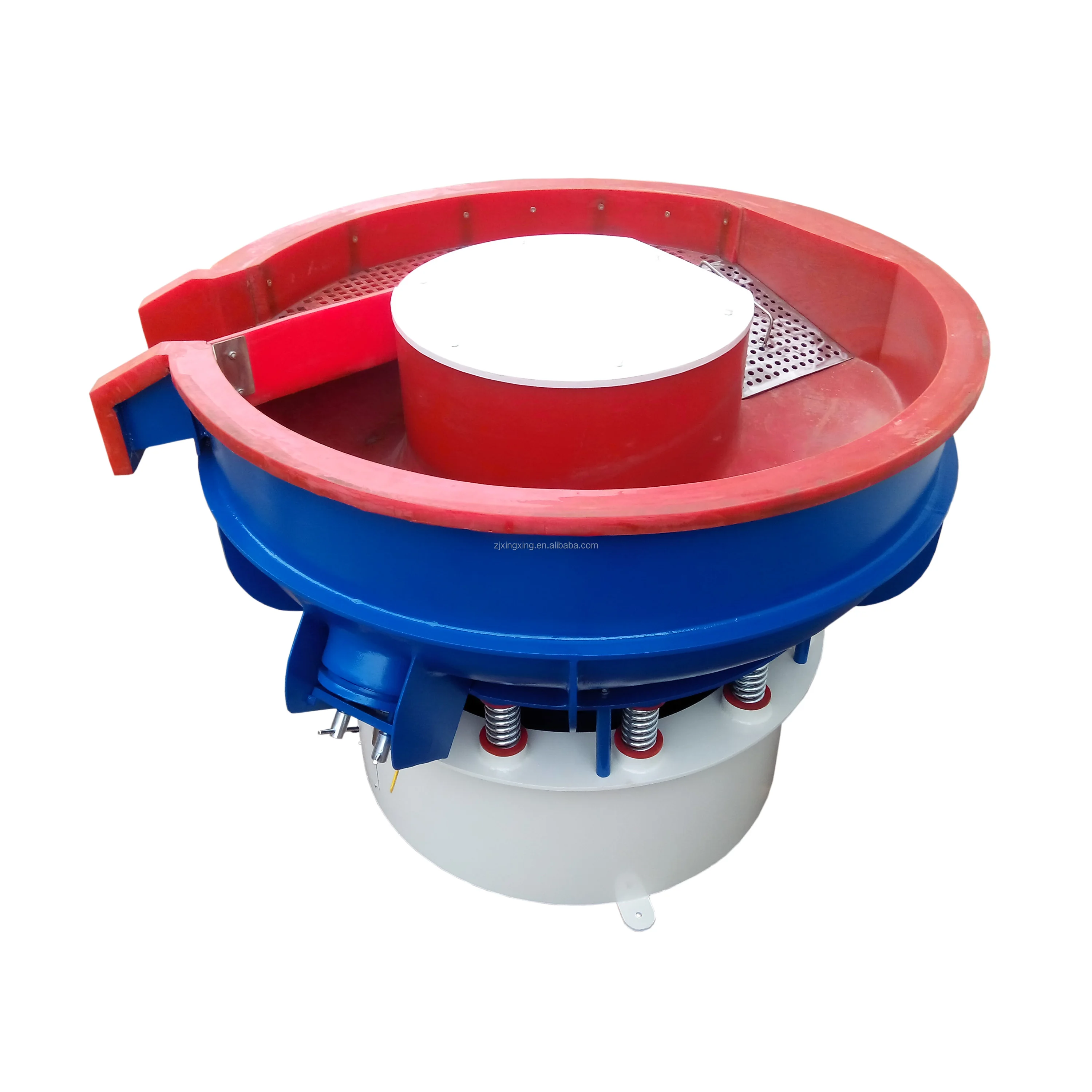

1. The main machine is consist of upper bowl and basement.
Original: Zhejiang, China
1. The main machine is consist of upper bowl and basement.
2. The upper bowl is with work channel which is with PU(polyurethane) lining.
3. The work channel with depth as 500mm,width as 400mm.
4. The PU lining thickness with 20-25mm, to ensure the PU lining wear life time.
5. The sperator of machine can be customized as per the workpart's special size, such as S.S. wire mesh type, PU separator and Nylon board separator type.
Name: Basement design
Original: Zhejiang, China

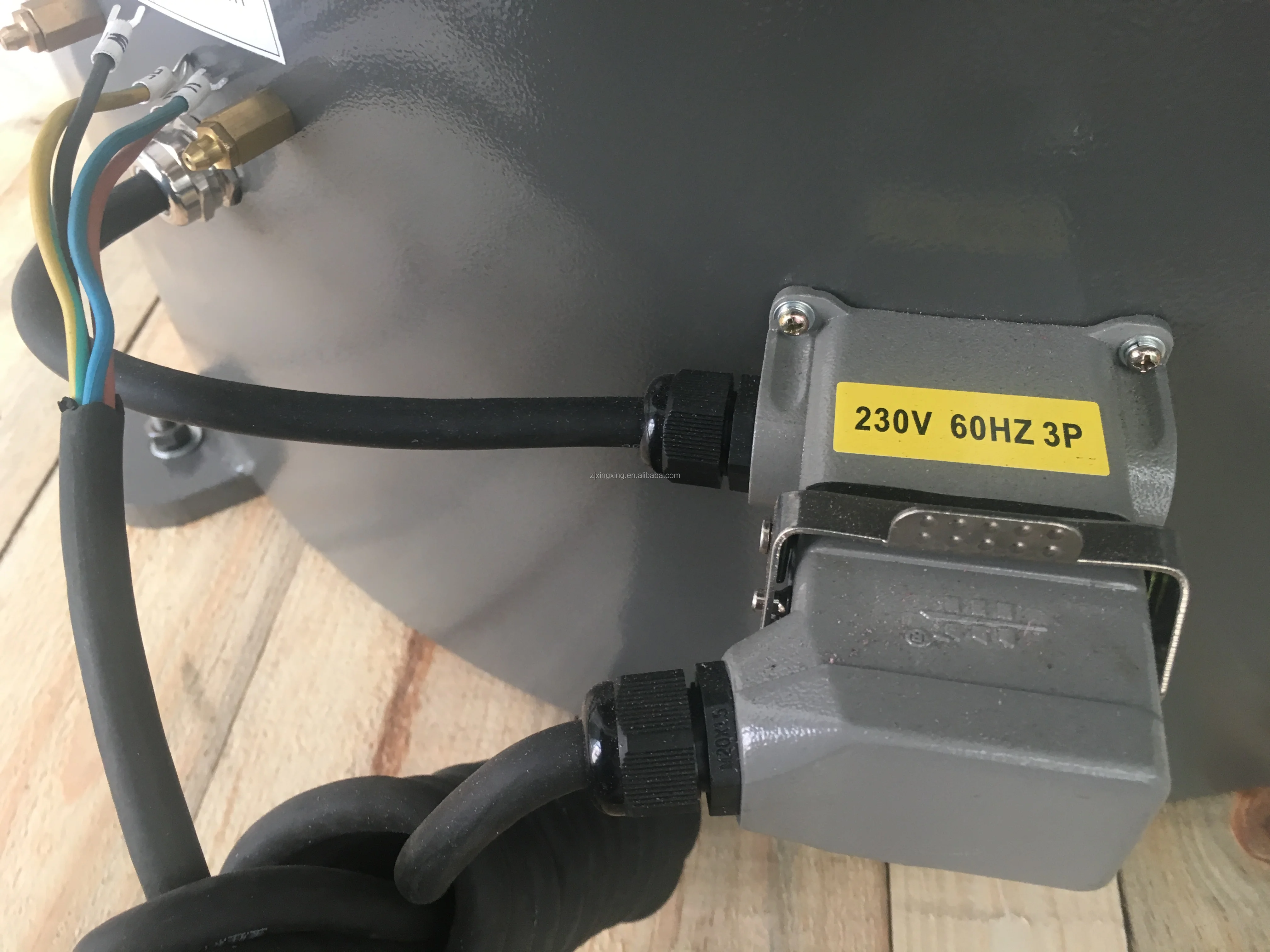

1. Designed with easy cable connection, easy for maintenance.
1. Designed with easy cable connection, easy for maintenance.
2. There is no need to change the cable from to motor terminal box if external cable damage.
3. Cable switch is waterproof.
4. With motor greasing holes outlet, easy for maintenance.
5. With cable wires marked clearly, safe for connection.
Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage2. WITHOUT Inverter (Taiwan brand) installed inside.
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter, we also can supply the panel with inverter, panel with inverter and auto dosing for different
options.
Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage
1. With Safe DC24V control voltage
2. With Inverter (Taiwan brand) installed inside.
3. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter, we also can supply the panel without inverter, panel with inverter and auto dosing for different options.

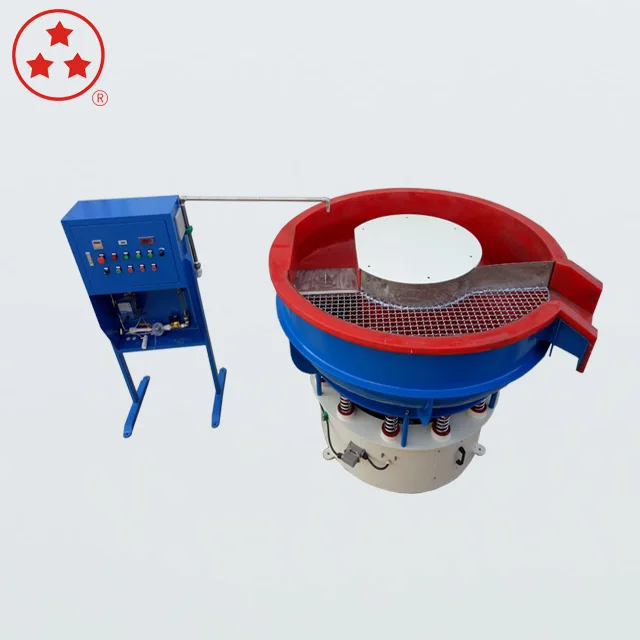

Name: Independent control panel
Original: Zhejiang, China
1. With Safe DC24V control voltage2. WITH Inverter (Taiwan brand) installed inside.
3. WITH AUTO DOSING SYSTEM installed, Italy brand dosing pump.
4. With Emergency button installed for emergency usuage.
4. With Timer to set the running time.
5. Besides the panel with inverter and auto dosing fuctions, we also can supply the panel without inverter and dosing, it depends
on customers' actual applications.
Related Products
Packing&Shipping
Packing:wooden case
Suitable for sea shipping
Certifications
After Sales Service
Our company pays great attention to quality problems. In case of quality problems, you can discuss with us.
we offer perfect surface finishing technology!
Company Introduction
The company has been awarded province and municipal titled " Excellent Technology Advancement"
for several times. The company has set up a strict quality assurance system, it passed the ISO:
9001:2000 in 2004, and CE certification in 2008.
The company mainly has three production workshops for mass finishing machinery, mass finishing
media, and compound, which are integrated to offer our customers with complete mass finishing
solutions. The company has a variety of finishing machines available in five categories: Vibratory
finishing machine, Centrifugal barrel machine, Centrifugal disc machine, Rotating barrel machine,
and shot blasting machine.
There are three series of mass finishing medias as ceramic media, plastic media, special media, and
more than thousand specifications.
In addition, Xingxing Abrasive also supply 12 kinds of polishing compound for mass finishing solutions.
The mass finishing product serves every sector of modern industry, such as aviation, automobile,
motorcycle, engine, compressor, textile machinery, alloy metal, non-metal workparts,, magnetic
products, and decorations, etc
