UNIPOL802 AUTOMATIC PRECISION GRINDING/POLISHING MACHINE

Model:

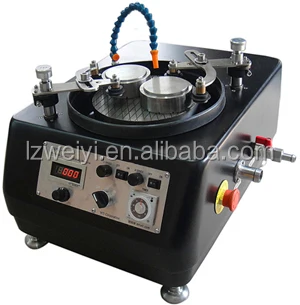

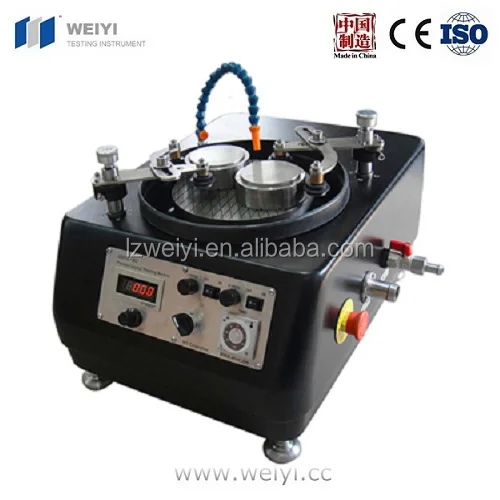

UNIPOL-802 Auto Precision Grinding/Polishing Machine

Brief

Introduction:

UNIPOL-802 Auto Precision Grinding/Polishing Machine is a new generation product specialized processing crystal, ceramic, metal, rock, mineral, refractories, PCB board, composite material. It equips with the 203mm diameter grinding and polishing plate and two working positions, can grind and polish diameter ≤80mm or rectangle flat surface.

Main Feature:

 1. Super flat polishing disc(flatness is each one 25×25mm less than 0.0025mm)
 2. Super accuracy rotary shaft(Tray runout less than 0.010mm)
 3. Working position:2pcs
 4. Digital display stepless speed adjustable

 5. Automatic stop timer
 6. Can choose automatic slurry feeder or circulating pump

Technical

Parameter:

 1. Grinding disc rotary speed:0—125(250)rpm
 2. Working position:2pcs
 3. Sample holder plate swing:0-9time/min
 4. Dia.grinding disc:203mm
 5. Dia.sample holer:80mm
 6. AC power supply:110/220V, power:300w
 7. Tray runout:0.02/100mm, Timing:0-99.99H
 8. Stepless speed adjustable, mechanical arm can swing.

Specification:

Size:580×420×350mm     Weight:68kg

Standard

Accessories:

Optional

Accessories :

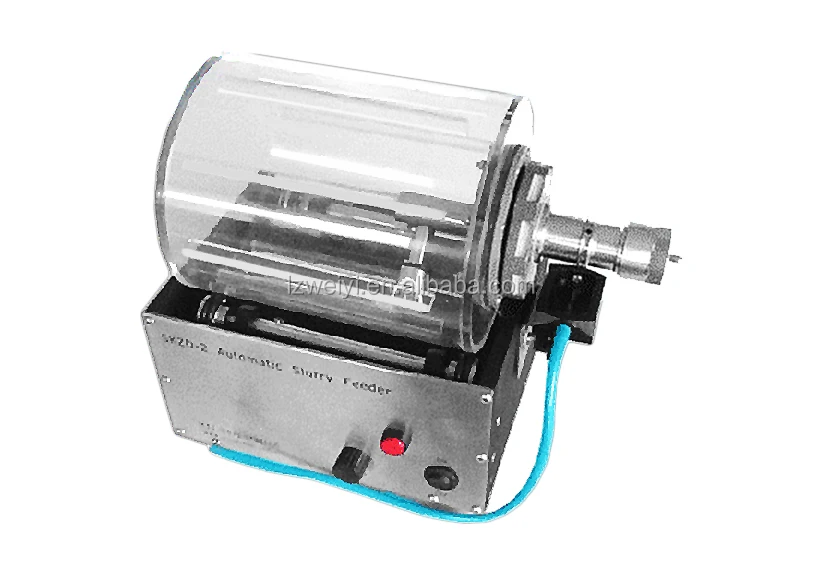

 1. SKZD-2 Automaticslurry feeder
 2. YJXZ-12 Cutting coolant circulating tank with pump

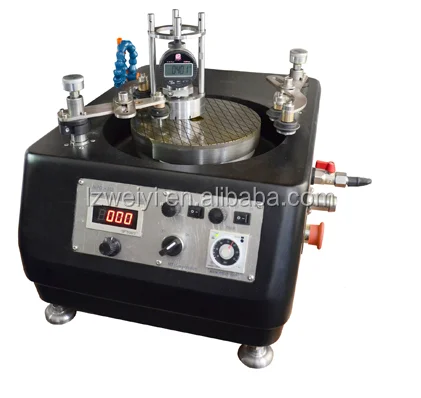

 3. GPC-50 Polishing fixture for precision / automatic thinning and polishing
 4, "00" Precision Thickness checker
 5. SKZD-3 Automatic slurry feeder
 6. Ceramic grinding disc
 7. Glass grinding disc
