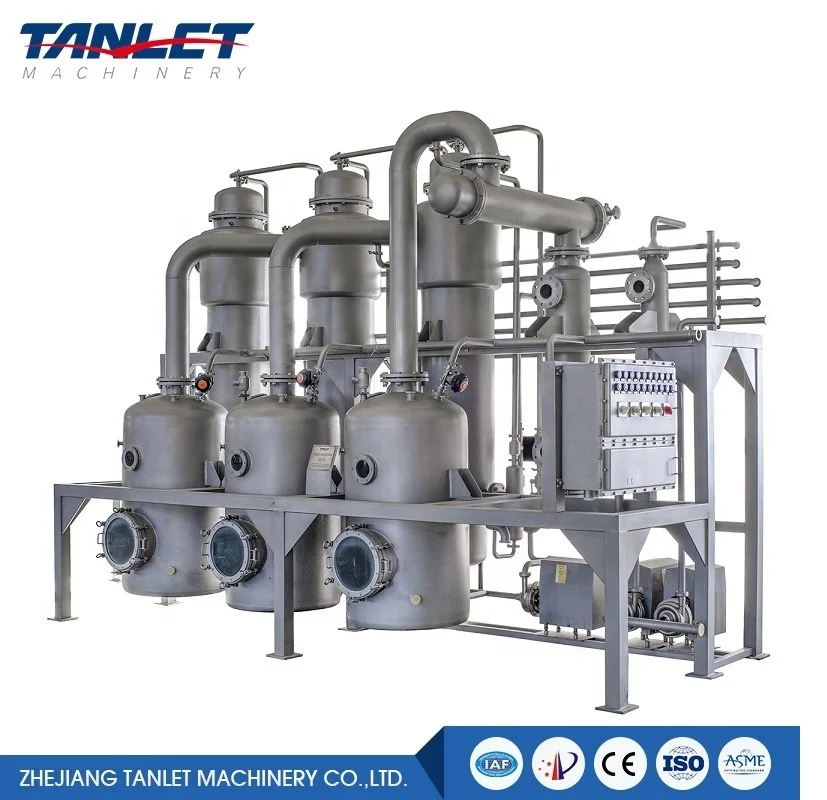

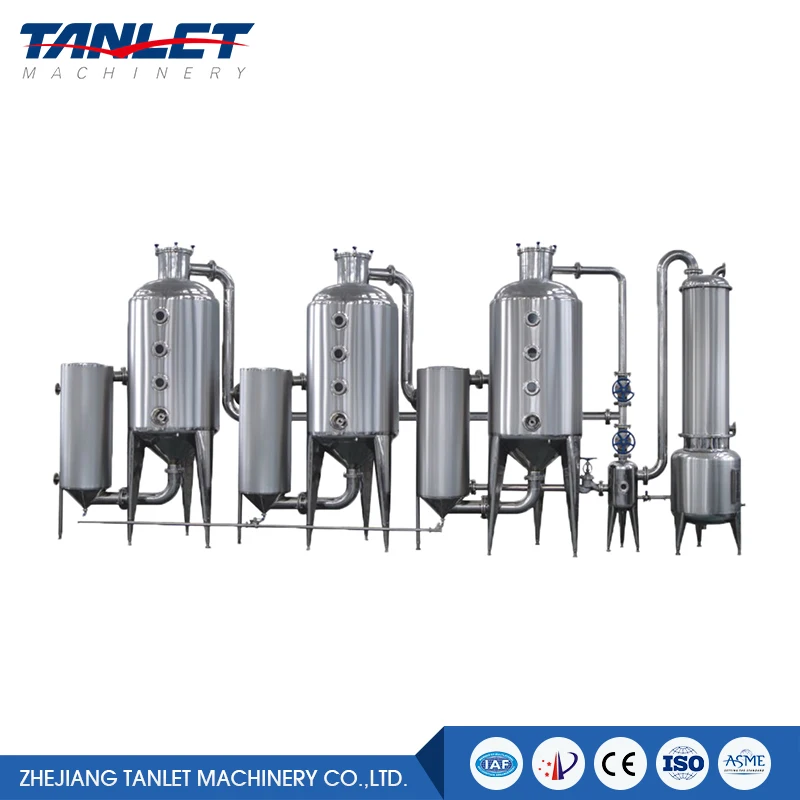

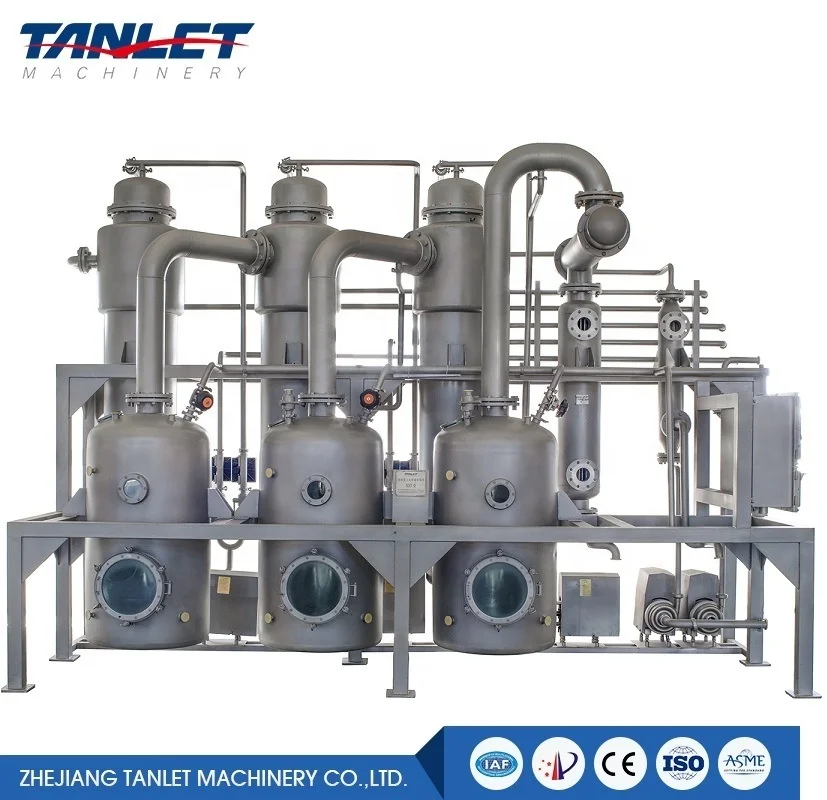

beverage and herbs evaporator pharmaceutical machinery plant medical equipment Triple Effect Concentrator (51584297)

Share on (51584297):


Price:$18,000.00 - $20,000.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description






Usage:


The Triple-effect Concentrator serves for the concentration of Chinese traditional medicine, western medicine, starch sugar, milk products, etc, especially suitable for the low-temperature vacuum concentration of thermal sensitive materials. After our company have precisely measured, designed and improved, it is more effective than the prior one. The customer can choose the concentrator of the technologyparameter list according to the concentrating capacity.





Features:


1.The energy-saving benefit of the machine is worth of RMB 200.000 compared with that of the single-effect one. For example, the SJN-1000 type, the saved energyincludes vapory of about 5,000 tons, the cooling water of about 100,000 tons.





2.The concentrator adopts the vaporization method of minus pressure outer thermal
natural cycle, which features rapid vaporization and large specific gravity of1.4 (generally Chinese traditional medicine immersed cream).





3.The concentrator adopts dual-effect simultaneous vaporization that leaves the secondary utilized. Compared with the dual-effect concentrator, the energy consumptionlowers about 70%. The profit from the energy saving of less than one yearis equal to the whole investment on the machine.





4.Operation characteristic of multi-function:


(1) The concentration of alcohol recycling is about eighty percent.


(2) The repeated united cream receiving is availableto the single-effect, dual-effect and triple-effect.


(3) The intermittentand the continuous feeding are available.





5.The concentrator has special structure. The concentrating material has features of thick taste, uniform ointment quality. The material is concentrated under the seal condition without bubble, so triple-effect concentrator can avoid the leakage of the material, save the labor and alleviate the pollution.


And it is hard to coking and convenientto clean. You can only open the upper and lower cover of the heater for cleaning.



6.The contact part of the concentrator and the material is made of the stainless
steel, according with the standard of GMP. The outline is beautiful.





7.There is a thermal keeping layer in the heater and evaporator. And the surface is matted of stainless steel.





Main Parameter





























































































ModelSJN-III-500SJN-III-1000SJN-III-1500SJN-III-2000SJN-III-3000SJN-III-5000
Max Evaporation Capacity (kg/h)50010001500200030005000
Steam Pressure (Mpa)0.3-0.09
Steam Cost (kg/h)≤200≤400≤600≤800≤1200≤2000
Cooling Water Cost (T/h)51013151825
Dimensions (mm)L500065007000750078008000
W130015001700200020002000
H300033003500400040004000
 Vacuum Degree (Mpa)Evaporating Temp. (oC)
First Effect-0.0485
Second Effect-0.0675
Third Effect-0.0865
