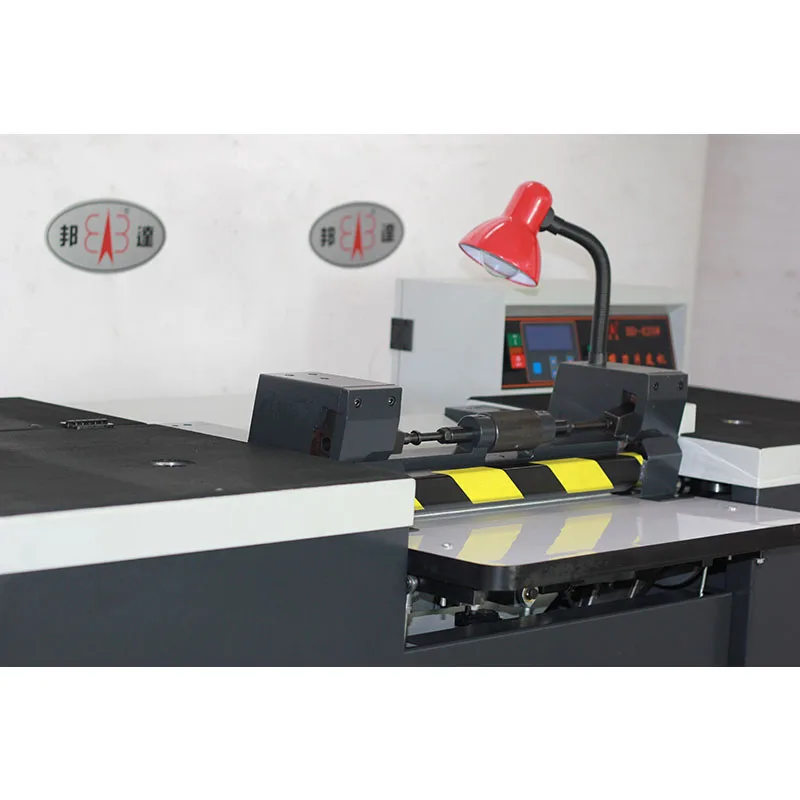

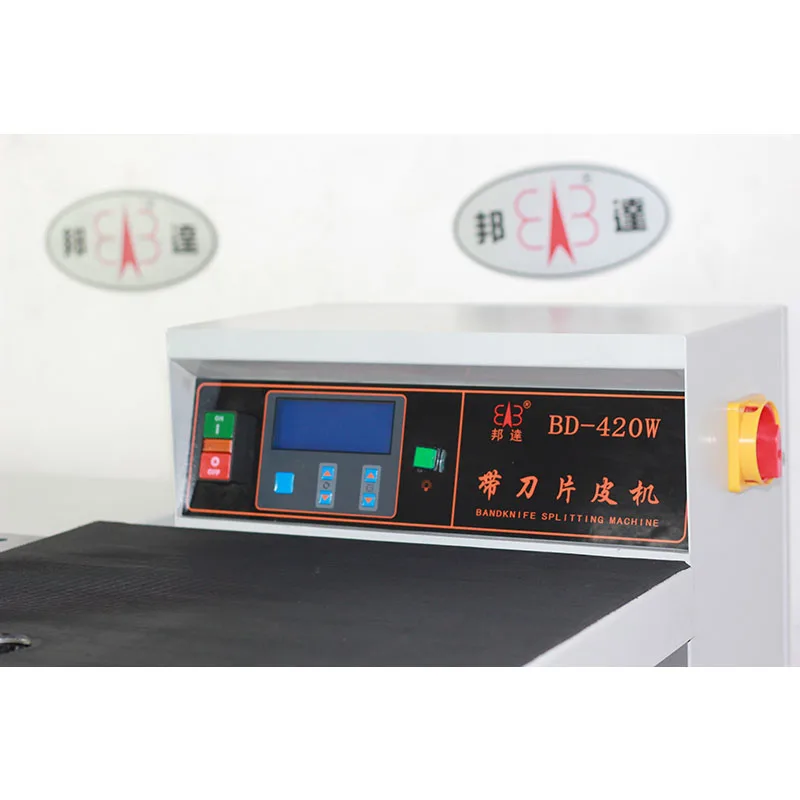

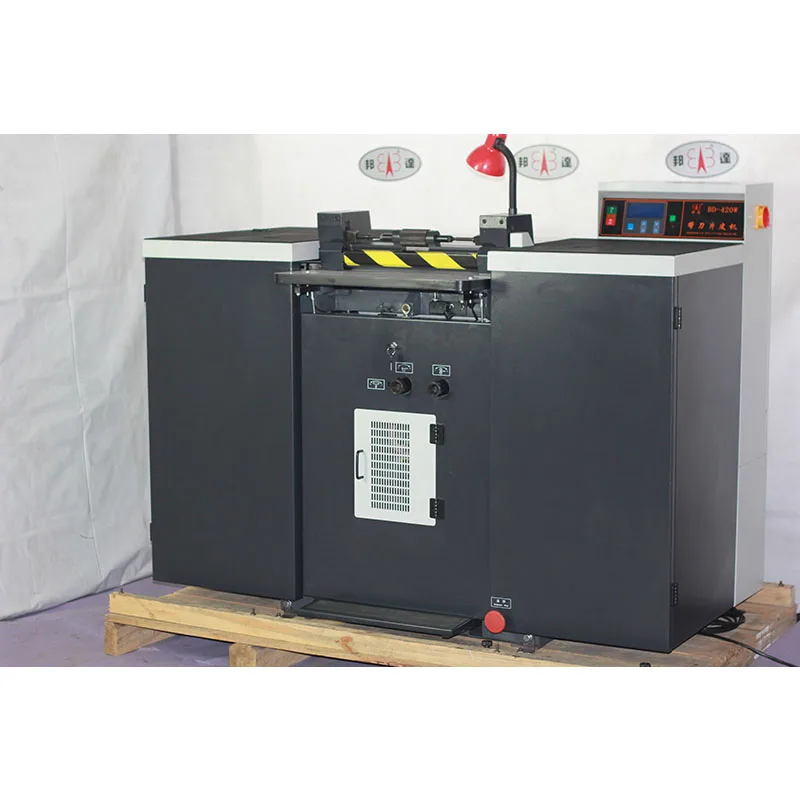

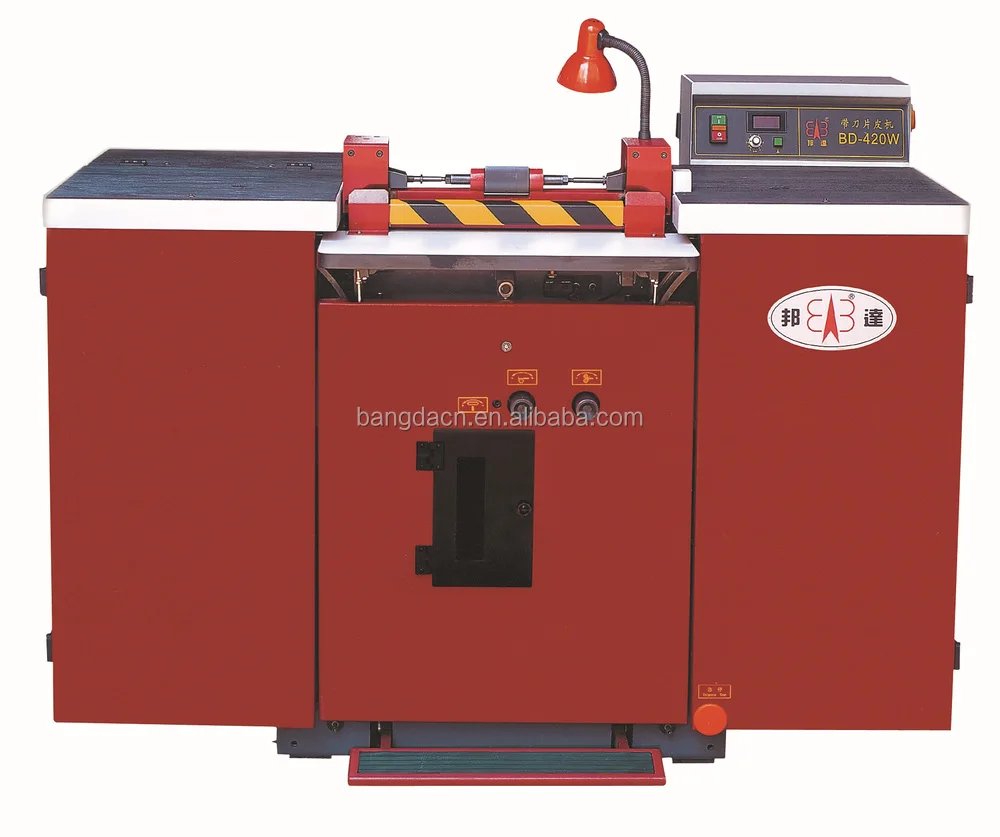

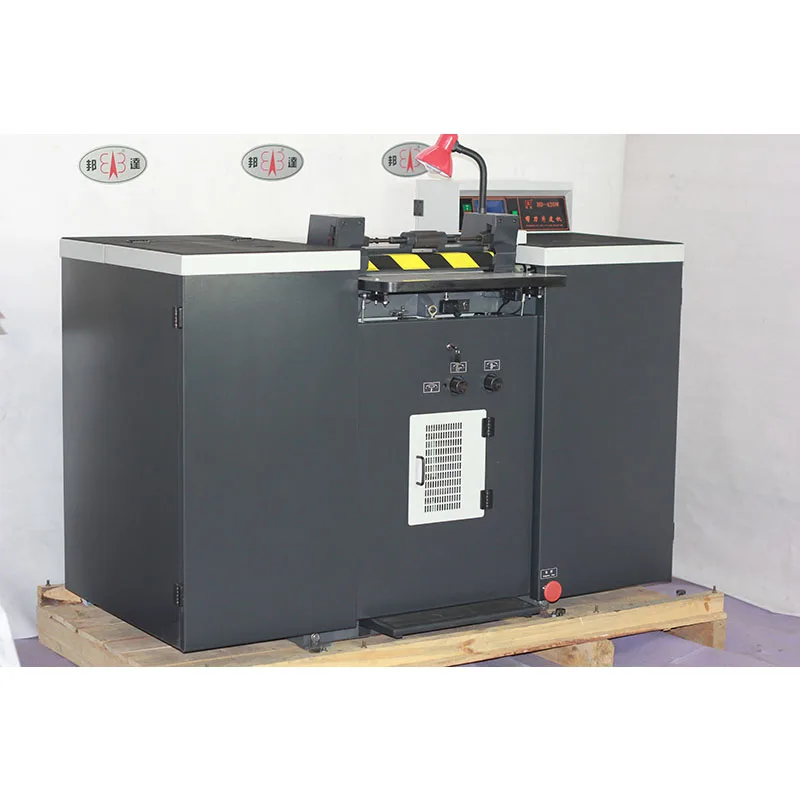

420mm Width PLC Band Knife Leather PU PVC Splitting Machine BD 420W
- Category: Leather Production Machinery >>>
- Supplier: Zhejiang Juda Machinery Co. Ltd.
Share on (517129465):
Product Overview
Description
backwards gear, little in error just 0.01mm
use |
The machine adapts to splitting the hard or soft leather symmetrically, which the width is less than 420mm and the thickness is less than 8mm, according to the required thickness in the industry of leather products. It can adjust the splitting thickness freely, improve the quality of products and strengthen the competitivity of markets. |
CHARACTERS |
1.Indicate the spliting thickness by number Four-step speed of regulation of feeding. 2.The automatic feed registration decive,don't need to adjust cutting tool. 3.Automatically adjust the pressure pad clearance of cutting tool to make the splitting precision higher. 4.Independent duster of scurf and knife gringing dust 5.Automatic stop systerm when leather material entangling 6.Automatic detection systerm of electronic phase. 7.Finger safe guard of 8mm thickness 8.Can split various leathers and adjust the presure of splitting freely. 9.The exact rail makes the movement of fly wheel more reliable and the replacement of band knife more easy, quick and convenient. |

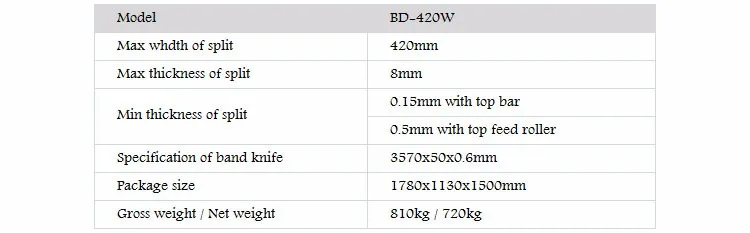

PARAMETER | |

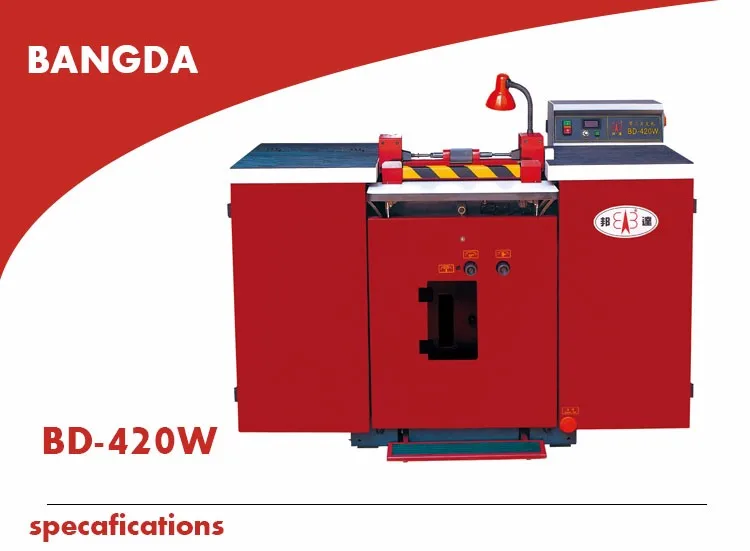

Model | BD-420W |
Max width of split | 420mm |
Max thickness of split | 8mm |
Min thickness of split | 0.15mm with top bar |
0.5mm with top feed roll | |
Feeding speed | 1-20m/min |
Specification of band knife | 3570×50×0.8mm |
Power of motor | 3.5Kw |
Exterior size | 1600×960×1420mm |
Packing size | 1800×1230×1540mm |
Net weight | 720kg |
Gross weight | 890kg |
