DF BED (FIXED FLUIDIZED BED) FIBER DISK CELL CULTURE BIOREACTOR STAINLESS STEEL TYPE (517266804)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description





Product Description





ModelCELLIPOWER08 SYSTEM
Working volume5L-300L
Filling volume65-80%
MaterialWetted parts are SS316L, and others is SS304.
Stainless steel part finishinside surface is 0.28-0.6μm by mechanical polishing, ( passivation or electropolish are optional)
outside surface is 0.4-0.8μm by satin finish.
PressureWorking pressure inside vessel:0.2mpa
Design pressure inside vessel: 0.25mpa
Working pressure inside jacket:0.3mpa
Design pressure inside jacket: 0.35mpa
Pressure can be also designed according to client’s detail requirement.
Agitation1.Fermentor use top servo motor or SEW decelerator, or bottom ABB motor
2.top mechanical agitator or bottom magnetic agitator l
3.speed range:50-400rpm

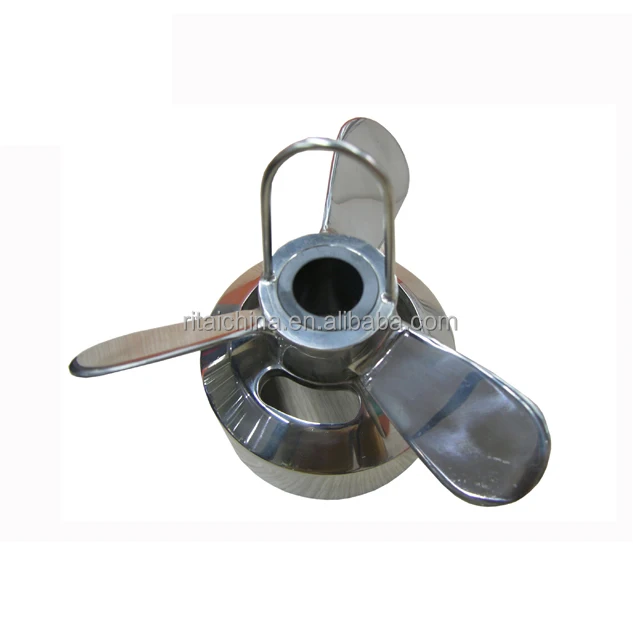

4.FIXED-FLUIDIZED BED type agitator
Equips of vessel1.using alcohol flame inoculation
2.electrical heater
3.PH,DO, temp. sensor foam and level probe port, etc.
constructionFloor -top
One fermentor vessel with one control system (simens PLC and HMI)
Operating panelChinese and English version
Main components and controls of system
PH1.On-line check and measure, and digitization fully automatic control;
2.PH, CO2 and base gang control. Mass flow meter automatically adjusting CO2, peristaltic pump automatically adjusting base.
3.Control range 2-12pH, measure precision±0.01 pH, control precision±0.1 pH;
4. It has auto alarm function.
5.pH sensor and signal transmission line, mettler Toledo
DO1.On-line check and measure; digital display.
2.Range 0-200%, precision ±1%;
3.It has auto alarm function;
4.DO sensor and signal transmission line, mettler Toledo
Feed control perfusion1.Automatically control and automatically alarm;
2.peristaltic pump automatically feeding and perfusion
Temp. control1.PID fully digitization signal processing, digitization control settings
2.Measure range 0-150°C, control range 15-45°C,control precision±0.2°C
3.Pt 100Ωtemp. Sensor
4.system with electrical heater to control the temp inside vessel
Rotate speed1.Automatically control , with auto alarm function
2.servo frequency converter to adjust the speed.
Air flowAutomatically adjusting with massflow meter
sterilization1.it can be SIP by connecting with steam
2.Automaticall control with pneumatic valves (optional)
ControlSiemens PLC, and Siemens 10.4” LCD touch screen(HMI) and RITAI program
PC

1.PC with kingview software for recording function (optional)
2.PC with simens remote control and kingview recording function (optional)
3.printer (optional)




Packaging & Shipping



Packaging: wooden case   Shipping: by sea or by air

Loading-4


Our Services



We offer design, customization, manufacture, installation, and maintenance services, etc.

DESIGN MANUFACTURE INSTALLATION


Company Information



Shanghai Ritai Medicine Equipment Project Co., Ltd. mainly specializes in innovation and development of sanitary stainless steel pressure vessels, atmospheric pressure vessels, fermenters, valves and piping system which are widely used in the following fields, such as pharmacy, biology, chemistry, food and drinks industry.

Shanghai Ritai is qualified to design and manufacture pressure vessels with the certificates of ASME, PED 9723/EC, NB, and ISO 9001:2008.
