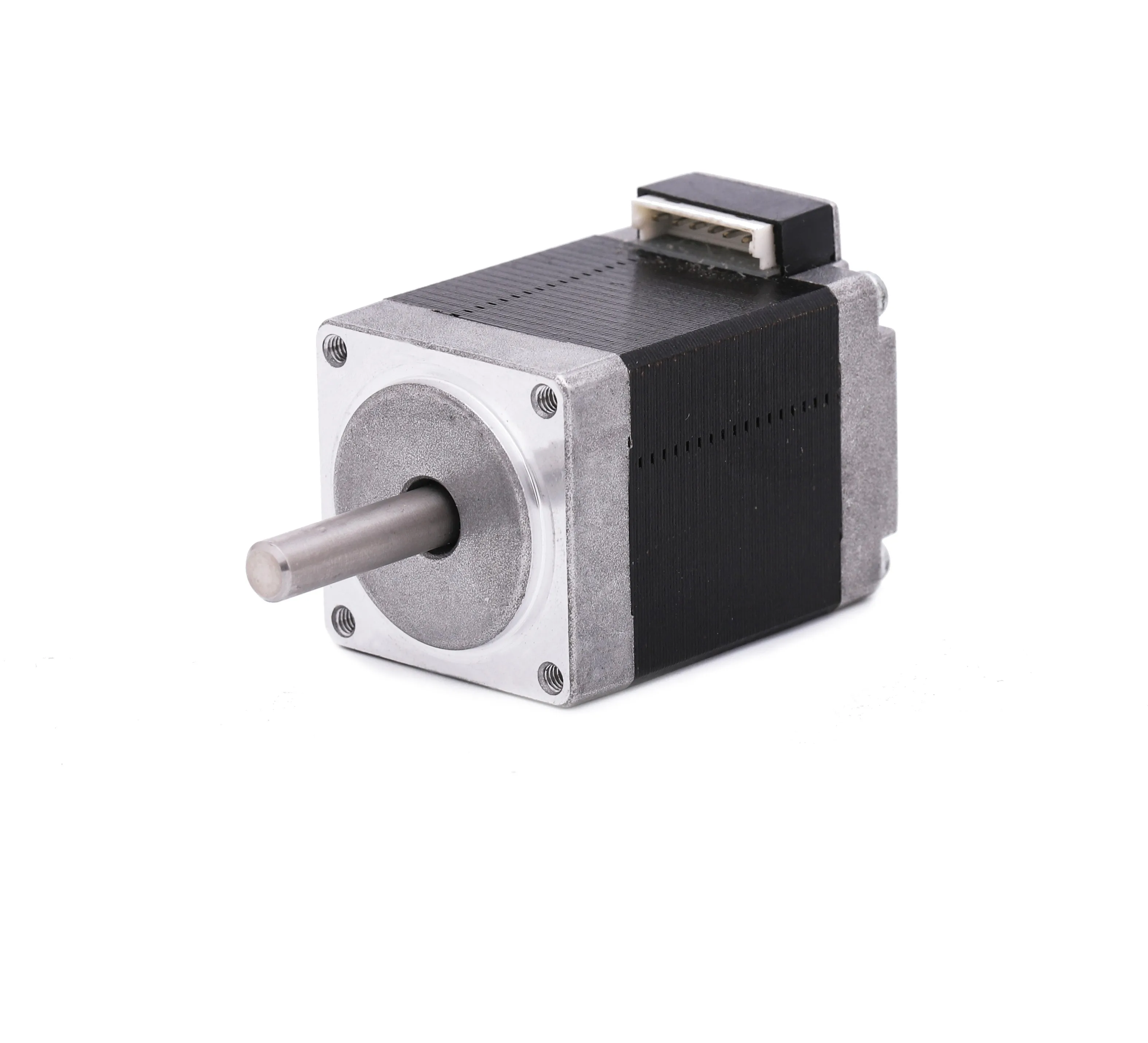

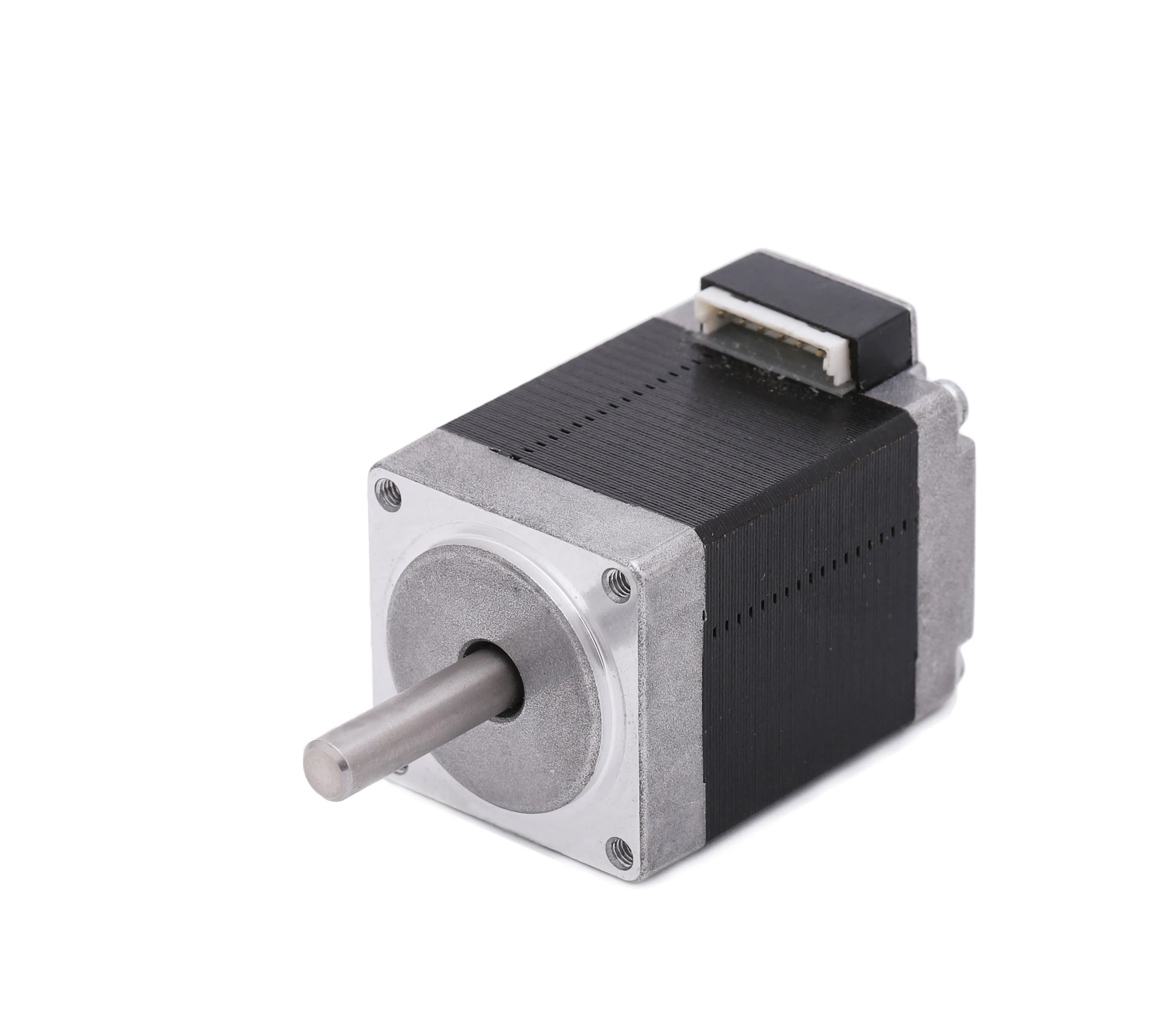

Nema 11 28mm Hybrid Stepper Motor for automation

Step Angle

1.8^.

Step Angle Accuracy

±5% (full step, no load)

Resistance Accuracy

±10%

Inductance Accuracy

±20%

Temperature Rise

80^.C Max.(rated current,2 phase on)

Ambient Temperature

-20^.C~+50^.C

Insulation Resistance

100MΩMin. ,500VDC

Dielectric Strength

500VAC for one minute

Shaft Radial Play

0.02Max. (450 g-load)

Shaft Axial Play

0.08Max. (450 g-load)

Max. radial force

28N  (20mm from the flange)

Max. axial force

10N

Model No.

Rated

Voltage

Current

/Phase

Resistance

/Phase

Inductance

/Phase

Holding

Torque

# of Leads

Rotor

Inertia

Weight

Length

Single Shaft

Double Shaft

V

A

Ω

mH

g. cm

kg-m²

kg

mm

FL28STH32-0956A

FL28STH32-0956B

2.66

0.95

2.8

0.8

430

6

9x10^-7

0.11

31.5

FL28STH32-0674A

FL28STH32-0674B

3.8

0.67

5.6

3.4

600

4

FL28STH45-0956A

FL28STH45-0956B

3.4

0.95

3.4

1.2

750

6

12x10^-7

0.14

44.5

FL28STH45-0674A

FL28STH45-0674B

4.56

0.67

6.8

4.9

950

4

FL28STH51-0956A

FL28STH51-0956B

4.4

0.95

4.6

1.8

900

6

18x10^-7

0.2

50.5

FL28STH51-0674A

FL28STH51-0674B

6.2

0.67

9.2

7.2

1200

4
