CE Approved Portable Hydraulic Rebar Cutter and Bender 4~32mm

Product Overview

Description

CE Approved Portable Hydraulic Rebar Cutter and Bender

CE Approved Portable Hydraulic Rebar Cutter Introduction



1. Available model: RC-16, RC-20, RC-22, RC-25, RC-16B, NRC-20

2. Available certificate: CE, RoHS

3. Packing: one set/metal box/carton

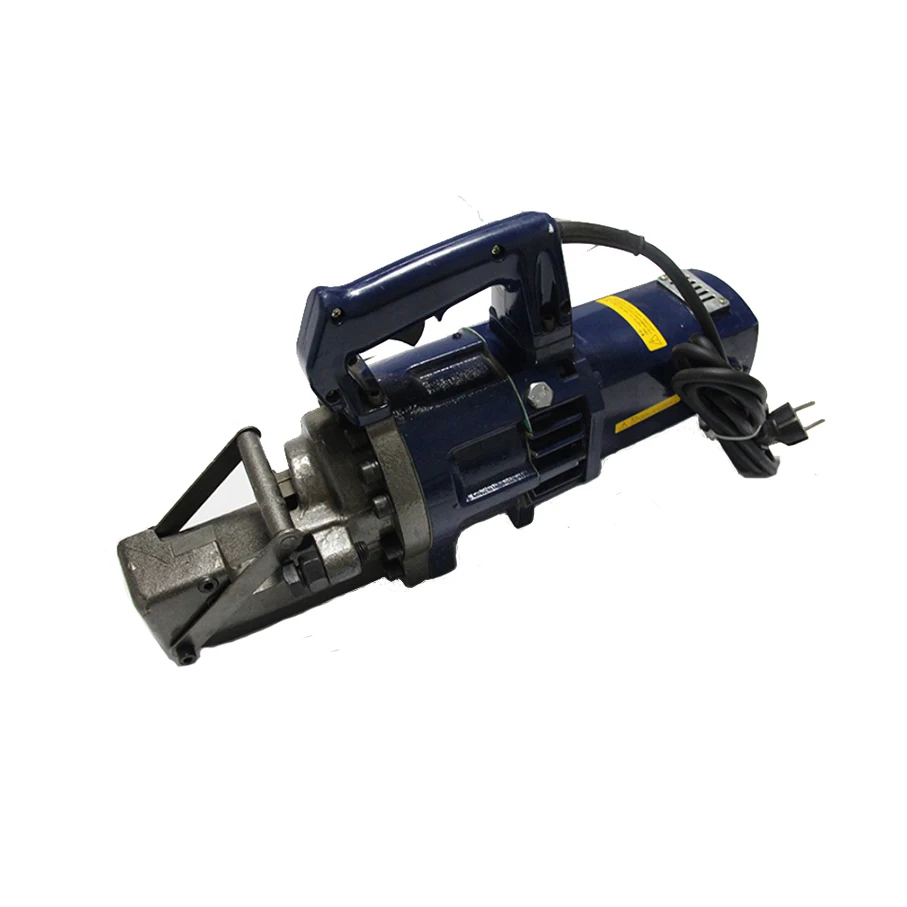

4. Detail description for CE approved portable hydraulic rebar cutter: Rebar cutter (RC),portable electric hydraulic rebar cutter is a kind of light, small, portable and quiet rebar cutter, it’s easy to operate and safe for users as cutting without sparks, sediment and smell. It’s widely used for cutting construction rears, deformed bars, round steel bars, steel rods and threaded rods etc.

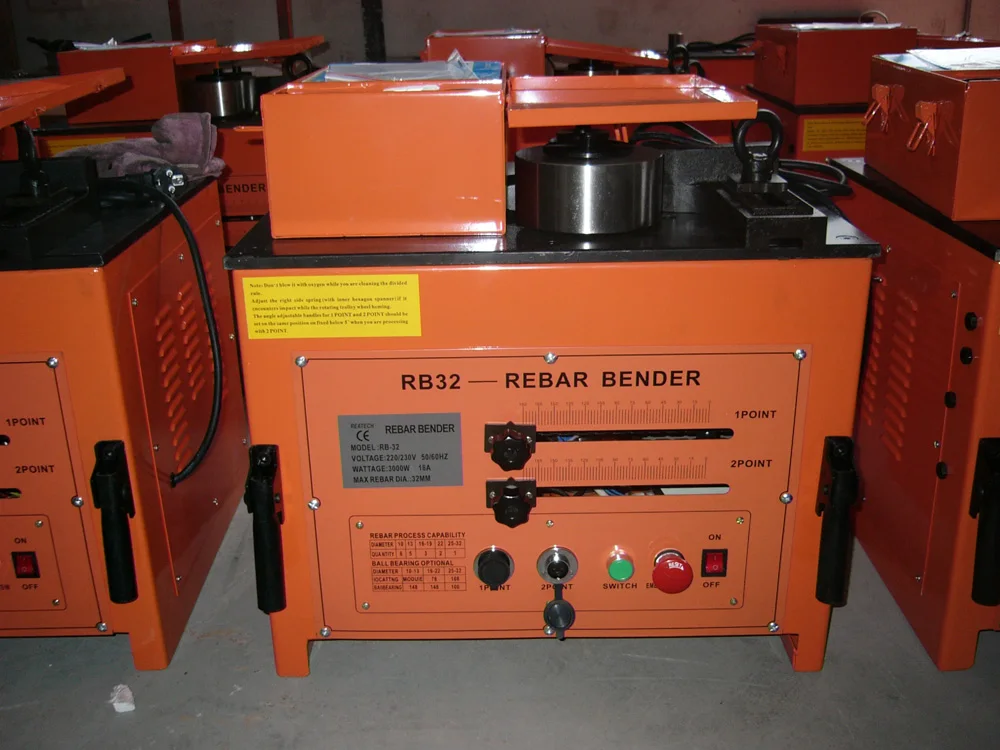

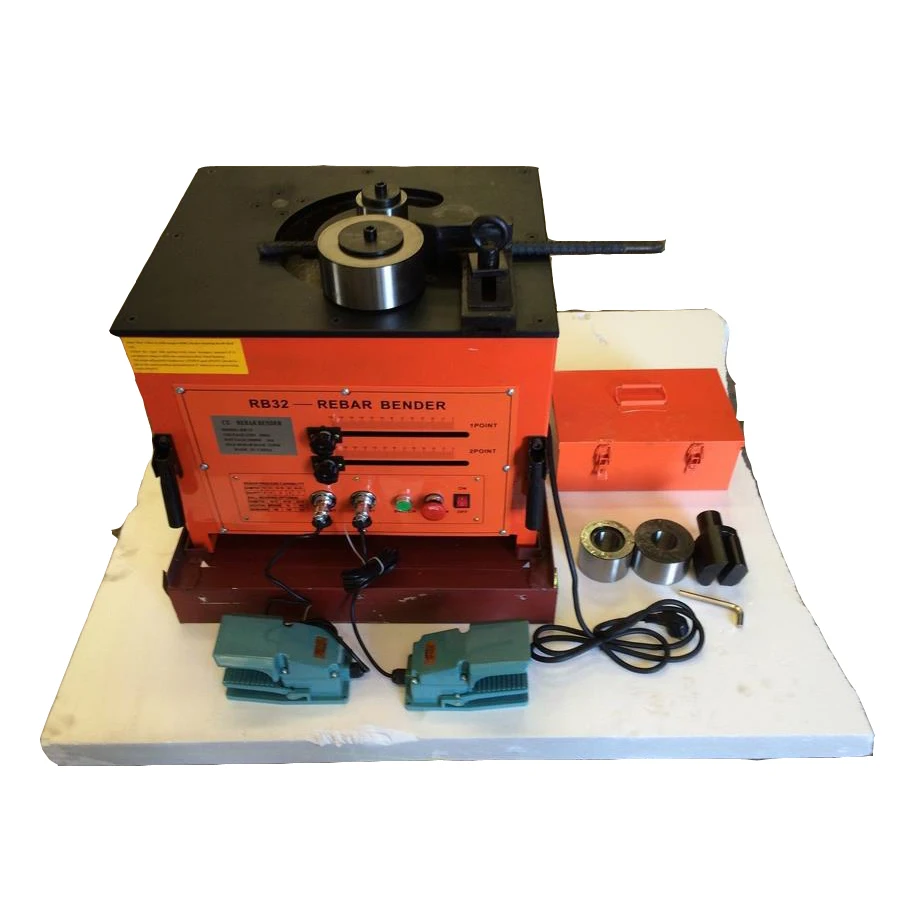

 RB-25 RB-32 RBC-25  25mm 32mm  Steel Bar Metal Bending Machine Introduction

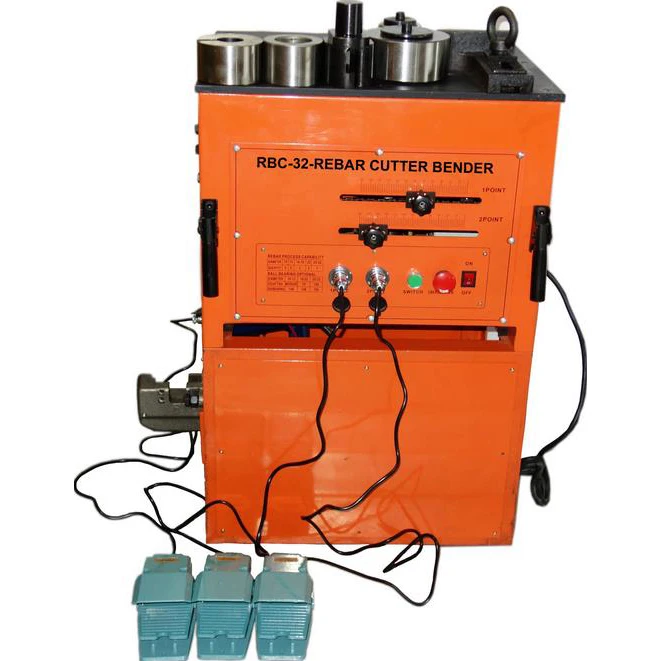

1. Available model: RB-16, RB-25, RBC-25, RB-32, RBC-32;  (RB=Rebar Bender), RBC-25(RBC=Rebar Bender Cutter)

2. Packing: one set/metal box/cardboard carton

3. Bending Angle: 0~180 degree

4. Certificate: CE, RoHS

5. Detailed description for RB-25 RBC-25 RB-32 Steel Bar Metal Bending Machine: The Bending Machine is widely used in construction engineering for bending rebar, steel bar, steel rod etc. It can preset angle locks for repeating the same angle bend. The two slide-type angle selectors can be set to accurately bend any angle 0-180 degrees. Two standard feet pedal control switches for hands-free bending.



Model	Voltage/Wattage	N.W. (kgs)	G.W. (kgs)	Max.Cutting Dia.	Min.Cutting Dia.	Cutting Force	Cutting Speed	Packing Size(cm)
RC-16	230V/690W	8	13	16MM	4MM	13 tons	2.5~3.0 S	51×23×15
RC-16B	18V/140W	6.5	14	16MM	4MM	13 tons	4.0~5.0 S	43×41×15.5
RC-16B	DC18V	6	13	16MM	4MM	13 tons	4.0~5.0 S	54.5×41×18.5
RC-18	230V/830W	13.5	18.3	18MM	4MM	15 tons	3.0-3.5	57.5×28×16.5
RC-18(B)	DC18V	9	15	18MM	4MM	15 tons	3.0-3.5	54.5×41×18.5
RC-20	230V/830W	13	18.3	20MM	4MM	15 tons	3.0~3.5 s	48×19.5×28
NRC-20	230V/850W	11.5	17	20MM	4MM	15 tons	3.0~3.5 s	57.5×28×16.5
RC-20B	220V/110V	8.2	15	20MM	4MM	15 tons	5.0~6.0 S	54.5×41×18.5
RC-22	230V/850W	15	21.5	22MM	4MM	18 tons	3.5~4.5 s	48.5×19×33
RC-25	230V/1300W	24.5	32	25MM	4MM	30 tons	5 s	56.5×23×34.5
RC-32	230V/3000W	31	40	32MM	6MM	40 tons	6s	63x24x35

Specifications for CE Approved Steel Bar Metal Bending Machine
Model	Voltage/ Power	N. Weight	G. Weight	Max Rebar	Min Rebar	Bending   Speed	Bending   Angle	Certificate
RB-16	220V/800W	15KGS	16.5KGS	16MM	4MM	5 s	0-130°	CE
RB-25	230V/1600W	91KGS	109KGS	25MM	6MM	5.0~7.0 s	0-180°	CE RoHS
RBC-25	230V/1600W	136KGS	167KGS	25MM	6MM	5.0~7.0 s	0-180°	CE RoHS
RB-32	220V/3000W	175KGS	203KGS	32MM	6MM	6.0~7.0 s	0-180°	CE
RBC-32	220V/3000W	265KGS	225KGS	32MM	6MM	6.0~7.0 s	0-180°	CE



MOQ:  1 set

Delivery time: as per order quantity. Usually within 15 days.

Informations Needed for Quotation:  Model and quantity, such as RB-16  50sets. 32mm CE Approved







CE Approved Hydraulic Rebar Cutter and Bender Proudct and Packing:
