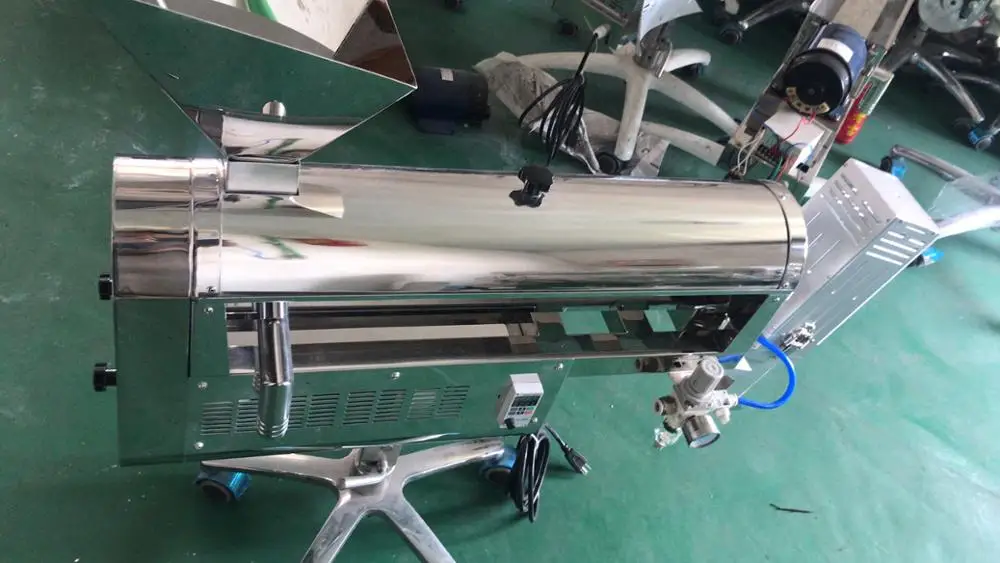

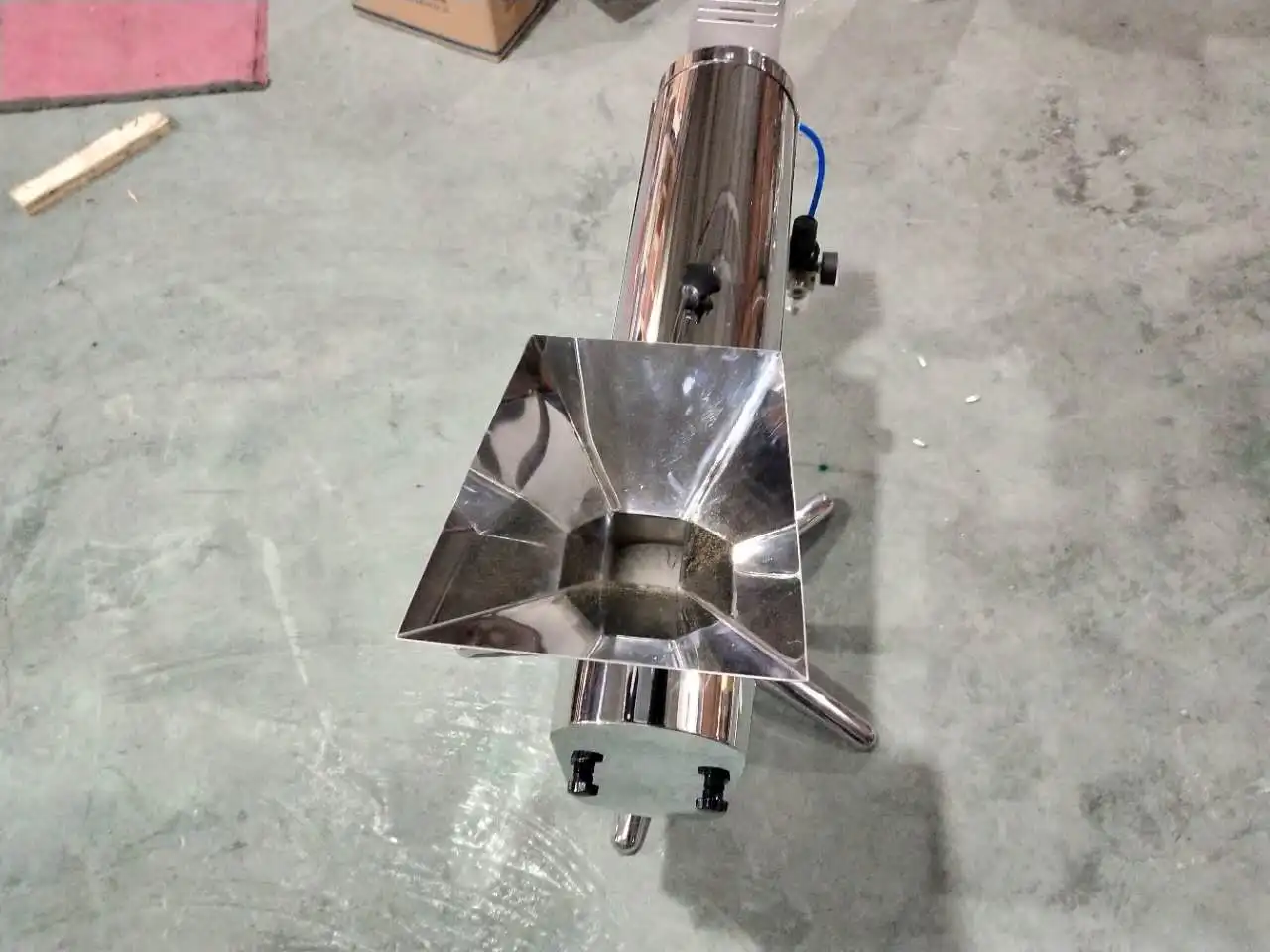

JFP 110 Capsule polishing sorting machine for different capsle

Product Overview

Description

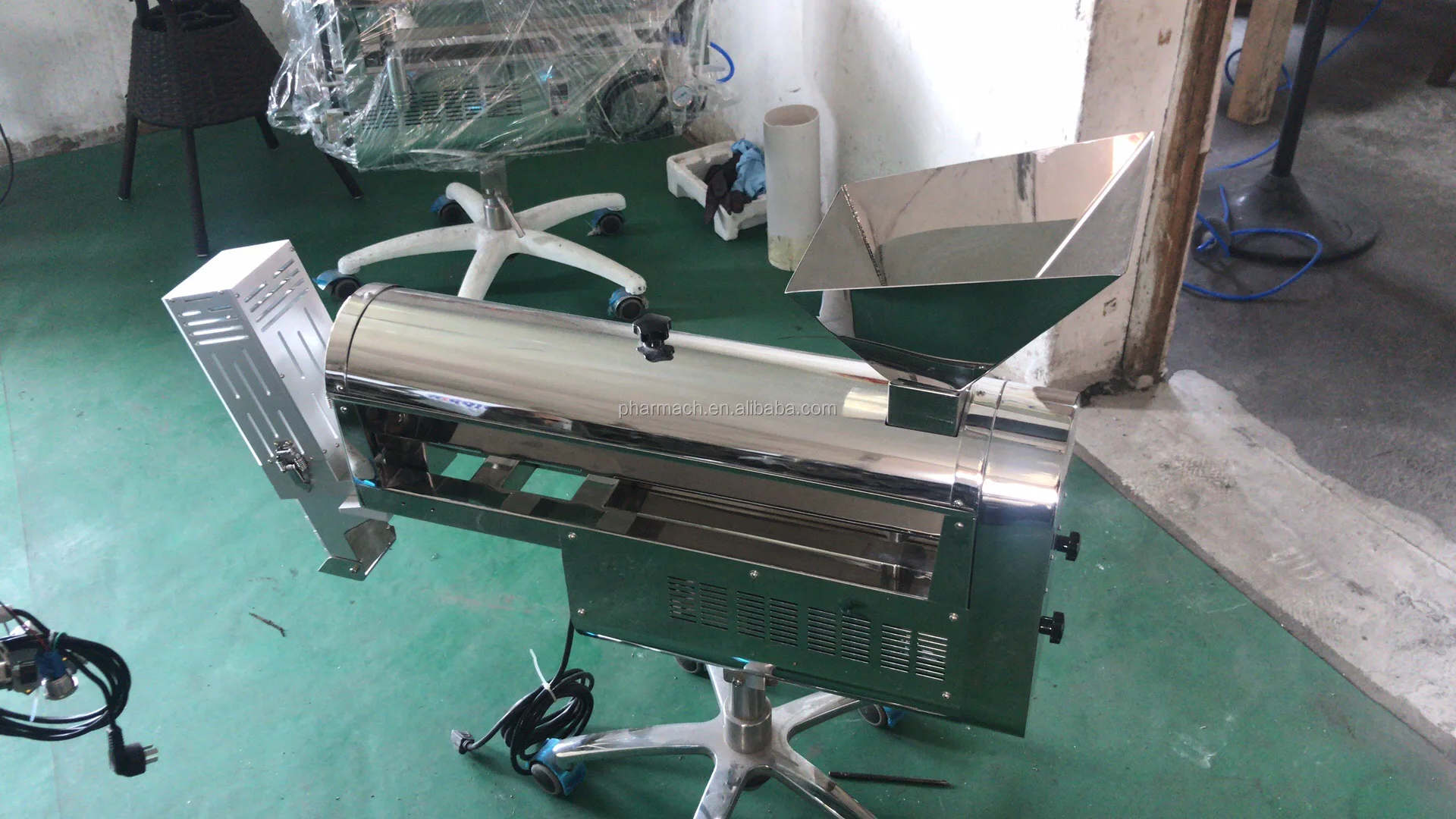

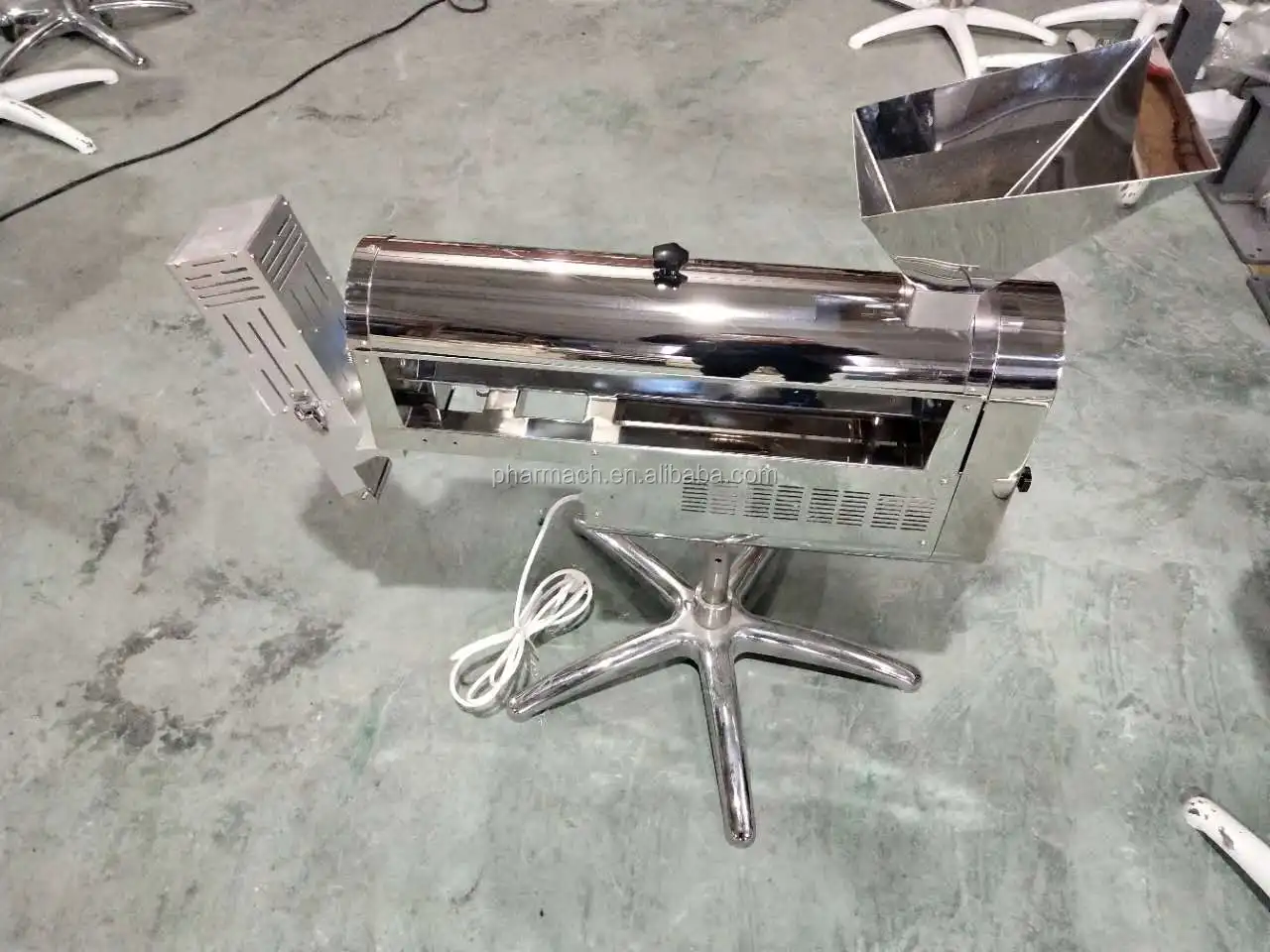

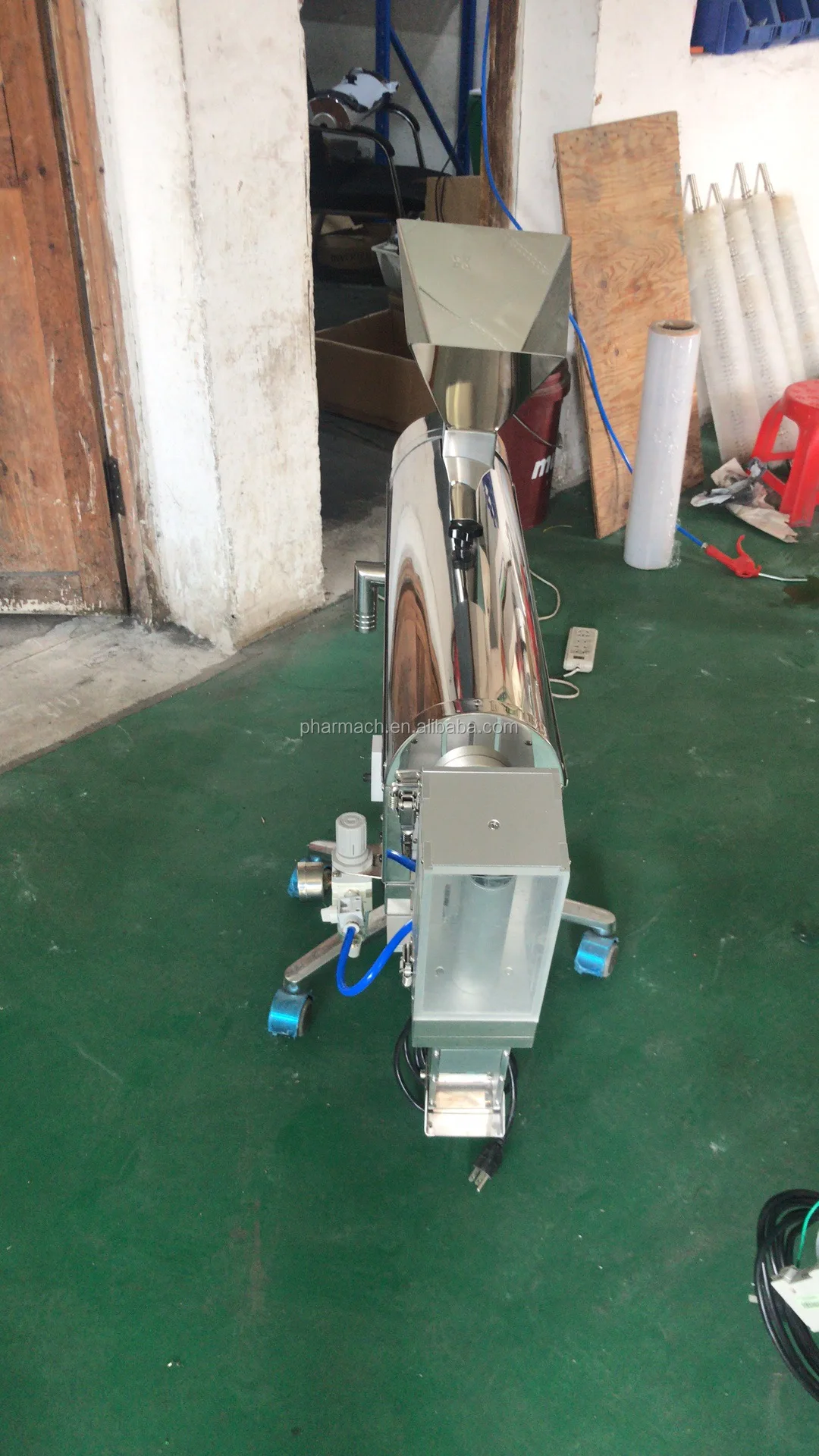

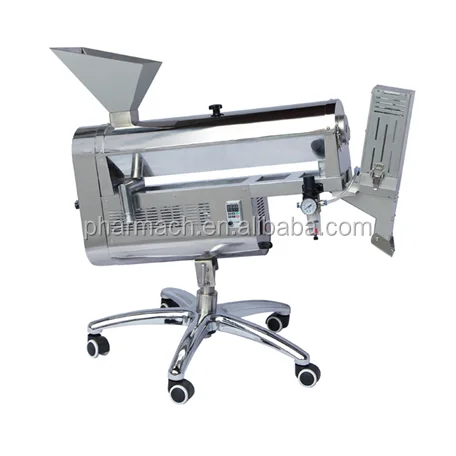

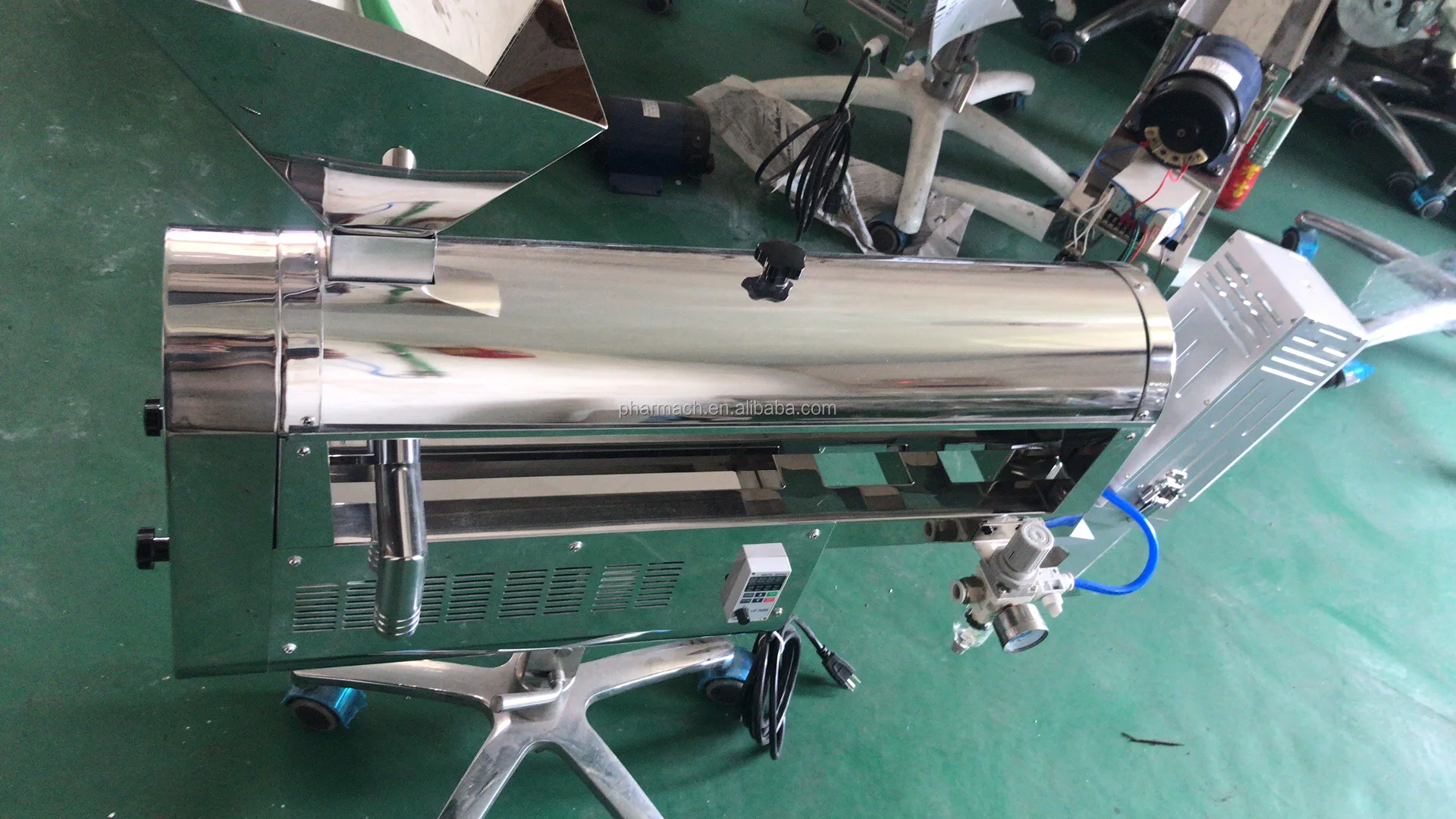

JFP-110A Capsule polishing and sorting machine

JFP-110A is a newly designed Capsule Polisher  to polish capsules and tablets, it is a must for any company producing hard gelatin capsules.

Features:

.The height and angle can be adjusted to fit into any chute of the capsule filling machines and tablet presses so the products can be polished immediately after production.

It can eliminate static; and automatically reject ultra light weight capsules, fragment and empty capsules.

.New type net cylinder ensures no jammed capsules during operations

.The capsules are not directly contact with the metal net to protect the printed capsule effectively.

.New type of brush is durable and can be change easily.

.Excellent design for quick cleaning and straightforward

maintenance.

.Adopts frequency converter, which is great for continuous long hours of operations

.Drive by synchronous belt to reduce noise and  vibration of the machine

It is suitable for all sizes of capsules without any change parts.

.All the main parts are made of premium stainless steel are in compliance with pharmaceutical GMP requirements.

Technique parameters:

Productivity	150000 pcs/hour
Power supply	220V,50Hz,2A,180W
Negative pressure	2.7m3/min  -0.014MPa
Compressed air	0.25m3/min  0.3MPa
(LxWxH) Machine dimension	800x550x1000(mm)
Machine weight	45Kg
