Snowkey Flake Ice Plant(40Ton/Day)

Product Overview

Description

 Features of flake ice plant

Scientific design and many years of engineering experience
Snowkey will offer you the best scheme of tailor-made ice-making system We have not only supplied lots of ice flaker systems to customers from various places but also offered technological consultancy to them.

High reliability and low breakdown rate
Equipment structure is designed for resistance to high load and long-term use. Through decades of research, SNOWKEY has manufactured highly reliable ice flaker equipment that can produce quality ice and stand over 26,000 hours of constant operation without breakdown.

High efficiency and energy saving
We have optimized the design of ice flaker units to ensure that SNOWKEY internally-scraping ice flaker units can function constantly without wasting energy. We have also adopted a special kind of alloy material and patent processing technology to ensure efficient heat conductivity. The freezing surface of the ice produced by SNOWKEY ice machines is over 1750 m2/ton. Compared with other brands of units, SNOWKEY ice flakers can product more ice when the same compressor is used.

Simple maintenance and convenient moving
All our equipments are designed on the basis of modules, so its spot maintenance is quite simple. Once some of its parts need replacing, it is easy for you to remove the old parts and install the new ones. Moreover while designing our equipment, we always take into full account how to convenience future moves to other construction sites.

Great adaptability and stable quality
Snowkey products can ensure good running and normal ice output at the environmental temperature of 5-40°C,and its specially-designed type can guarantee normal running even in the most unfavorable conditions (-30~60°C).

After-sale service
We have been constantly offer every customer not only top products quality but also service. The After-sales Service Dept. consists of professional engineers.

FIP standard configuration

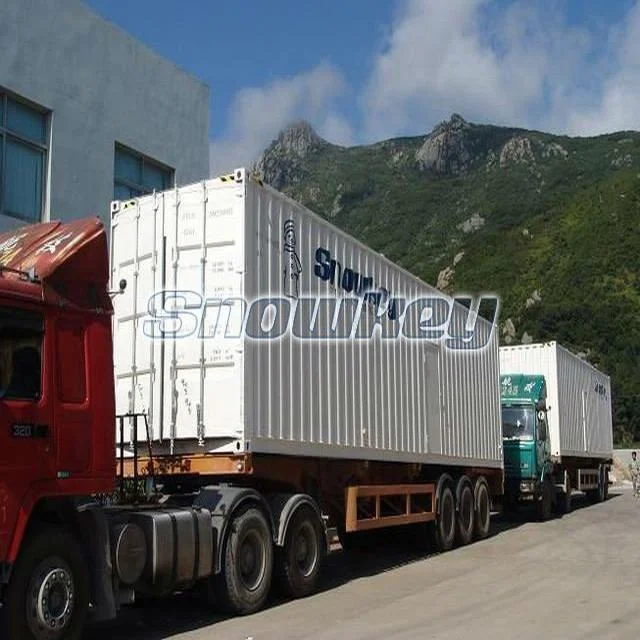

1 Outside is standard white 20/40 feet new container

2 Inside is decorated with air conditioner(for high temperature condition), illumination and aluminumalloy floor

3 Refrigerating compressor unit is semi-hermetic screw or piston compressor

4 Evaporative condenser with double speed fan

5 Flake ice evaporator with water tank and pump

6 Necessary oil cooling system and oil return system

7 Necessary refrigeration system control and protect components and refrigeration pipeline connection

8 The interface with the ice storage for operation and alarm signal connection

9 Electrical control components and electric box for automatic control

10 Factory tested.

Design conditions

Max. Ambient Temperature:   60°C

Wet Bulb Temperature:          29°C

Water-in Temperature:           5°C

The Ice Temperature:             -7°C

Voltage:                                AC380V

Phase:                                  3

Frequency:                           50 Hz

Running time:                       24 hours

Refrigerant:                           R22\R404A\R717

Performance parameter
