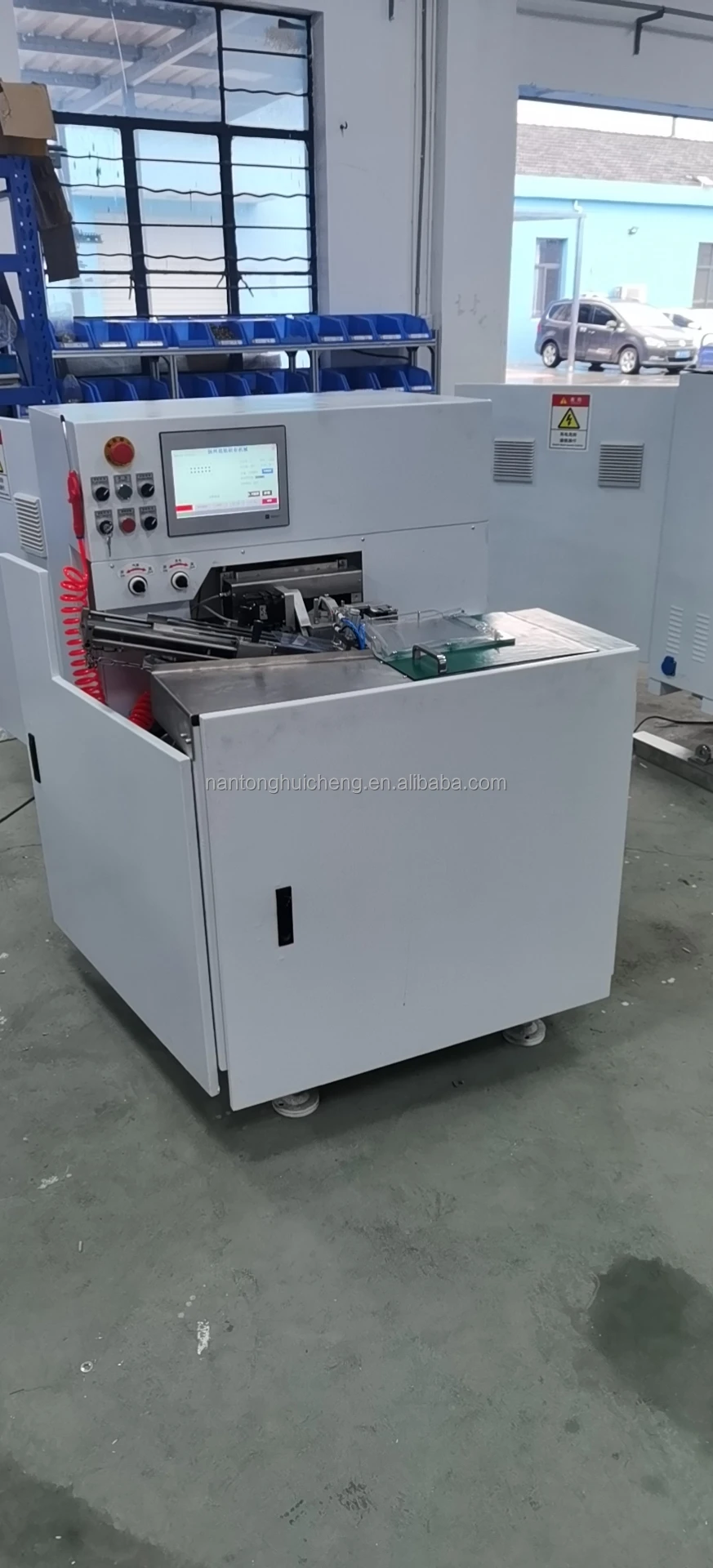

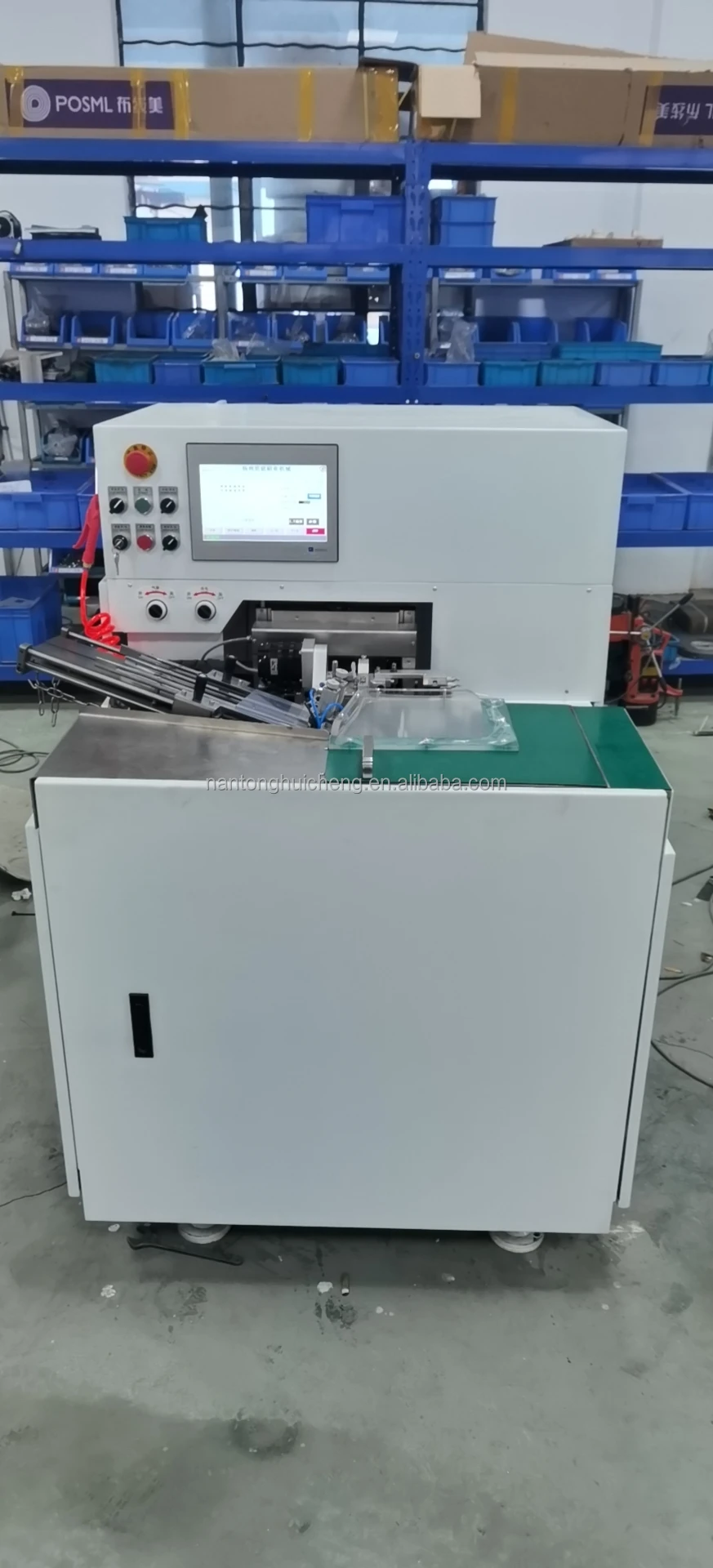

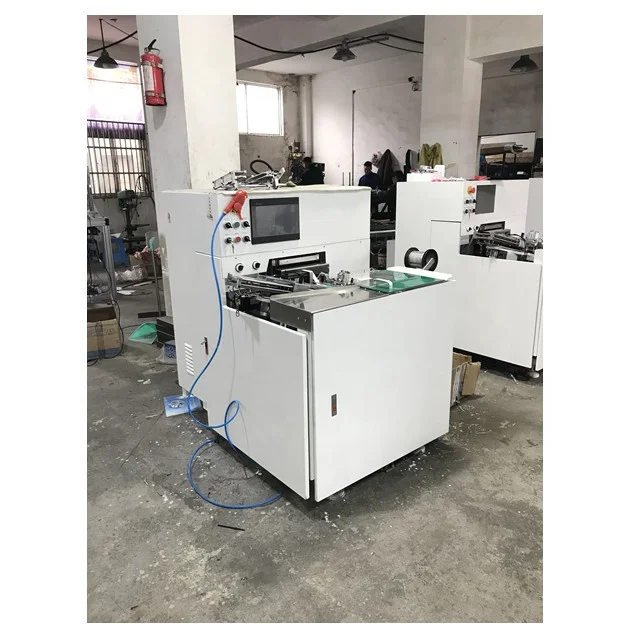

automatic high speed toothbrush tufting machine

Product Overview

Description



automatic high speed tootbrush tufting machine





Product Description

Bored with two drilling head and two planting head, high-speed processing, high efficiency.
PLC Control System, Chineseor English display, simple to understand.
Wearing parts and spare parts are standardized designs.
Models can be stored: 40 (expandable).
Power Supply: Three-phase 380V 2.5KW.
Input methods: Handheld encoder or keyboard input.
Chinese or English display, menu-driven operation, time saving.



Features:

1 Automatic scanning hole coordinates

2 Automatic tracking

3 The system is stable and reliable, adapt to different environments

4 Precise positioning, easy to operate

5 The closed-loop system, strong anti-jamming capability

6 low noise, stable performance, easy to operate

7 Transfer speed can reach more than 700-800 rev/min.



Machine introduction:

Description	Unit	Parameter
Max Speed	Holes/min	750
Maximum brush holes	Holes/Piece	≤100 thousand
Hole diameter	mm	1.5-2.8
Spindle quantity	Piece	2&2
Journey X axis	mm	48
Journey Y axis	mm	25
Maximum program quantity	Piece	2000
Air pressure	Mpa	0.6-0.8
Power voltage, frequency	V, Hz	220,50
Machine power	KW	3
Contour size	mm	1400×1250×1250
Weight	KG	750



Machine Technical Parameter:

Control system	CNC Controller
Disturbance Display	Chinese or English edition
Safety protection	Overload, short circuit protection
Lubrication	Auto Lubrication System
Main Speed Control	Frequency Inverter
Fiber box	Two Colors Box
