Product Overview

Description

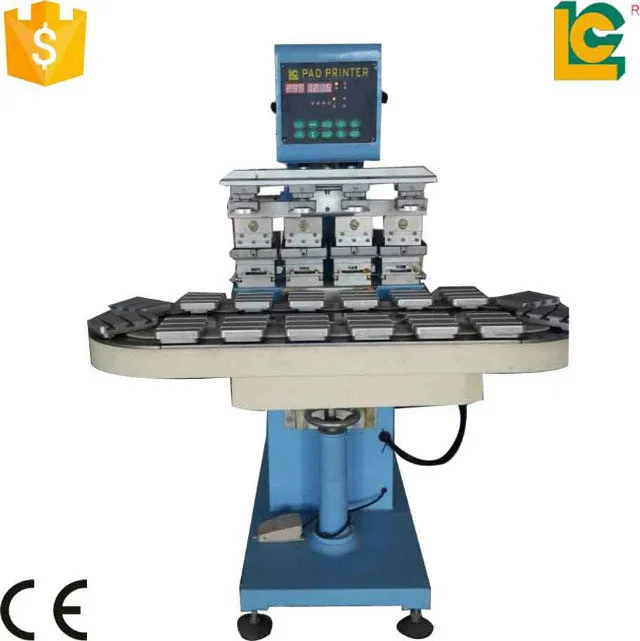

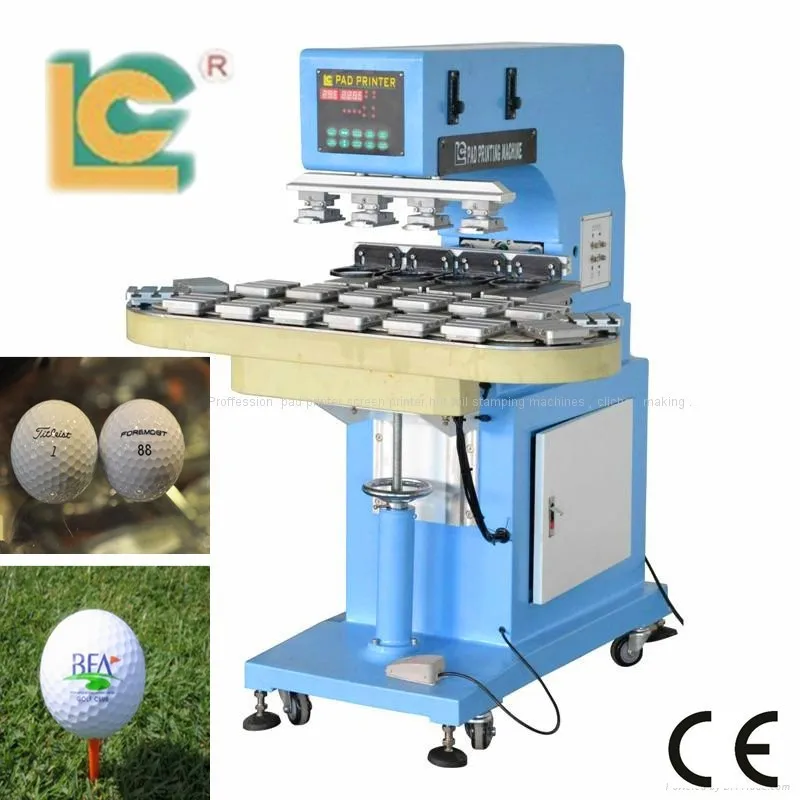

Four Colour Pad Printing presses



Product Description

Function
1. Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3. Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4. Separate adjustment of the pad up/down stroke speed.
5. Ink scraper is auto balance keeping in printing.
6. With the function of ink scraping nonstop without printing in order to prevent ink from drying.
7. Ink cup is turnable and adjustable in vertical and horizontal direction.
8. Super long slide stroke to print large size workpiece.
9. Speed of every single pneumatic organ is adjustable.

Model No:	LC-SPM4-150/16	LC-SPM4-200/16	LC-SPM4-150/18L	LC-SPM4 200/18L
Operation	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Printing Colors	4	4	4	4
Max Plate area	100*150mm	100*200 mm	150*150mm	150*200 mm
Max printing area	80*130mm	80*180mm	130*130mm	130*180mm
Max printing speed	1400PCS/H	1400PCS/H	1300PCS/H	1300PCS/H
Printing position	16	16	16	16
Air pressure	6 Bar	6 Bar	6 Bar	6 Bar
Wattage	220V/ 50Hz	220V/ 50Hz	220V/ 50Hz	220V/ 50Hz
Machine weight	200kg	220kg	220kg	250kg
Machine size	105*110*135cm	105*110*135cm	105*110*135cm	105*110*135cm

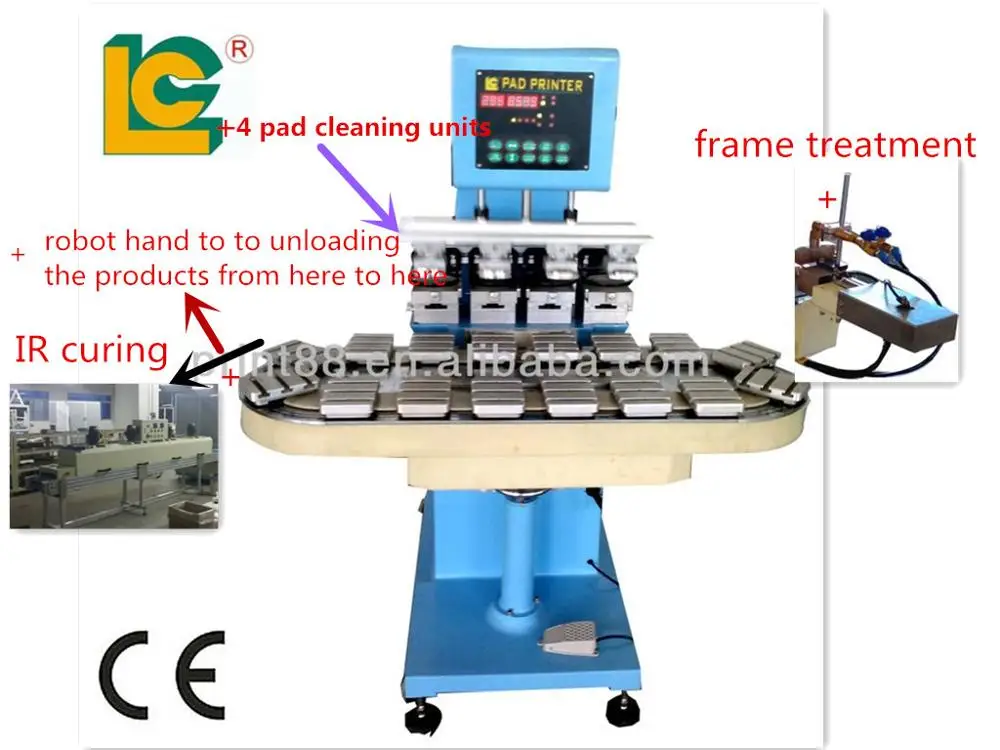

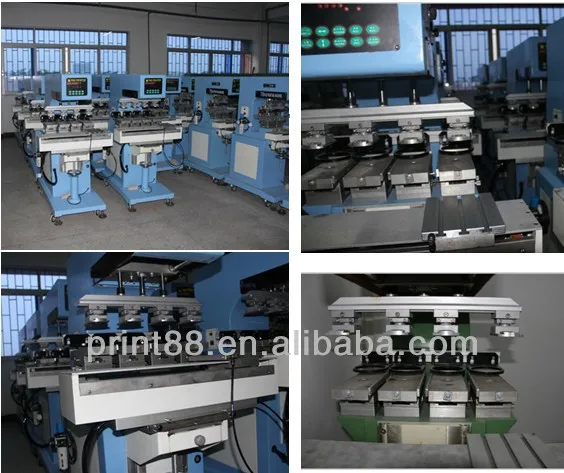

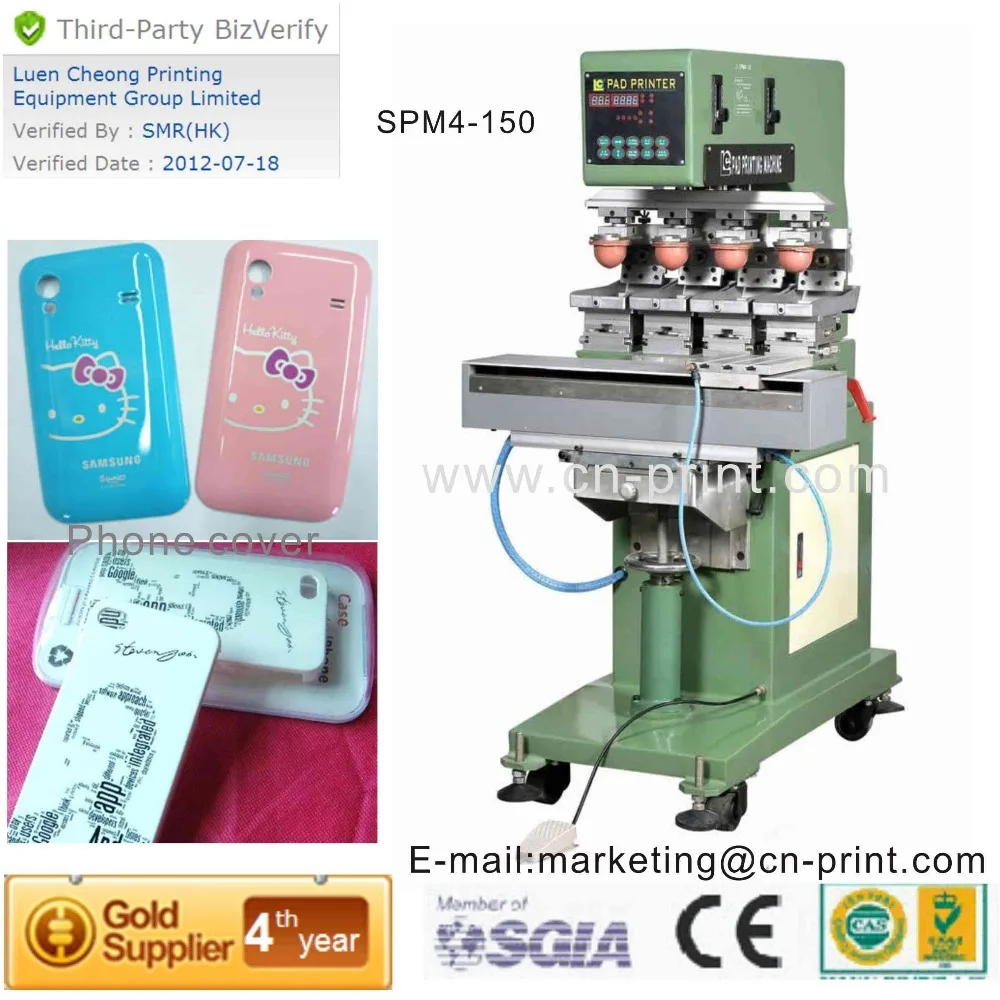

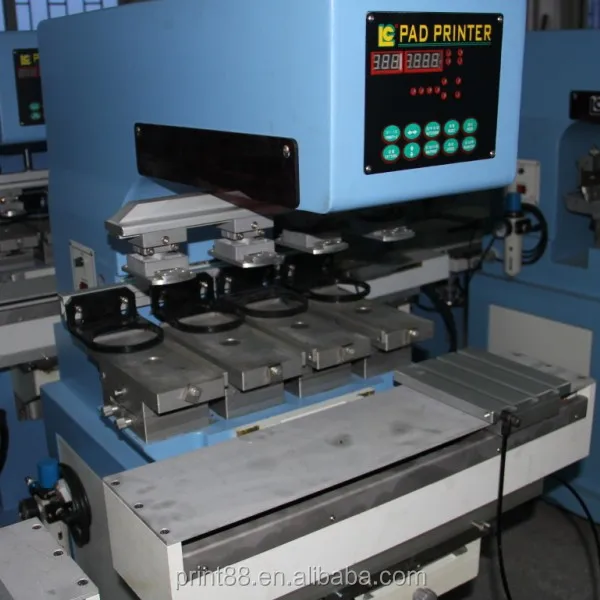

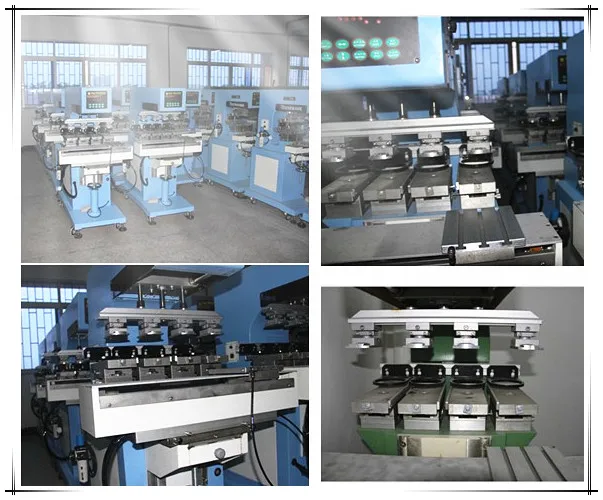

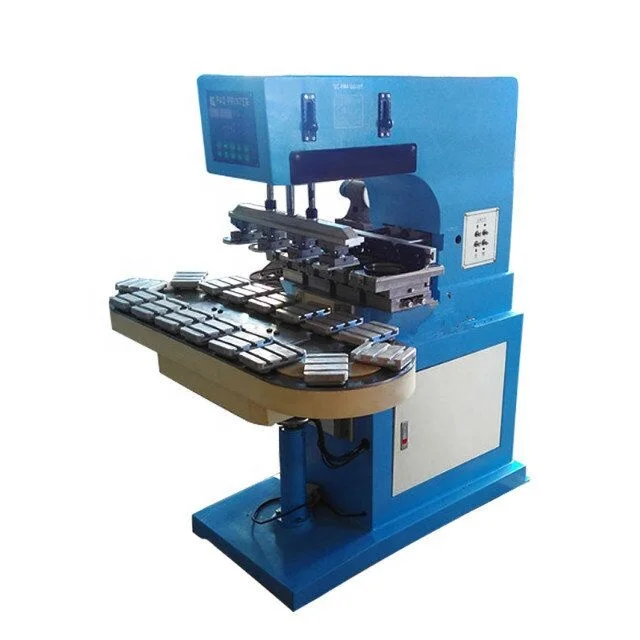

Machine pictures















Samples

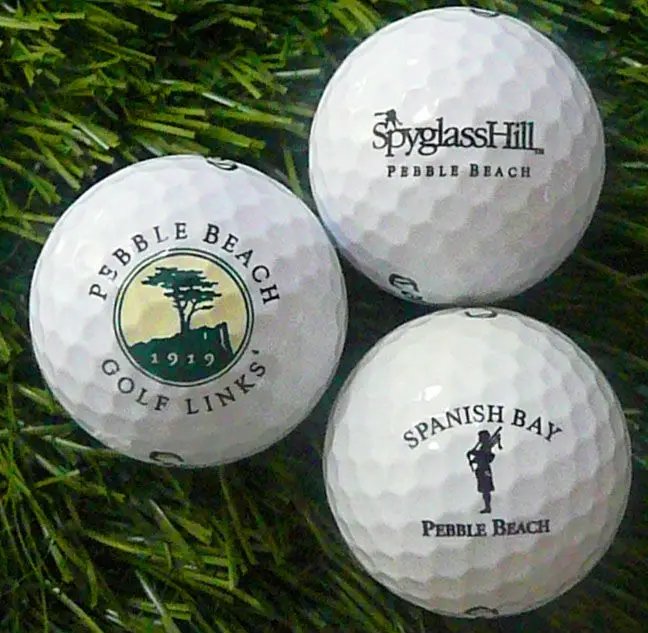

                                     golf ball



                                        gloves

                       toys cars bottle caps pen



Free match:
4 pcs steel pad plates.
4 pcs rubber pad
English operating instruction

Price Terms FOB or CFR
Payment Terms T/T or LC
Packing Wooden Case
Lead Time 5 days after confirm PO
SKU 7 SETS

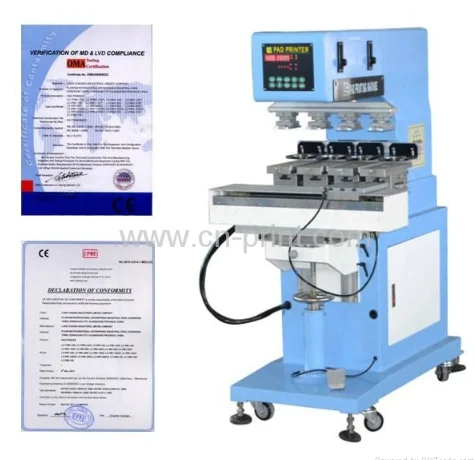

Standards Certificate CE
Cubic Meter 1.3
Gross Weight 170KG
Main Parts CYLINDE MADE BY GERMA
