Gold Trommel Screen for Washing
- Category: Mineral Separator >>>
- Supplier: Henan Pingyuan Mining Machinery Co. Ltd.
Share on (532840104):
Product Overview
Description

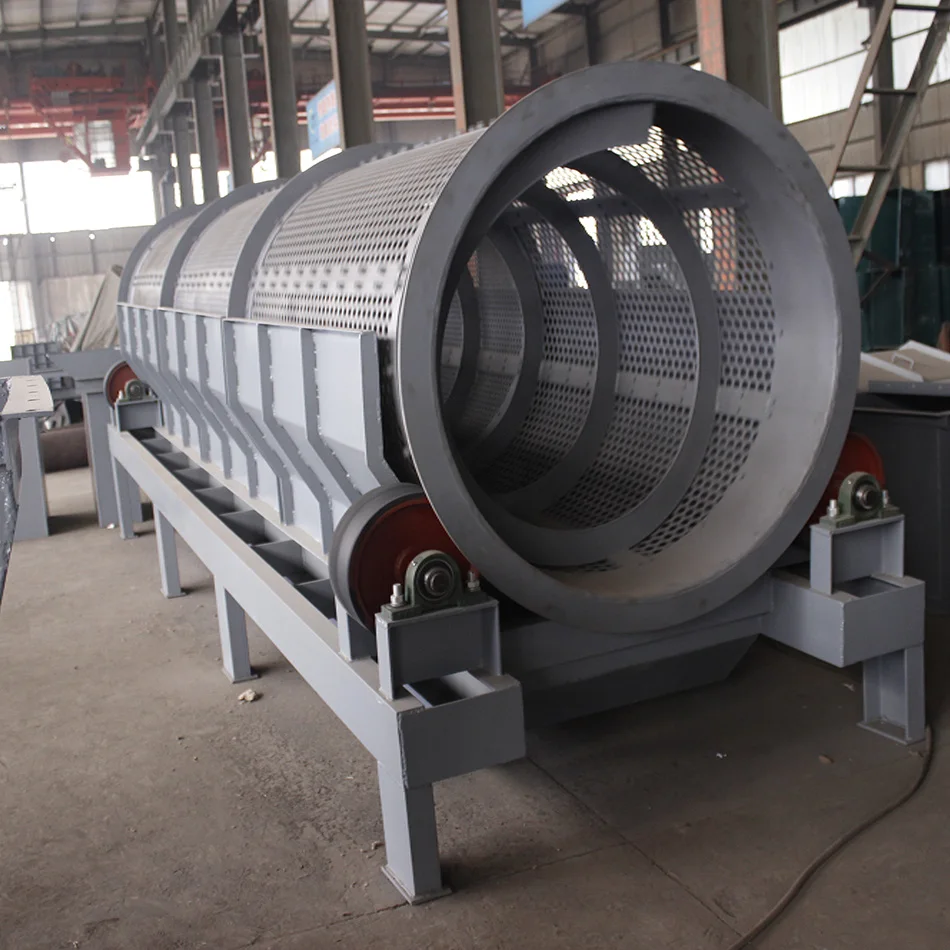

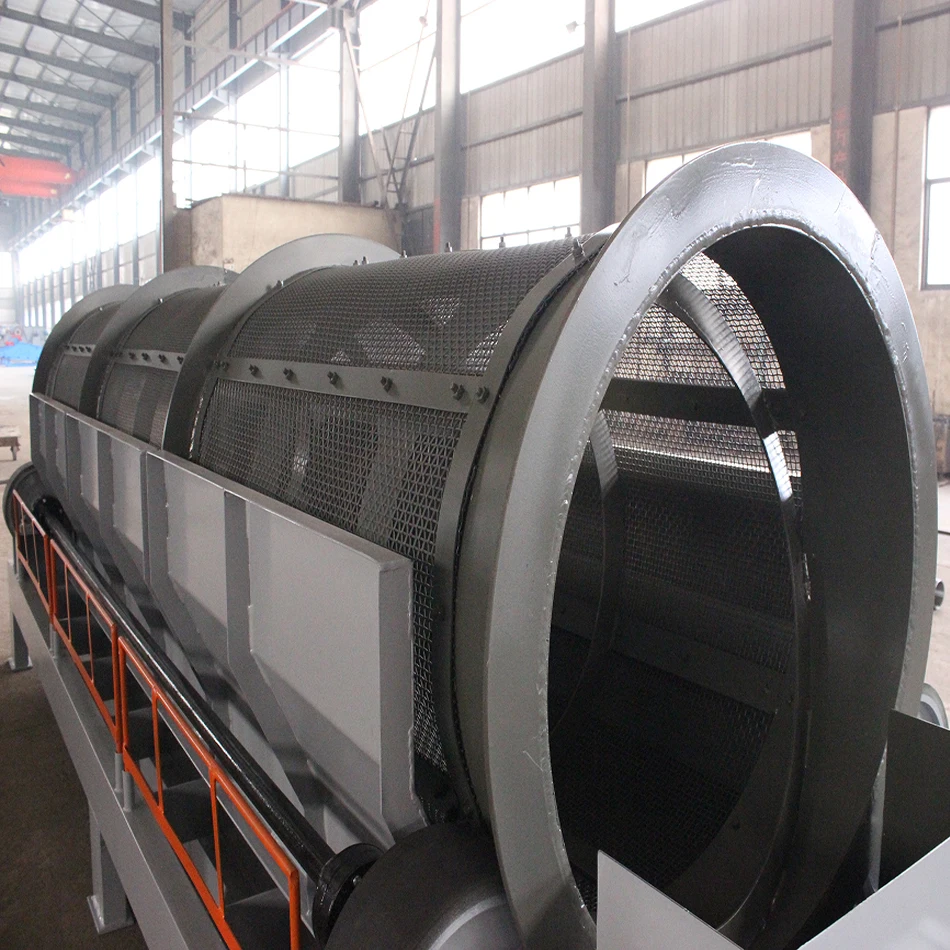

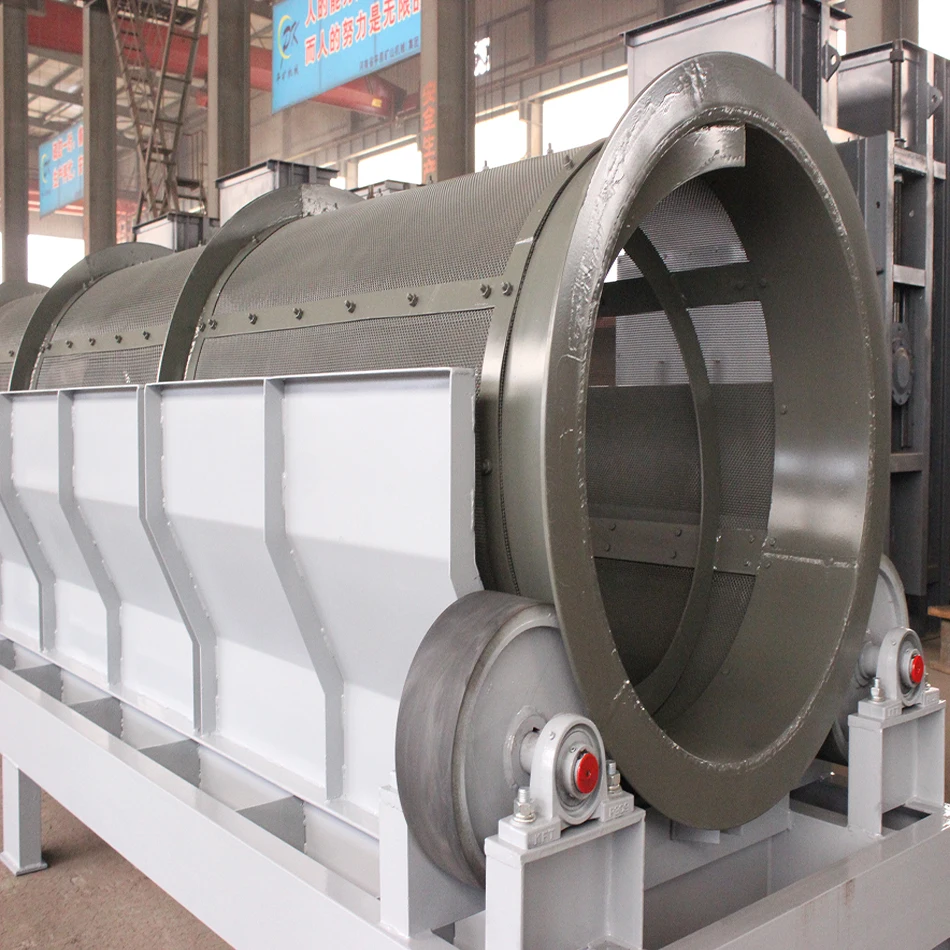

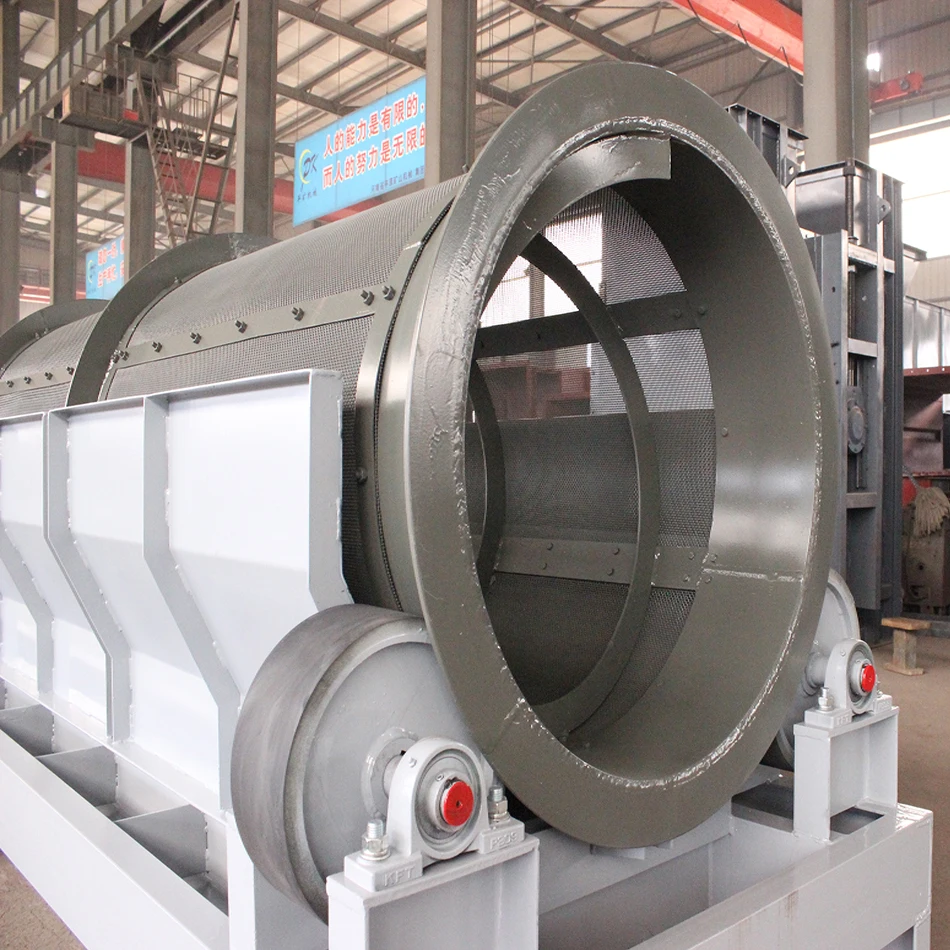

Gold Trommel Screen for Washing
Product Description
Gold Trommel Screen for Washing has wide range of sizes and capacities,Gold Trommel Screen for Washing is a mechanical screening machine used to separate materials.Gold Trommel Screen for Washing consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end,motor,reduction unit,screen frame and sealing cover.When materials flow towards along the inclined rotating drum,materials jump and roll,he undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Working principle
Gold Trommel Screen for Washing is consist of five parts as drum, frame, hopper, reducer and motor. After the material into the drum, on one hand, materials being screened along with the rotation of drum, on the other hand, the bigger materials flow forward along the direction of slope and be separated by the screen with different numbers of meshes.
Components

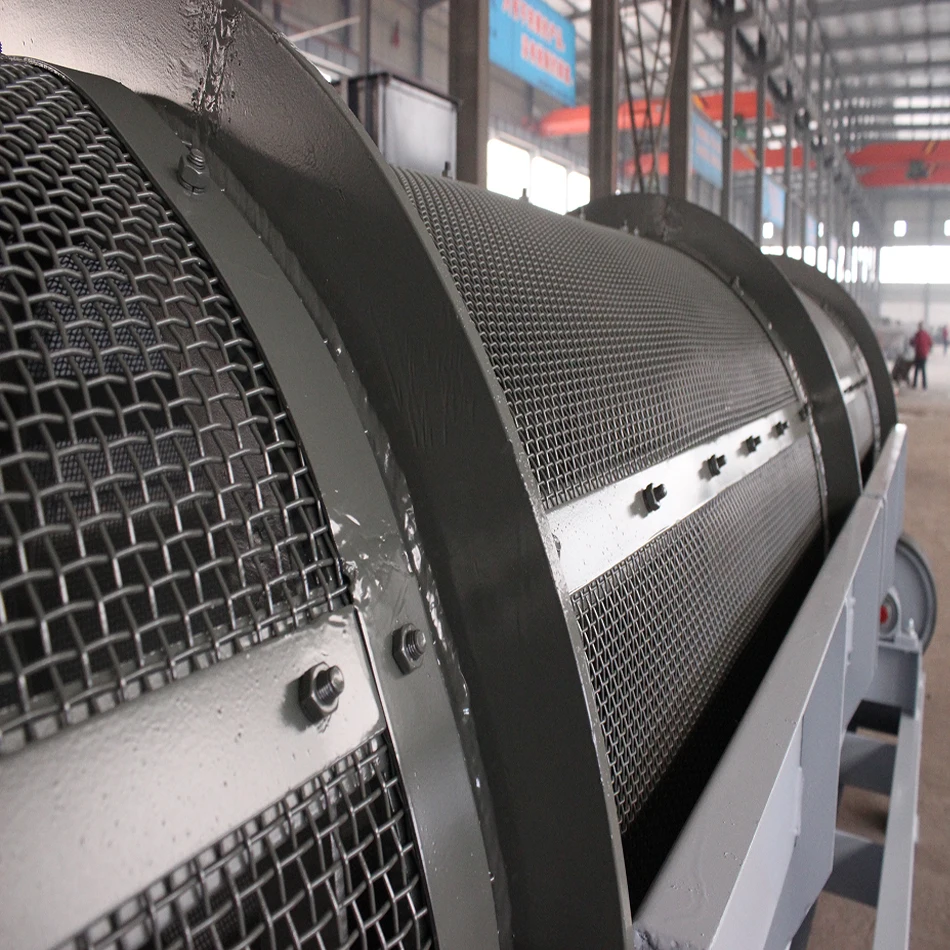

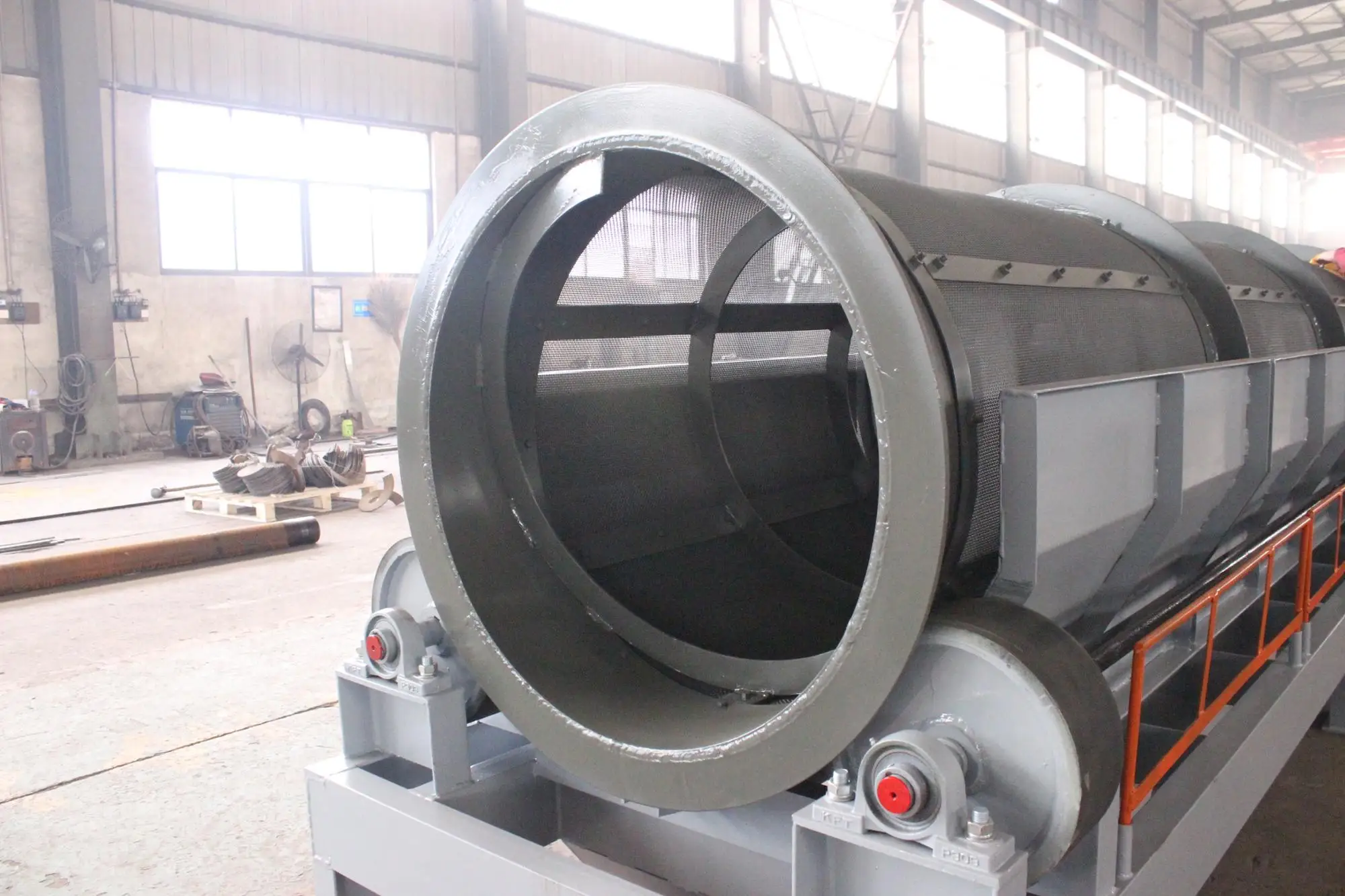

1.The screen and shaft :The screen with simple structure and good quality

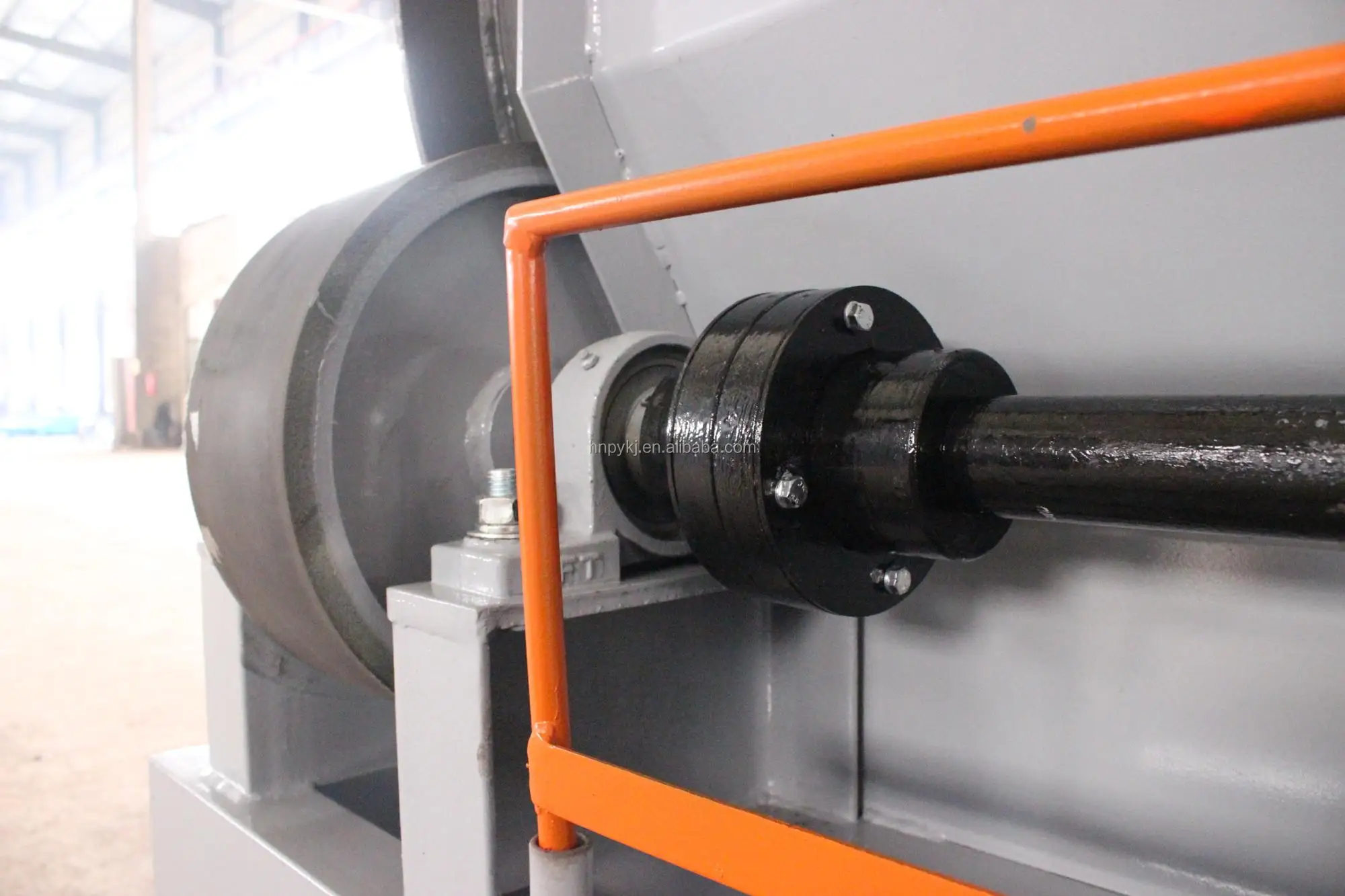

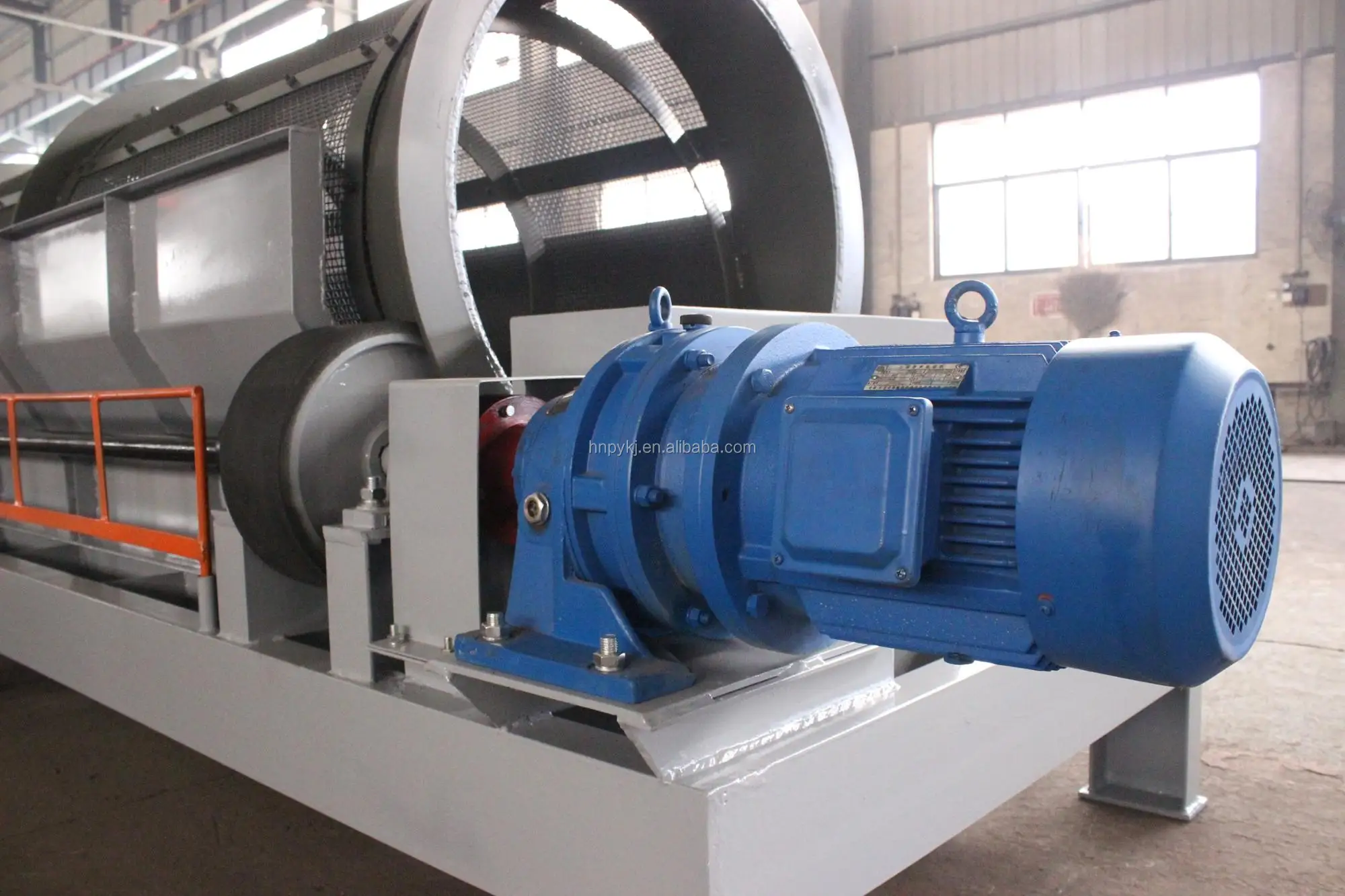

2.The motor and reducer

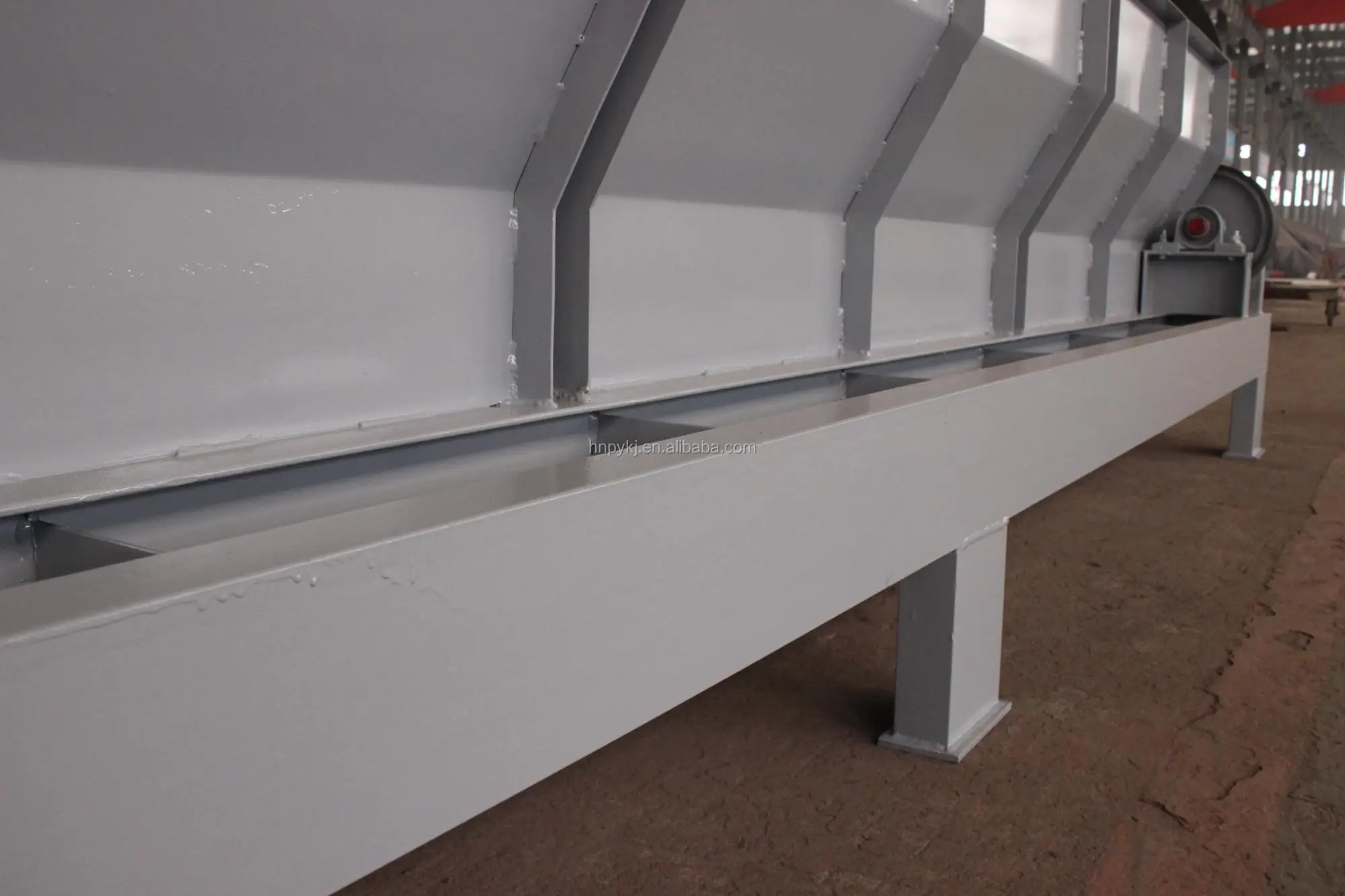

3.The whole machine
Advantages
Advantages and Features
1.Designed to fit your operation- Trommel screen can be customized to meet different capacity and working site
2.Free from pollution- Fully enclosed structure,no dust pollution,improve working conditions for operators as well
3.Variable application range-Compost,chemical,coal,plastic,recycling,metallurgy,mineral-selecting etc.
4.Superior design-Simple structure,easy maintenance,steady operation,low energy consumption
5.Less blockage-Automatic cleaning brush on the top of trommel screen to avoid the blockage
6.Screen long life span-Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency
Technical Parameters
Model | Length Range | Segment No. | Aperture Size | Power | Inclined Angle | Max. Material Size | Rotating Speed(rpm) |
GTSφ600 | 2-4m | 1-2 | 5-35mm | 2.2-3 | 0-7° | 50mm | 15-18 |
GTSφ800 | 2-5m | 1-3 | 5-40mm | 3-5.5 | 0-7° | 60mm | 15-18 |
GTSφ1000 | 2-6m | 1-4 | 5-50mm | 4-7.5 | 0-7° | 80mm | 15-18 |
GTSφ1200 | 3-8m | 1-4 | 5-60mm | 5.5-11 | 0-7° | 100mm | 15-18 |
GTSφ1500 | 3-10m | 1-5 | 5-60mm | 7.5-1 5 | 0-7° | 150mm | 15-18 |
GTSφ2000 | 4-12m | 1-5 | 5-75mm | 7.5-l 8.5 | 0-7° | 180mm | 15-18 |
GTSφ2500 | 5-12m | 1-6 | 5-90mm | 11-l 8.5 | 0-7° | 200mm | 15-18 |
Certifications
Packaging & Shipping
1.We can deliver Gold Trommel Screen for Washing timely .
2.Standard sea shipping packaging.
Contact us to get a quote right now!
Company Information
Henan Pingyuan Mining Machinery Co.,Ltd (PKmachinery) had earned many certificates about the whole strength and had cooperated with many group companies in the whole world. There is a systematized program in our company, every order will strictly according to the standard system to show our customer the best immediately.
PK machinery offers a full range of screening and conveying equipment,which involves vibrating screen,belt conveyor,bucket elevator,screw conveyor,scraper conveyor and related spare parts.What's more,PK Machinery is always cooperating with the world-class suppliers to ensure the product's high quality,including ABB,SEW,SIEMENS,etc.
Our Services
1.Reply your enquiry in 24working hours ,anytime you can contact us .
2.Provide good before-sale / after -sale services.
3.Provide Professional &technical support.
4.View our factory ,sincerely treat per customer's requirement .
Contact us to get a quote right now!
