new PTC air heating element

Product Overview

Description

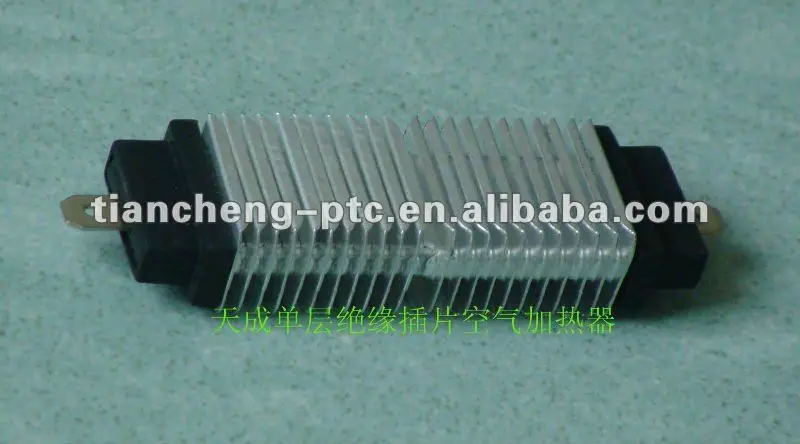

Air heating element

PTC air heating with out blowing,Air heating element PTC air heater without insulator. For more information about this product, please visit our website: 3w.



Prevent frostbite and wet: outdoor preventing frostbite for electric equipment, water pipe, oil pipe, electric circuit.

1.      Types

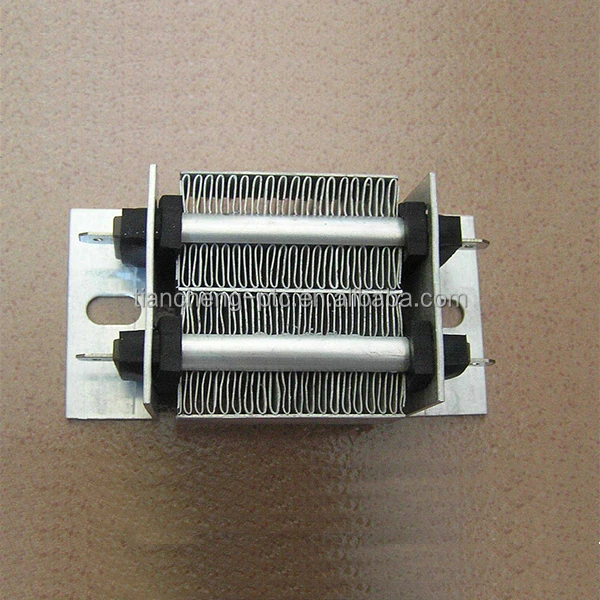

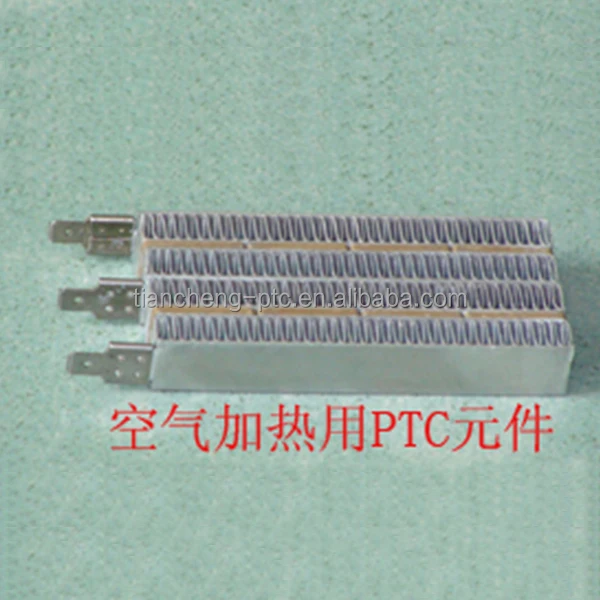

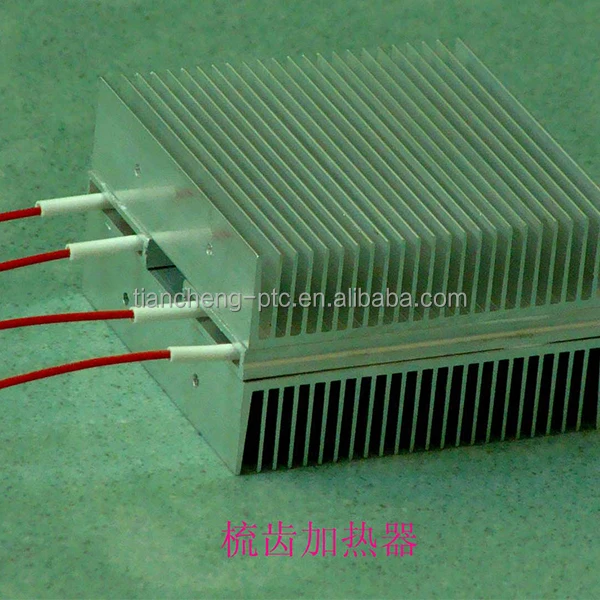

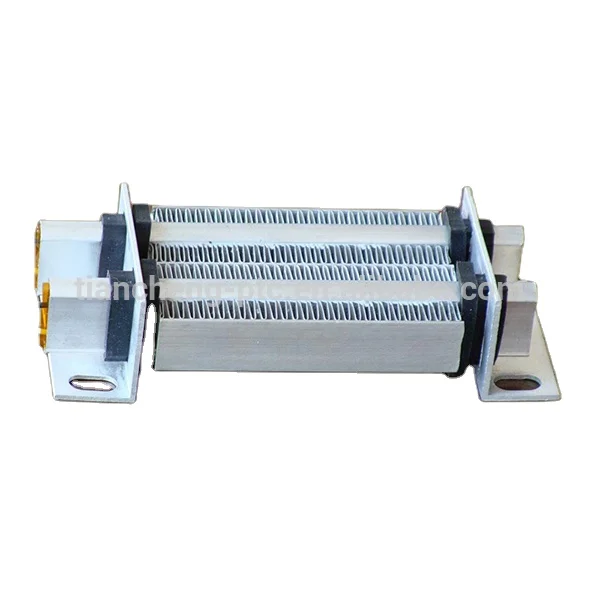

Blowing type: insulated type with wave radiator, uninsulated type with wave radiator, insulated type with inserted foil radiator, insulated type with comb radiator.

Heater with fan: insulated type with fan, uninsulated type with fan.

Convecting type air heater.



2. Some appliances.

Blowing type: room heater, bathroom heater, air conditioner heater, drying room heater, clothes dryer, hand dryer, air conditioner system for electric car, discharging loader for battery.

Convecting type: moistureproof and dew proof for electronic equipments, heating for electronic controll case, room heater.



3. Notice in appliance.

Blowing type:

1)This type of PTC air heater need a fan to blow, usually the faster is the air blowing speed, the larger is the power;

2)When PTC is used in very low ambient temperature, it have to be special designed;

3)PTC heater do not be damaged without air blowing, but the power is very low;

4)The power could be adjusted by air blowing speed; or it could be adjusted by voltage; or changing the number of heaters.

5)The surface tempetature on heater would be higher without air blowing. A thermostat could be assembled on the heater, preventing the damage of the holde;

6)The surface temperature on dispersion plate is closed to the curie temperature, without air blowing; but the surface temperature on dispersion plate will be lower than the curie temperature very much, with air blowing;

Convecting type.

1)Heating power depends on assembling methods, direction of the heater;

2)Keep air flowing itself for heat could be diffused;

3)The heating power will be increased 2~4 times, when the heater is blowed;

4)The heating power will be increased, when the heater is assembled on a metal holder.
