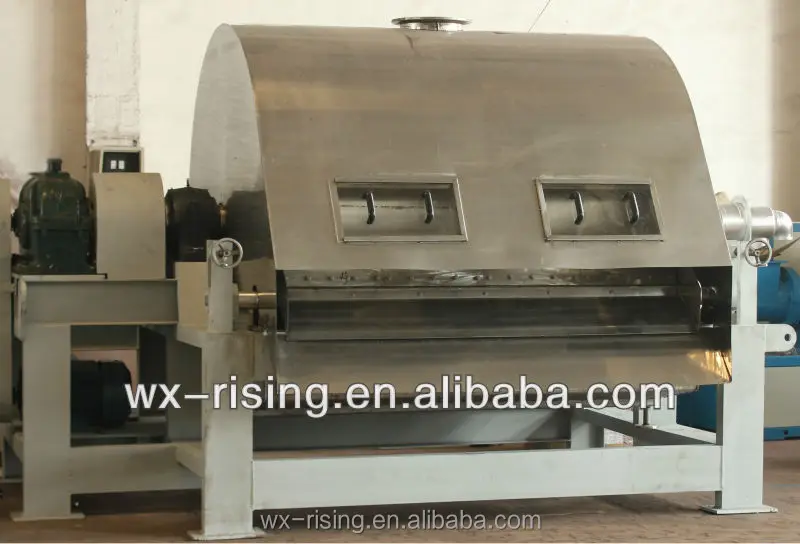

Cooling Drum Flaker System
Cooling Drum Flaker System
Cooling Drum Flaker System
Cooling Drum Flaker System
Cooling Drum Flaker System
Cooling Drum Flaker System
Cooling Drum Flaker System

Cooling Drum Flaker System

Share on (535532678):


Price:RUB 629,263.20 - RUB 3,932,895.00

Quantity:


Product Overview

Description

Product Description

Product Application

Condensation flaker is used to make flakes from heated fluid to solid flakes through knife blade. The heated fluid is stuck on the revolving cooling roller and turn to solid then us adjustable knife blade to cut it into flakes. Thus completes the conversion of liquid to solid flake after cooling and then use knife blade, and it can also make flakes for the raw material which is converted from liquid to crystalline solid. It is widely used in chemical, pharmaceutical and other industries. The flaking machine improves the final flakes product quality if you compare the product making by crusher. Moreover, the machine is of good stability and easy operation. And the thickness and output of flake is related with raw material characteristics, drum speed and feeding speed. Flake specifications can be customized.

Specification
Revolution (r/min)
Motor Power Consumption (Kw
Capacity (Kg/h
500×600
0 - 20
1.5 - 3
50 - 150
600×800
0 - 20
2.2 - 5.5
50 - 250
800×1000
0 - 20
3 - 7.5
100 - 450
1000×1200
0 - 20
4 - 7.5
100 - 650
1200×1500
0 - 20
5.5 - 11
100 - 1000
1300×1500
0 - 20
7.5 - 15
200 - 1100
1400×1500
0 - 20
7.5 - 18.5
500 - 1500
1500×1500
0 - 20
7.5 - 22
500 - 2000
1500×1800
0 - 20
7.5 - 22
500 - 2000

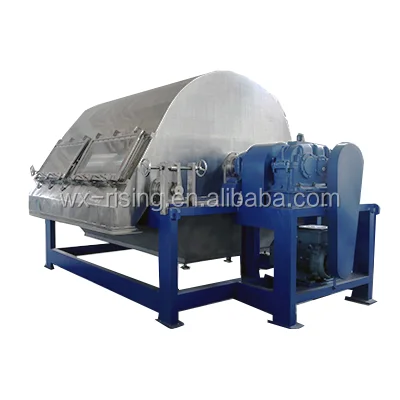

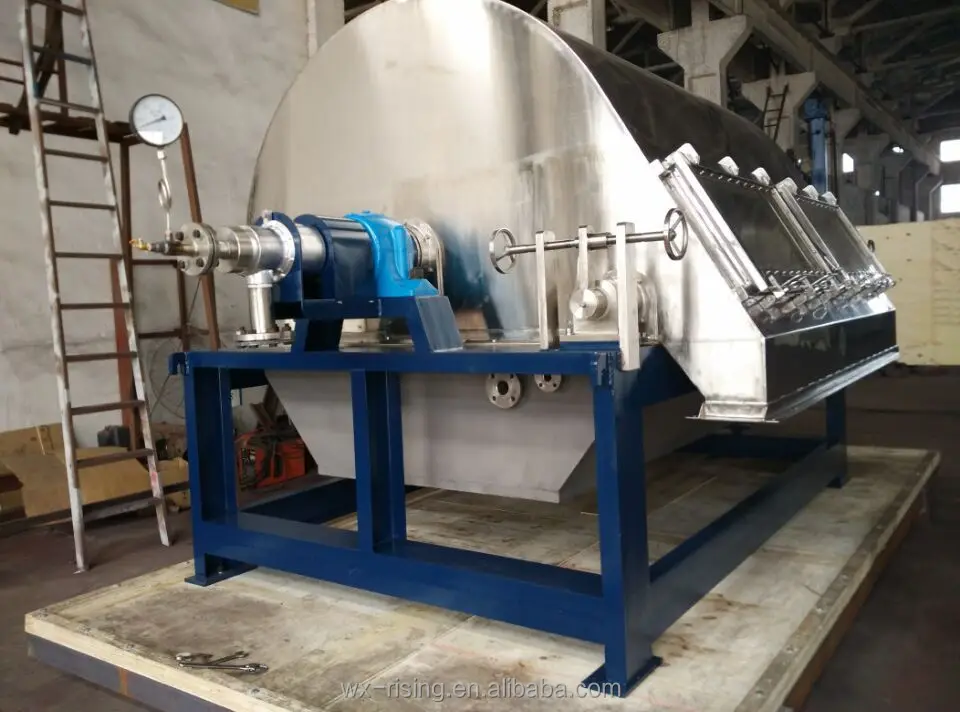

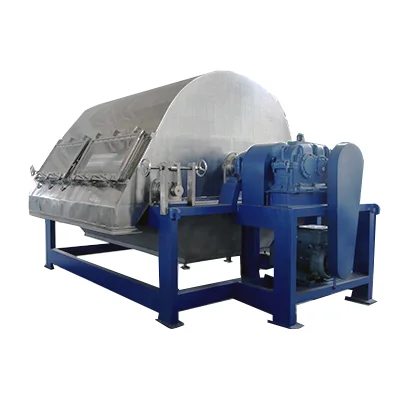

Main Features

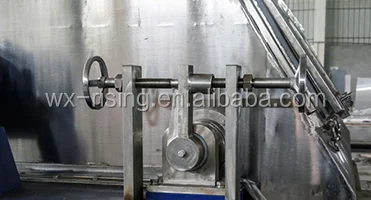

The drum flaker is including: frame support, electric motor, gear reducer, cooling drum,
scraper knife, thickness adjustor, feeding hopper, discharging hopper, stainless steel dedusting Cover etc.

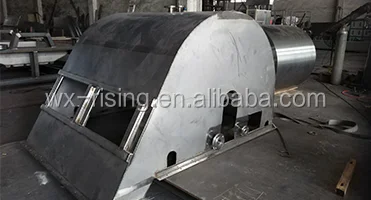

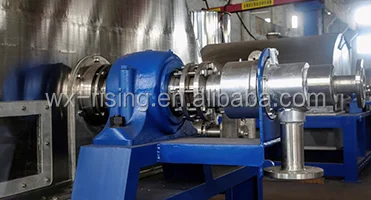

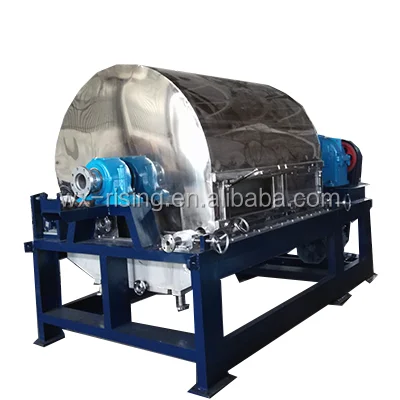

Detailed Images









Applied material for key parts and test standards

------ The parts of stearic acid in contact with soap material is 304 stainless steel,
        Machine frame support made of carbon steel hot spray galvanized.

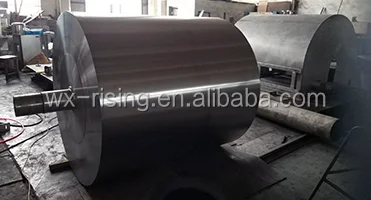

------ The drum and material trough of the flaker is manufactured and inspected as per the specification of Steel Vessel
        in normal pressure, the machining, welding and assembling to be made according to the general condition of
       JB/T4735.1-2009, JB/T 4735.2-2009,JB/T 47003.1-2009.
------ The drum will be done the water pressure test under 0.3MPA after finishing the manufacturing.
------ The data after assembling: radial runout of drum ≤0.1mm, axial transmission±0.2mm.
------ The contact between scraper and drum should be even, the contact line will be not less than 80% of the whole length.           There should be no bumping and abnormal noise when running.

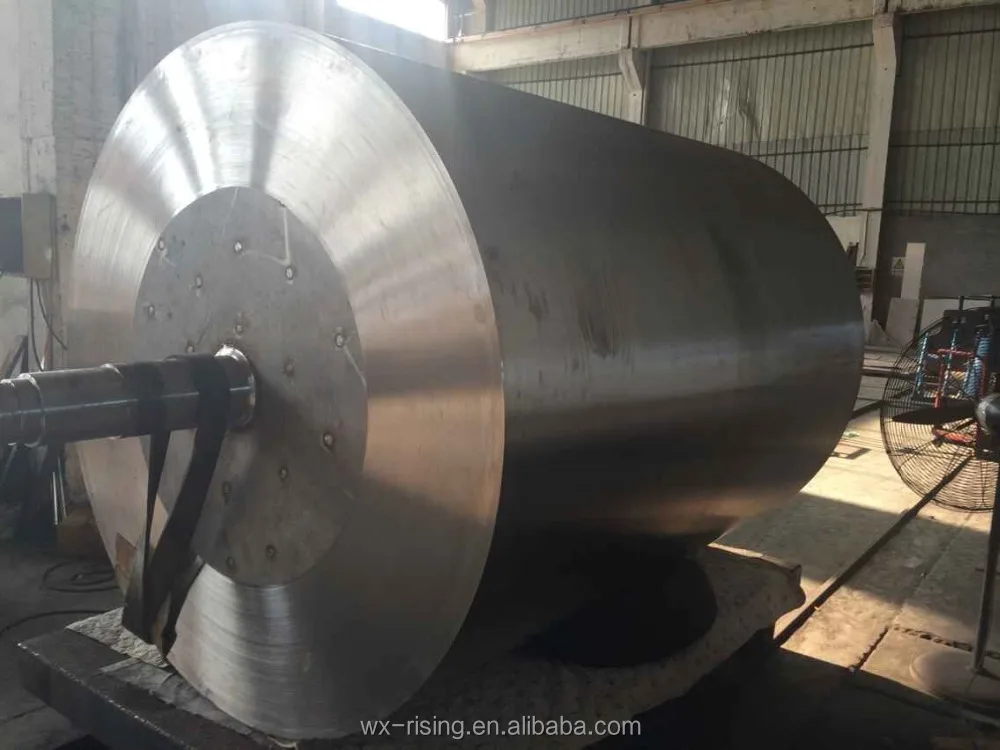

       The outside shell of the drum should be treated by polishing.

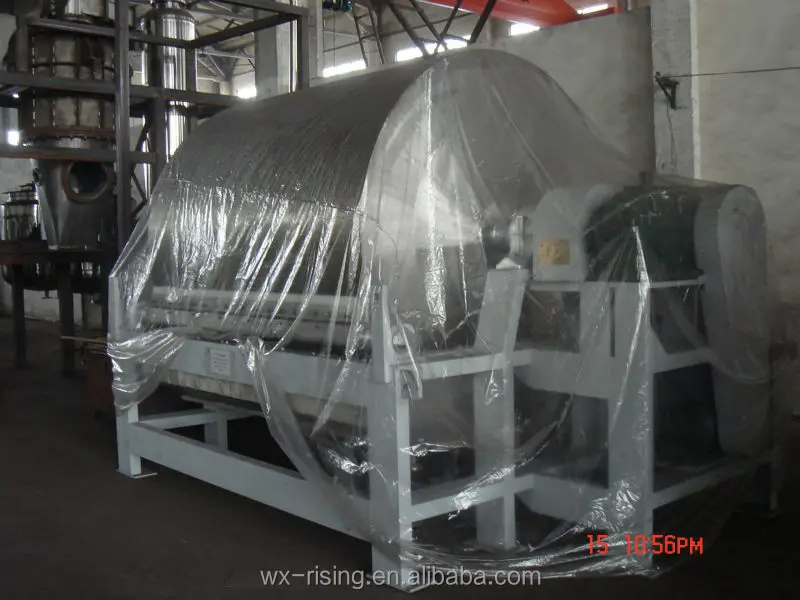

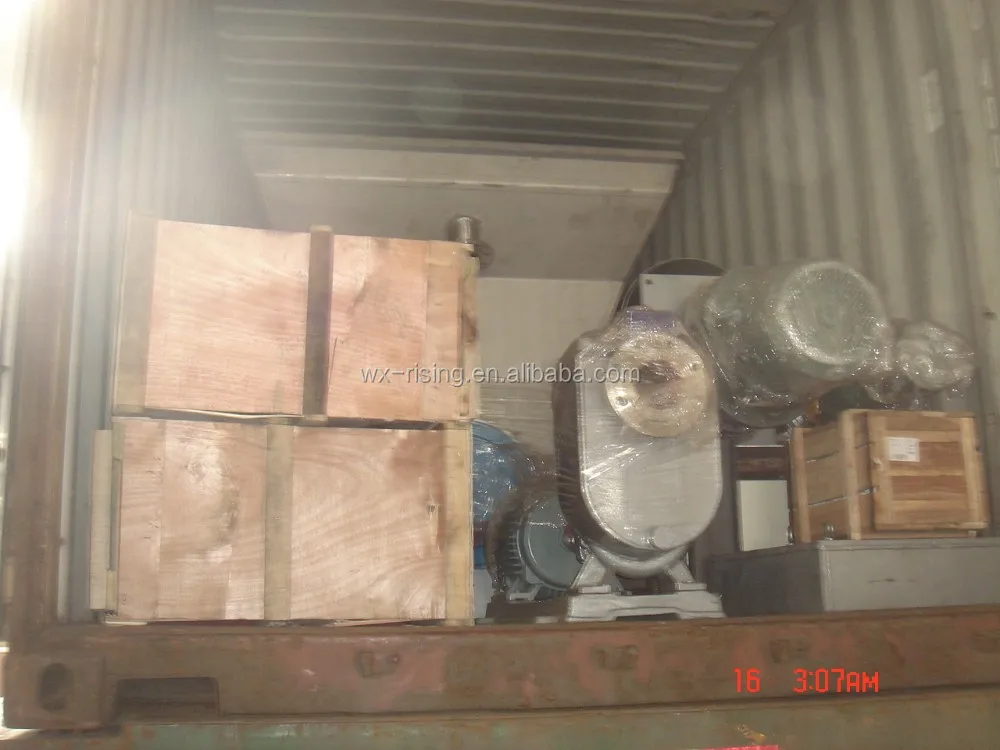

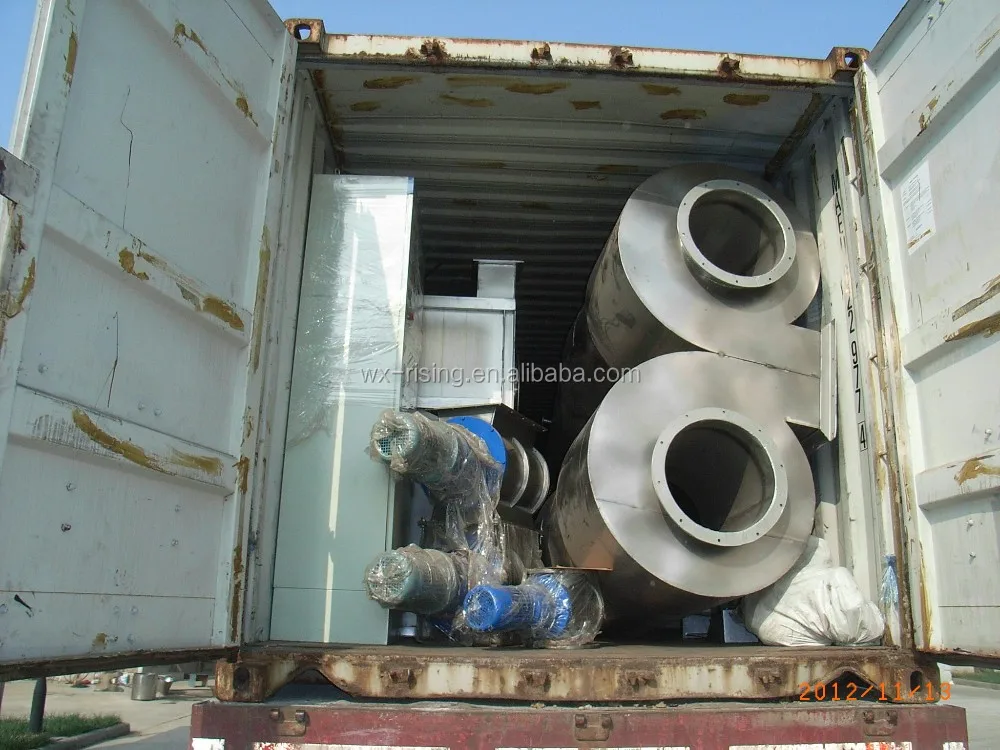

Packing & Delivery

Nude packing and wooden case
Delivery within 50 working days


Certifications

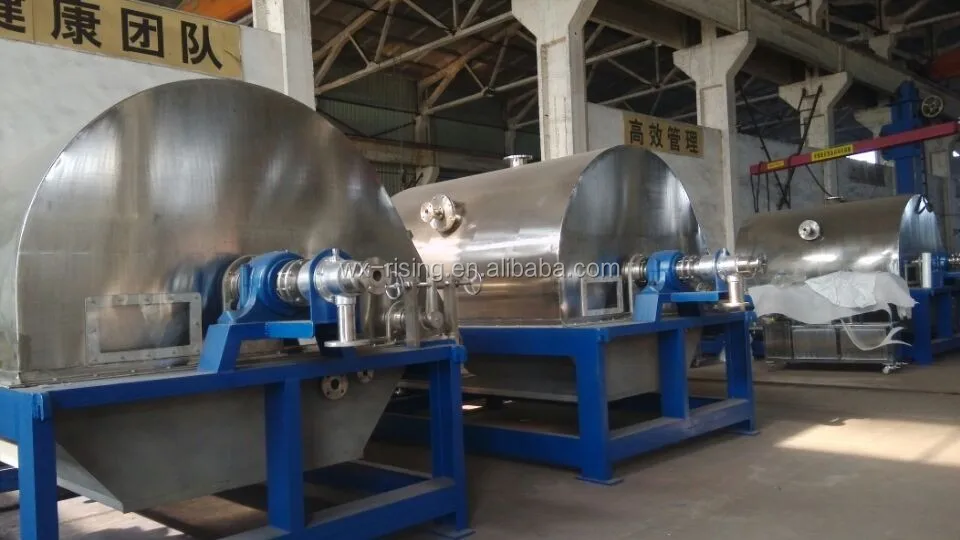

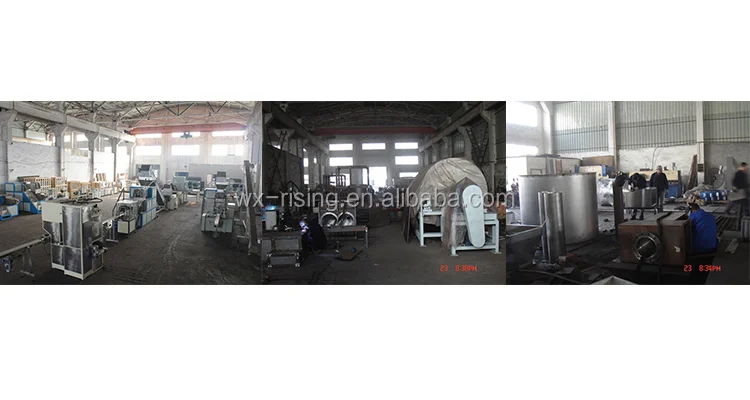

Workshop

Wuxi Rising Machinery Co., Ltd. is a manufacturing enterprise which is specialized in producing chemical equipments, pharmaceutical equipments, food and dye intermediates, and other special purpose equipments. It has various kinds of technicians in technology, welding, production and quality control, as well as advanced production and testing equipments.

Our products can be classified into: reactor, flaker, dryer, separator, concentrator, heat exchanger, fermentation equipments, extraction equipments, fractionating towers and tower stuffing and so on. We also provide all kinds of services including design, manufacture, installation and commissioning etc.
