Liquid Water Float Level Switch for Aquarium saip float switch

Product Overview

Description



Liquid Water Float  Level Switch for Aquarium saip float switch





  Float switch:

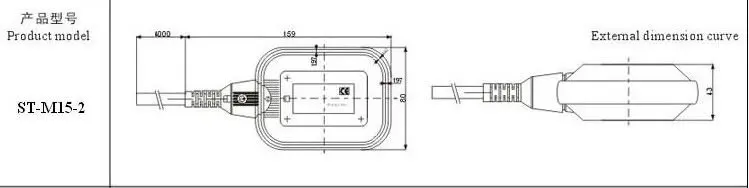

The drawing:





The description:

The float switch can output stable and reliable switch control signal of "making", "breaking" without any fault action. Its reliability is very high and anti-interference is strong.

The liquid level control scope can be adjusted at will with the locating piece moving up and down, Only one screw is needed to secure the signal cable to finish installation.

The products and be used for a long time after it being installed. Almost no maintenance and repairing problem would occur during its operation period.

Wide application scope, strong generality

The product applies to branch water, sewage, acid-base solution of less than medium concentration, oils and situations requiring no pollution (for example food and drinks industry), diesel oil gasification kitchen range and automatic fuel feeding.

Operation voltage is 220V, and current can be up to 10A, The appliced circuit of the product is simple, so application cost is very low.



Available shape:

1: trapezium

2: rectangle

3: large circular

4: small circular

Available color: Red, Yellow, Blue, Grey, Black



Working environment:

Rated voltage	250V (380V)
Rated current	15A (5A)
Working temperature	0°C  to 80°C
Mechanical endurance	≥100,000times
Electrical endurance	≥50,000times
Protection setting	IP68CS

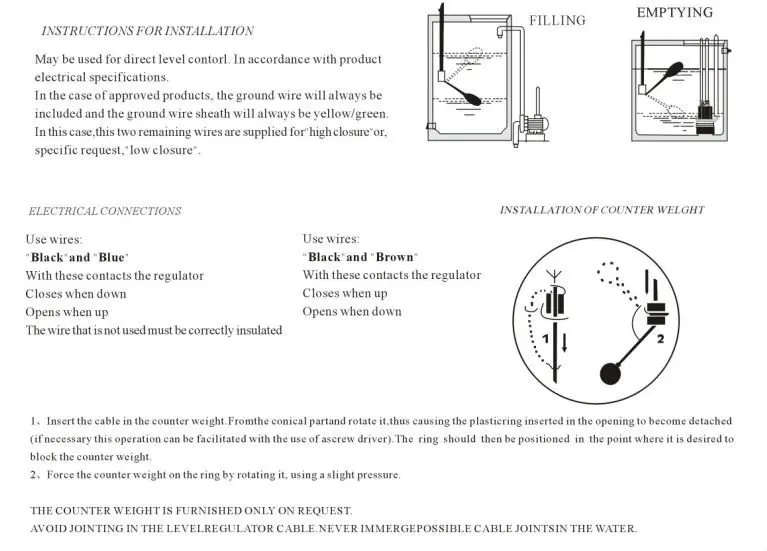

User Manual:



The Quality Management System Certificate of Approval:
