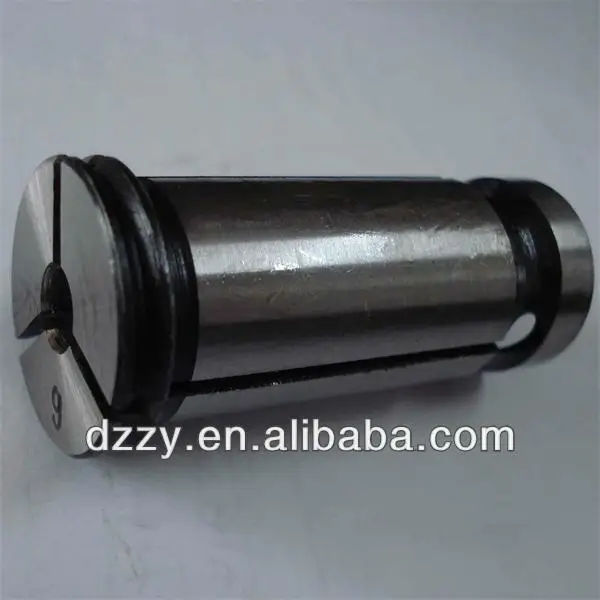

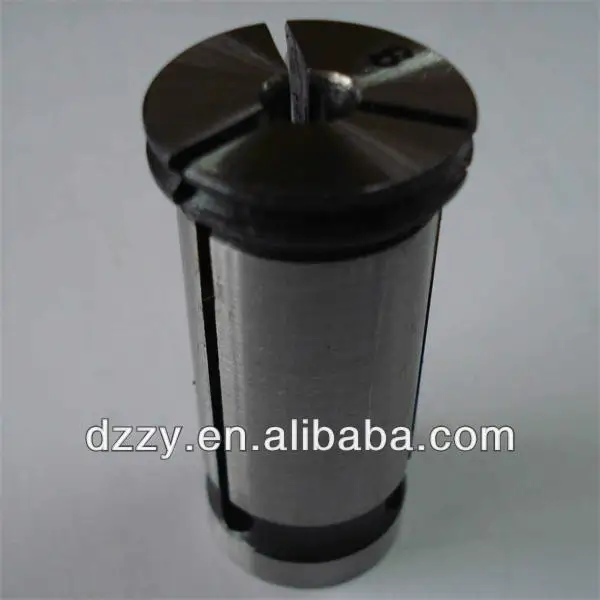

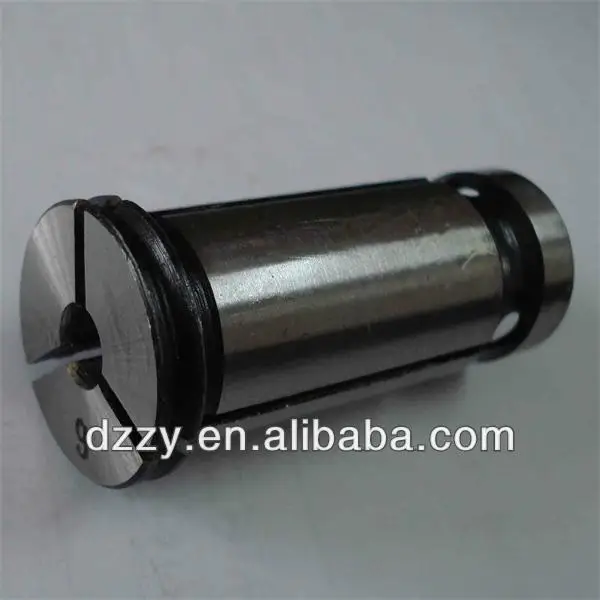

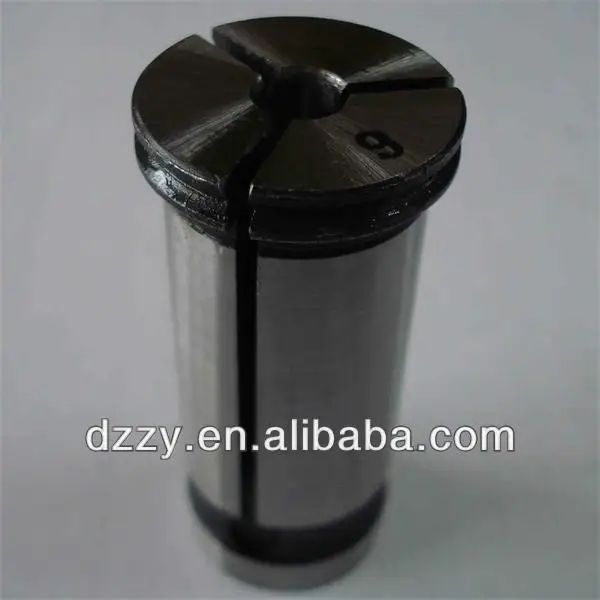

C16/20/22/25/32/40/42 straight shank collet used on power milling chuck

Product Overview

Description

straight shank collet used on power milling chuck:

1.Material:65Mn
2.runout:0.015mm

3.hardness:HRC44-48

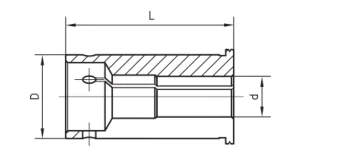

4.The sizes specification is given below:







model no.	D(mm)	d(mm)	L(mm)
C16	16	4-12	45
C20	20	4-16	50
C22	22	4-16	55
C25	25	4-20	60
C32	32	4-25	65
C40	40	6-32	80
C42	42	6-32	80
