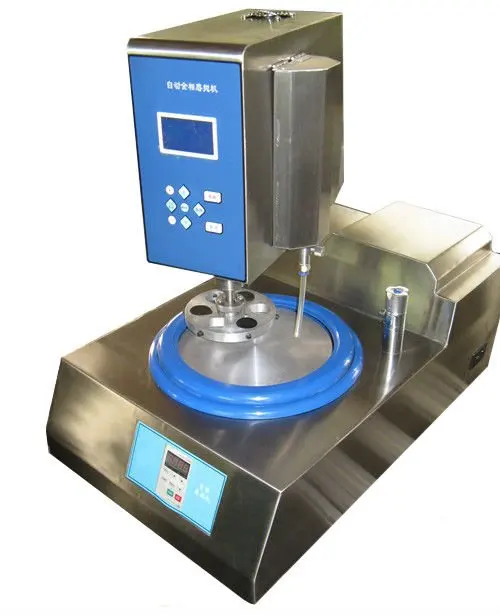

ZMP 1000 full automatic metallographic sample grinding and polishing machine

Product Overview

Description

Brief introduction

ZMP-1000 full automatic metallographic sample grinding and polishing machine adopts stainless steel machine shell and automatic filling advice. The stainless steel shell not only endows the machine beautiful appearance, but also enhances the practical usage and using life. The machine adopts LCD screen. The time of grinding and polishing is counted by digits countdown, and the time can be preset freely in the range of 0 to 99minutes and 59 seconds as your need. Rotation of working disk also can be preset freely in the range of 0 to 1500rpm as your need. During cutting, working disk is driven to rotate by adjustable speed motor, now the specimen holding disk falls to the preset height, then apply and hold perfect load and relief load piecewise to press the specimen holding disk onto the working disk, so as enable to grind off the machining trace and getting rid of the deformation layer quickly, after the preset time is elapsed to zero, the working disk will stop and specimen holding disk will be raised automatically, hereby, unattended operation is achieved. The machine can be set and stored working parameters (speed, height and time) on-site based on needing of different metal materials, and also can invoke the preset optimizing working parameters from memorizer, so the machine is of high inteligentizing.

Main characters

1.       Manual/auto operating mode;

2.       Optional magnetic working disk (corresponding abrasive paper, polishing cloth and grinding disk will be magnetic, under this situation it need not to stick the traditional pressure sensitive adhesive on the working disk.)

3.       Stepless speed adjusting for working disk: 0-1500rpm

4.       The height of specimen holding disk can be set from 0 to 29.5mm freely;

5.       Digital display preparation time from 1 to 99 minutes and 59 seconds;

6.       Power of main machine: 550W

7.       Specimen diameter: 8 to 30mm

8.       Working disk: diameter 230mm

9.       Weight: 55kg

10.   Dim.: 40x65x75cm



Standard configuration

1.       ZMP-1000 main machine

2.       Grinding & polishing disk: 2 pcs.

3.       Outlet/inlet water pipe: each 1 pc.

4.       Specimen holding disk: 1 pc.

5.       Mounting specimen stage: 1 pc.

6.       Polishing worsted cloth: 2 pcs.

7.       Abrasive paper: 2 pcs.

8.       Power cable: 1 pc.



Optional parts

Magnetic working disk

Magnetic abrasive paper

Magnetic polishing cloth

Specimen holding disk
