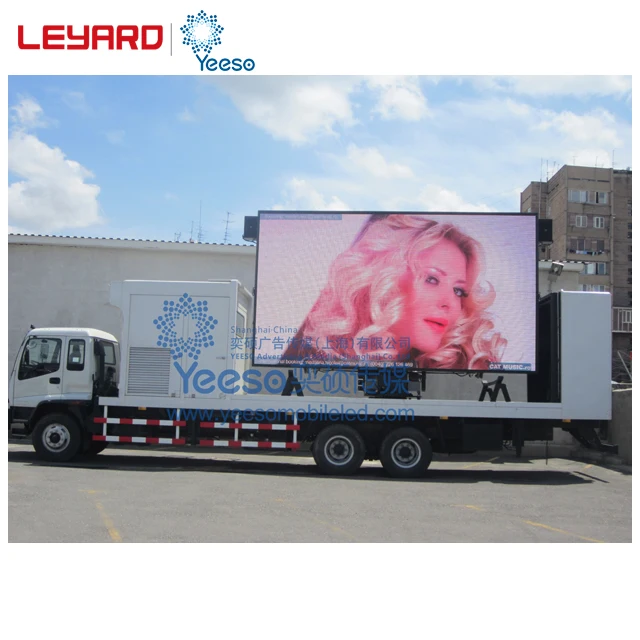

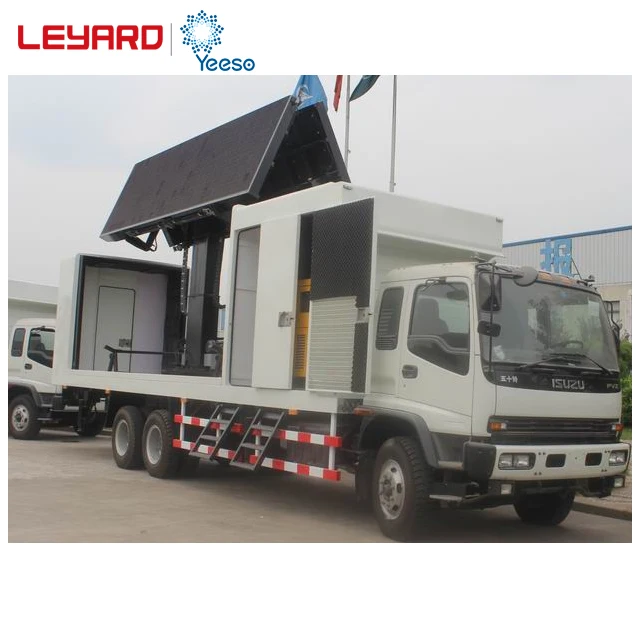

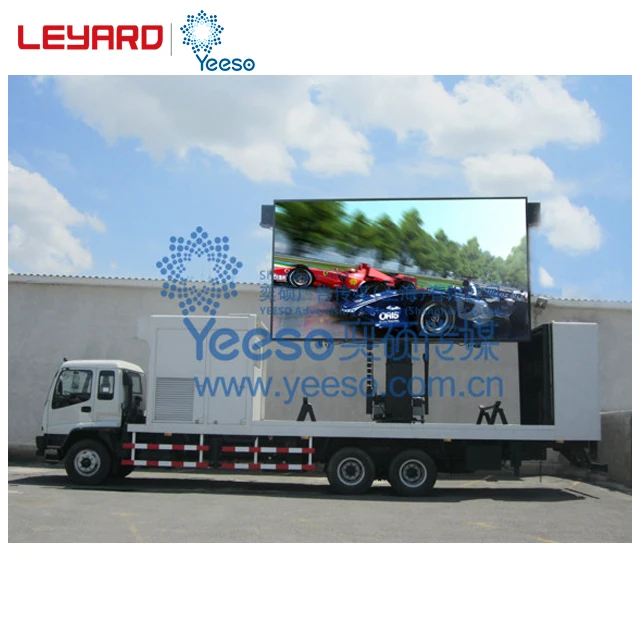

YEESO Scrolling Outdoor Mobile LED Display Advertising Vehicle YES TB16

Model

YES-TB16

Chassis

Brand

YEESO

External dimension

7900mm×2100mm×2800mm

Material

16 manganese steel

Sheet metal structure

1.5mm plate steel

Tire

Solid tire

Gross mass

8100KG

Brake

Manual and Hit hydraulic brake

minimum turning diameter

≤12000mm

motor power

6.5KW

mileage range

40-60KM

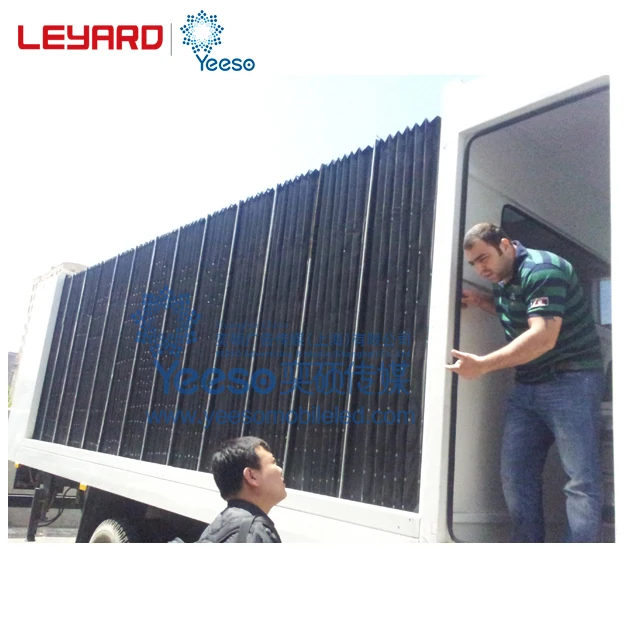

Rolling door type protective cover

External Dimension

5150mm×3100mm×2

Material

high-strength aluminum alloy

verticality error

5°

horizontal error

50mm

Power

speed adjusting motor

Sporty Structure

3mm steel wire

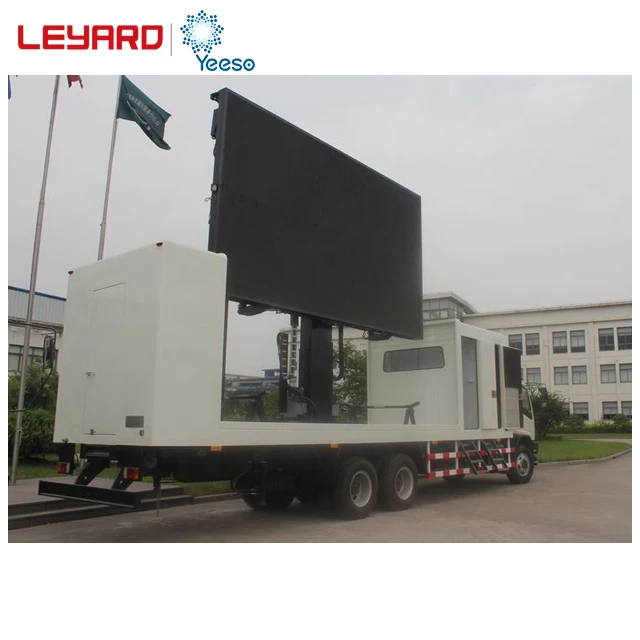

Hydraulic lifting & supporting system

Hydraulic lifting system for LED screen

Lifting height:2000mm,afford 3T

Hydraulic supporting system

leading screw supporting legs system,  It can goes up 300mm,each afford 5T,its wind-proof level can reach to maximum level 8 when screen is lifted up

Slewing mechanism

rotation angle

360°

structure

slewing ring

LED screen

Screen size

4800mm×3200mm

Module size

160mm(W) ×160mm(H)

Chip

R: Guanglei, G,B:Silan

Pixel pitch

10 mm

Brightness

≥6000cd/ m²

Max power consumption

1200 W/ m

Average power consumption

600W/ m²

Life span

100,000hour

Power supply

Input voltage

three-phase five-wire 380V

Output voltage

220V

Electrical current

50A

Power consumption

average:0.5wh/m²

Multi-media control system

Industrial PC

Processor: Dual Core CPU, display card: 512,hard disk:320G,CD-ROM:DVD, internal storage:2G

Monitor

KVM 15-inch LCD display

Power amplifier

unilateral power output:200W

Speakers

Max power consumption:200W

Control system of LED screen

Linsn/ZHOGNQING(technology of point by point correction)

Optional Configuration

LED Screen

Could choose size of 4800mm×2400mm

electrical equipment

Could choose touch touch panel,wireless,upper computer control system
