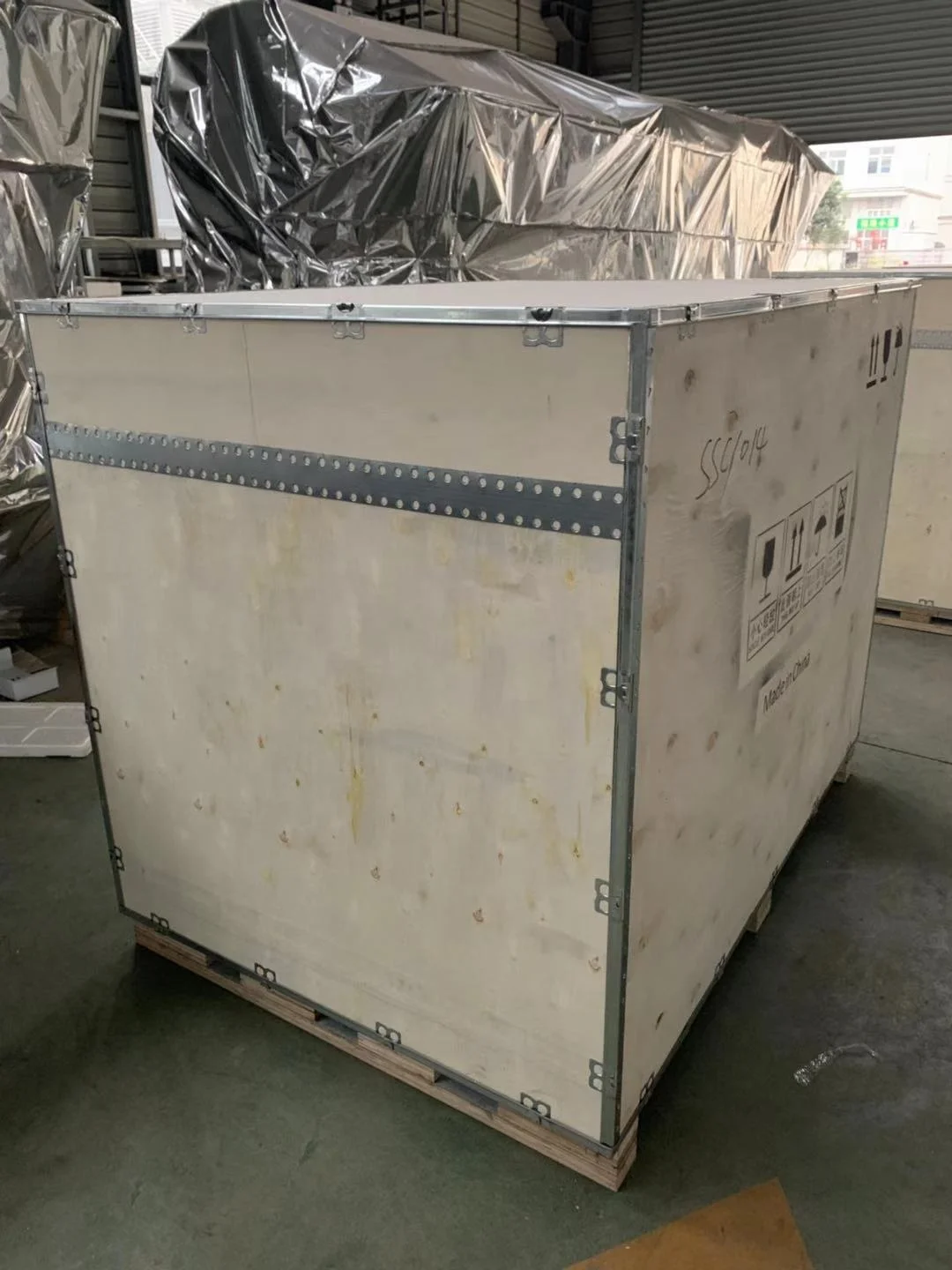

Nailless Plywood Box Making Machine

Product Overview

Description

This nailless plywood box making machine consist of 3T hydraulic uncoiler, sheet feeding device, roll forming system, hydraulic post-cutting equipment, run out table, hydraulic station and PLC controller.

Optional: hydraulic decoiler/Safe cover/ Pre-cutter(used for coil change without waste)



Working Flow

Decoiling--sheet feeding--roll forming--automatic cutting--run out table



Main Parameter

No	Item		Parameter	Note
1	Suitable   Material	Type	Pre-paint Steel
		Width	According to profile
		Thickness	0.40—0.80mm
2	Product   Specs	Cover width	According to profile	Refer to drawing
		Wave height	According to profile
		Length	Any length
3	Machine   Material	Active shaft	No. 45 steel tempered	Up to final design
		Roller	No. 45 steel chrome plated
		Cutting Blade	Cr12 quenched
4	Power Requirement	Type	380V/3PH/50HZ	Customized
		Main motor	3kw	Up to final design
		Hydraulic	3kw
5	Speed	forming speed	20-25m/min	Excludes cutting
6	Hydraulic Cantilever Decoiler	Type	Hydraulic
		Max. capacity	3000kgs
		Suitable coil OD	1200mm
		Suitable coil ID	508/610mm
		Max Coil width	500mm
		Motor power	2.2kw
		Hydraulic Power	2.2kw
7	Forming Stand		About 14 group	Up to profile
8	Transmission style		Chain, sprocket	Double row Entire chain
9	Main machine structure		Guide Column
10	Type of Cutting		length-set cutting	Hydraulic cutter
11	Control System		Mitsubishi PLC& transducer
12	Product support		Automatic stacker/ Simple run out table



Detailed Picture& Decription

Advanced Decoiler



Guiding Device, pre-cutter(used for coil change without waste, optional.)



Machine frame, meet different machine demand, enhance stability& lifetime



Double-row entire chain transmission ensure synchronization& strength.



Guilding column stand, well processed forming system ensure precision& lifetime



Pillar style post-cutting equipment, mould steel cutter

Rack& pinion system, photoelectric switch ensure cutting precision and lifetime.



PLC system top brand Encoder

Hydraulic unit



Support Table



Safety cover



Container Loading
