pressure switch for water pump

Product Overview

Description

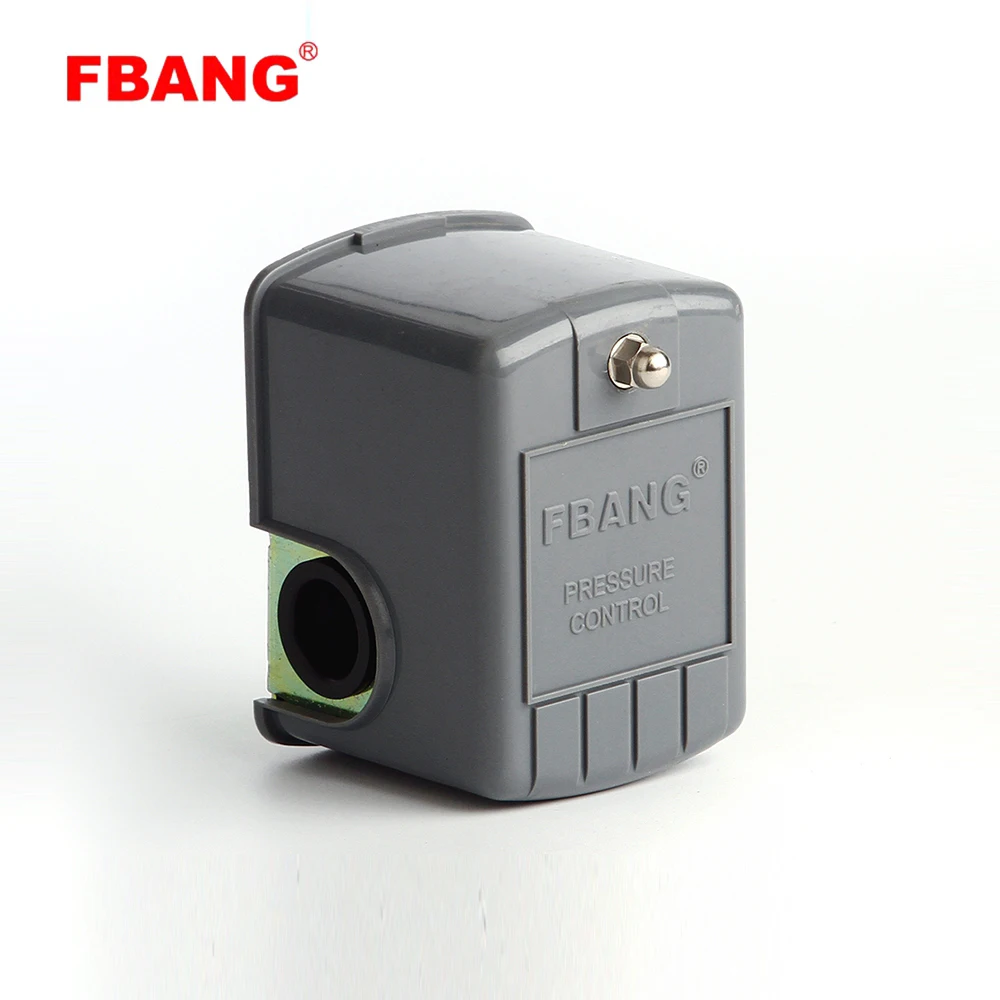

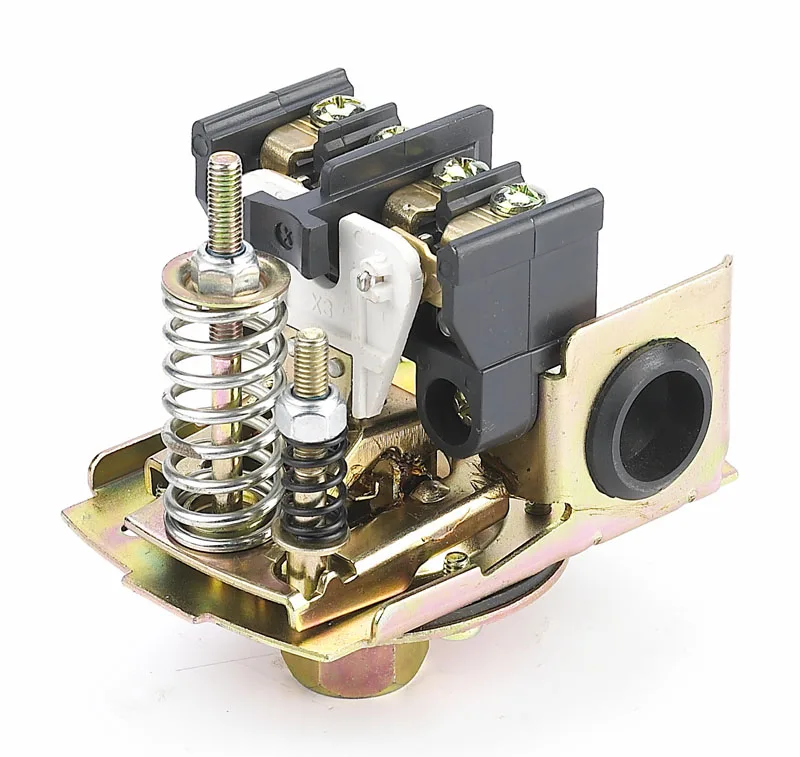

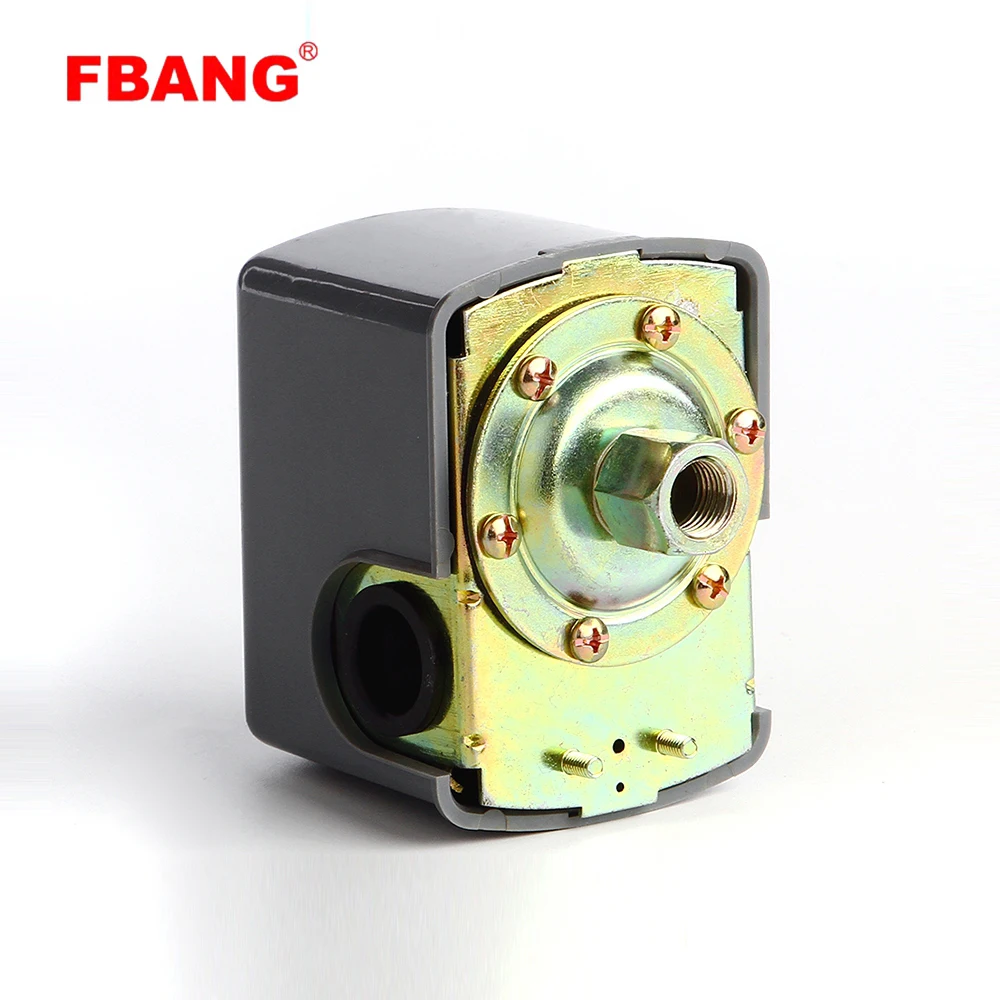

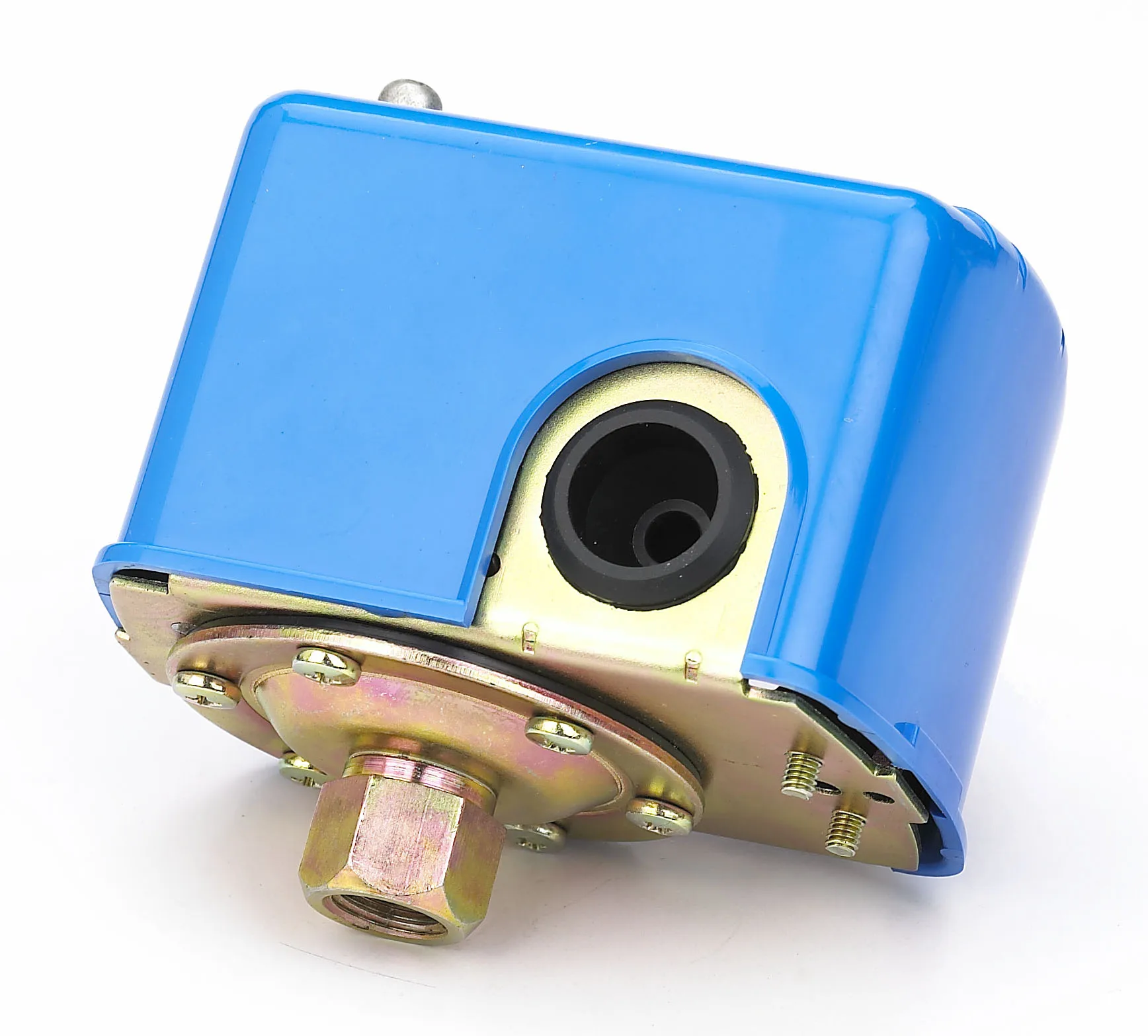

FB50 water  pressure switches provide reliable control for automatic water systems with time function. The pressure switch is universally acceptable for water well pumps and pumping systems usage.It will automatically cut the water supply restoration. A manual reset lever will be decreased if system pressure is suitable for automatic operation. The simple
design makes it easy to use for both professionals and normal users.



MODEL	Min On (Cut-In) (PSI)	Max Off (Cut-Out) (PSI)	Differential  (PSI)	Factory Setting      (PSI)	Electrical		Pipe Fittings	Contact Arrangement
					120VDC	240VDC
FB50	20	80	15-30	20-40	2HP	3HP	NPT1/4”Male or Female	NC
			15-35	30-50	2HP	3HP	NPT1/4”Male or Female	NC
			15-35	40-60	2HP	3HP	NPT1/4”Male or Female	NC

 Other Pressure Settings and Differential Pressure are available on request.

Conversion: 1Mpa =10bar,1bar = 14.5PSI,1Kgf/cm2 = 14.2PSI
