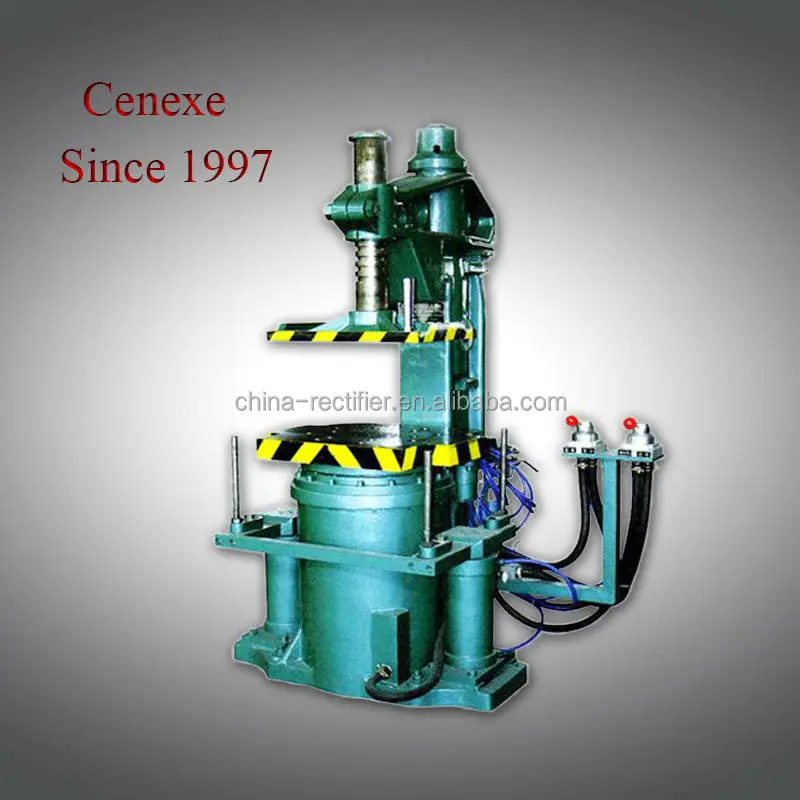

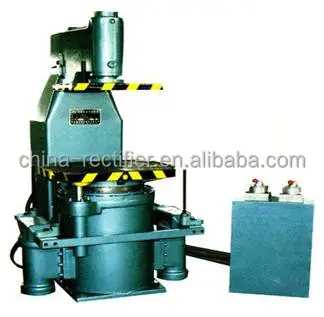

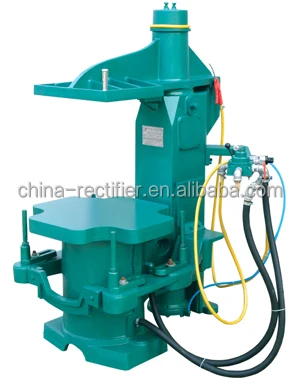

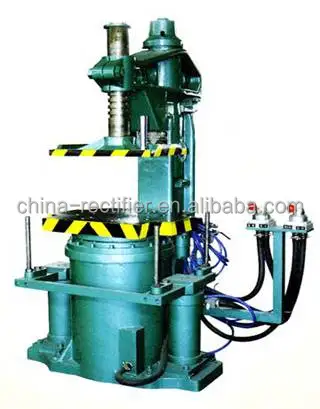

Vibrating Jolt Squeeze Molding Machine
The vibrating Squeeze Molding Machine is optimized with square frame structure to increase the stability The small vibrate mold press skill will make the rigidity of sand box reaches HB90 and above as well as roughness to increase the quality of product.
The jolt device is fixed of cushion spring to reduce the shake of infrastructure
The mold charging device is constituted of cylinder, crank, ram and synchronizing shaft.
The air pneumatic parts are equipped to ease the operation and maintenance, simple procedure, according to the sand mode, to increase the productivity.
The air press mode squeeze mold machine is designed as full cushion, High frequency and low excursion.
Applied for casting auto mobile parts, truck parts, machine tool and textile machinery parts.
The operation is controlled by air motivated. The jolt device is fixed of cushion spring to reduce the shake of infrastructure
The mold charging device is designed as double poles to charge out the mold synchronous.
The machine is constituted of body, jolt device, mold charge device, head press with pivoted arm device and pipe loop system.
Main Specification:
No | Name | Unit | Z144W | Remark |
1 | Max size of flask box | mm | 500x400x180 |
|
2 | Work flat dimension | mm | 560x465 |
|
3 | Compressive stress | kgf | 3880 | 0.6MPa |
4 | Jolting load | kgf | 261 |
|
5 | Compress process | mm | 120 |
|
6 | Molding process | mm | 150 |
|
7 | Productivity | box/hr | 40-60 |
|
8 | Dia of jolt cylinder | mm | 150 |
|
9 | Consumption of air | M3/box | 0.3m3/box |
|
No | Name | Unit | Z145W | Remark |
1 | Max size of flask box | mm | 500x450x250 |
|
2 | Dimension of work flat | mm | 610x525 |
|
3 | Compressive strength | kgf | 6300 | 0.6mpa |
4 | Jolting load | kgf | 300 |
|
5 | Compress process | kgf | 160 |
|
6 | Molding process | mm | 200 |
|
7 | Productivity | box/hr | 40-60 |
|
8 | Consumption of air | M3/box | 0.4m3/box |
|
No | Name | Unit | Z148CW | Remark |
1 | Max size of sand box | mm | 800x600 |
|
2 | Jolt strength | kgf | 550 | 0.6mpa |
3 | Press strength | kgf | 12000 | 0.6mpa |
4 | Stroke of press | mm | 180 |
|
5 | Stroke of mold charging out | mm | 250 |
|
6 | Dia of mold charging cylinder | mm | 130 |
|
7 | The max distance between press flat and and working flat | mm | 540 |
|
8 | Air Consumption | M3/box | 0.5m3/box |
|
9 | Rated working pressure |
| 0.6mpa |
|
10 | Dimension :length x width x height | mm | 1260x1080x2080 |
|
