Product Overview
Description

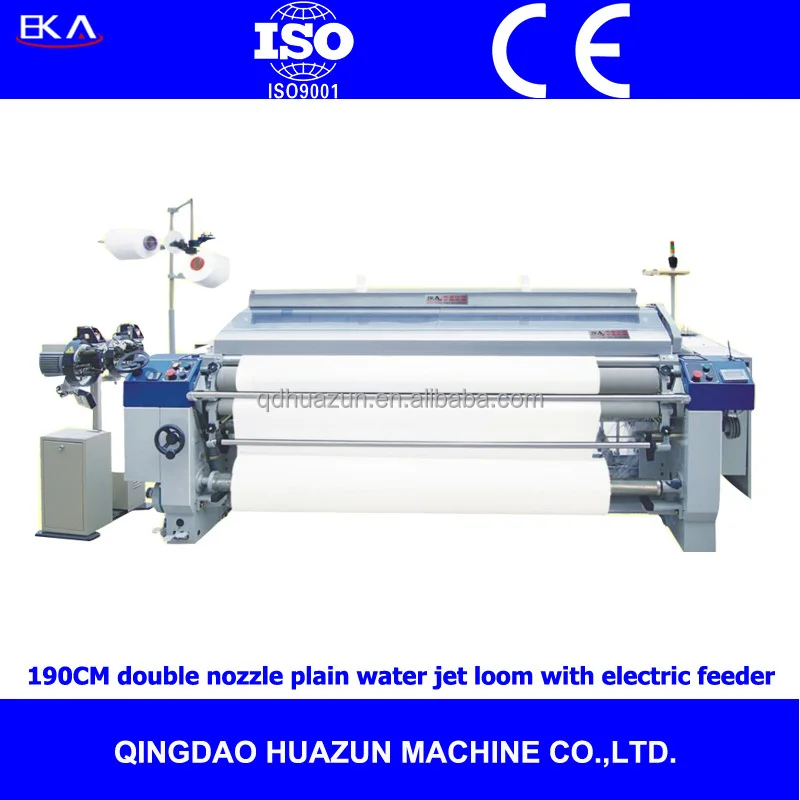

RJW851-190cm double nozzle plain water jet loom textile machinery with electric feeder
1) #851 water jet looms feature:
RJW851 series designed,which is optimizing the main component and frame structure,improving the beating-up,let-off mechanism and take up mechanism,installing assistant device on let-off mechanism,all of this ensure the running stably and reduce vibration and noise,increase effiency and enlarge the weaving range.
2)#851 and #408 textile machinery specification:
Specifications of RJW water jet loom | |||
Type | RJW851 | RJW408 | |
Reed space | 150,170,190,210,230,260,280,320,340,360,(cm) | ||
Useful reed space | Nominal R/S minus 2cm to 50cm | ||
Frame | Box frame type( Driving section is in an oil bath) | ||
Driving | Brake | Direct stop mechanism by an electromagnetic brake | |
Control | Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse) | ||
Motor | Rush start motor | ||
Motor capacity | 1.5KW, 1.8KW, 2.2KW, 2.8KW, 3.2KW, 3.7KW, 4.5KW. | ||
Beating | Crank beating | ||
Let-off | System | Automatic mechanical and continuous let-off, or electronic let-off. One or vertical two roll | |
Warp beam | 800MMFlange,178MMbarrel | ||
Take-up | System | Mechanical or electronic continuous take-up | |
Pick density | Normal:5-60picks/cm,Special:3-70picks/cm | ||
Cloth wind-up diameter | 420mm, 520mm, 600mm. | ||
Shedding | Plain shedding | Crank shedding( heald frame number:2 to 6), 1/1 fabric | |
Cam shedding | Cam shedding ( heald frame number:2-10),plain, twill, satin fabric | ||
Dobby shedding | Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design | ||
Jacquard | 1408, 2688, 5120 lifting hooks, electronic jacquard device | ||
WeftInsertion | Measuring & storage | 300RDP type mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles) | |
Pump | Type: M,L,H, single or double | ||
Piston of pump | 32/17,32/18,32/20,36/22,36/24,36/26, 39/26,39/28,39/30,50/35,ceramic piston | ||
Nozzle needle | ST20/10, ST30/10, ST45/20, SD75/40. | ||
Weft filling | One, two, three, four nozzle | ||
Filling feeler | Electronic, optical, and self-control | ||
Selvage | Twisting by star, planetary gears | ||
Electrical Part | Made in China import | Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection | |
Electronic meter | .Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, Stopping analysis and display | ||
Other devices | A cloth roller, a weft density gear, a trashcan ,a set of nozzle needle
| ||
3) Water jet looms #851 for YARN TYPE:
nylon filament ;
nylon with wire-free pulp;
multi- resin raw silk ;
multiple lipid retractable wire ;
multiple lipid rayon ;
multi-resin hard twist yarn ;
multiple lipid extension wire;
multiple lipid- free pulp with silk ;
elastic fiber yarn ;
imitation silk cotton ;
4) Company info.
Qingdao huazun machine co.,ltd. manufacture the water jet looms and air jet looms from 2000.
Located in Qingdao,Shandong;our domestic office and aftersales in suzhou,Jiangsu province.
In 2014,we sold more than 20000sets for india,turkey,vitenam,indonesia and so on.
We sold more than 6000 sets for domestic market in china
With3 production lines including the most advanced of finishing equipment in this industry.
5)water jet looms spare parts
6)loading and packing
