Engineering Cable Protector Electric CNC Plastic Cable Chain

Product Overview

Description

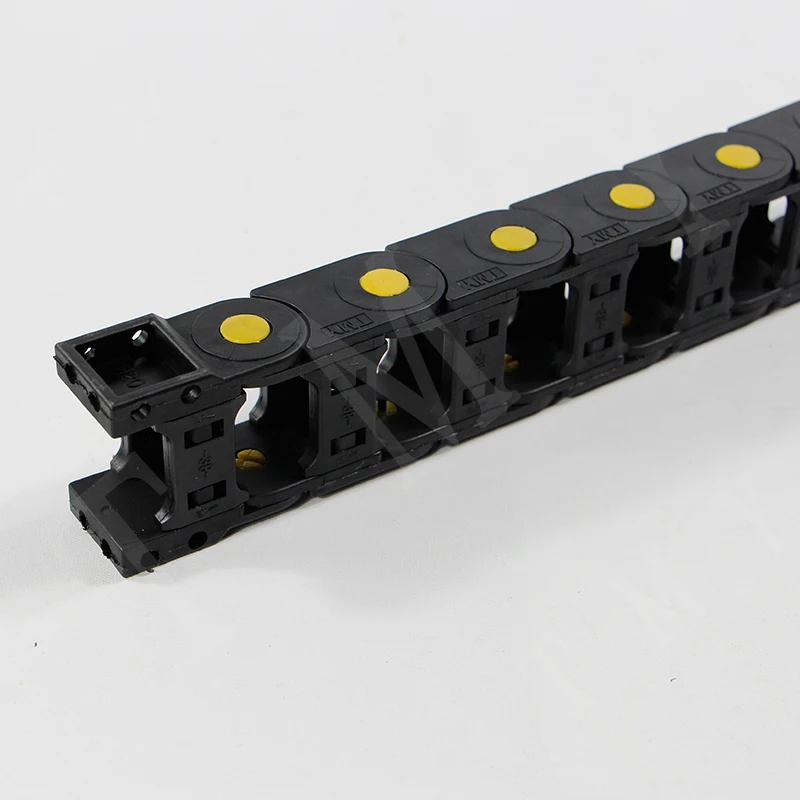

Engineering Cable Protector Electric CNC Plastic Cable Chain



Engineering Cable Protector Electric CNC Plastic Cable Chain
Model	Inside Diameter (height* width)	Outside Diameter (height* width)	Bending Radius (R)	Pitch (mm)	Structure	Max-support Length(m)
TMY7	7*7	10*13	18/28		Bridge,All-in-One	1.5M
TMY10	10*10	15*16	18/28/38		Bridge,All-in-One	1.5M
	10*15	16*23	18/28/38	20
	10*20	16*28	28/38
TMY15	15*18	23*26	28/38		Bridge,All-in-One	1.8M
	15*20	23*28	28/38	20	Semi-closed,Side open
TMY18	18*18	24*30	28/38/48		Bridge,Side open	2M
	18*25	24*36	28/38/48
	18*37	24*43	28/38/48	34
TMY20	20*25	25.5*36.7	28/38/55		Bridge,Side open	2.5M
	20*52	25.5*62.1	28/38/55
	20*25	35*40	55/75/100	47	Piecen,Reinforced,Bridge/Fully enclosed
	20*38	35*55	55/75/100
	20*50	35*65	55/75/100
	20*60	35*75	55/75/100
	20*75	35*90	55/75/100
	20*100	35*115	55/75/100
TMY25	25*25	40*40	55/75/125/150/175/200	47	Piecen,Reinforced,Bridge/Fully enclosed	2.5M
	25*38	40*55
	25*50	40*65
	25*60	40*75
	25*75	40*90
	25*100	40*115
TMY30	30*25	40*40	55/75/125/150/175/200	47	Piecen,Reinforced,Bridge/Fully enclosed	3M
	30*38	40*55
	30*50	40*65
	30*60	40*75
	30*75	40*90
	30*100	40*115
TMY35	35*50	55*75	75/100/125/150/200	66.5	Piecen,Reinforced,Bridge/Fully enclosed	3.5M
	35*60	55*85
	35*75	55*100
	35*100	55*125
	35*125	55*150
	35*150	55*175
	35*175	55*200
	35*200	55*225
TMY45	45*50	65*75	100/125/150/200	81	Piecen,Reinforced,Bridge/Fully enclosed	4M
	45*60	65*85
	45*75	65*100
	45*100	65*125
	45*125	65*150
	45*150	65*175
	45*175	65*200
	45*200	65*225
TMY55	55*50	75*80	100/125/150/200/250/300	81	Piecen,Reinforced,Bridge/Fully enclosed	4.5M
	55*60	75*90
	55*75	75*105
	55*100	75*130
	55*125	75*155
	55*150	75*180
	55*175	75*205
	55*200	75*230
TMY65	65*50	85*82	100/125/150/200/250/300	81	Piecen,Reinforced,Bridge/Fully enclosed	5M
	65*60	85*92
	65*75	85*107
	65*100	85*132
	65*125	85*157
	65*150	85*182
	65*175	85*207
	65*200	85*232
TMY80	80*75	106*120	150/200/250/300	101	Piecen,Reinforced,Bridge/Fully enclosed	6M
	80*100	106*145
	80*125	106*170
	80*150	106*195
	80*175	106*220
	80*200	106*245
	80*250	106*295
	80*300	106*345





Engineering Cable Protector Electric CNC Plastic Cable Chain



INTRODUCE of Engineering Cable Protector Electric CNC Plastic Cable Chain

   1.Material:PA66



   2.Working temperature:-40°c---+80°c



   3.Construction of Engineering Cable Protector Electric CNC Plastic Cable Chain:

      a. the apprearance of the chain looks like the crawler of a tank consisting of certain number of joint.the joints of crawler are freely turned round.

     b. the same series of chain has same inner height and same pitch but the inner width and bend radius can be made per different specifications.

     c. All lid of the TMY20 and above can be opened for installing wires into conveniently.

     d.Reinforced each part of drag chain TMY20 and above



    4.Has long life time and anti-friction. repetitive motion times  is more than million times.



   5.Great carrying capacity, bend only one side



   6.Small noise ,when it is moving,noise is very very small.



   7.Application of Engineering Cable Protector Electric CNC Plastic Cable Chain:

      The towline has been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, doors and windows machines, injection molding machines, mechanical hands, overweight transportation equipment, automated warehouses.
