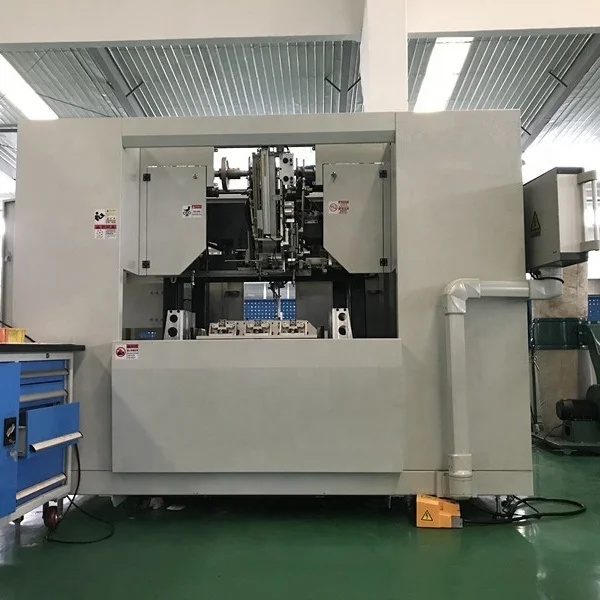

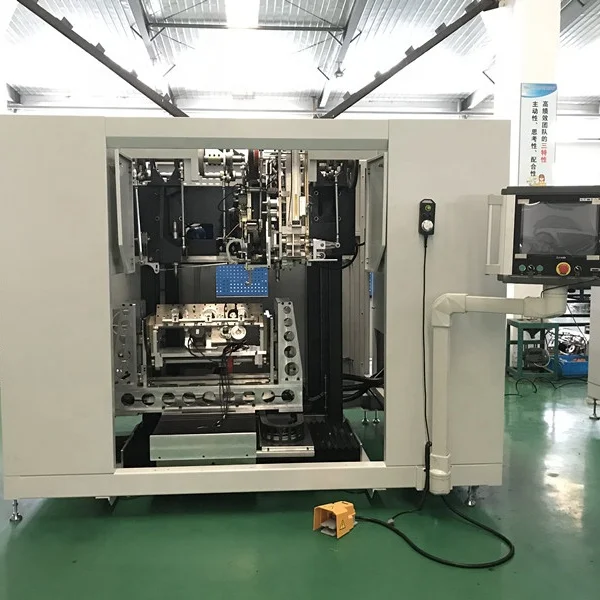

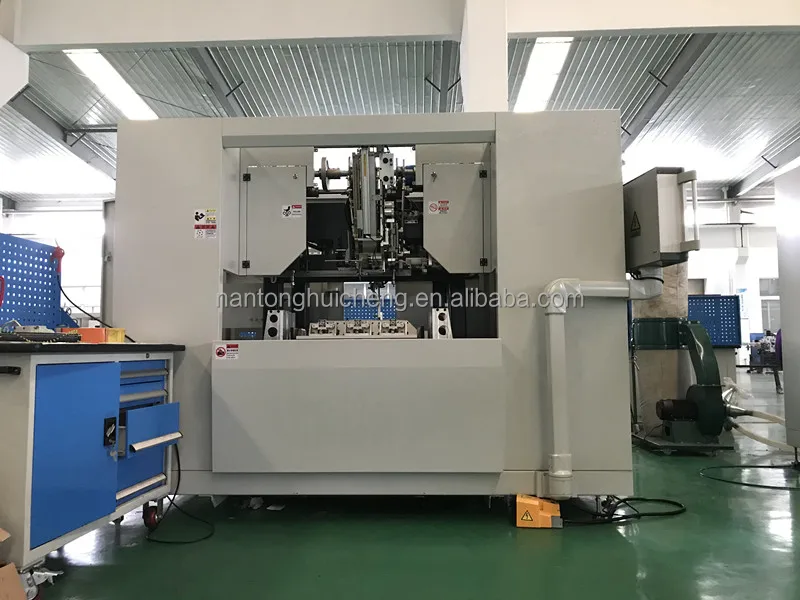

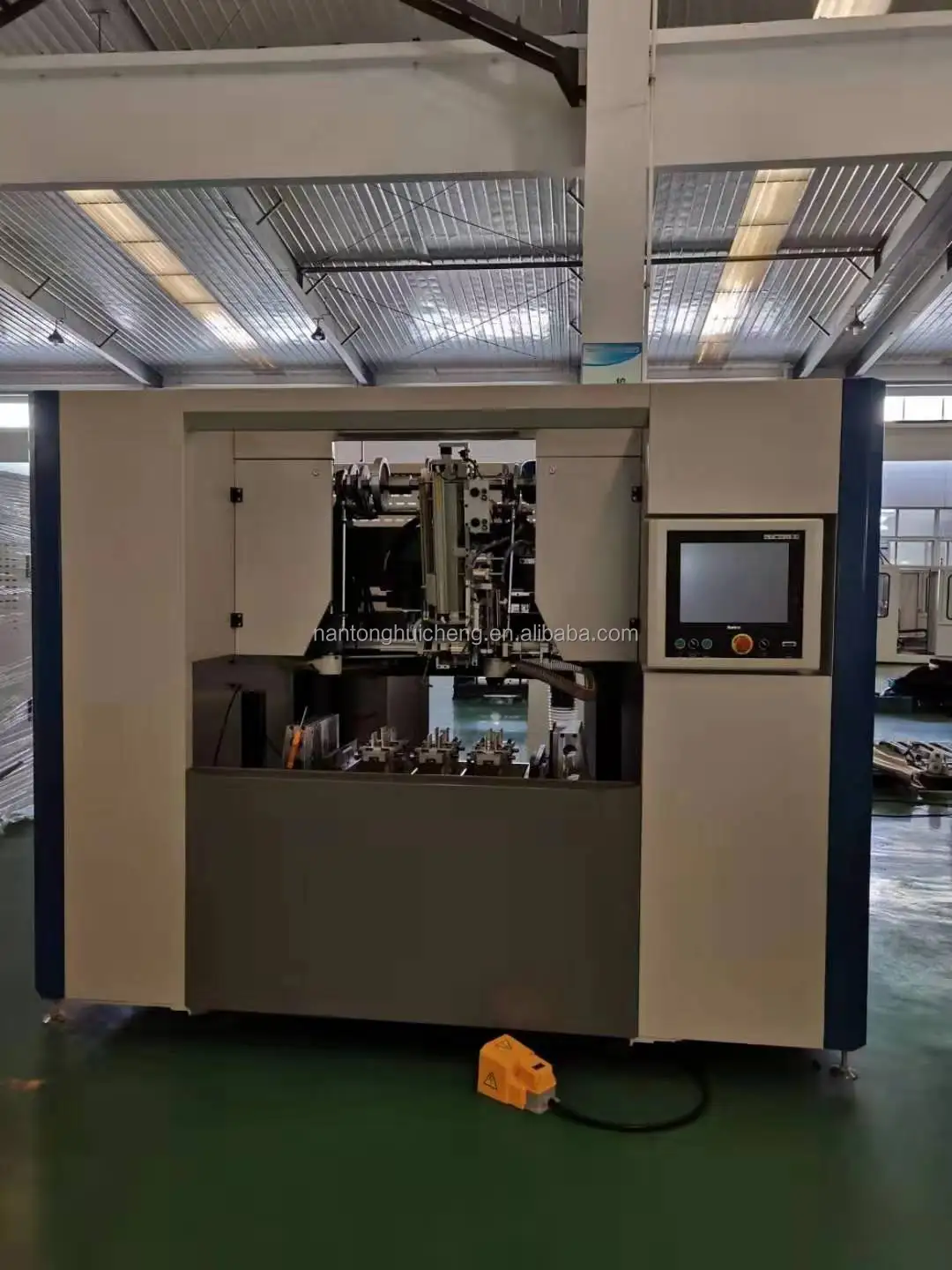

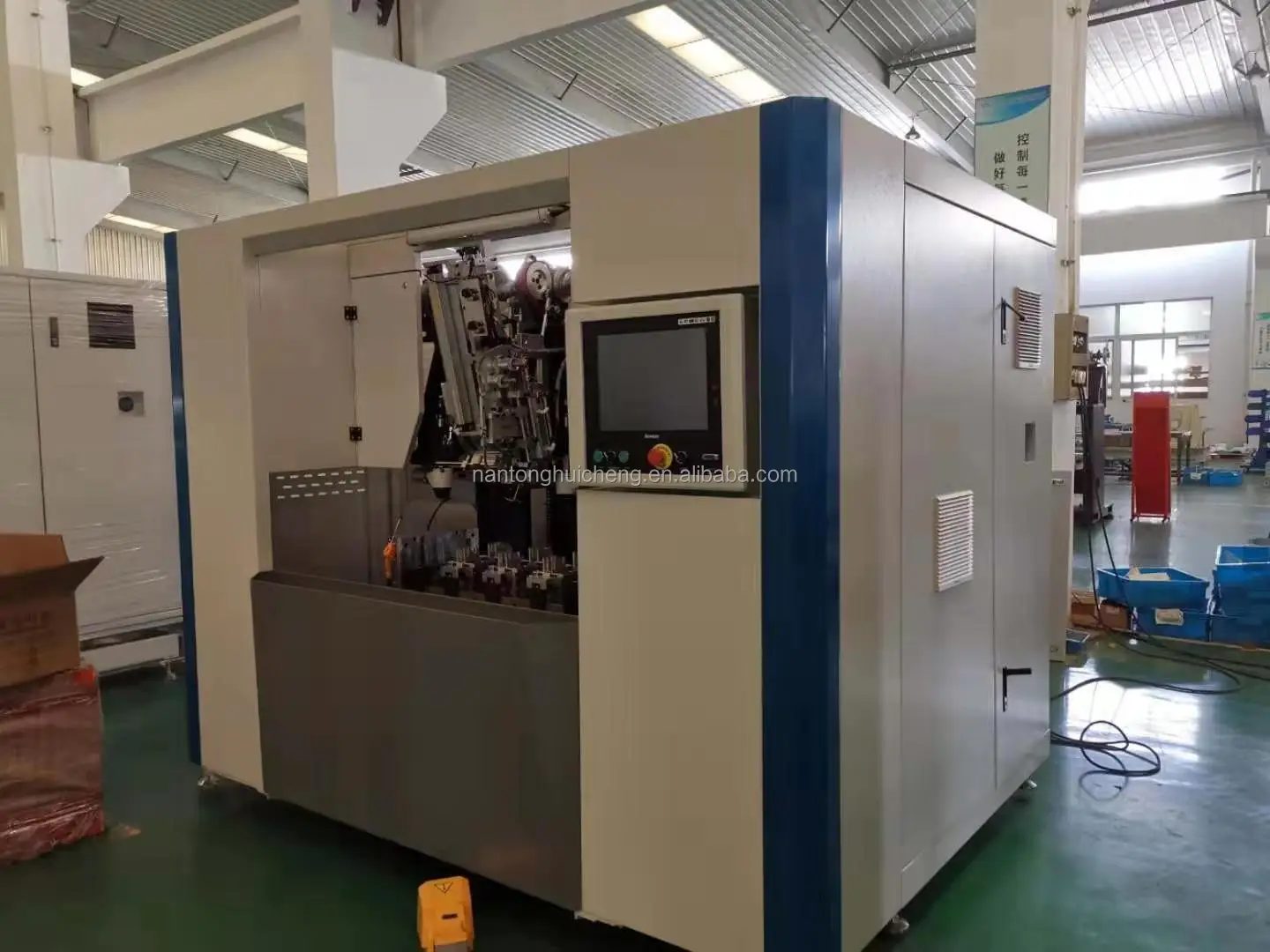

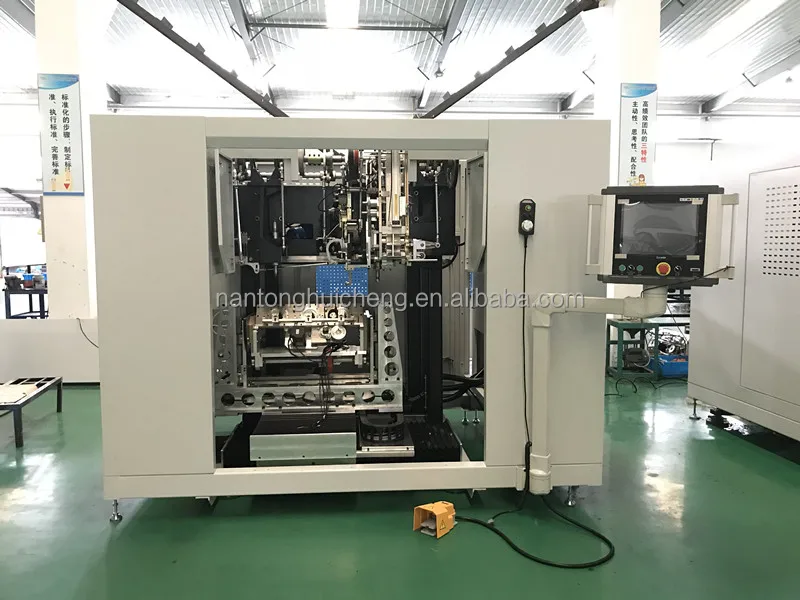

5axis CNC High Speed Drilling Tufting Machine

Product Overview

Description





Technical characteristics:

1.Equipped with two drilling heads and one tufting head;

2.Equipped with two high speed drilling heads: hole diameter from 3.0mm up to6.0mm, and tufting tools from min. 3.0mm up to 6.0mm;

3.Hair by: round nails or flat nails;

4.Three types of platform can be chosen as follows:

a.Platform for radial, parallel and radial/parallel tufted brushes

b.Platform for bowl brushes and semi-spherical brushes

c.Platform for rollers and hair brushes

5. PLC and Touch Panel Control System, displays in either Chinese or English;

6. Allow to save as 2000 procedure and easy for the creation of new models;

7. Our machine can produce either one color or two color brush, and also drilling or tufting separately.

8. Setting of worktable: high-precision straight-line rail and ball screw, steady and durable.

9. Material of Brush Handle: Poly styrene, return materials, wood

10. Material of filaments: PP, PET, PVC and other non-metal filament.

11. Application: To make varieties of toilet brush and radial brushes

12. The computer system in this machine with PC IPC motherboards, 586 industry computer

13. With 10.4 inch colorful LCD screen, 640*480 lattices

14. The system adopt four-wire resistive touch screen, make the operating more convenient and direct

15. Convenient to adjust the hole position with the hand wheel.

16. Safe to operate. With alarming fuction, the system will give an alarm and stop to run when the machine fails.

17. Full Featured, Editing functions of processing data, such as ADD, ALT, INSERT, DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.

18. Easy to operate and program.

19. Standard designed circuit reduces the line interference and makes sure send the correct signal.



Technical parameter:

Model	GS180D
Tufting Type	Round type
Max tufting speed	450holes/minute
Min.filament length	40mm
Max.filament lenght	240mm
Quantity of axis	5
Quantity of drilling heads	2
Quantity of tufting heads	1
Motor	4.5KW
Power supply	380V 50HZ 3P
