80L новый солнечный коллектор из нержавеющей стали для домашнего использования

Product Overview

Description

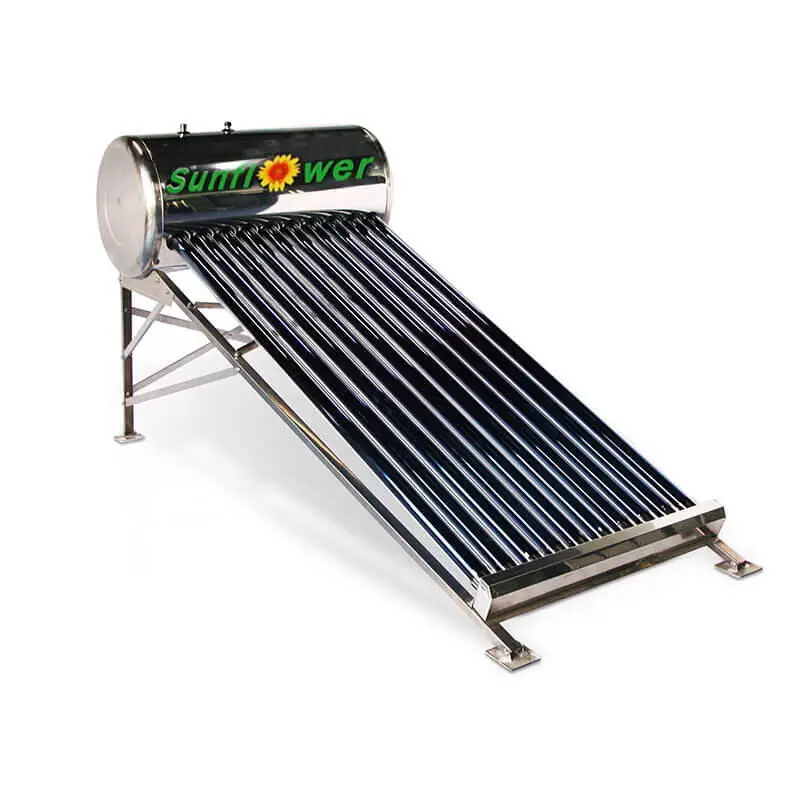

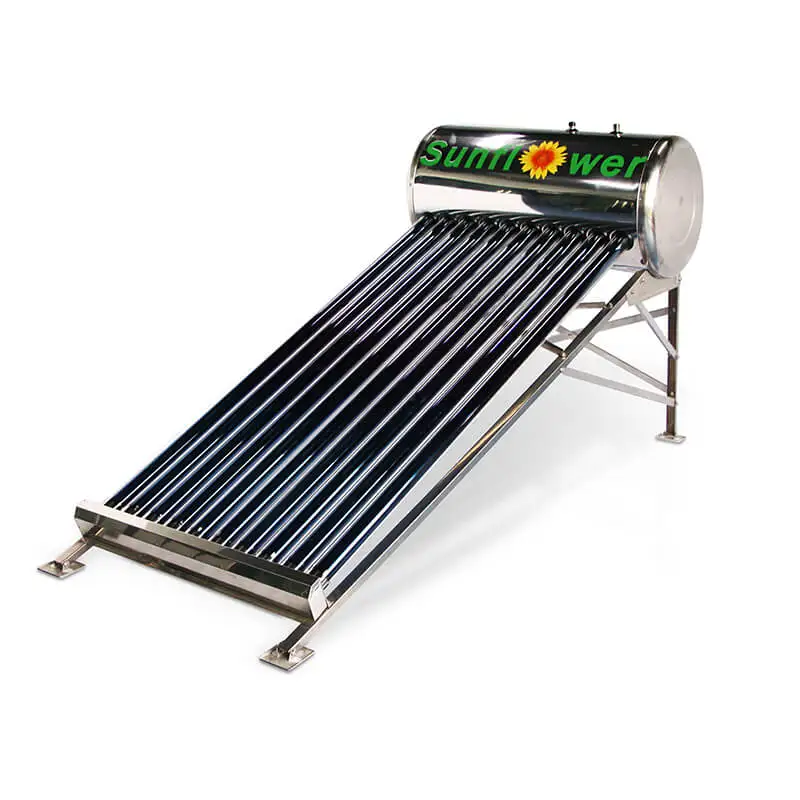

SFA47085818 Integrated Non-pressure Solar Water Heater



Foreword

SFA47085818 is a non-pressure solar water heater product and it is a solar energy device to convert solar energy into heat energy and stores it in the heat preservation water tank. It mainly relies on gravity for natural circulation. As it cannot bear pressure, it is a kind of open type solar water heater and generally also known as low pressure solar water heater. Due to its low cost, convenient installation and use, as well as to meet the hot water needs of general family, it is currently a more popular product in the solar water heater market.



Product advantages

1. Perfect design, very suitable for family use.

2. The use of natural circulation, 100% solar energy and do not need to run cost.

3. Solar collector adopts a double-layer vacuum glass tube, high thermal efficiency and durable service life.

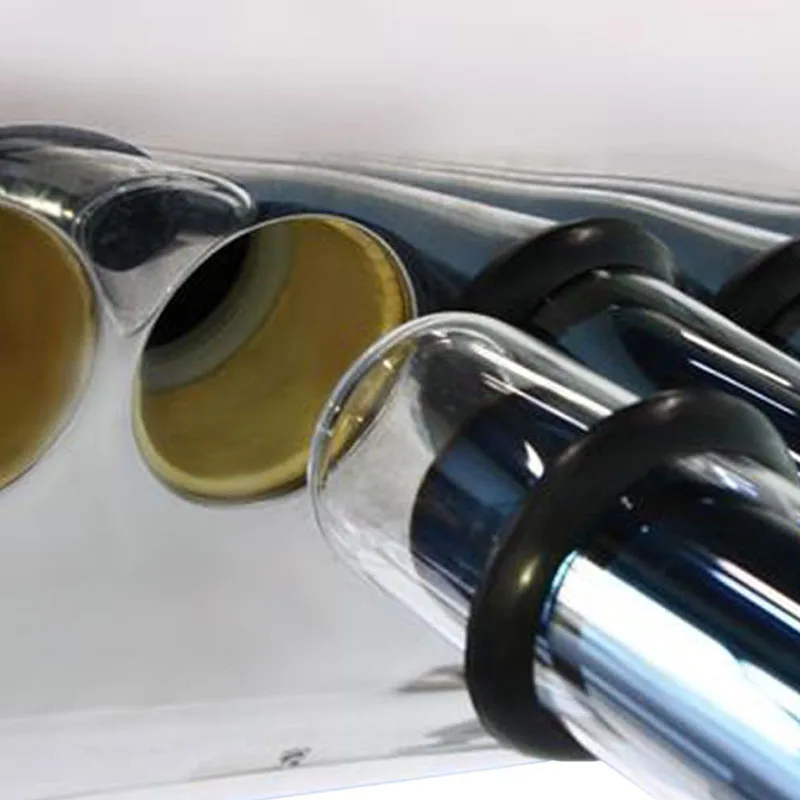

4. The use of plug-in connection between solar collector and insulation water tank and very easy to install.

5. Parts with low cost, no maintenance and no expensive maintenance costs.

6. The use of food grade stainless steel SUS304 manufacturing barrels, no pollution and no corrosion, to keep water quality clean and sanitary.

7. Using ultra-thick polyurethane insulation, a long time to keep the tank temperature constant.

8. Can be combined with the use of electricity, gas and other alternative energy.



Product description

SFA47085818 can produce 80L hot water per day for 1-2 people. This product is one of the preferred products for low cost solar water heaters in hot areas and is very popular in South Africa, West Africa, Mexico and Central America.







Product specification

Model	SFA47085818
Capacity	80L
The Number of users	1-2 people
Inner tank	SUS304, diameter 360
Outer tank	Stainless steel/galvanized steel,diameter 470
Welding procedure	Automatic double - sided argon gas protection welding
Insulation	Polyurethane 55mm, temperature drop 2℃/12h
Brackets	Stainless steel 1.2mm/Galvanized spray 1.5MM,20°/30°/40°/45°
Solar vacuum tubes	Net aperture area:0.76 Quantity and specifications: 8pcs*58*1800mm Material: 3.3 high borosilicate glass Coating: AL/N/AL or AL/N/AL/SS/CU Absorptivity>92% Reflectivity<8%
Heat efficiency	G=1000W/m2, temperature rise 45℃/day
Package/volume/weight	Box/0.31cbm/36kg
Packing quantity	95/20GP,195/40GP,225/40HQ



Product composition

80L integrated non-pressure solar water heater is mainly composed of three parts.



Solar vacuum tube (SFVA5818)

Solar vacuum tube by AL/N/AL coating efficiently absorbs solar energy and converts it into usable heat, adopting the vacuum technique between the double-layer glass, which can effectively prevent the loss of heat.

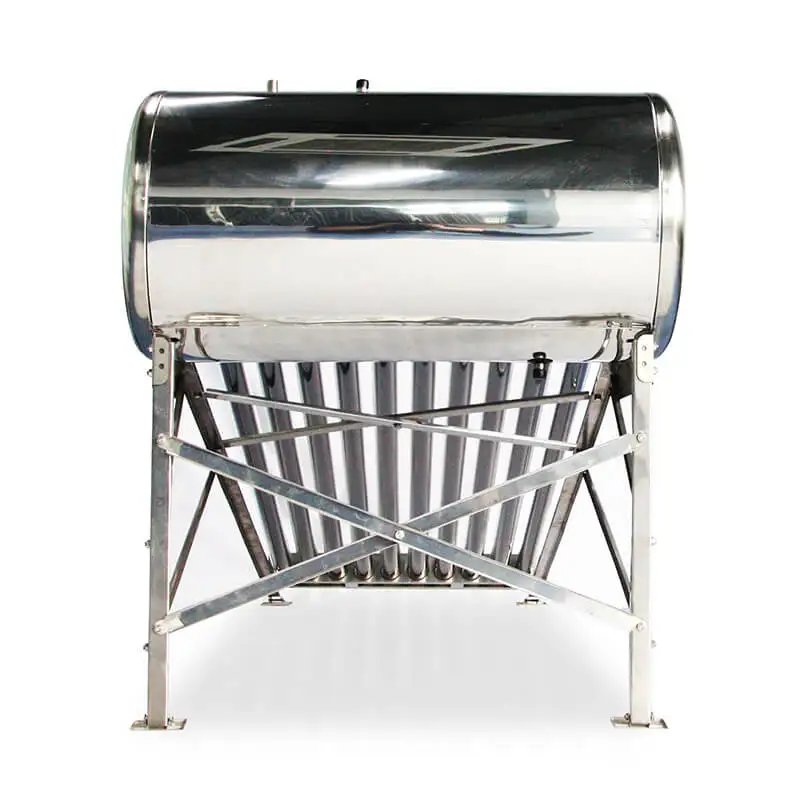

Solar heat storage water tank

The solar water tank barrel adopts food grade stainless steel SUSU304 material, good corrosion resistance, safe, non-toxic and no pollution. To protect the family with water safety and good health.

Solar water tank with automatic argon arc welding and argon double protection can effectively prevent the surface oxidation. Strict measures that control welding process can better protect SUS304 crystal structure not being destroyed. The service life of the barrel is more than 15 years.

Solar water tank with polyurethane insulation, good process and 55mm thickness, to ensure that the temperature drop of hot water is less than 2℃ within 12h.

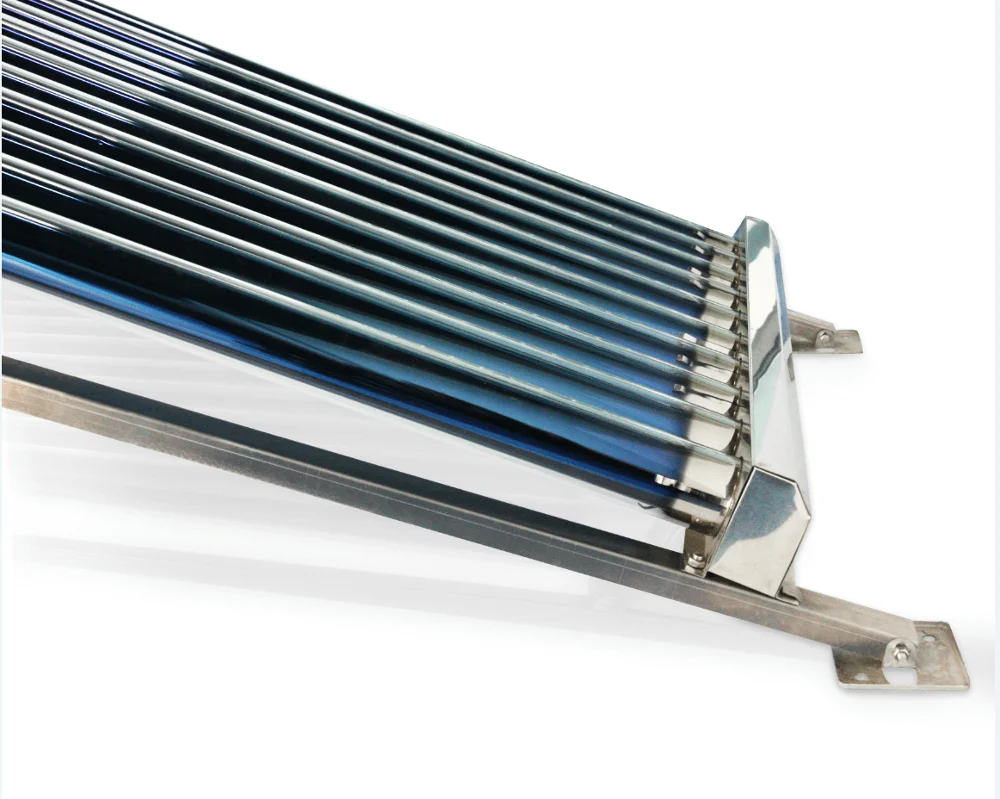

Bracket

The bracket installation of solar water heaters through a professional design of structural mechanics, which is not only solid and safe, but also easy to install. It’s suitable to all kinds of roof structure and form, such as flat roof, sloping roof, tiled roof, metal roof and so on.





Packing list of products



Name	Specification	Carton size
Water tank	SFA4705818*1PC,L=1200mm	115*50*50cm*1Box
Solar tube	Φ58*1800*10PCS,10PCS/Box	188*34*17cm*1.2Box
Frame	1 set	186*10*12cm*1Box



Optional accessories



Water supplier

Function: to help add water into tank automatically.





Controller

The main function of controller is to show water temperature and water level inside the tank and at the same time, they control electromagnetic valve and realize to add water into tank intelligently.





Magnesium rod

Magnesium’s chemical properties is more lively and it has priority and corrosive substances chemical reaction so it can be effective corrosive substances in the barrel of the corrosion, to extend the life of the tank. Especially in high hardness water areas, we should often replace the magnesium rod.



Electric heater

Electric heating as a standby heating method, it works to heat water in rainy days or in case that hot water is not enough.
