copper leaching equipment

Product Overview

Description

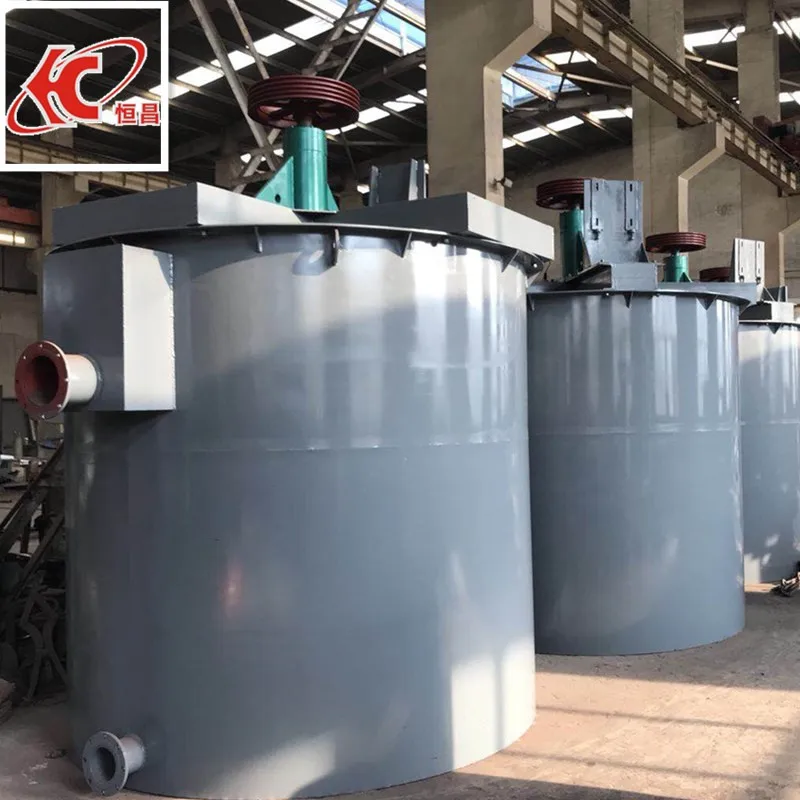

                                       copper leaching equipment

General introduction copper leaching equipment

copper leaching equipment is the necessary equipment in the flotation processing, which is mainly used in slurry mixing. It makes the ore particles in the condition of suspension to touch and mix with chemical agent completely,  so as to set the stage for ore dressing.



Application of copper leaching equipment

copper leaching equipment is widely applied to ferrous and non-ferrous metal beneficiation plant, chemistry, slurry mixing, cyanide plant and sewage treatment plant.



Feature of copper  leaching equipment

1. Impeller diameter and impeller speed increased, and the umbrella impeller design, enhanced the ore slurry and medicine agitating capacity.

 2. Agitating capacibilities improved the cycle ability of the ore slurry and medicine has also been strengthened.

3.There is a  downward pressure during umbrella impeller operation, which in turn accelerated the pumping capacity of the ore slurry, so that the ore  slurry and medicine recycling capacity further strengthened.

4. There is a spray under the diversion, the ore slurry and medicine flow into it, recycling capacity further strengthened.



Technical Parameters copper leaching equipment

Model	Tank Size		Volume (m3)					Dimension (mm)	Weight (kg)
	Dia. (mm)	Hight (mm)		Dia. (mm)	Speed (r/min)	Model	Power (kw)
XB-1000	1000	1000	0.58	250	530	Y90L-4	1.5	1130×1130×1497	436
XB-1200	1200	1200	1.0	300	390	Y112M-6	2.2	1450×1210×1635	685
XB-1500	1500	1500	2.2	400	320	Y132S-6	3	1830×1512×2126	900
XB-2000	2000	2000	5.6	550	230	Y132m-6	5.5	2526×2916×2800	1670
XB-2500	2500	2500	11.2	650	210	Y200L-6	18.5	3096×2696×3526	3440
XB-3000	3000	3000	19.1	700	210	Y200L-6	18.5	3604×3270×3610	4613
XB-3500	3500	3500	30	850	23O	Y200L-6	22	3940×3740×4970	7280



related copper leaching equipment picture

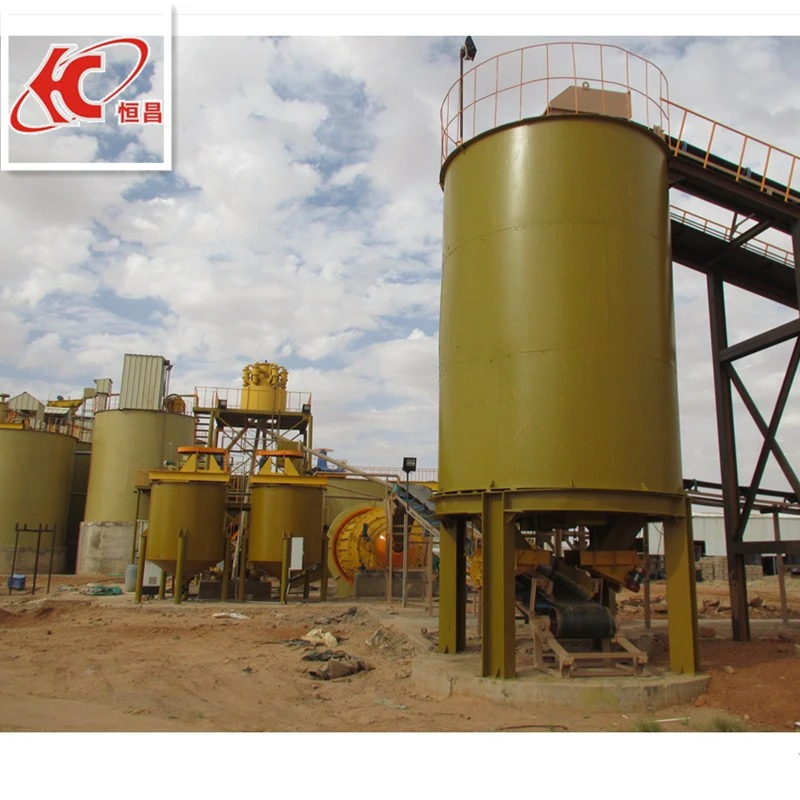

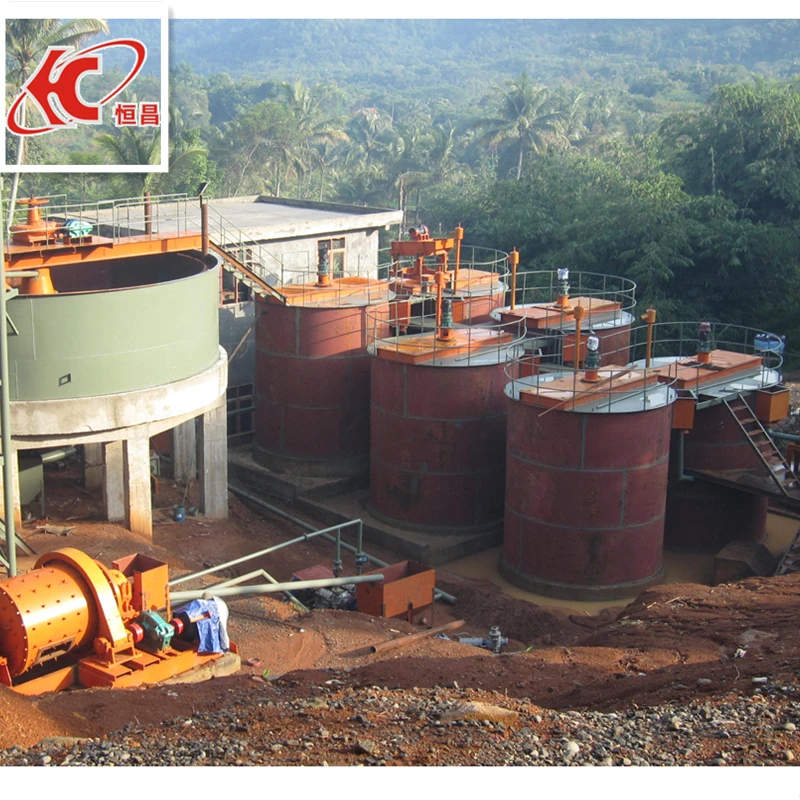

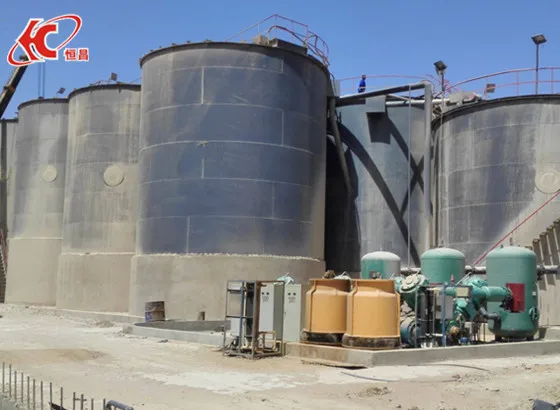

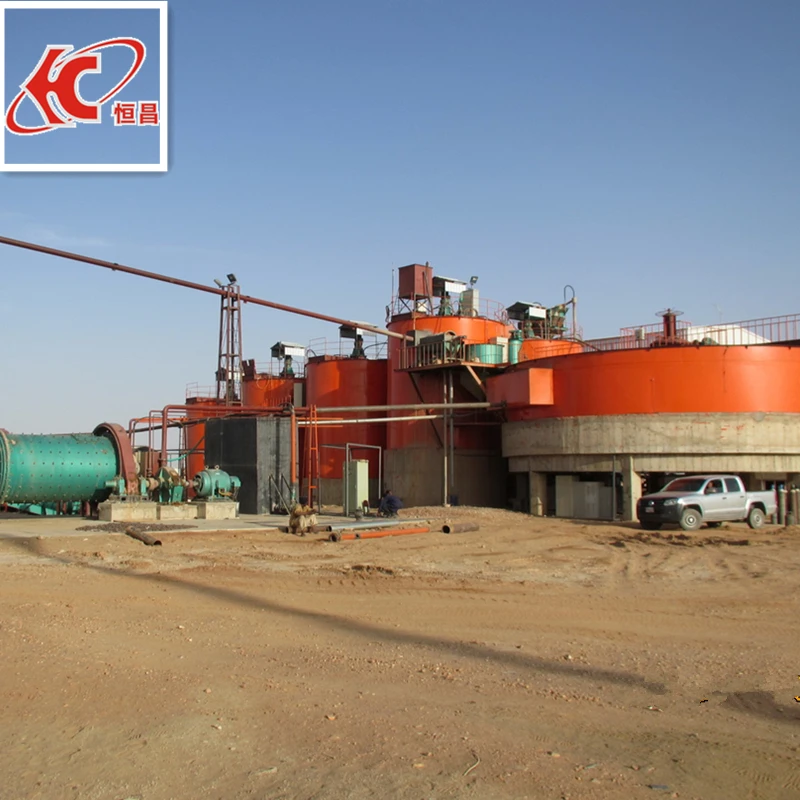

customers site --delivery of copper leaching equipment

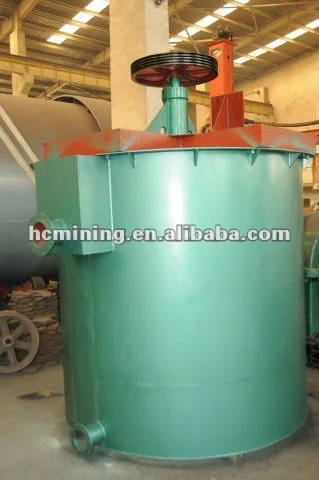

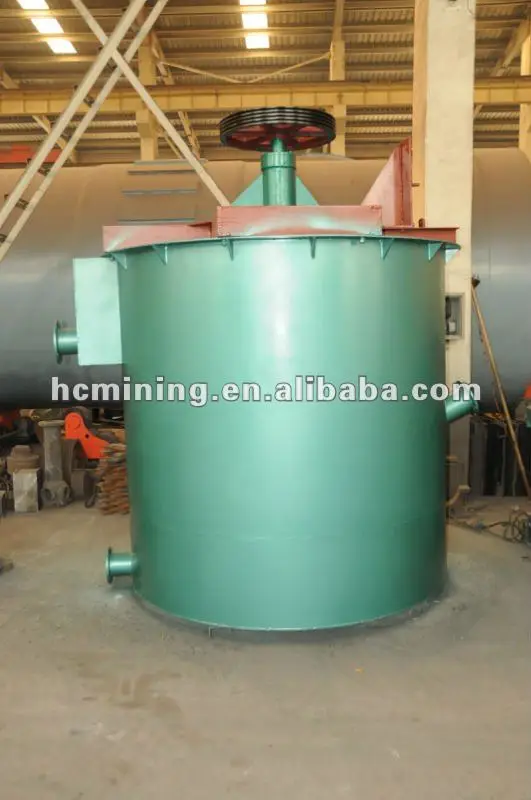

copper leaching equipment in factory

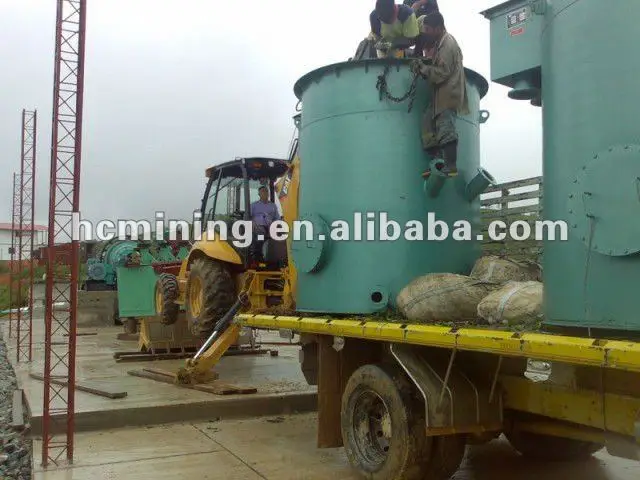

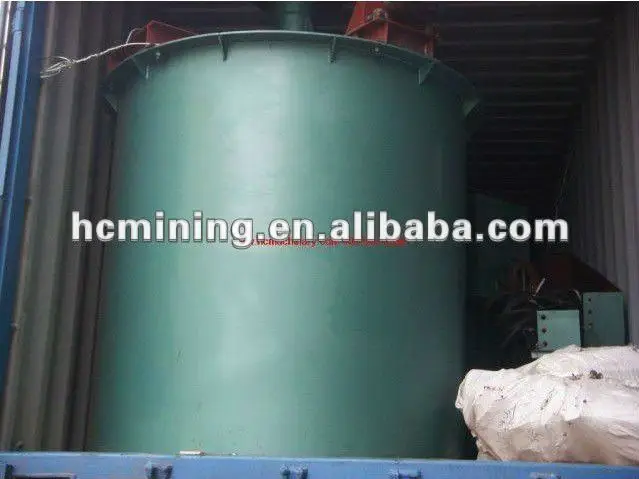

copper leaching equipment in delivery

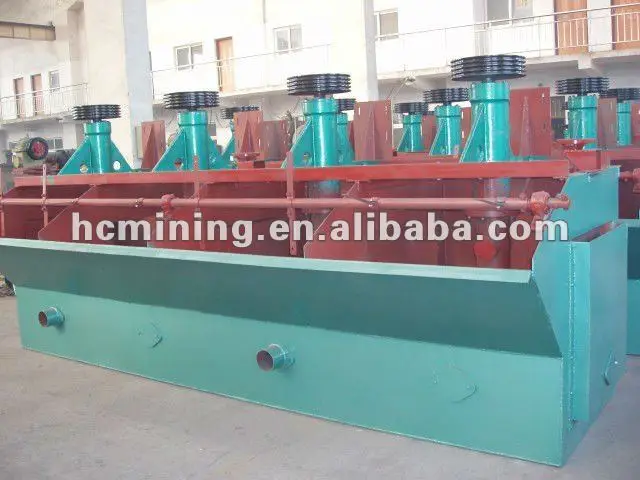

other machineryneed in flotaion process.(flotation machine)
