CNC tufting machine/High speed Toothbrush machine

Product Overview

Description

               CNC tufting machine/High speed Toothbrush machine



Theory and features:



Cam data gathered from import toothbrush devices;

Data measure adopts precise CMM of Germany;

Import precise CNC grinding machine and CAD;

Precise data, the high mirror polish degree, reduce the friction coefficient, high lifetime.

Merits:low noise, stable performance, convenient operation.

1.5.7inch Monochrome LCD screen, resolution:320×240;

2. be able to saved 980 kinds of products with each can store 1000 points data

3. the function of copy, modification, deletion, add translation of program;

4. each group of data can set 8 output points for colour changing, second speed, double points wool implement and so on;

5. the programe can use the key of ↑and↓scroll flip over;

6. the point coordinates of each kind of toothbrush show on the screen, it is convenient for customers to know two-tone conversion;

7. dynamical switching in the working process between full-automatic and semi-automatic;

8. one button reset function;

9. can apply manual measuring data or teach type to input XY coordinate;

10. the humanized self-diagnosis interface of in-out.





This device introduced import advanced technology of cam transmission.

Theory: apply cam full servodrive Numerical Control System.

Characteristics:

1. the rotate speed can reach above 750-800 revolutions;
2. cam processed by import numerical control cam grinding, percise data, help a lot in restrain the noise of machine;
3. drive bearing are high quality products chosen from famous firms (FAG, NSK, INA, IKO, SKF) at home and abroad;
4. Numerical Control System is researched independently, humanized Interface;
5. can achieve 1-4 holes(8.5mm) displacement under the condition of 750 revolutions.



Machine introduction:





Description	Unit	Paramenter
Max Speed	Holes/min	750
Maximum brush holes	Holes/Piece	≤100 thousand
Hole diameter	mm	1.5-2.8
Spindle quantity	Piece	2plus2
Journey X axis	mm	50
Journey Y axis	mm	23
Maximum program quantity	Piece	999
Air pressure	Mpa	0.4-0.5
Power voltage, frequence	V, Hz	220,50
Machine power	KW	3
Contour size	mm	1250×1250×1380
Weight	KG	760







Machine Technical Parameter:





Control system	CNC Controller
Disturbance Display	Chinese edition
Safety protection	Overload, short circuit protection
Lubrication	Auto Lubrication System
Main Speed Control	Frequence Lnverter
Fiber box	Two Colours Box

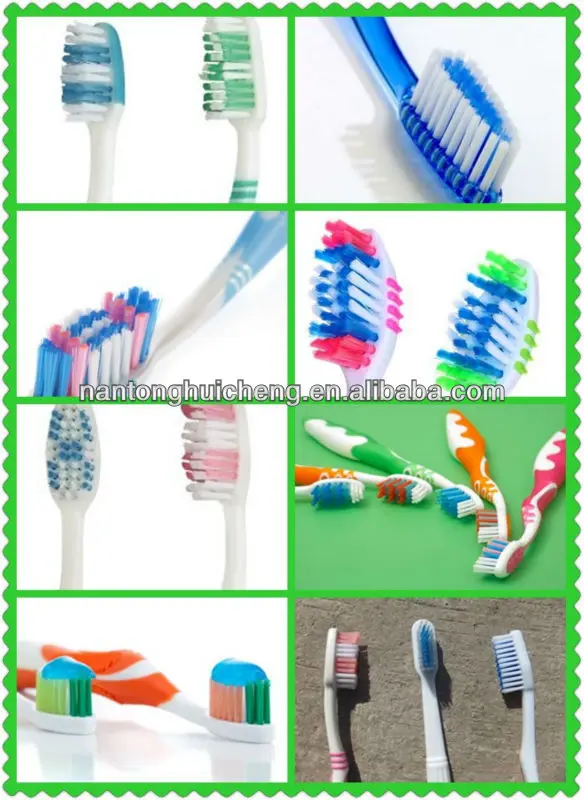

product details:

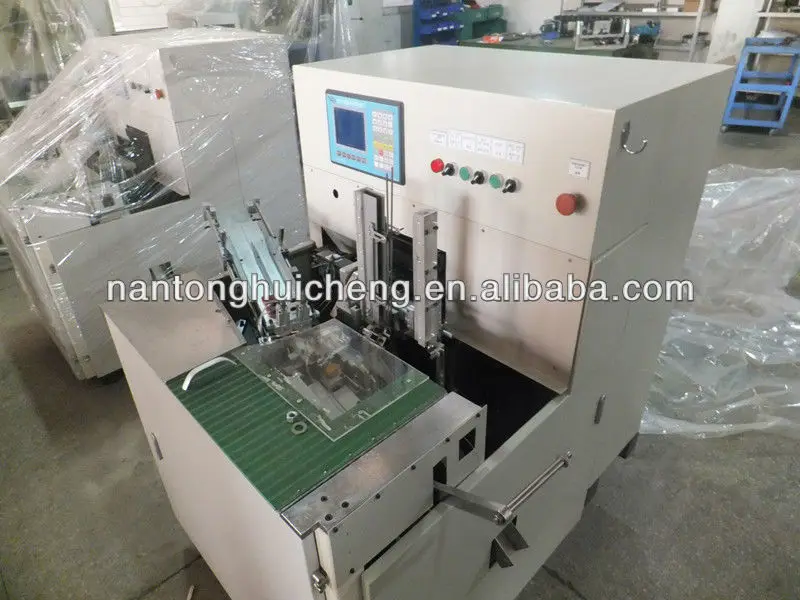

This machine is able to change 1,2,3 color easily.You just need change the filament to the same color

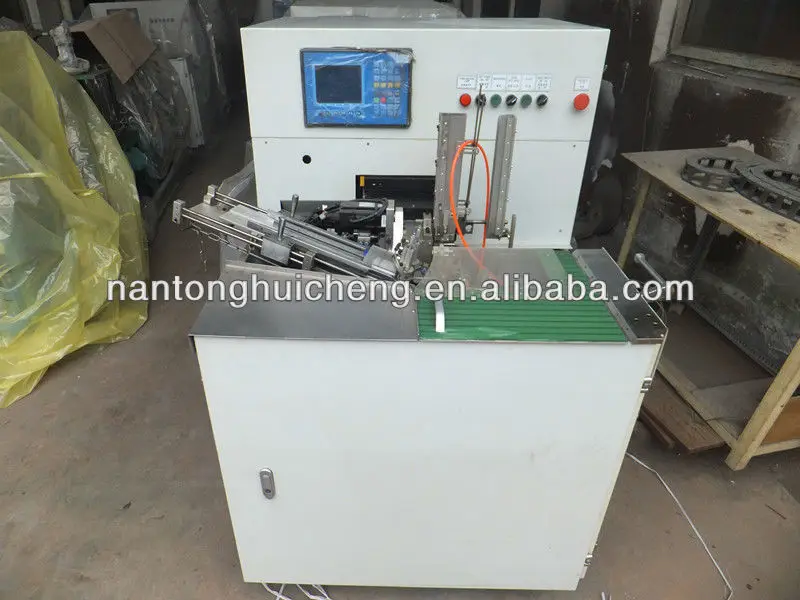

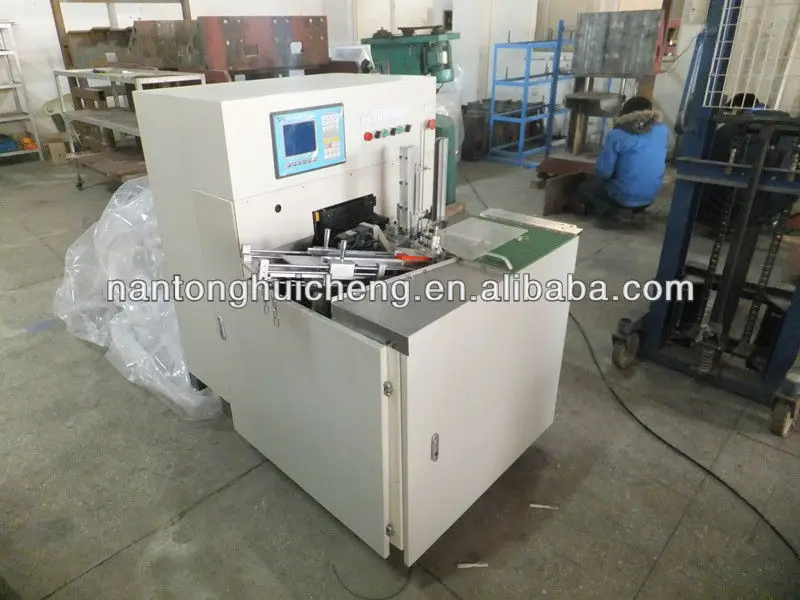

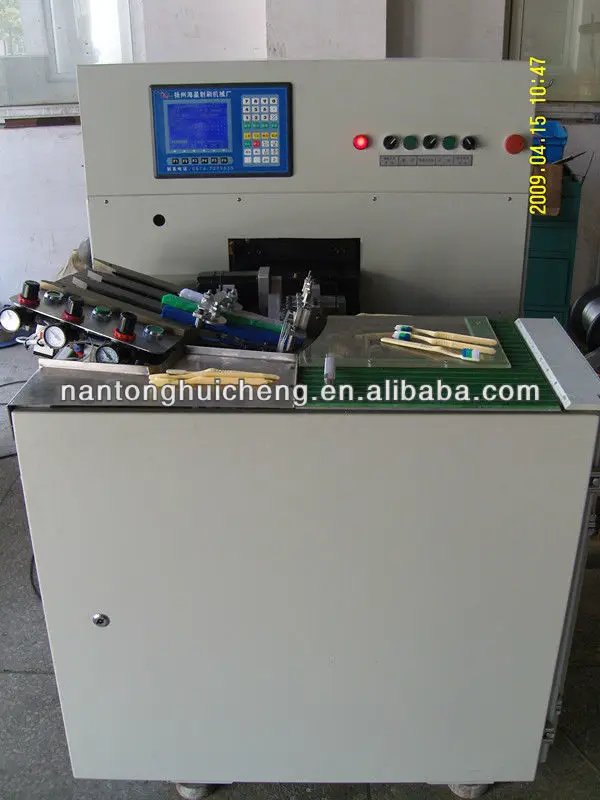

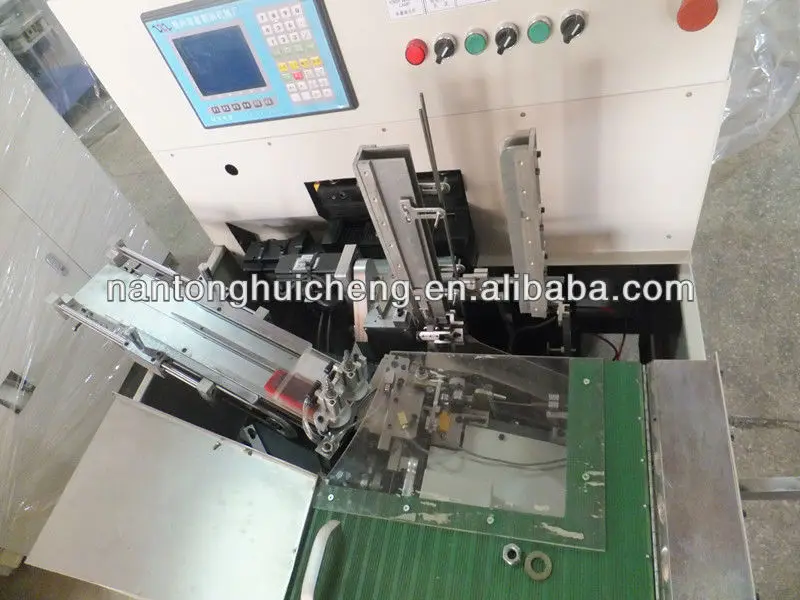

machine details:





We also supply full set equipments of toothbrush making machine:

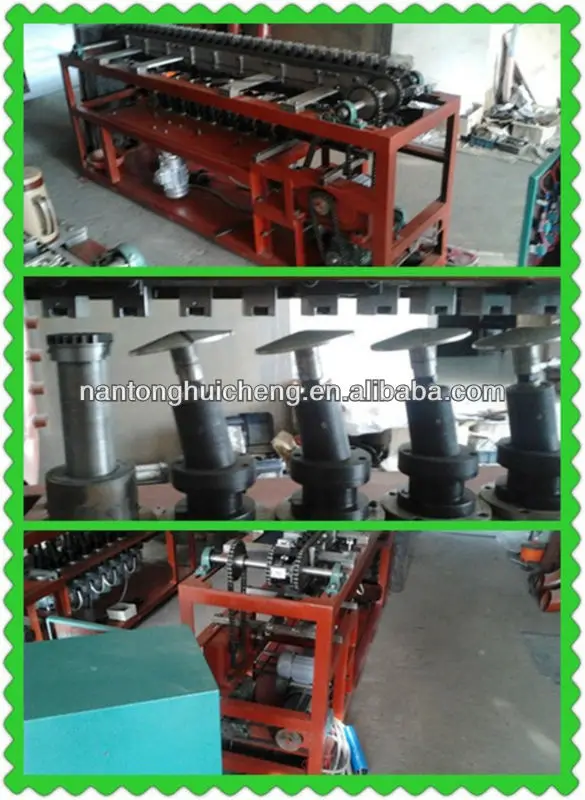

grinding machine:

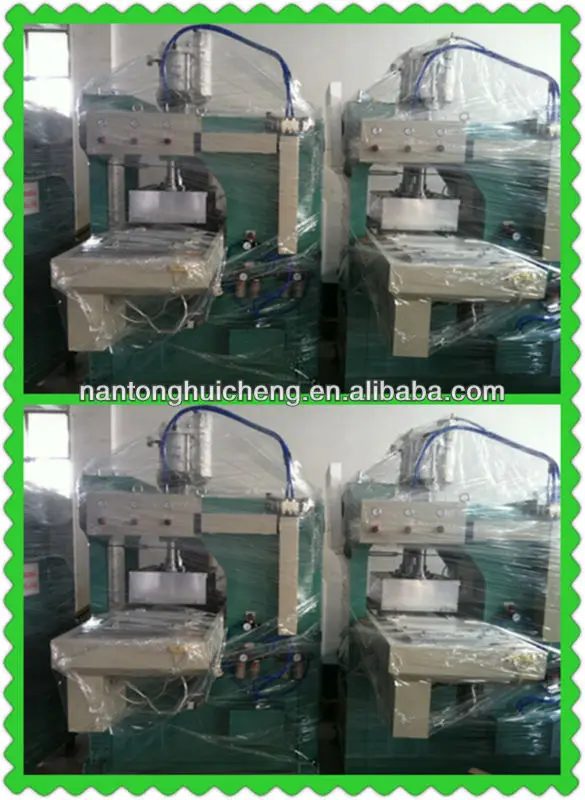

packing machine:

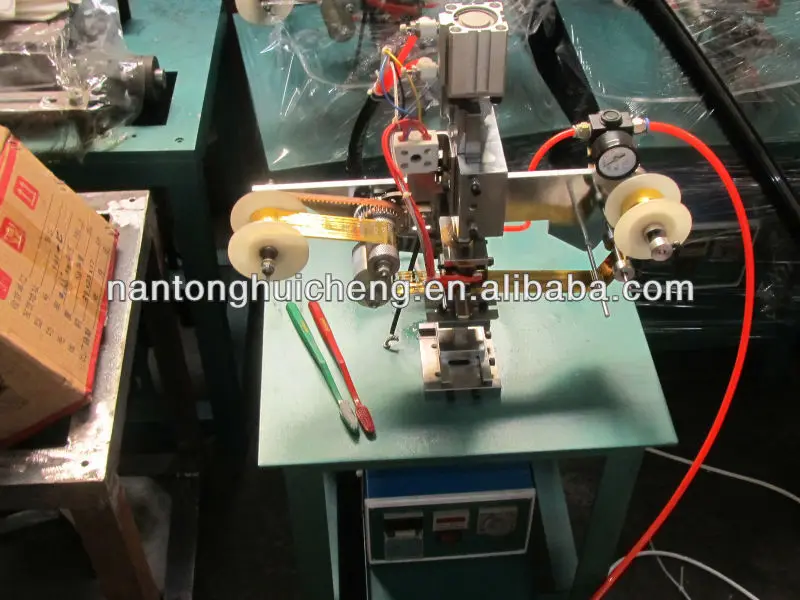

Logo priting machine
