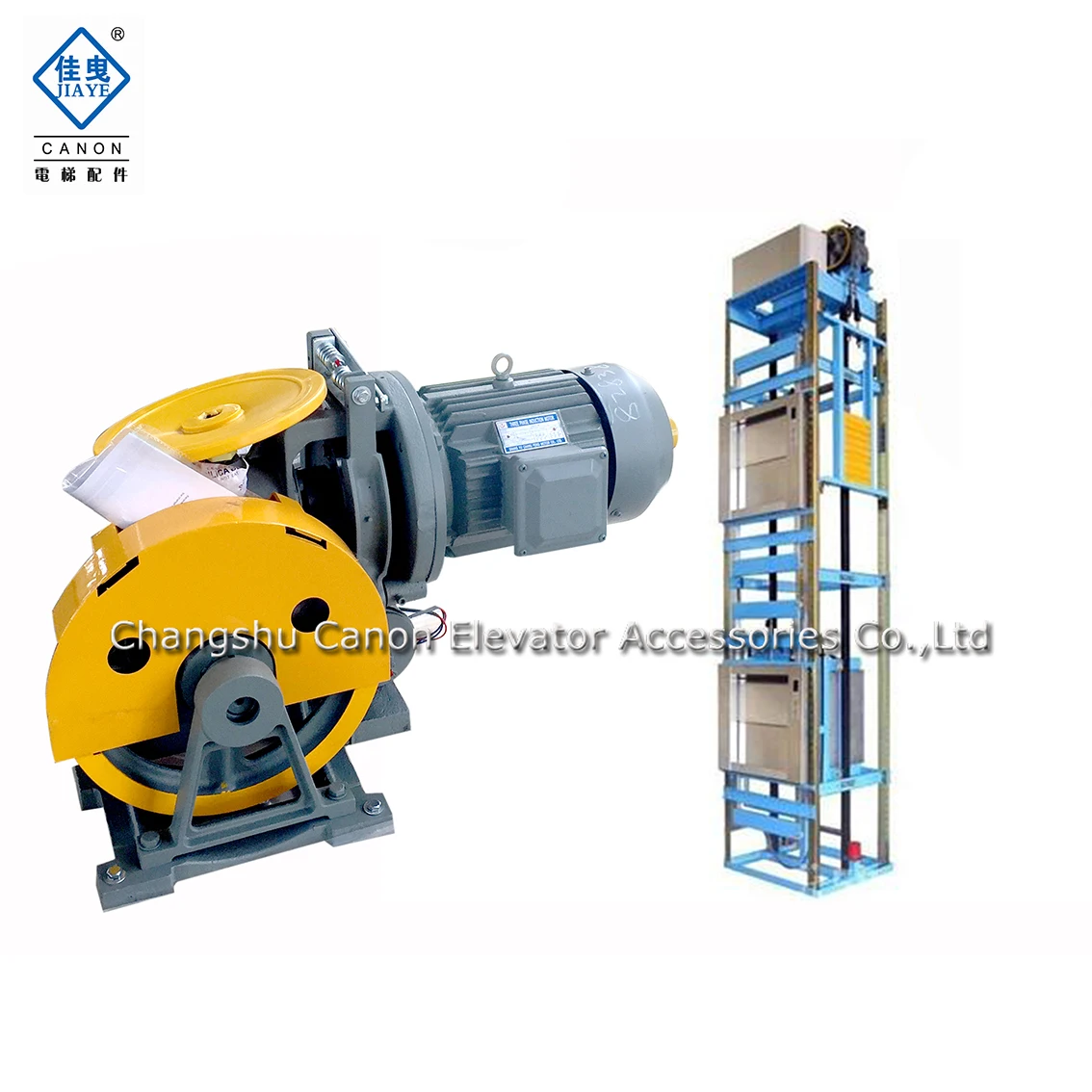

250KG Canon Dumbwaiter Elevator Motor /traction machine

Changshu Canon Elevator Accessories Co., Ltd. is a professional factory which produces elevator traction machines. We are the member unit of China Elevator Association. Since the year of 1996 when we were founded, our professional technicians have developed series of traction machines with compact construction, modern design, high quality and stability. Our traction machines are famous for the working stability, lower noise, high loading capacity & high transmission efficiency.
We have been exporting to more than 20 countries all over the world like Thailand,Indonesia,Pakistan,Brazil,America,Ecuador,Egypt etc.Welcome  to cooperate with us.

Worm shaft granding machine

Horizontal & vertical CNC

Digital control gear process machine

Vibration & noise testing center

Worm shaft and gear testing center

3-D machine body testing center

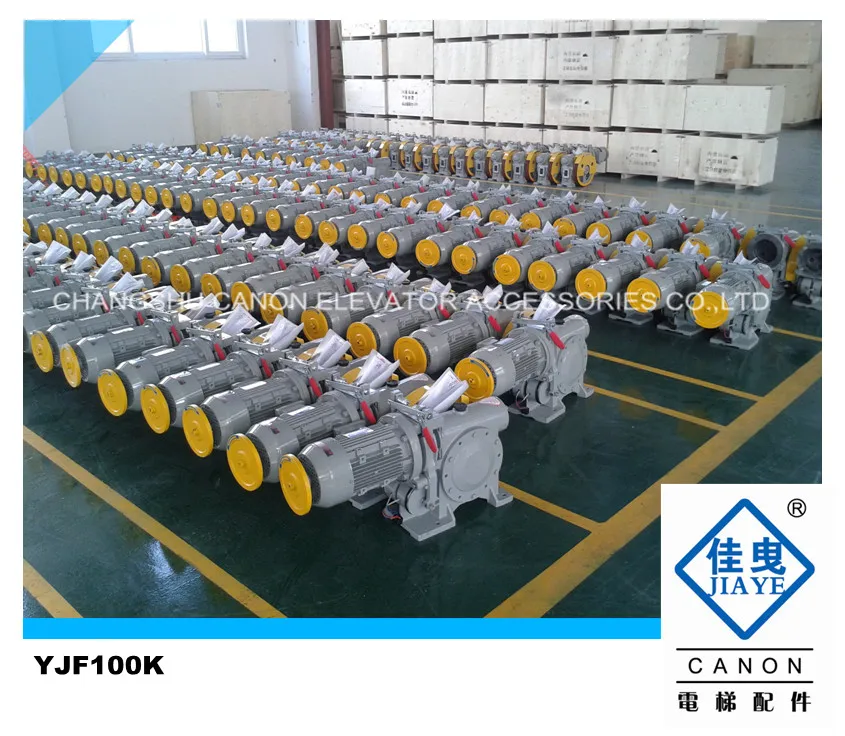

Stock room

Producing more than 10,000 units of traction machine for dumbwaiter,home lift,passenger lift,cargo lift etc. every year.

Certificate

Gear series

Professional at producing gear machine for  dumbwaiter,home lift,passenger lift,cargo lift etc.

Capacity:100kg-8000kg

Gearless series

No.1 in China the gearless anti-explosion type was made in Canon.

Our gearless machine has a lower noise and smooth running .capacity:350kg-1600kg

Drum series

 Roller traction machine will save you cost of counterweight and have bigger space in Cabin.Its a good choice for home lift. We have gearless and gear both types of drum motor.

Product Description

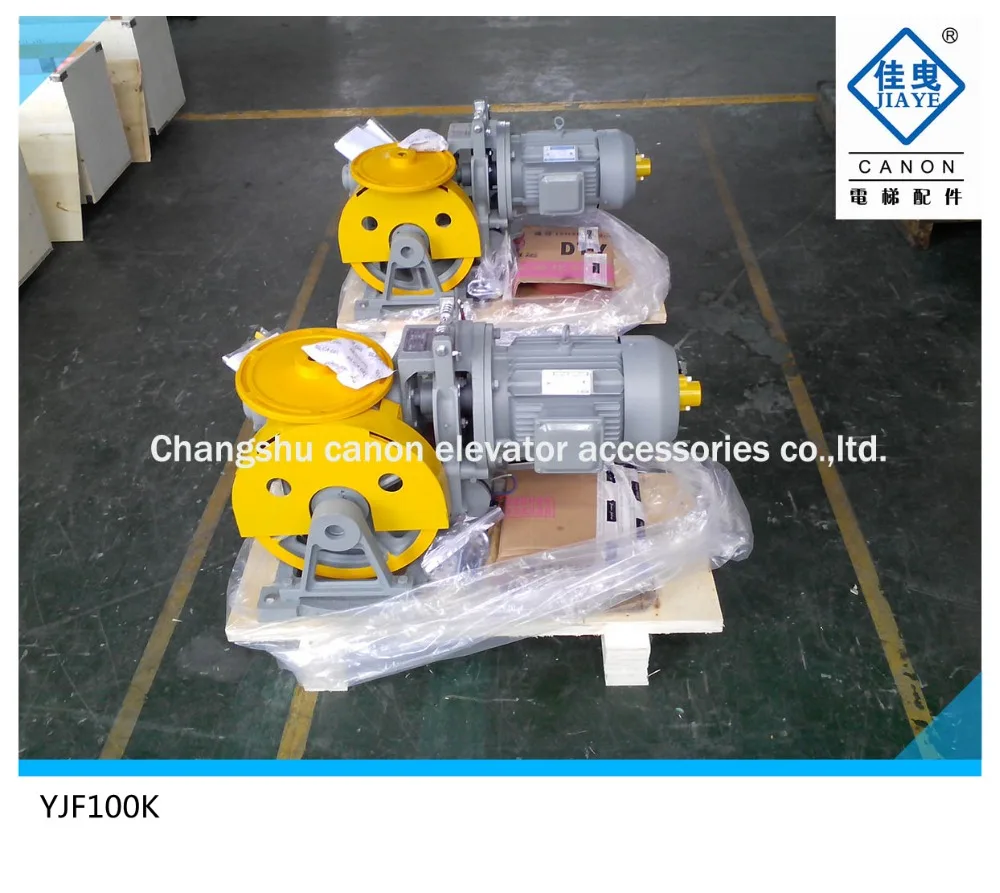

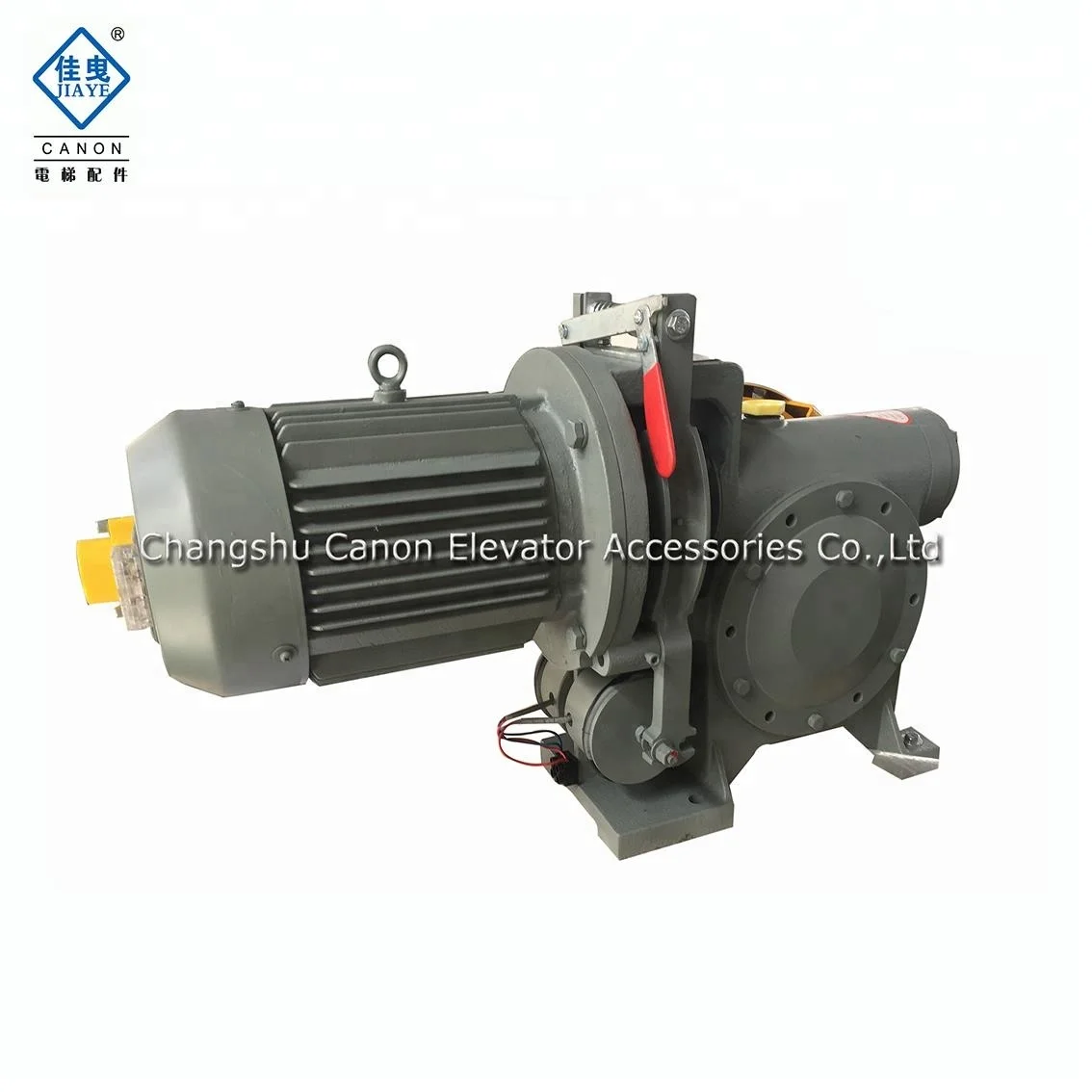

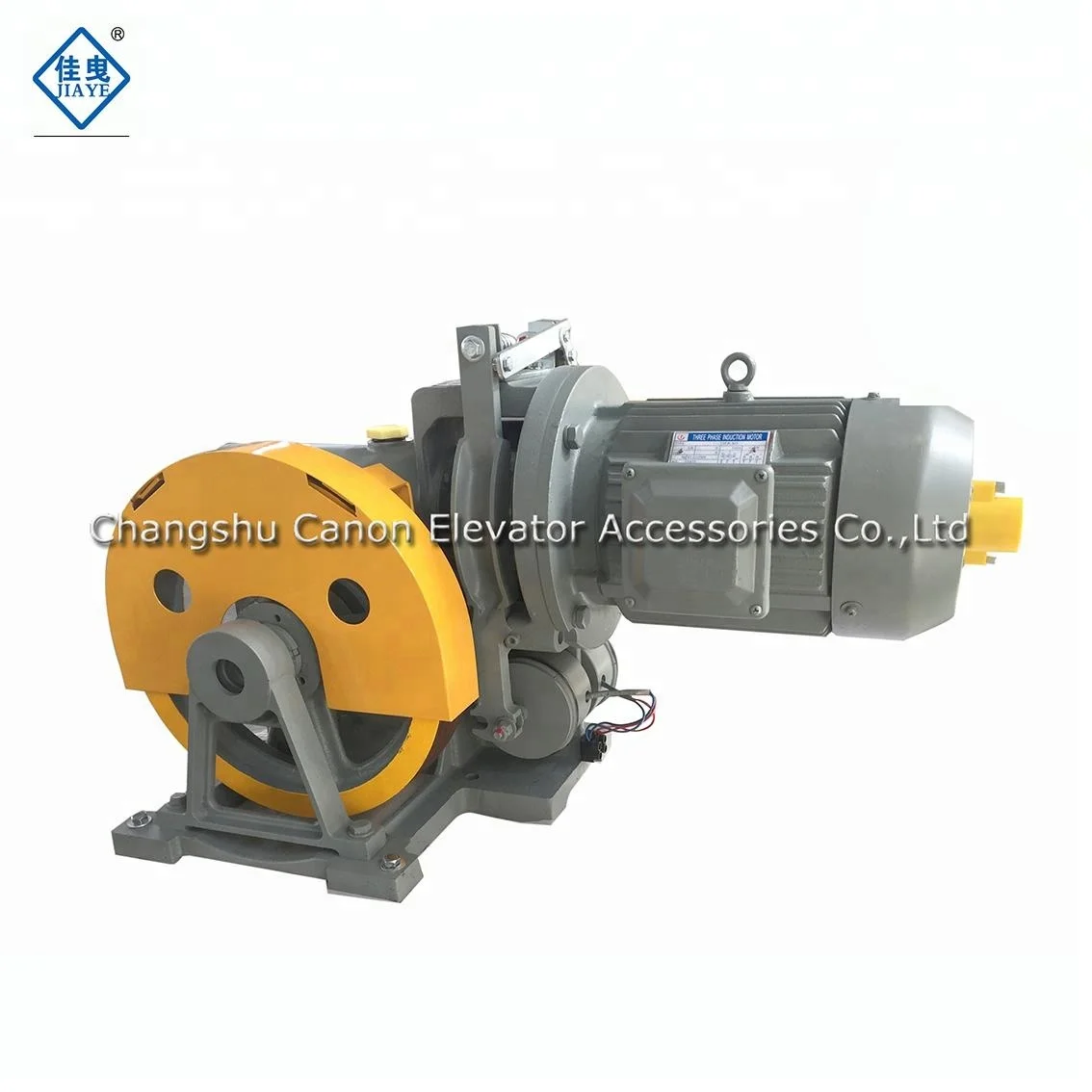

Model:YJF100K

Goods elevator traction machine

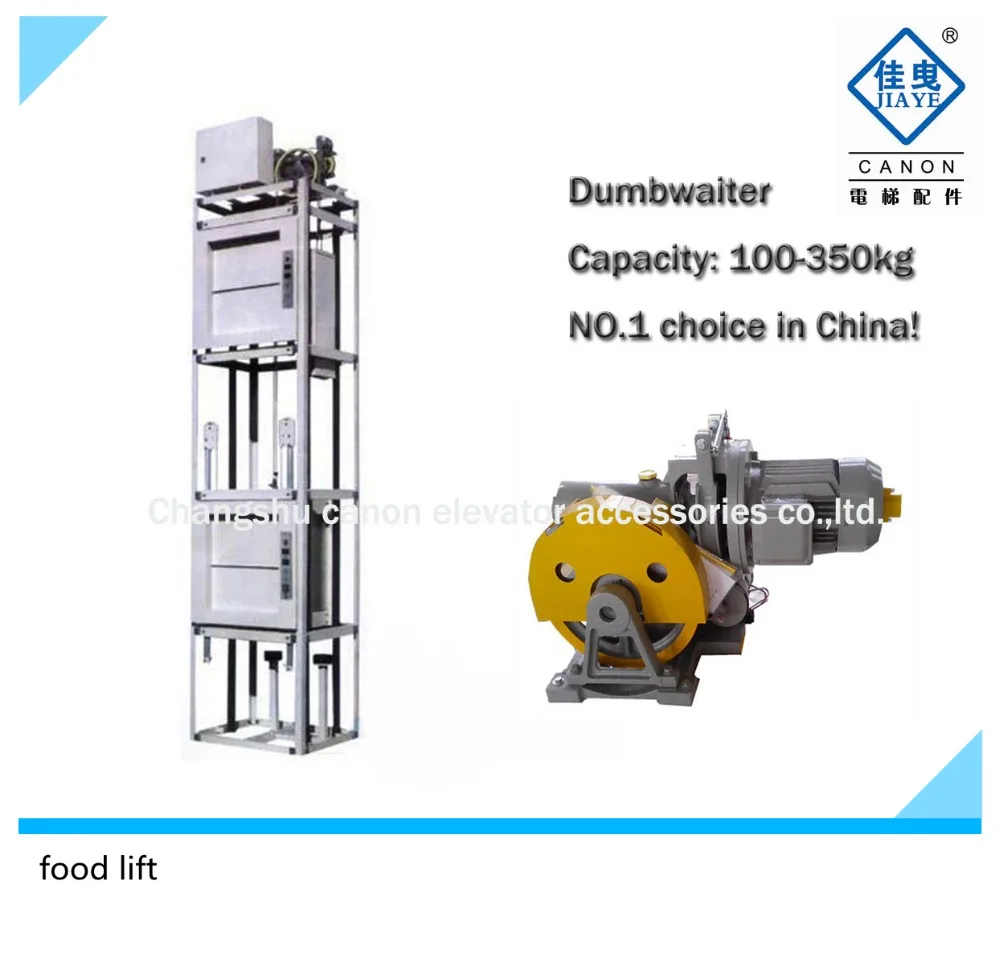

suitable for dumbwaiter ,good elevator,food elevator

Voltage:380v/220v  50hz (standard) ,60hz(optional)

Brake voltage: Open DC110V, Keep DC80V

Max.shaft load :2000kg

Model	Roping	Load (kg)	Speed (m/s)	Wire rope (mm)	Main sheave& pitch (mm)	Power (kw)
YJF100K	1:1	100	0.4	￠8*2	￠325-20	1.1
	1:1	200	0.4	￠8*2	￠325-20	1.5
	1:1	250	0.4	￠8*3	￠325-14	2.2
	1:1	300	0.4	￠8*3	￠325-14	3
	1:1	350	0.4	￠8*3	￠325-14	3.5
	1:1	100	0.4	￠8*3	￠325-14	1.5
	1:1	200	1.0	￠8*3	￠325-14	2.2

Detailed Images

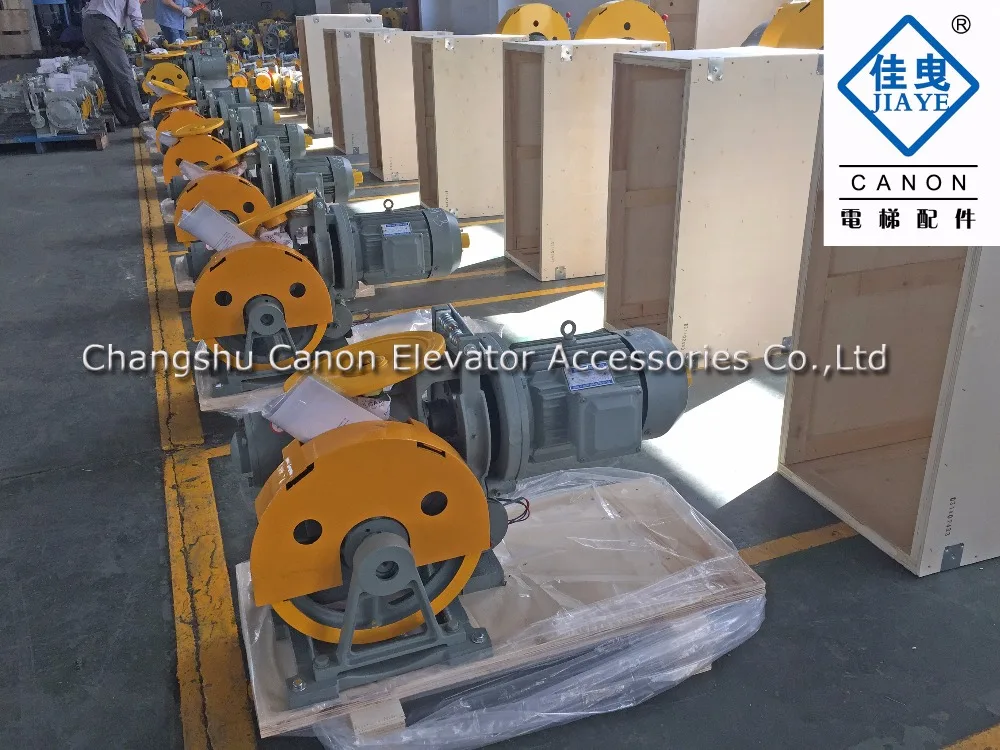

Packing & Delivery

Contact us

Payment items
