Magnesium Oxide Board (MgO Board) Production Equipment

Product Overview

Description

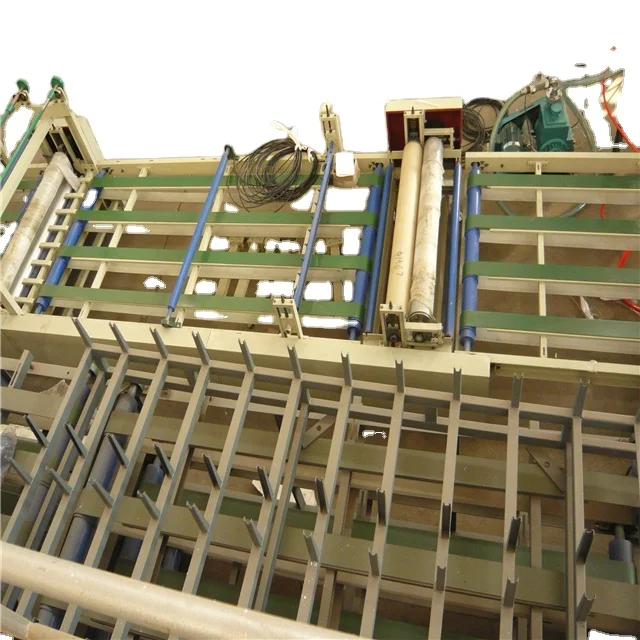

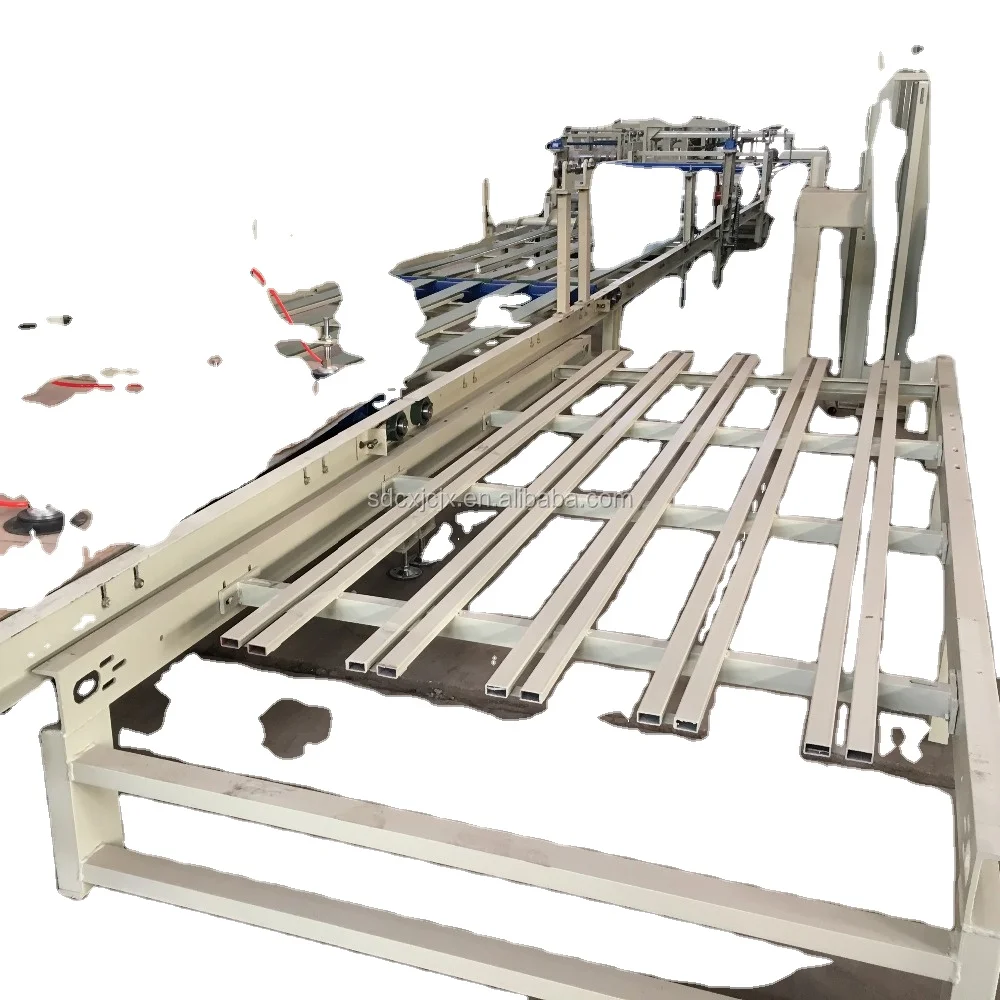

AUTOMATIC MGO BOARD MAKING MACHINE

1.     Production  Line:

 Different model machines with different production capacity.

Common production line, semi-automatic production line and full-automatic production line for customer’s choose.

Special machine can be customized.



2.     Specification of Finished Board:

   Length: unlimited.

   Width: Maximum 1.3 m (Adjustable)

   Thickness: 2mm-60mm (Adjustable)

   Standard Specification of the board is 1.22mX2.44m



3. Application of Finished Board:

Our board can replace three-ply board, five-ply board, flakeboard, MDF (Medium Density Fiberboard ) and Gypsum Board. And our board can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture.



4. Board performance:

Series No.	Test Item		Standard Requirement (thickness 8mm)	Test Result
1	Flexural Strength, Mpa		≥8.0	10.3
2	Impact Resistance, KJ/m2		≥1.5	4.84
3	Apparent density, t/m3		0.7<ρ≤1.0	0.92
4	Anti-halogen		No water ball, no get damp	No water ball, no get damp
5	Drying Shrinkage, %		≤0.3	0.21
6	Wet Inflation, %		≤0.6	0.40
7	Screw Holding, N/mm		≥15	61
8	Chloride Content, %		≤10	2.96
9	Ex-factory Moisture content, %		≤8	7.5
10	incombustibility	Inner temperature rise, ℃	≤50	8
		Average combustion time,s	≤20	0
		Mass Loss Rate, %	≤50	47.5

5. After-sale

Supply one-stop service.

Supply all machine technical data and instruction.

Supply all technology and raw material formula for free.

Supply engineer to your factory for installation and testing to ensure customer’s worker operate machine by themselves.

Supply detail information about all raw materials and to help our customer to get them.

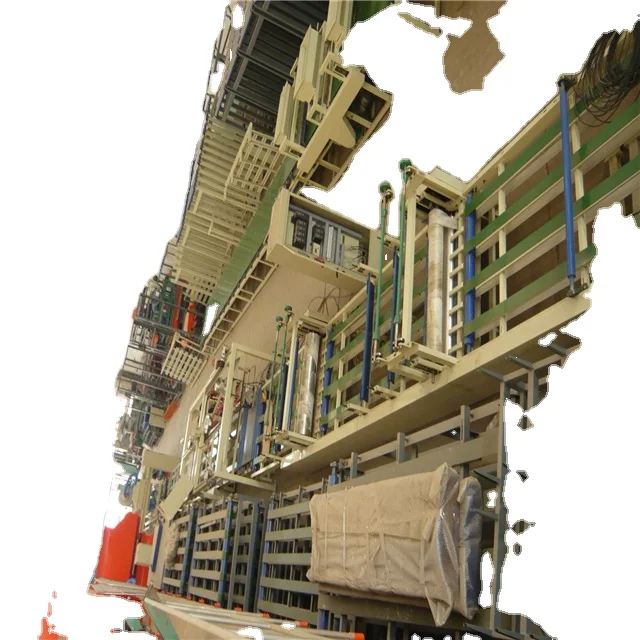

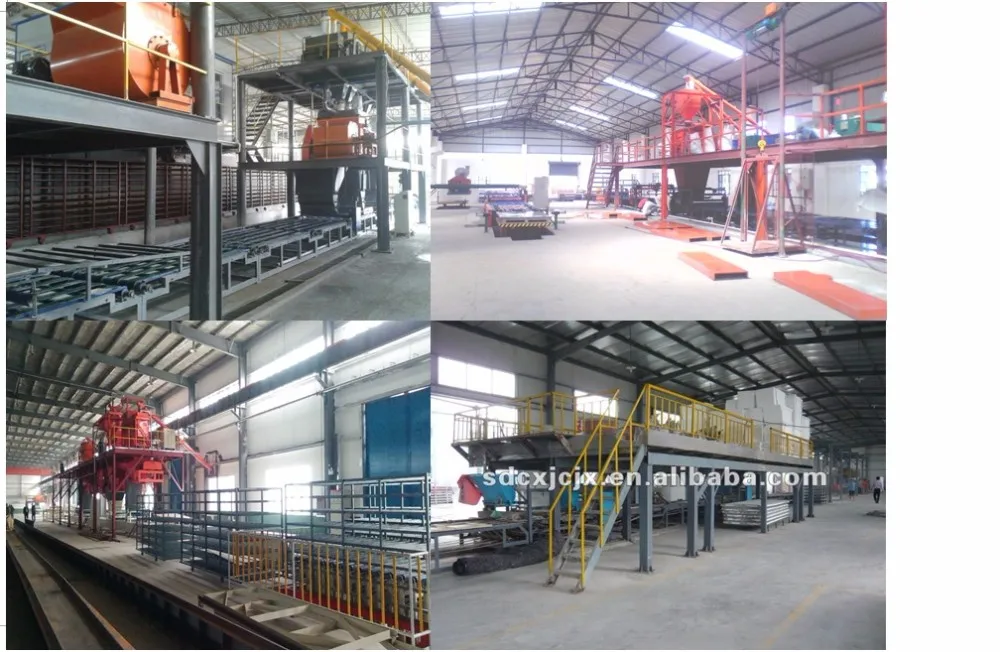

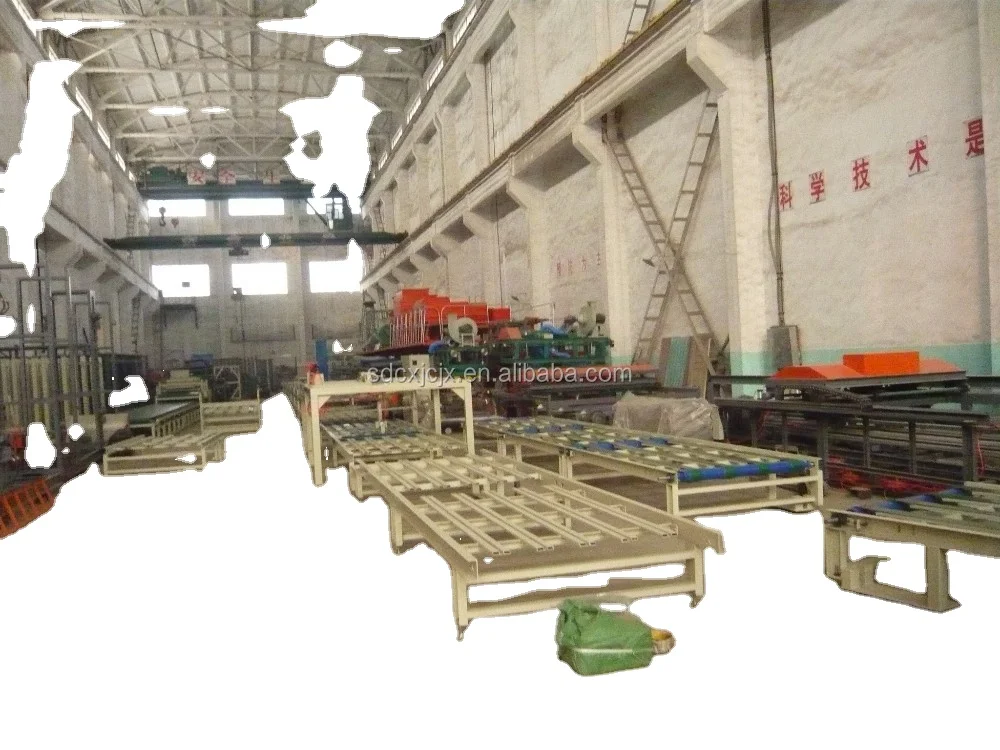

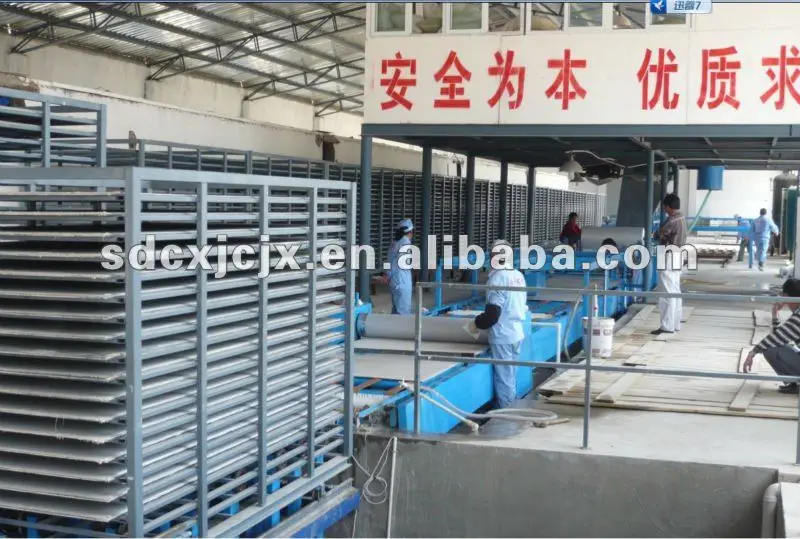

6.     Production Line Picture

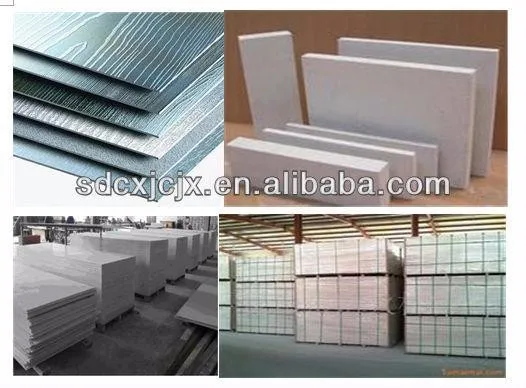

7.     Finished Board Picture

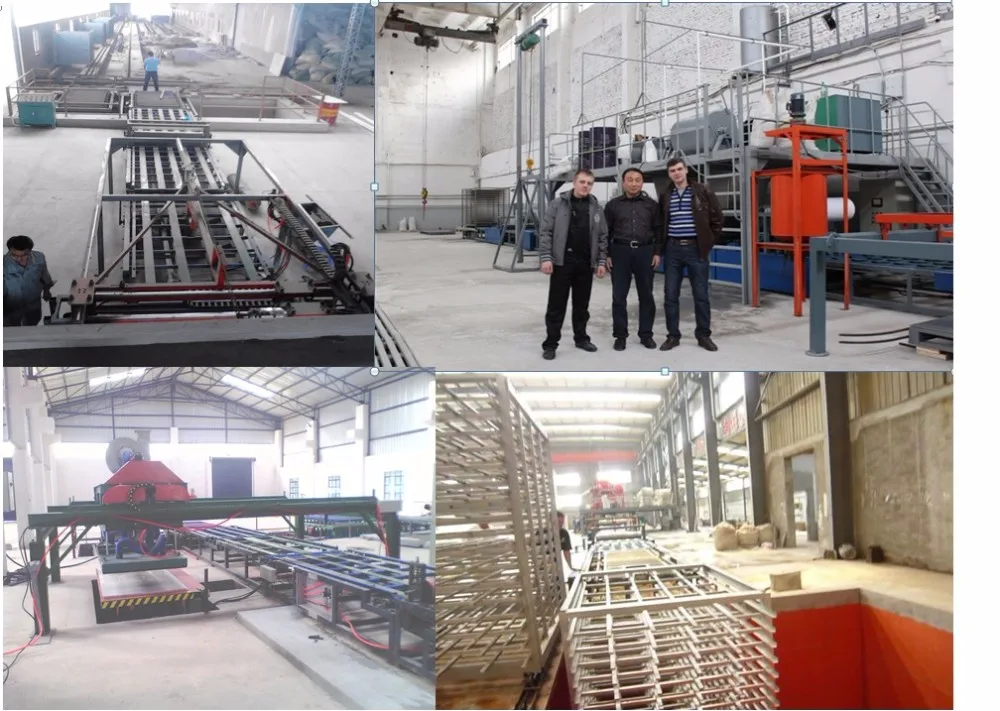

8.     On-Site Installation

9.     Customer Visiting Our Factory
