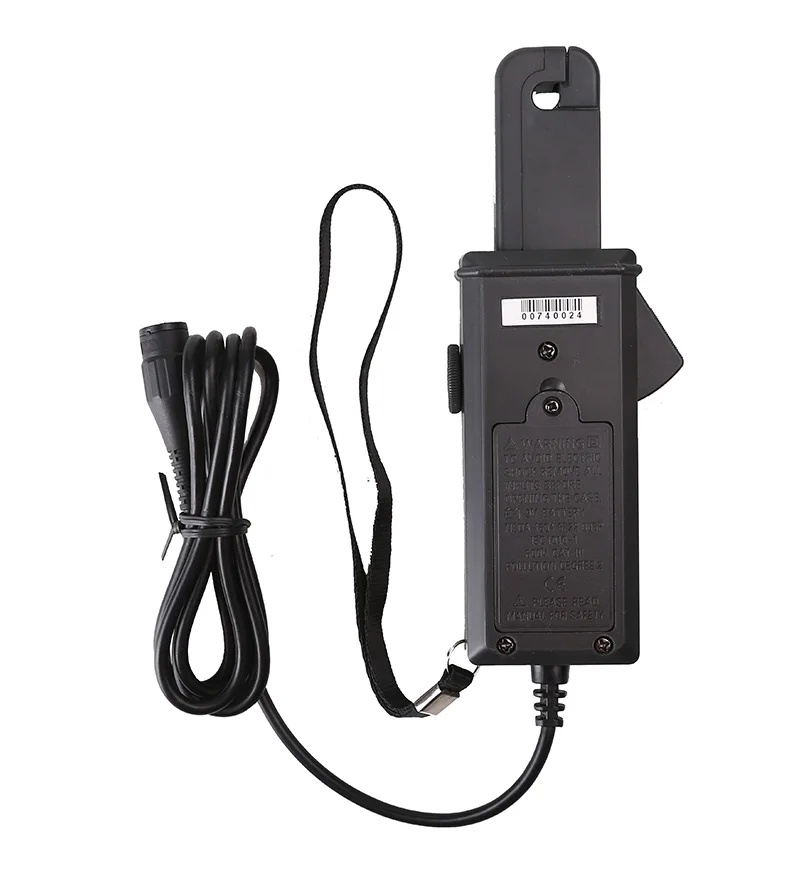

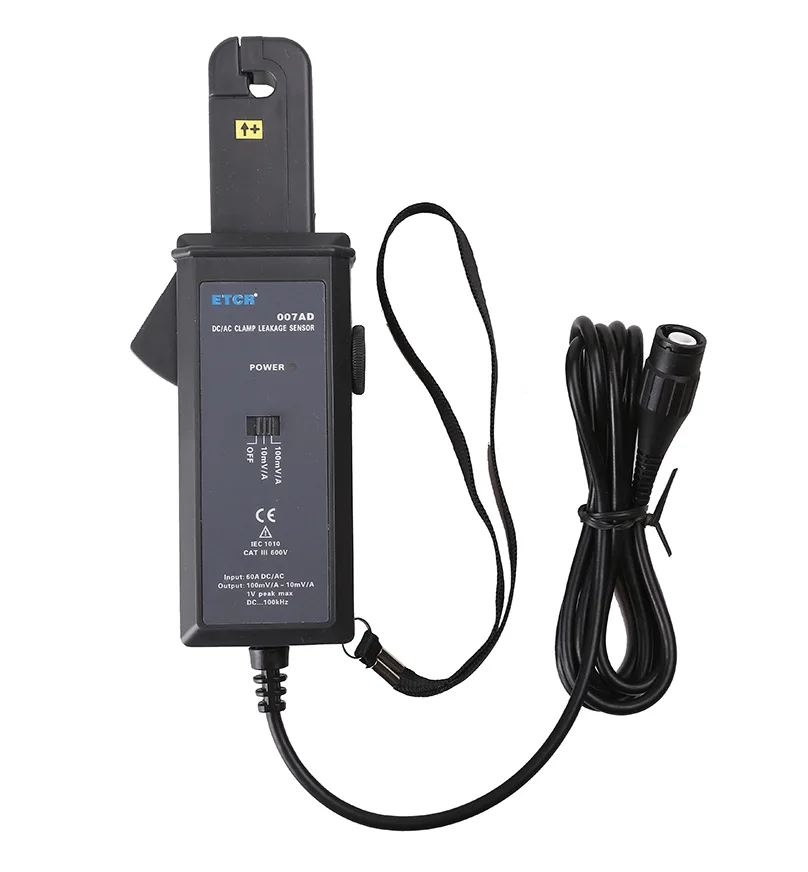

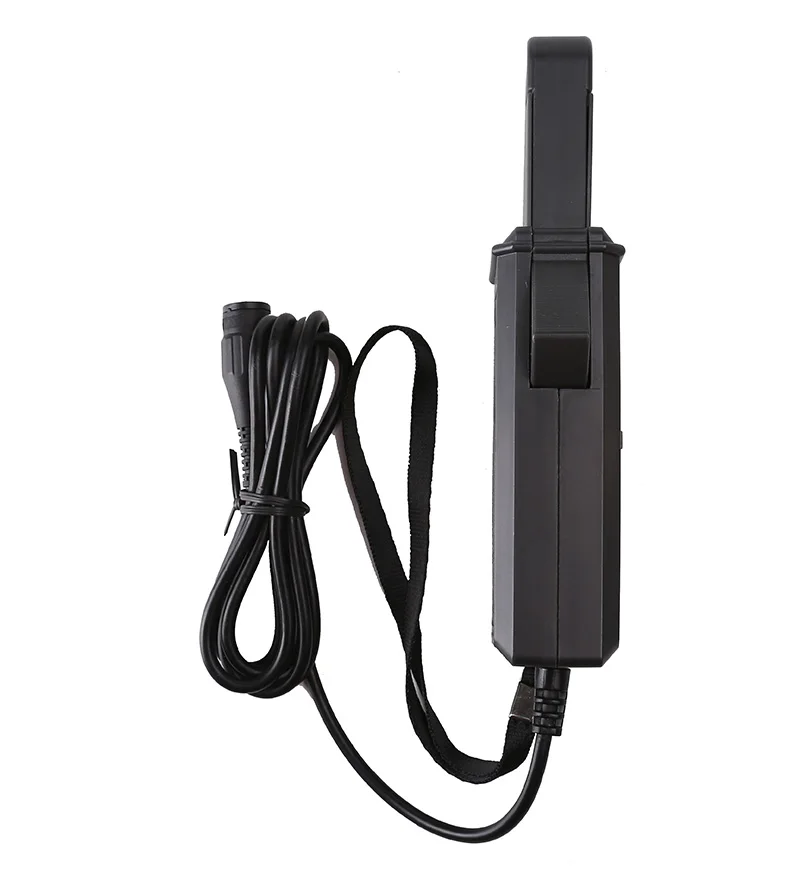

ETCR007AD AC/DC Clamp Leakage Current Sensor
- Category: Sensors >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (573343539):
Product Overview
Description
ETCR007AD AC/DC Clamp Leakage Current Sensor
Product Description
| Power | DC 9V |
| Clamp Size | Φ7mm |
| Range | AC/DC 0mA~50.0A |
| Voltage output | Two output:0mA~6A,100mV/A;6A~60A,10mV/A; |
| Resolution | AC/DC: 1mA |
| Accuracy | ±3.0%FS(50Hz/60Hz;23℃±2℃) |
| Linearity | ≤2.0% |
| Phase error | ≤3°(50Hz/60Hz;23℃±2℃) |
| Power consumption | ≤5mA |
| output method | Voltage sensing output |
| Output Interface | Φ3.5mm audio plug/BNC plug/4.0mm double banana plug (according to customer requirements) |
| Output line | 2-core shielded cable, length 2m |
| Detection method | Clamp CT |
| Clear function | Press the ZERO key to clear,Eliminating the interference of geomagnetic fields and external electric fields |
| Frequency response | AC:45Hz~400Hz;DC:10Hz~10kHz |
| Wire position | The wire under test is in the center of the jaws |
| Line voltage | below AC 600V |
| working environment | -10℃~50℃; below 80%Rh (-10°C~0°C and 40°C~50°C,with a maximum increase of ±2%FS) |
| Storage environment | -10℃~60℃; below 70%Rh |
| Insulation | AC3700V/rms (Between core and shell) |
| Protection Type | IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V) |
| Weight | 170g |

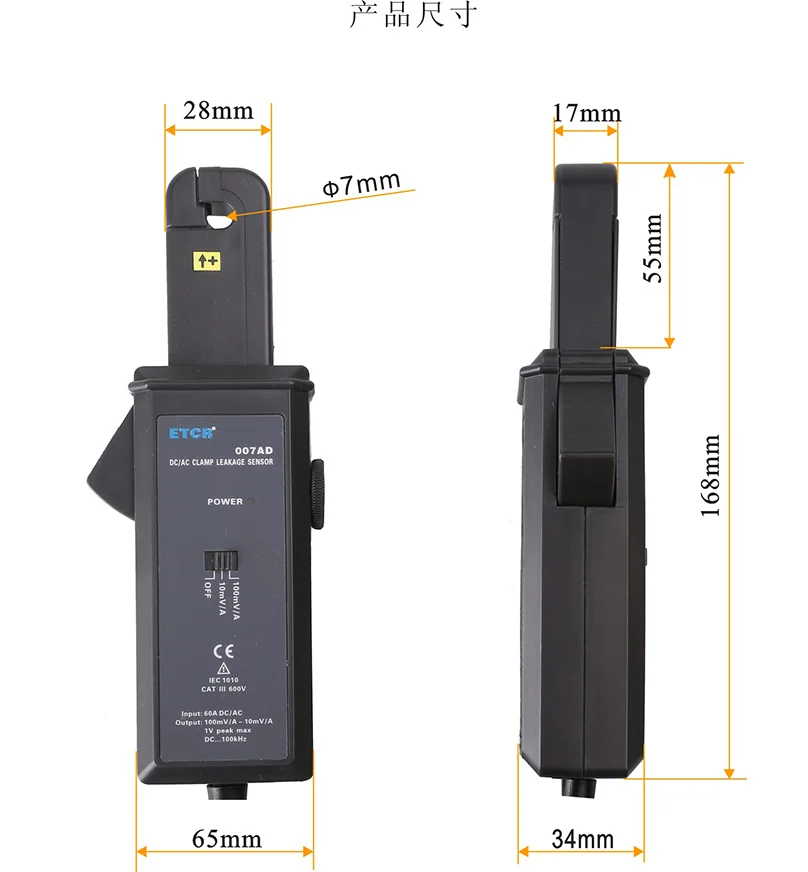

| Current Clamp | 168mm×65mm×34mm |
