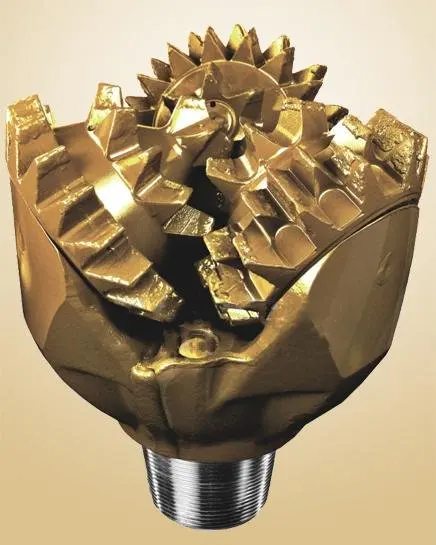

TSK Drilling Bits Tricone Bits Mill tooth From JAPAN
- Category: >>>
- Supplier: Hejian Huanyu Petroleum Machinery Co. Ltd.
Share on (574106373):
Product Overview
Description
TSK Drilling Bits Tricone Bits Mill tooth From JAPAN
Main structure
1.STEEL TOOTH bits for Mining and Rock Drilling
The strength and wear resistance of inserts are improve by using carbide inserts with high strength
and high wear resistance.
Surface of the high precision bearing heat treated by using advanced heat treatment process to improve the load capacity and service life of the bearing.
The service life of the bearing is further extended by adopting harder and mort wear resistant material for thrust bearing.
Preventing reflux structure has dual function, it can avoid air counterflow and dust entering into bearing when the air-compressor stop working accidentally, and separate air and water in order to avoid water entering into bearing when it works normally to prolong the life of bearing.
2. STEEL TOOTH bits for Oil Drilling

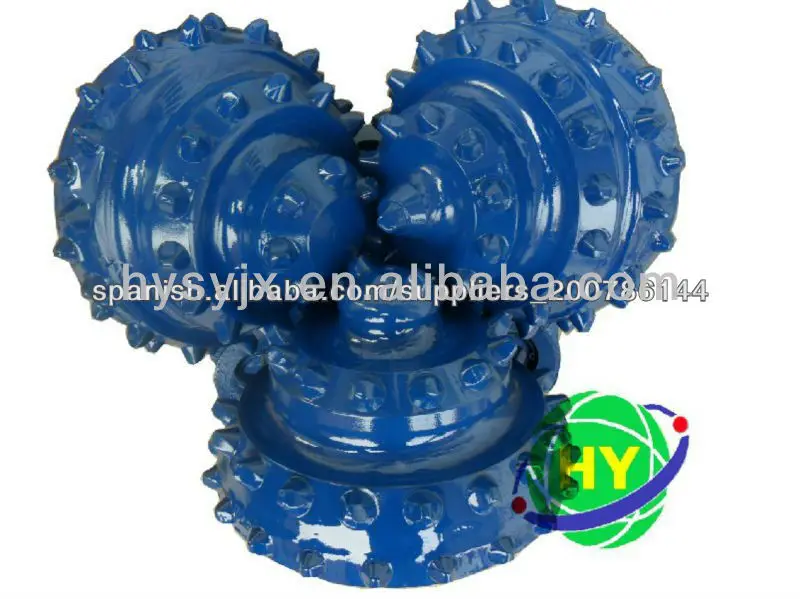

Inserted tricon bits
1. This series tricone bit use Sealed roller bearing structure. With rollers arranged in grooves recessed in the cone body, the size of the bearing journal is increased.
2. Thrust bearing surfaces are hardfaced and treated with friction reducing technology.
3. Ball locked cone, suitable for high rotary speed.

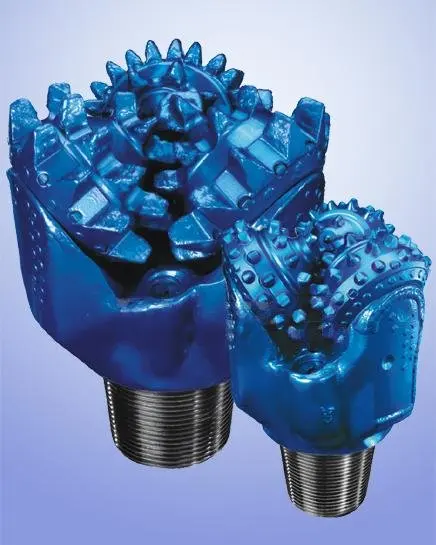

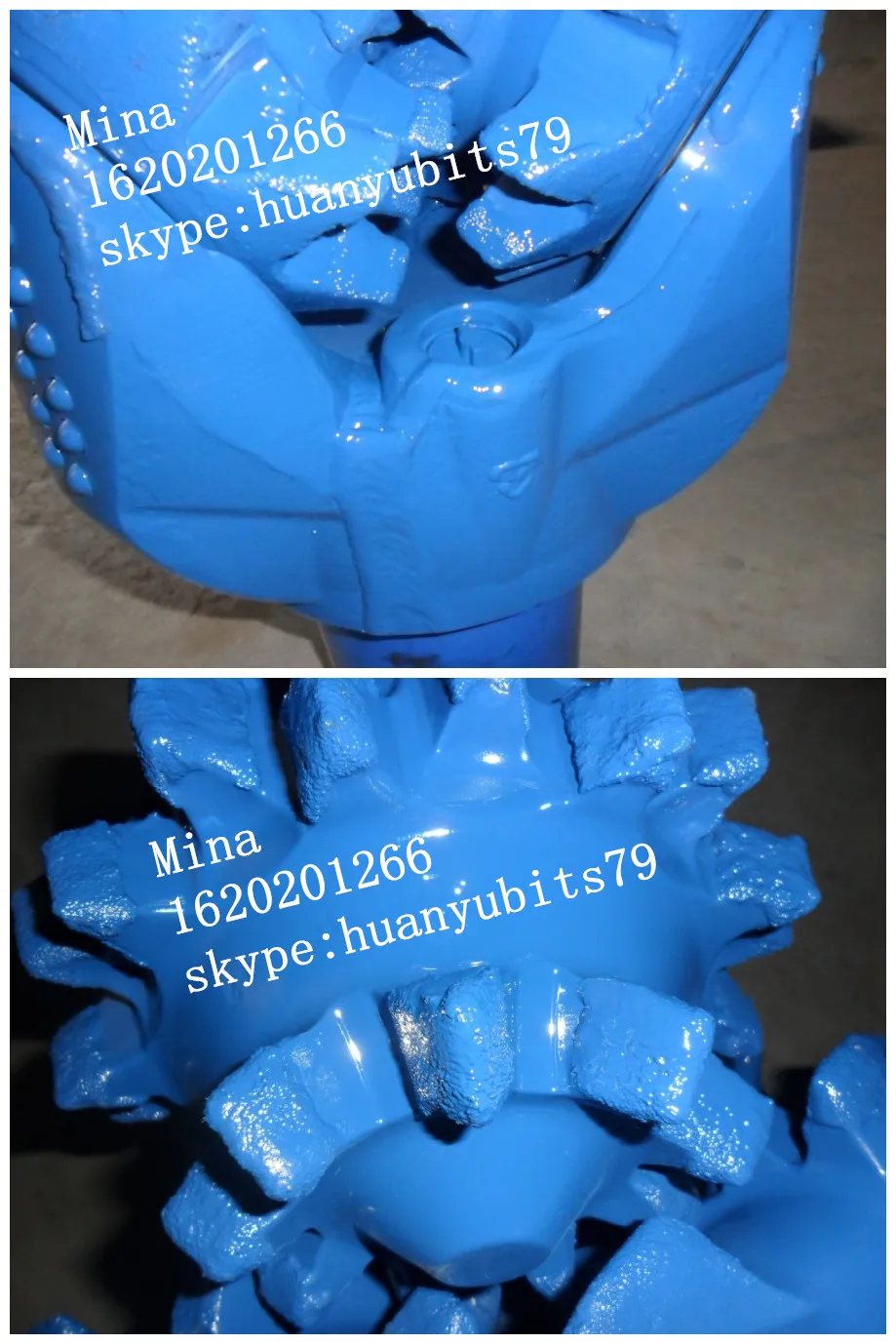

3.Steel teeth Tricon bits
1 This series tricone bit use Journal bearing. Hardfaced head bearing surface. Cone bearing inlaid with friction reducing alloy and then silver-plated. The load capacity and seizure resistance of the bearing is greatly improved.
2. O ring seal is made of the more wear resistance high saturated buna-N with the increased seal section and precisely designed sealing flange in the cone sealing area increased the reliability of the seal.
3. The bit bearing can be ball locked
4. For steel tooth bit, the tooth surface is hardfaced with new type of wear resistan
Material and thus extended working life of the cutting structure while still maintaining high ROP. 5..Main Availability
Hejian Huanyu Petroleum Machinery Co., Ltd. | ||
Product | Size | IADC CODE |
TCI Tricone Bit | 3 7/8 ,5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | 417 427 437 517 527 537 617 637 737 |
Steel Tooth Tricone Bit | 3 7/8 ,5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | 115 116 117 215 216 217 315 316 317 325 327 |
PDC BIT (3 blades,4 blades, 5 blades,6 blades) | 5 1/2, 6 1/2 7 7/8,8 1/2,8 3/4 10 5/8,12 1/4 13 3/4, 17 1/2, 22, 24,26 | M223,M322,M316, M222,M416,M122 |
Company Information
Our Services
Packaging & Shipping
FAQ
1. How to order the products?
Answer:
Send the inquiry with detail item description or with Model number.
If there is no packing demand we take it as sea-way packing.
If possible please attach one reference picture to avoid any misunderstanding or any links from our website forwe get a better understanding.
2. About lead time and shipping time?
Answer :
The lead time depend on quantity of order. Usually shipped by sea, small order or urgent order we can send you by air after received your agreement.
According the distance from china to your port, usually from China to European about 25 days. To West of American 20 days.
3.Can I expect a quality products?
Answer :
Yes. All our activities are accredited to ISO 9001:2008 and API, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
4.Plz add these informations in you inquiry
1,bits size
2,bits IADC CODE
3,layer information
4,bits quantity
