Низкоуглеродистая стальная машина для рисования резервуара для воды
- Category: Wire Drawing Machines >>>
- Supplier: Hebei Dapu Import & Export Trade Co. Ltd.
Share on (577867259):
Product Overview
Description
low carbon steel water tank wire drawing machine
Product Description
Product Description
1. The machine can draw the wire from big diameter to small diameter.

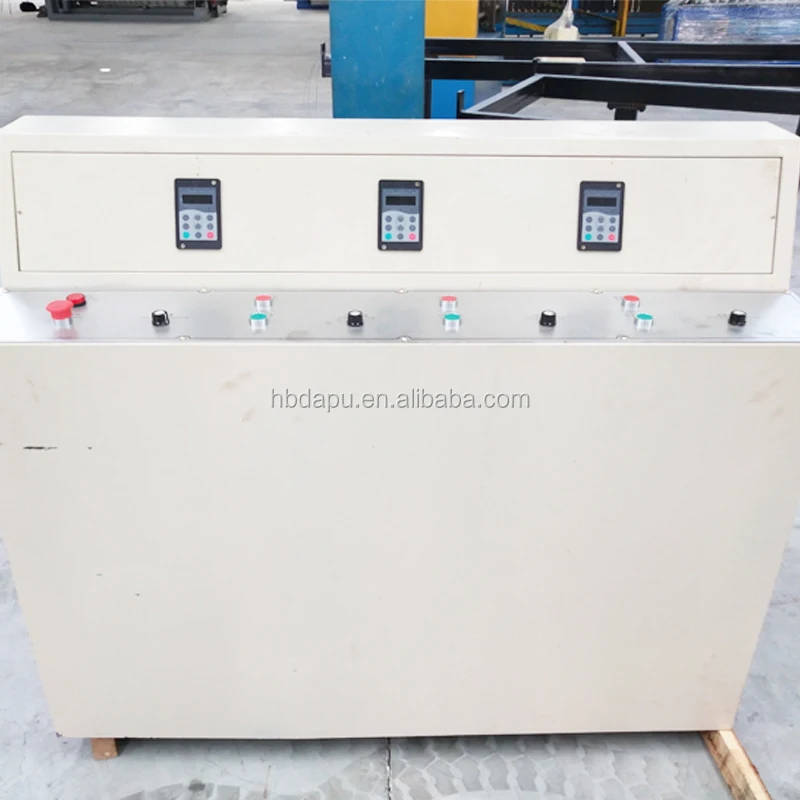

2. Inverter control, speed is adjustable, save power.

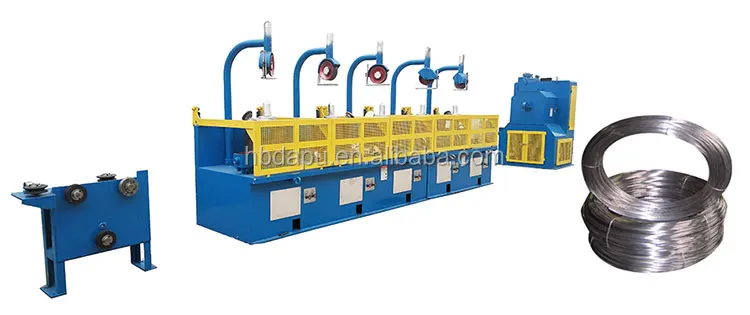

3. We have different types of wire drawing machines, such as straight line wire drawing machine, pulley wire drawing machine, wet type wire drawing machine.
4. Drawing pot is painted with surface of Tungsten carbide, long life time.
Technical Parameters
Technical Parameters
Model | LZ-560 | DLW-550 | DLW-350 |
Machine type | Straight-line | Pulley type | Wet type |
Raw material | low-carbon steel wire | ||
Speed control | Inverter | ||
Number of drawing pots | 1-10pcs | 1-8pcs | 1pc |
Max.inlet wire diameter | 6.5mm | 6.5mm | 2mm |
Min.outlet wire diameter | 1.6mm | 2mm | 0.8mm |
Each motor capacity | 22kw | 18.5KW | 22KW |
Production capacity | Max.900m/min | Max.414m/min | 280m/min |
One drawing pot size | 1.2*1.5*1.3M | 1*1*2.1m | 2.4*1.1*1.1m |
One drawing pot weight | 1800KG | 1500KG | 1800KG |
Capacity | LZ-560: 31T/day | DLW-550:10T/day | DLW-350:38T |
Auxiliary Equipments
Auxiliary Equipments
1 .Upper pull-out wire rack is used to feed the wire material.

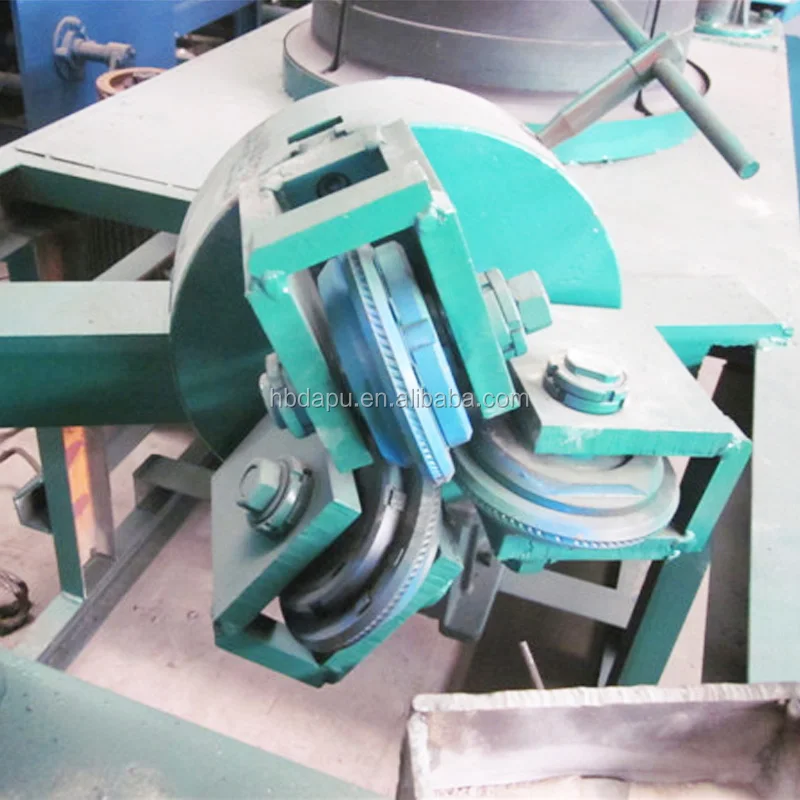

2. Sheller is used to clean the rust on the surface of wires.

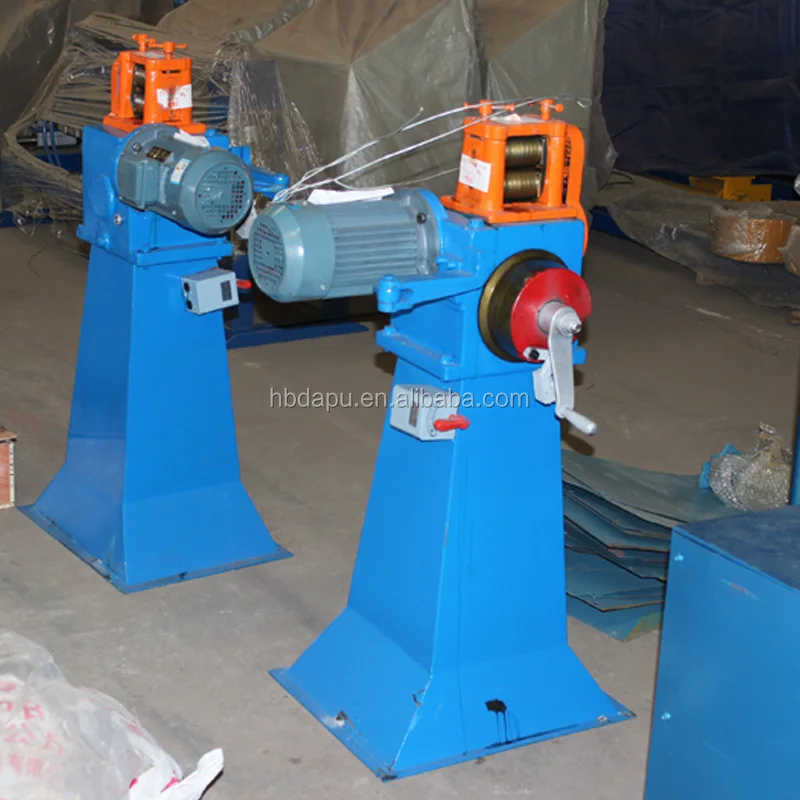

3. Head pointing machine is used to make the wire sharp, easy to insert into the drawing machine.
4. Butt welding machine: When nearly finish one coil, you can use this machine to connect another wire coil.
5. Wire discharging machine is used to discharge the finished wire coils.
6. Trunk take up machine is used to coil the finished wire directly by high speed.
7. Drawing mould is used to reduce the wire diameter.

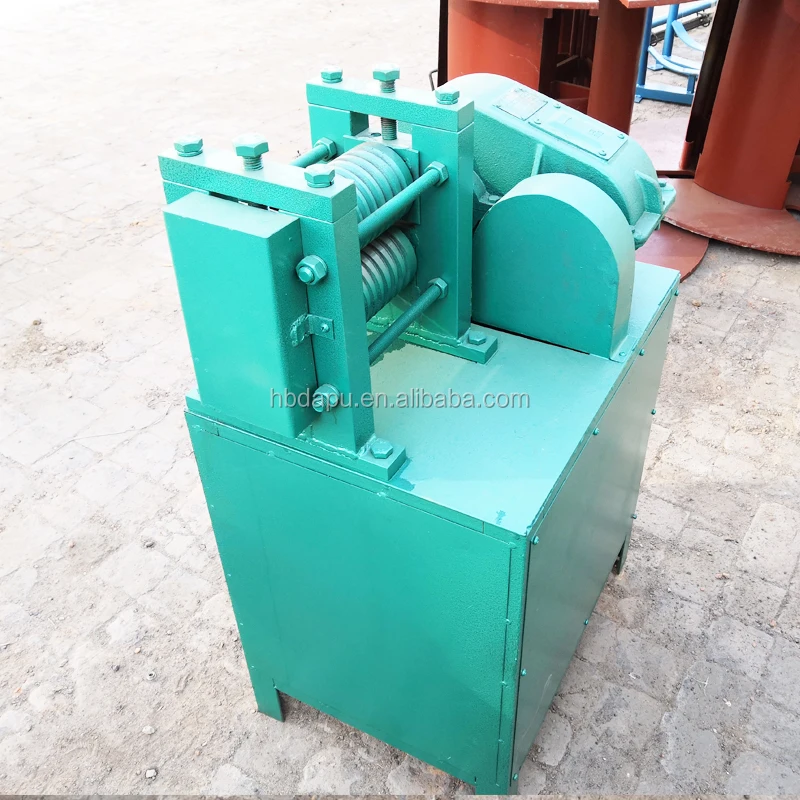

8. Ribbed wheel is used to make rib on wire surface.

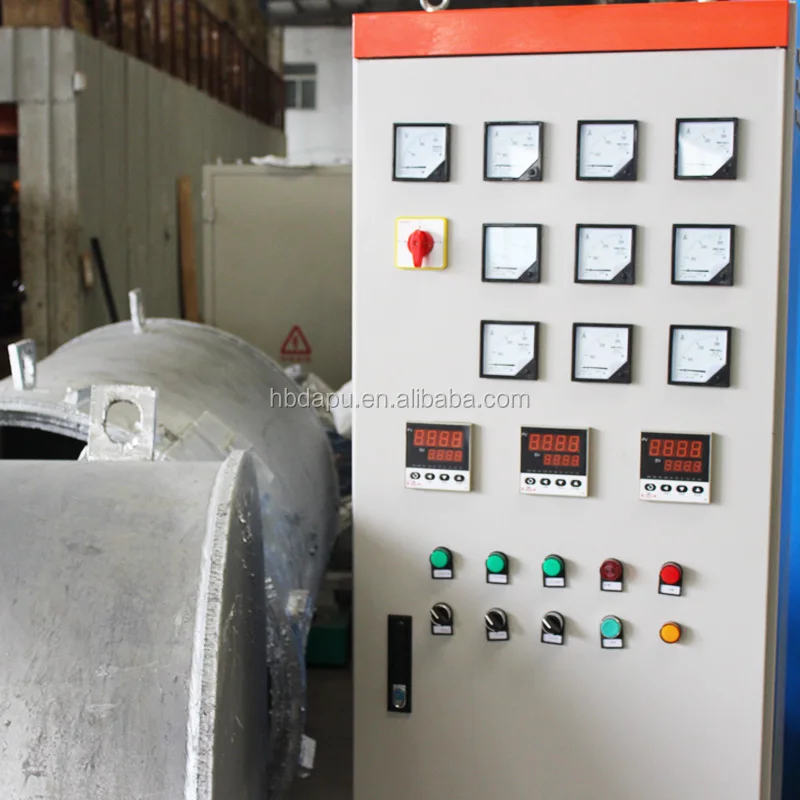

Electric Furnace
Electric Furnace
Electric furnace is used to anneal the wire. So the wire is not easy to break and can be redrawn into smaller diameter. Each furnace is equipped with three annealing blocks for cycling use. This machine adopts the intelligent separate temperature control, silicon controlled, the precision is very high.
2) Technical Parameter
Raw material | low-carbon wire | Capacity | 9tons/24hours. |
Height of the furnace | 2500mm | Working temperature | Maximum 980° |
Inner diameter of furnace | 1050mm | Voltage | As your request |
Motor | 850KW | Power consumption | 700-800KW per 8hours |
Dimension | 2.1*2.1*2.3 | Weight | 4550KGS |
About Us
About Us
Hebei DAPU Machinery It’s the leading manufacturer of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
Our Service
Packaging & Shipping
Packaging & Shipping
FAQ
FAQ
Q: Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology to develop the department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
Q: What's the guaranteed time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience with exporting. And we can supply the CE certificate, Form E, passport, SGS report, etc, your customs clearance will be no problem.
