Дистанционное управление Открывалками Гаражных Дверей

Product Overview

Description

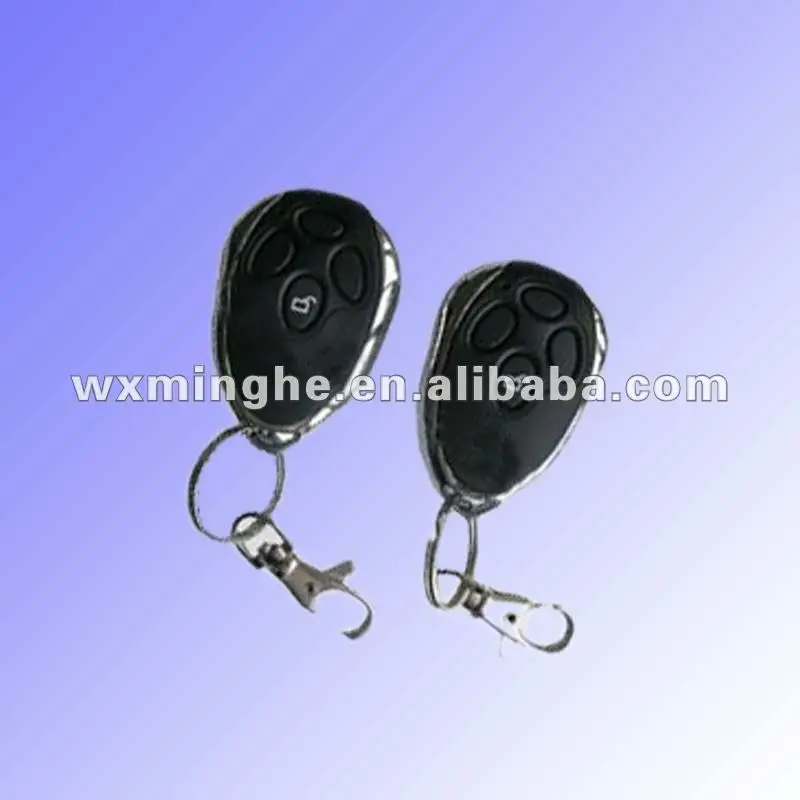

remote of garage Door Openers

Description:

1) Doors are easily opened by hand by the releasing system in case of power off

2) Simple programming of operation settings

3) Built-in receiver on the control board allows you to program 20 transmitters

4) One push of the remote button and you drive straight into your garage

5) Availability of a lamp for garage lighting (10 W), the courtesy light allows you to see inside the garage

6) Automatic refund function in case of obstacles

7) Availability of automatic closing function with programmed delay time

8) Different torque to suit your garage door: 800N, 1000N, 1200N, 1500N





Advantage:

1. Digital display & easy programming;

2. Remote control with rolling code;

3. Soft start & stop, powerful, low noise;

4. Self-lock fuction;

5. Reverse fuction when meeting obstacle;

6. Door unclosed alarm & automatic door closing fuction.



Technical specification:
Power lnput	110/220 VAC±10%
Motor	50Hz 24V DC 100W
Courtesy light time	3minutes
Working temperature	-20°~70℃
Relative Humidity	<90%
Open and close force	800N~1500N
Reception frequency	433.92MHz
Sensitivity	>1V for correct receiver signal(average range 50m,with an aerial)
Decoding	Rolling code 27A
Transmitter power	12V Battery
Globe	24V 5 watt

Technical Specifications	T5/500	T6/600	T8/800
Max.Area-(lnsulated Steel Panel)	6m²	8m²	12m²
Max.Area-(Wooden Panel)	not suitable	not suitable	not suitable
Maximum Speed	160mm/s	160mm/s	140mm/s
Duty Cycle	30%	30%	30%
Nominal lnput Voltage	230V AC±10%	230V AC±10%	230V AC±10%
Motor	24V DC/60W	24V DC/60W	24V DC/80W
Transformer	75VA	110VA	110VA
Degree of Protection	IP40	IP40	IP40
Operating Temperature	-30℃ to +60℃	-30℃ to +60℃	-30℃ to +60℃
Radio	KEELOQ Hopping Code,433MHz	KEELOQ Hopping Code,433MHz	KEELOQ Hopping Code,433MHz
TX Capacity	Stadard2 Max.12Transmitter	Stadard2 Max.12Transmitter	Stadard2 Max.12Transmitter
Maximum Distance	80m	80m	80m
Speed Regulation	Yes	Yes	Yes
Slow Start/Stop Function	Yes	Yes	Yes
Safety Obstruction Sensing	Yes	Yes	Yes
Weight	5kg	5kg	5kg
Rail	Steel 1-piece	Steel 3-piece	Aluminum 1-piece
Standard Door Height	2400mm	2400mm	2400mm
Extension Kit	Extemdable with  001-08080-001.500mm	Extemdable with  001-08080-001.500mm	Not Available
Maximum Door Height	2900mm	2900mm	2400mm
Material Length Thickness	Steel/Chain,3050mm,1.2mm	Steel/Chain,3050mm,1.2mm	Alum/Belt,3050mm,2.0mm





FAQ:

A, Are you manufacturer?

Yes,We are one of the professional manufacturer of sectional door,we have           professional team of workers ,service and inspection system.

B, How to order a sample?

we have small sample in stock, it is free of charge,you just need to handle with     the freight.

C, What are your main products?

The main products are sectional door,we can offer different material panel with     sectional,such as garage door,industrial door,solid wood door,aluminum               door,glass door.

D, What is MOQ?

one set for trial order also Can be accepted.

E. Where is your factory?

We are located in Wuxi,it is very close to Shanghai,only takes 40minutes by high   speed train.The address is No.79-15 Chunyang industrial zone,new                         district,Wuxi,China
