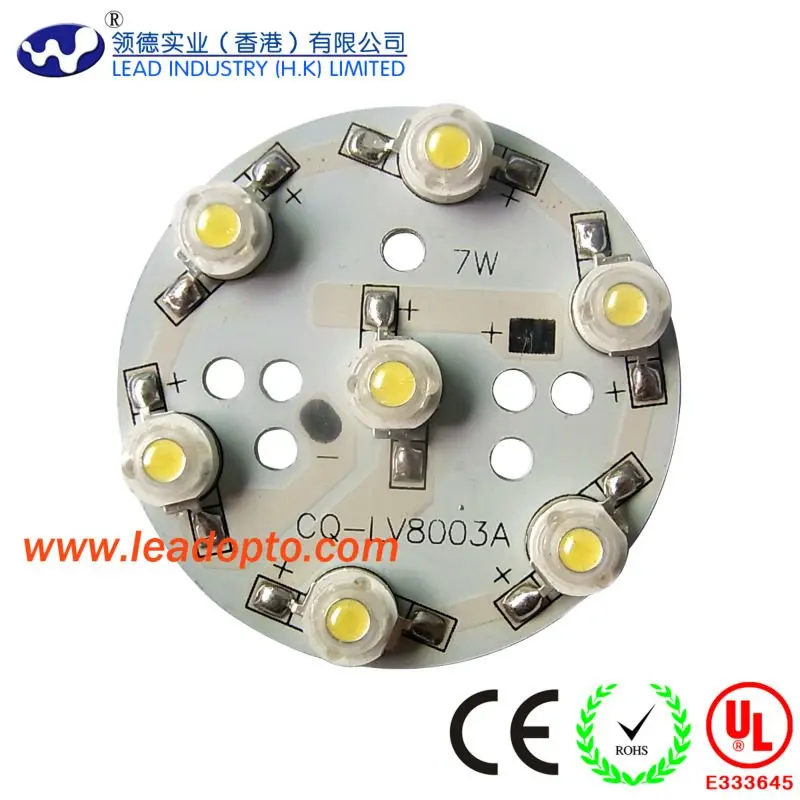

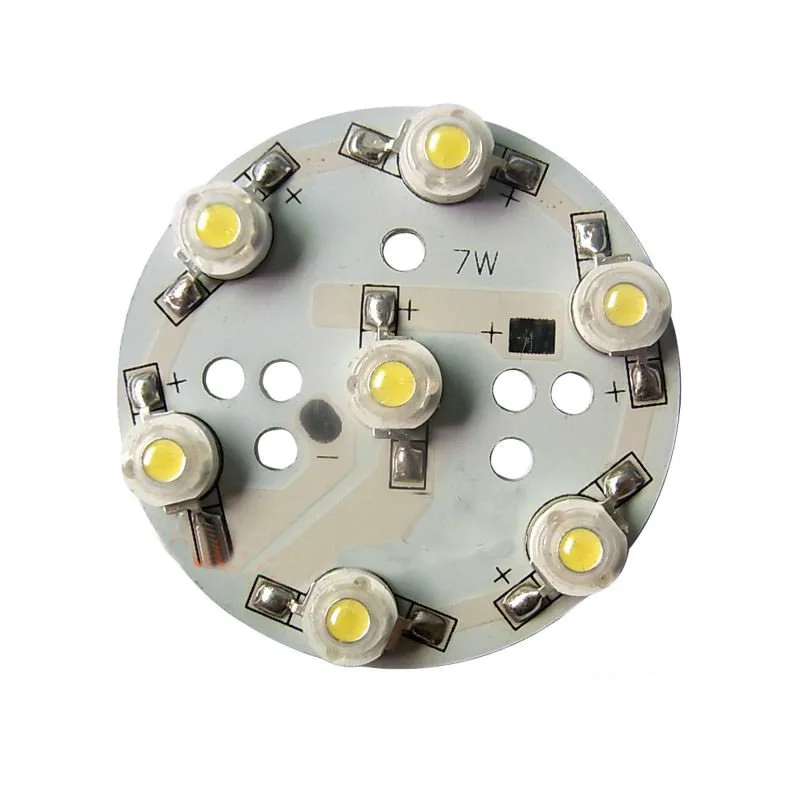

Shenzhen1w smd светодиодная Горячая продажа печатная плата из алюминия
- Category: Single-Sided PCB >>>
- Supplier: Shenzhen Leadfly Technology Co. Ltd.
Share on (590947830):
Product Overview
Description
Shenzhen1w smd led hotselling pcb circuit Aluminum board
Product Information
| No. | Items | Capability | |||
| 1 | Laminates | Aluminum base ,Copper base, CEM-1 CEM-3 FR4(TG130,TG150,TG170), FPC(Flexible print board) Ceramic base | |||
| 2 | Layers | 1-16layers | |||
| 3 | Max size | 800x650mm | |||
| 4 | Min. thickness | 1/2L: 0.40mm, 4L: 0.40mm, 6L:0.60mm, 8L:0.80mm, 10L:1.20mm | |||
| 5 | Finished copper | Inner: 12-175um, outer: 35-175um | |||
| 6 | Min. line/spacing | I/L;3/3mil (0.0762/0.0762mm) O/L; 3.5/3.5mil(0.0889/0.0889mm) | |||
| 7 | Min. finished hole | 6mil (0.15mm) | |||
| 8 | hole wall copper | 20-25um | |||
| 9 | Min. S/M dam | 4mil (0.10mm) | |||
| 10 | Max. aspect ratio | 0.417361111 | |||
| 11 | Tolerance of hole position | +/-2mil | |||
| 12 | Tolerance of outline | normal:+/-5mil, special:+/-4mil | |||
| 13 | tolerance of tracks | normal:+/-20%, impedance control:+/-10% | |||
| 14 | Tolerance of PTH | normal: +/-3mil, /special:+/-2mil | |||
| 15 | Tolerance of NPTH | +/-2mil | |||
| 16 | impedance control | +/-10% | |||
| 17 | Twist and bow | <=0.75% | |||
| 18 | Surface finish | HAL(Tin-lead/lead free), ENIG, OSP, Immersion silver, gold plating, gold fingers | |||
