PET crystallizers

Product Overview

Description

1.Features
Standard configuration

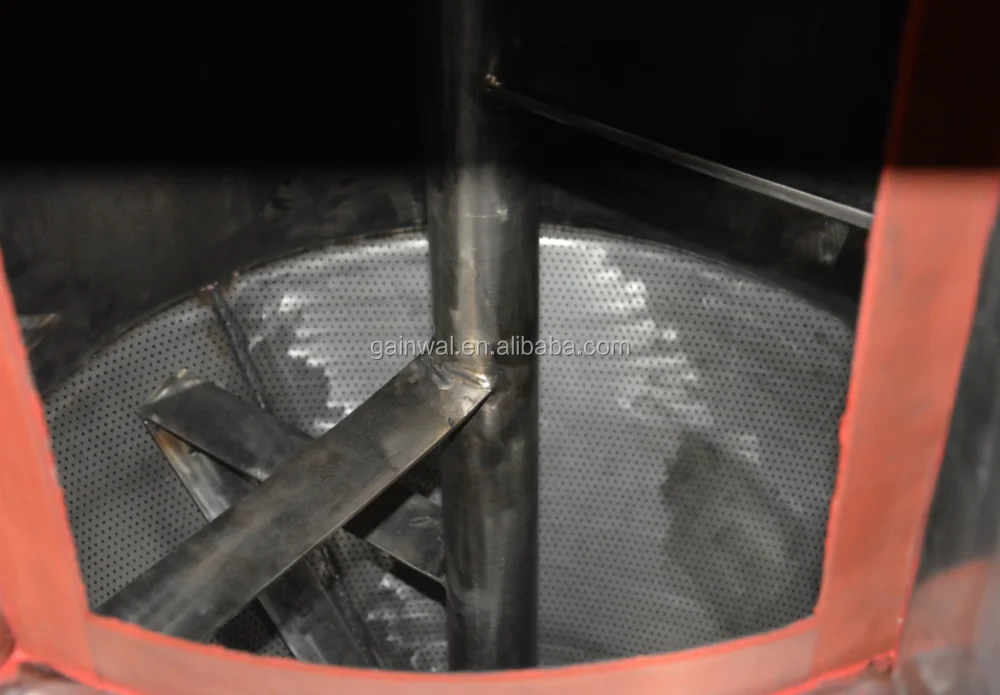

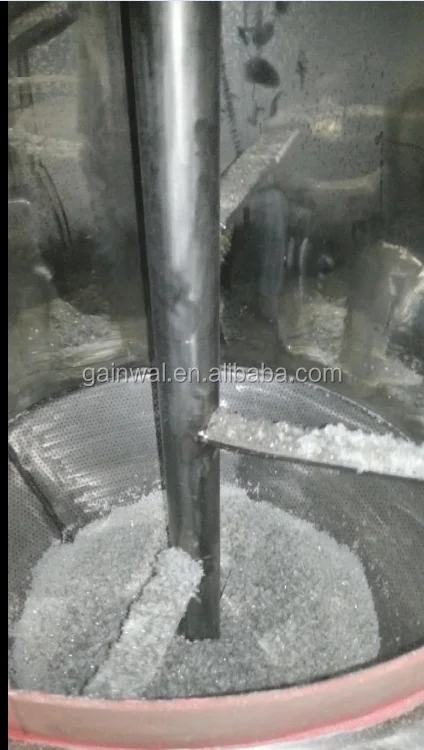

1) Fixed speed of agitator makes materials not lump together during the
crystallization.
2) Simplify and improve drying efficiency.
3) Materials can be dried under high temperature to raise drying efficiency.

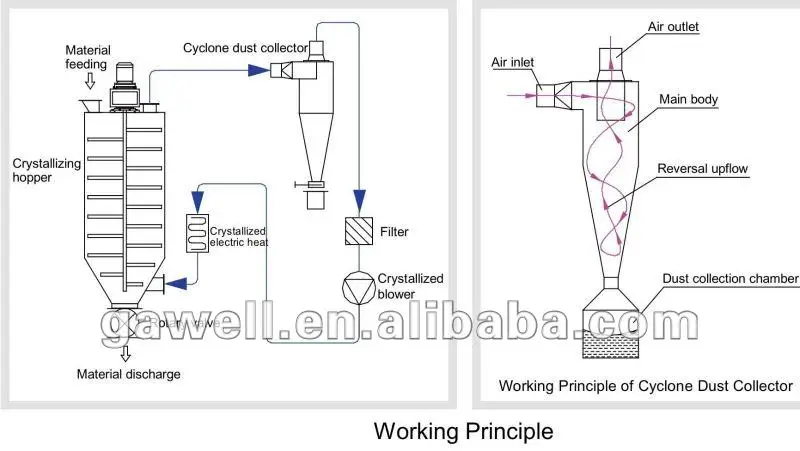

4) Cyclone dust collector is standard, which is applied to dust-rich place. Can
effectively reduce the load on air-return filter, and extend the life of the filter to
reduce the number of times of filter cleaning.
5) With double overheat protectors, it can reduce the possibility of either
mechanical or man-made problems.
6) Equipped with rotary valve with good sealing performance, which can output
crystallized material accurately.
7) Equipped with material level switch, which can detect material level
accurately and make operation reliable.
Accessory option
1) Can collocate with dehumidifier to fulfill dehumidification directly.
2) Auto loader, hopper receiver, magnetic base, suction box are optional for
material conveying.
3) Optional conveying screw (fixed or variable speed) for quantitative output of
crystallized material.
4) External pipeline is optional with the stainless steel configuration.



2.SPECIFICATIONS

Model	GCR-160U	GCR-450U	GCR-900U	GCR-1600U	GCR-2500U
Hopper capacity(kg)	100	300	300	1000	1500
stirrer motor power(kw)	0.25	1.1	1.5	1.5	2.2
blower power(kw)	0.55	2.2	3	5.5	11
galvanothermy power(kw)	12	24	48	68	86
Crystallizing ability(kg/hr)	50	150	300	500	750
net weight(kg)	230	500	860	1260	1750
