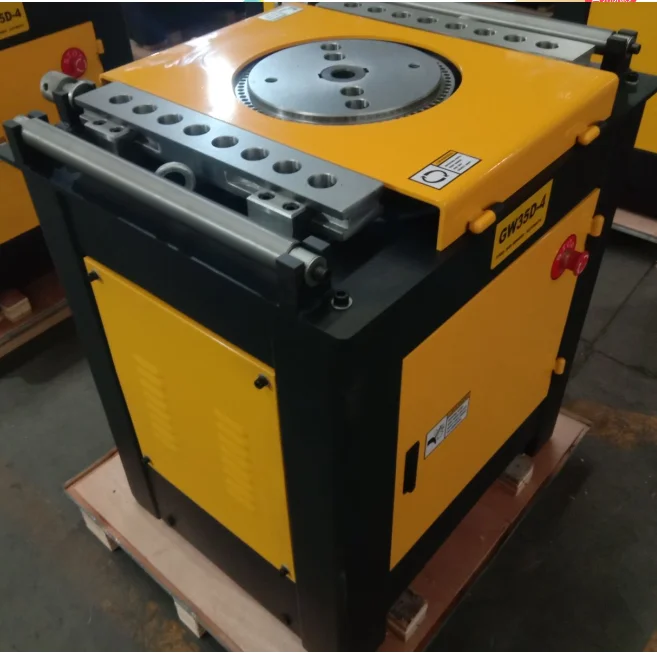

Manual Rebar bender GW35D
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (594784867):
Product Overview
Description
Rebar bender GW35D (Automatic/MANUAL) 35mm
---MAIN FEATURE:

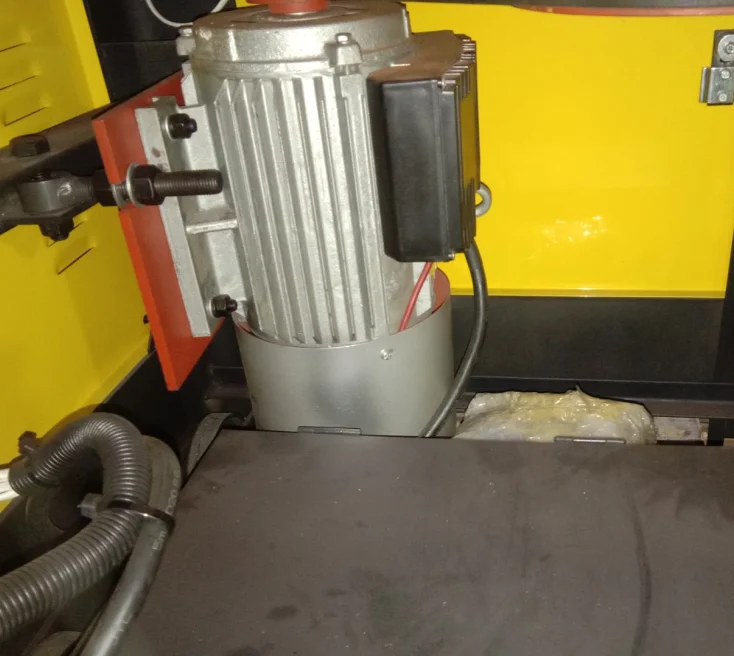

MOTOR TYPE: Automatic BRAKE MOTOR
GEAR BOX: CAST STEEL INSIDE GEAR: C45 STEEL
GEAR SHAFT: C45 STEEL WORKING DISK: C45 STEEL
STOP GAUGE: C45 STEEL PILE HEAD: CR 40 STEEL
EXTERNAL CASE: Q235
---PRODUCT DESCRIPTION
1. GW35D adopts the FULLY ENCLOSED GEAR BOX separated from the working disk for NO DISTORTIONS even under the condition of heavy loads and NO OIL LEAKING while lifting the machine.
2. GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE, PILE HEAD and PILE HEADS are made of high quality ALLOY STEEL with proper HEAT TREATMENT (quenching /tempering/high frequency), and 3mm thick external case to ensure high performances also under heavy loads and LONG WORKING LIFE.
3. DUST PROOF BRAKE MOTOR and TWO LIMIT-SWITCH to ensure the accuracy of the bending angle also after stopping and restarting.
4. INSERT-PIN TYPE disk and MOVABLE SADDLES for a precise adjusting of the bending angle.
5. CE Certification (2006/42/EC-2006/95/EC)
Worry-saving:
The main components last for 10 years, and main wear parts can last for 3-year, which almost cost you nothing for maintenance.
Time-Saving:
The international advanced structure ensures the fastest bending speed.
---TECHNICAL DATA:
| BENDING CAPACITY | 6-35 mm (ob ≤450N/mm2) | 6-28 mm (ob ≤650N/mm2) | |||||||
| OPERATION | Automatic | Manual | |||||||
| TYPE OF MOTOR | YEJ 100L1 -4 | Y100L1 -4 | |||||||
| MOTOR POWER | 2.2 KW-4P | 2.2 KW-4P | |||||||
| MOTOR ROTATION SPEED | 1420 R/min | 1420 R/min | |||||||
| SPEED OF WORKING DISK | 12 R/min | 12 R/min | |||||||
| NOISE VALUE (1m away) | ≤75dB(A) | ≤75dB(A) | |||||||
| WEIGHT | 345 Kg. | 332 Kg. | |||||||
| DIMENSIONS (L*W*H) | 750*620*850 mm | 750*620*850 mm | |||||||
| UNIT PRICE USD | |||||||||
| CERTIFICATION |
| ||||||||

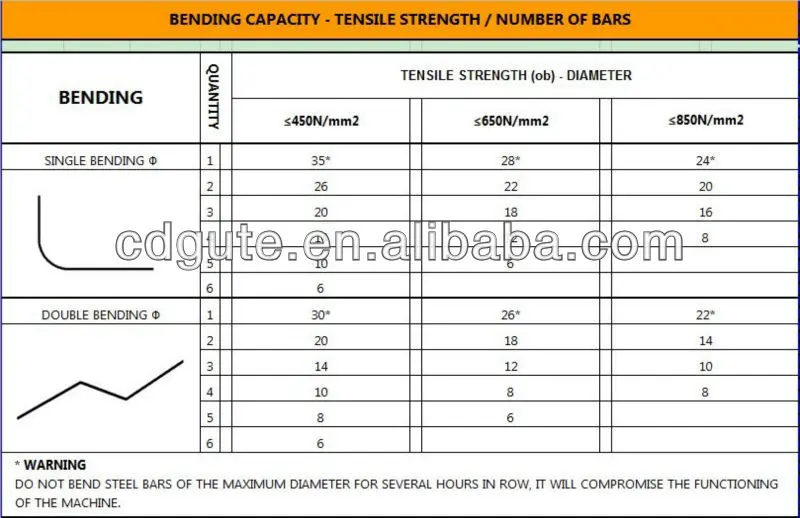

--- BENDING CAPACITY:
--- EXPLODED VIEW
----FUNCTION DISPLAY:

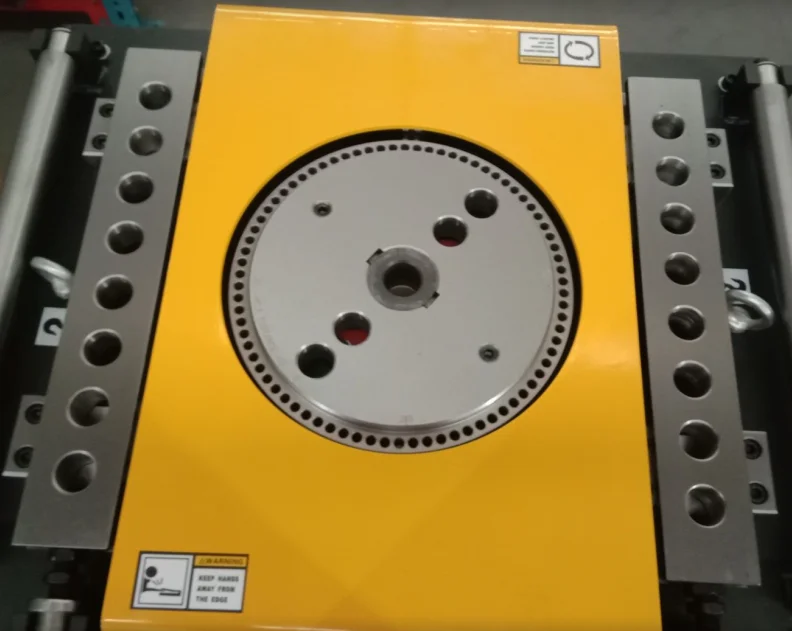

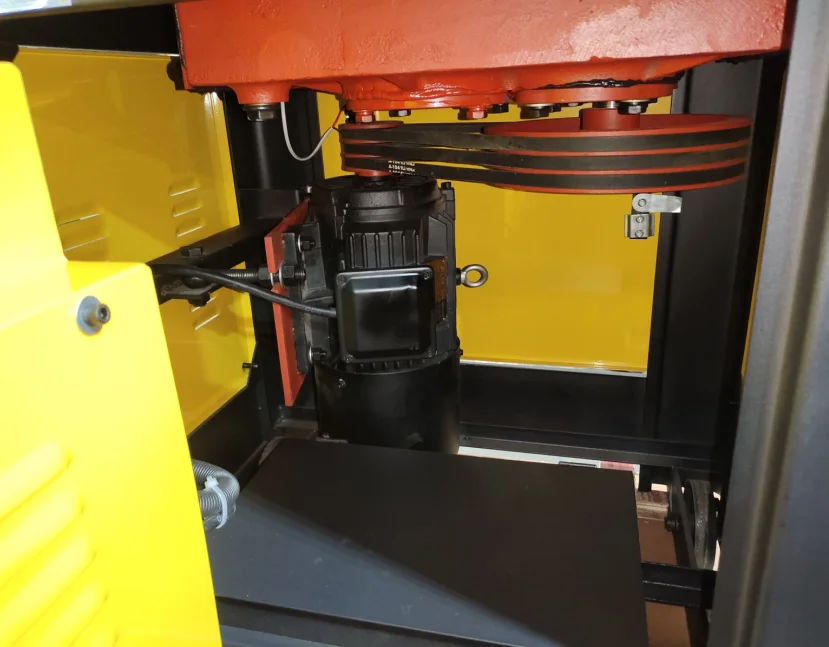

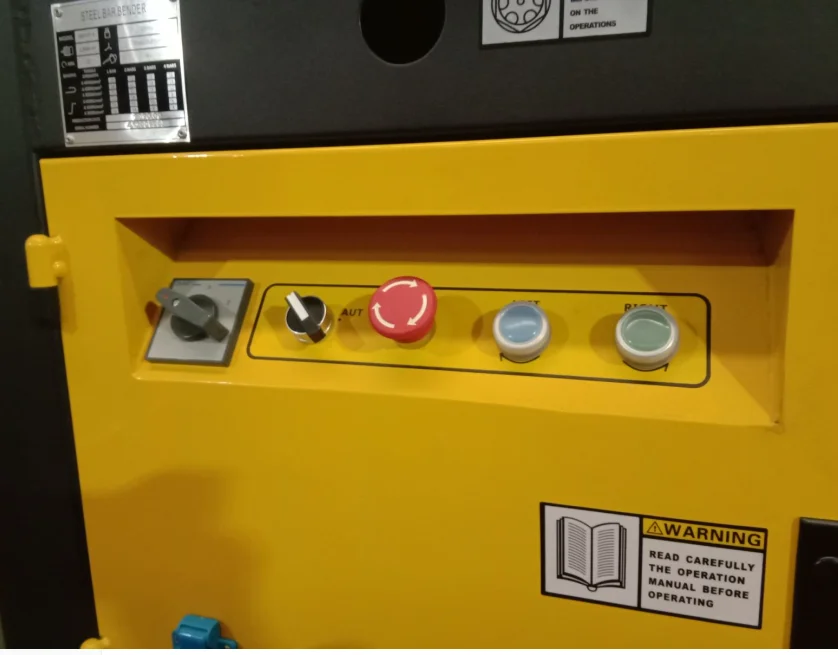

----DETAIL LOOK
---ACCESSORY

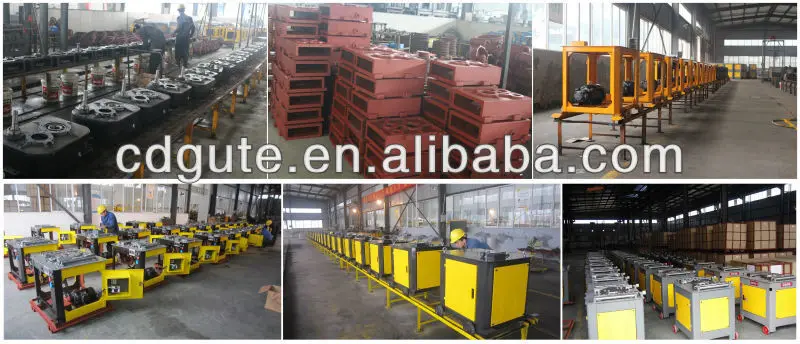

--- PRODUCTION LINE
---TRANSPORTATION
--- CONSTRUCTION SITE
--- CERTIFICATION
--- WORLDWIDE PRTNER
---OUR SHOP
FAQ
Q: What's the producing time and delivery time?
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
Q: What's the MOQ?
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
Q: What's the departure port?
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
Q: What's the packing?
A: Iron Pallet and Polly wooden cases (no fumigation needed)
Q: What’s the payment term?
A: T/T, L/C, West union, PayPal.
Q: Can I change the motor to my local voltage and frequency, Is there any extra charge?
A: Yes, we can change the frequency and voltage to your local standard. (we can make 220V/380V/410V/415V, and 50HZ/60HZ)
There’s no extra charge.
Q: Can you OEM (usd my logo and color)?
A: Yes, we can OEM with your logo and color design. This has quantity demand, no less than a 20GP container order.
Q: Can the price be CIF?
A: Yes, we can quotas best CIF price with very good freight cost.
Q: Does machine have warranty?
A: Yes, all machine with One year warranty for the main spare part. (easily wear parts are not included).
Q: Dose machine have certificate?
A: Yes, machine with CE Certificate.
Q: What's the producing time and delivery time?
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
Q: What's the MOQ?
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
Q: What's the departure port?
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
Q: What's the packing?
A: Iron Pallet and Polly wooden cases (no fumigation needed)
Q: What’s the payment term?
A: T/T, L/C, West union, PayPal.
Q: Can I change the motor to my local voltage and frequency, Is there any extra charge?
A: Yes, we can change the frequency and voltage to your local standard. (we can make 220V/380V/410V/415V, and 50HZ/60HZ)
There’s no extra charge.
Q: Can you OEM (usd my logo and color)?
A: Yes, we can OEM with your logo and color design. This has quantity demand, no less than a 20GP container order.
Q: Can the price be CIF?
A: Yes, we can quotas best CIF price with very good freight cost.
Q: Does machine have warranty?
A: Yes, all machine with One year warranty for the main spare part. (easily wear parts are not included).
Q: Dose machine have certificate?
A: Yes, machine with CE Certificate.
