Commercial UV Sterilizer for swimming pool water treatment

Product Overview

Description

water treatment





Principle of UV Disinfection

Ultraviolet Sterilizer uses the energy of the germicidal ultraviolet light to destroy the DNA of varies kinds of viruses,bacteria and other pathogenic.Ultraviolet light penetrates the cell membrane and nucleus of micro-organisms to destroy the molecular of nucleic acid,which can deactive the viruses. The ultraviolet disinfection's waveband is between 200 to 300nm,it becomes the strongest of 253.7nm.



Advantage of UV Dinsinfection:

1) High effcient disinfection

2) Without secondary pollution

3) Great volume of disinfection continuously

4)Lower maintenance costs

5) Safe and reliable operation

6) Wide application





Product Description:

1.The single open end design for L series can be installed vertically.Water flow into the chamber from the open end,and out from the other side outlet.
2.The ballast is displayed with lamp operation status indicating light and fault alarm .Its power supply should be 230VAC,50HZ. /CE,Rohs,UL approval as option.
3.The germicidal UV lamp with 8000-12000 hours life span is imported from USA or Europe.
4. As standard material,stainless steel SS304 is used for chamber design and 316L as for option.The chamber pressure resistance meets the standard specification of 0.7Mpa.
5.Mechanical polishing or,as the option,the anti-rust electropolishing is applied to chamber surface processing.
6.UV monitor for UVC dosage is an option.





Technical Parameters:



Model	Flow Rate @30mj/cm2	Lamp Watts	Quartz tube size	Inlet/Outlet port	Reactor size(mm)
					L	W	H
WGUV-L02	2GPM(0.45 m3/Hr)	14W	330mm	G 1/2"M	370	51	67
WGUV-L06	6GPM(1.35 m3/Hr)	25W	485mm	G1/2 "M	523	63	71
WGUV-L12	12GPM(2.7 m3/Hr)	39W	950mm	G 1"M	992	63	93
WGUV-L24	24GPM(5.5 m3/Hr)	80W	950mm	G 1  1/4 "M	1002	76	106





Application of UV Disinfection

Drinking Water/Tap Water Factory/Food Process Water/Chemical/Bear Industry /Pharmaceutical

Hotels/Hospital /Aquaculture & Hydroponic/Water entertainment facilities/Swimming pools



Spare Parts:

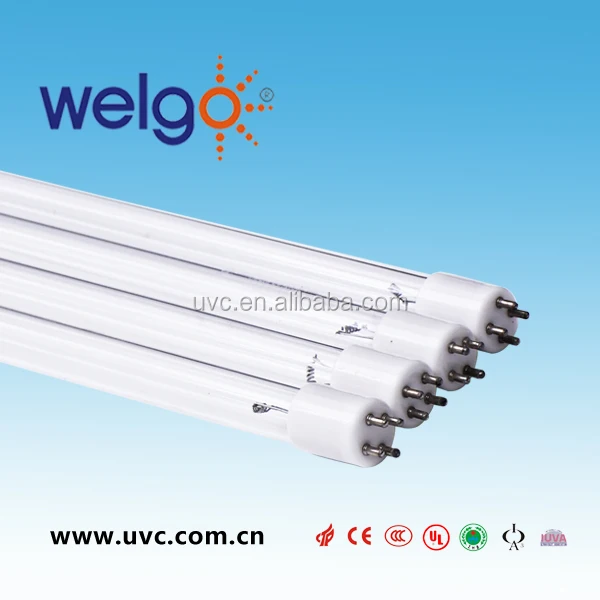

UV Lamps

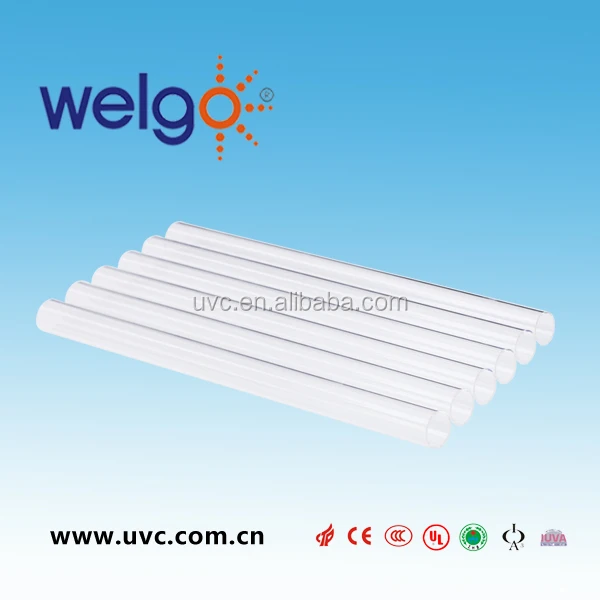

Quartz sleeves

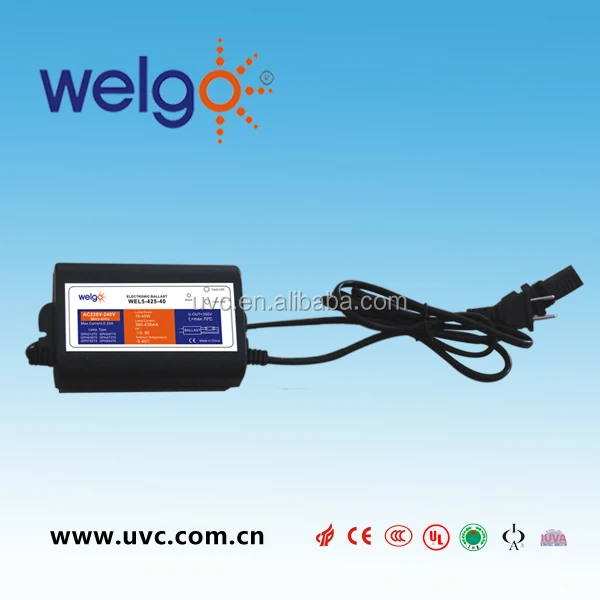

Ballasts

Brackets    Nuts

O'rings
