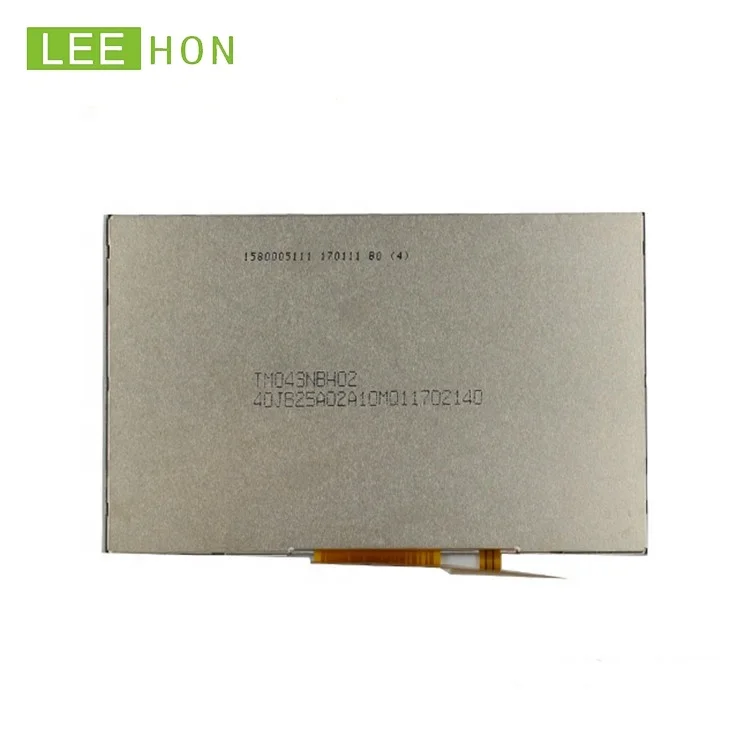

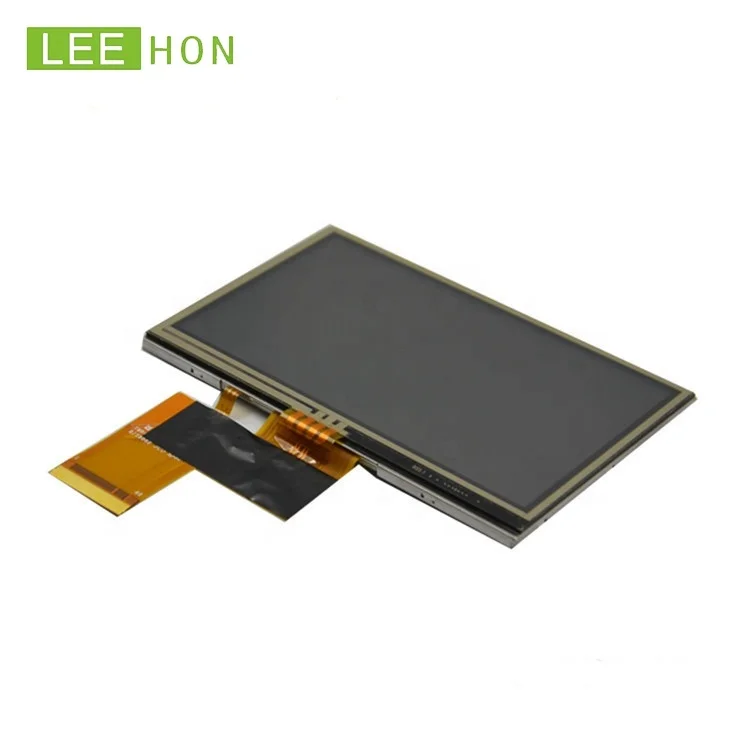

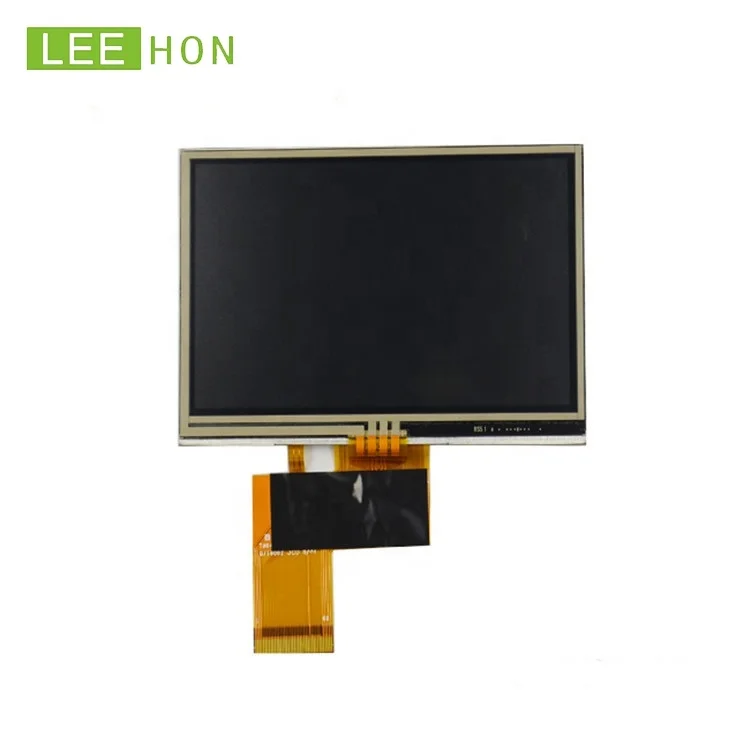

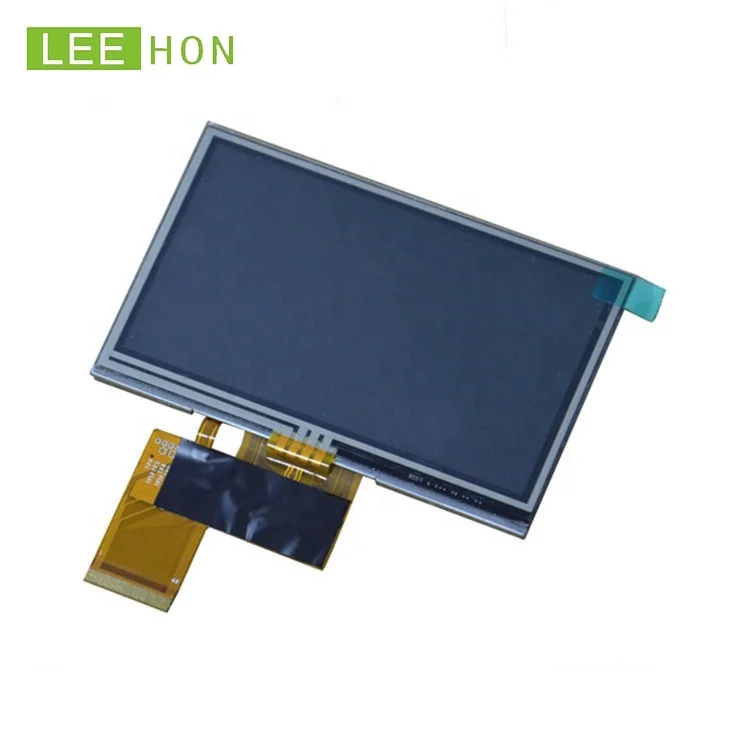

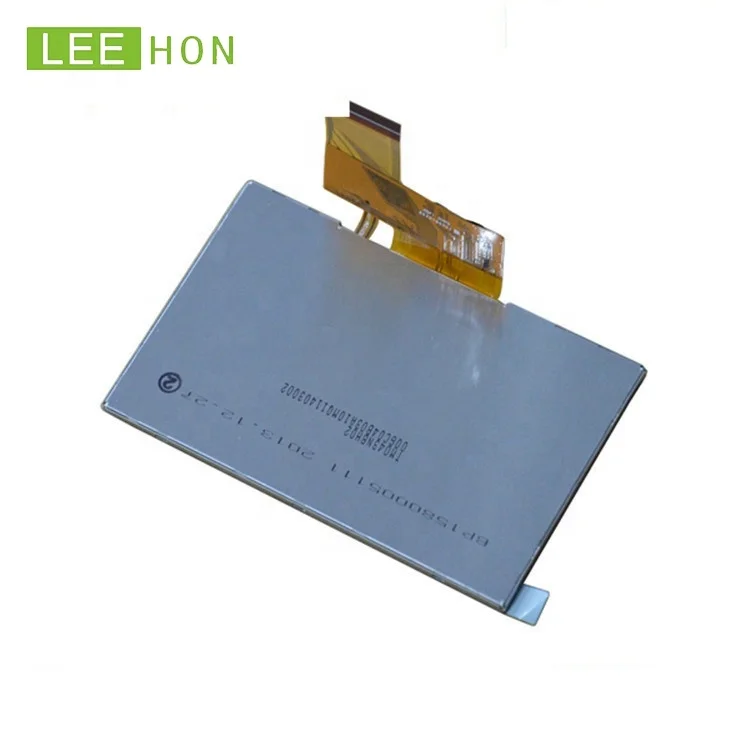

Tianma Resistive Touch Integrated 4.3 inch TFT LCD Module/TFT LCD Display Module

Manufacturer

TIANMA

Model Name

TM043NBH02

Screen Size

4.3 inch

Screen Type

LCM, a-Si TFT-LCD

Pixel Number

480(RGB)x272  (WQVGA)

Arrangement

RGB Vertical Stripe

Active Area(mm)

95.04x53.856 (HXV)

Outline(mm)

105.50x67.20x4.10  (HxVxD)

Bezel Opening

98.3(W)×57.1(H) mm

Treatment

Anti-glare type (3H)

Luminance

280 cd/m² (Typ.)

Contrast Ratio

450: 1 (Typ.) (TM)

Viewing Angle

70/70/70/50(CR≥10) Left / Right / Up / Down)

Response

20 (Typ.)(Tr+ Td) ms

Good View at

6 o’clock

Work Mode

TN, Normally White

Color Depth

16.7M   50% (CIE1931)

Backlight

5S2P WLED , 20K hours , Without Driver

Net Weight

58.4g

Used for

Commercial application,

Portable Navigation,Pocket TV,MP4 PMP

operating frequency

60Hz

Touchscreen

With 4-wire Resistive Touch Panel

Signal Type

Parallel RGB (1 ch, 8-bit) , 40 pins , FPC

Aspect Ratio(W:H)

16:9

Voltage Supply

3.3V (Typ.)

Max. Ratings

Storage Temp.: -30 ~ 70 °C

Operating Temp.: -20 ~ 60 °C

Package

Original package;

Capacity: 112 pcs/carton

G.W: 9.77±0.49 Kgs

Meas: 530×350×250 mm
