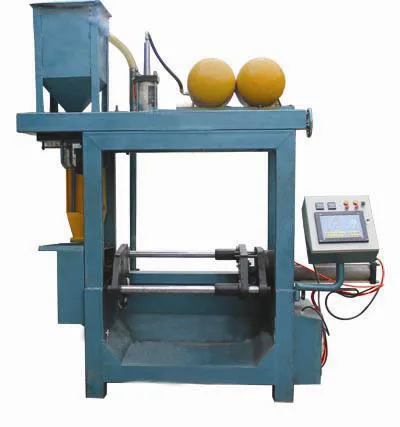

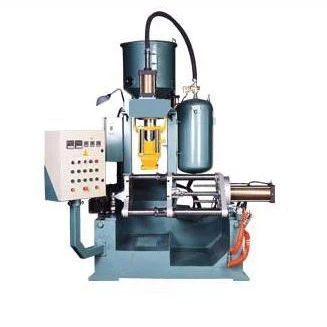

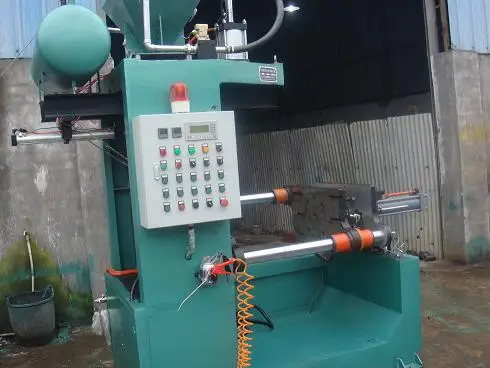

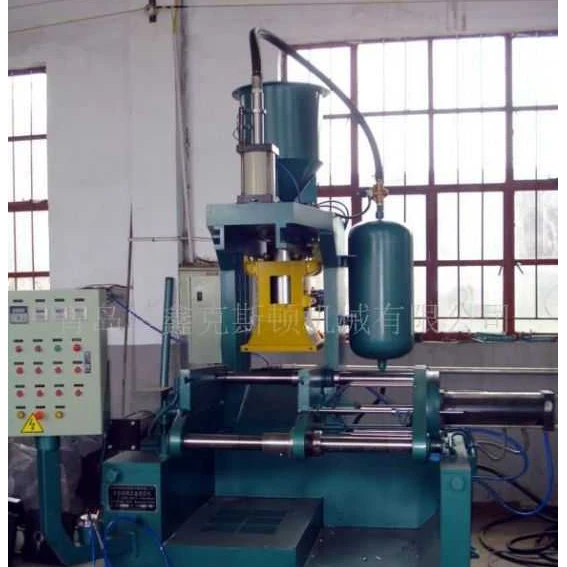

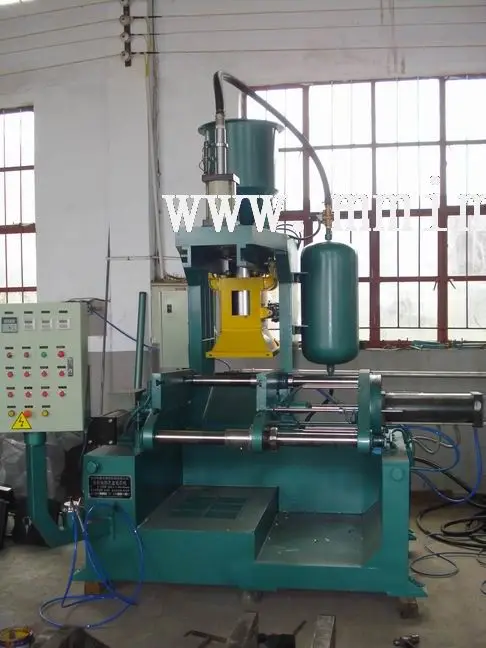

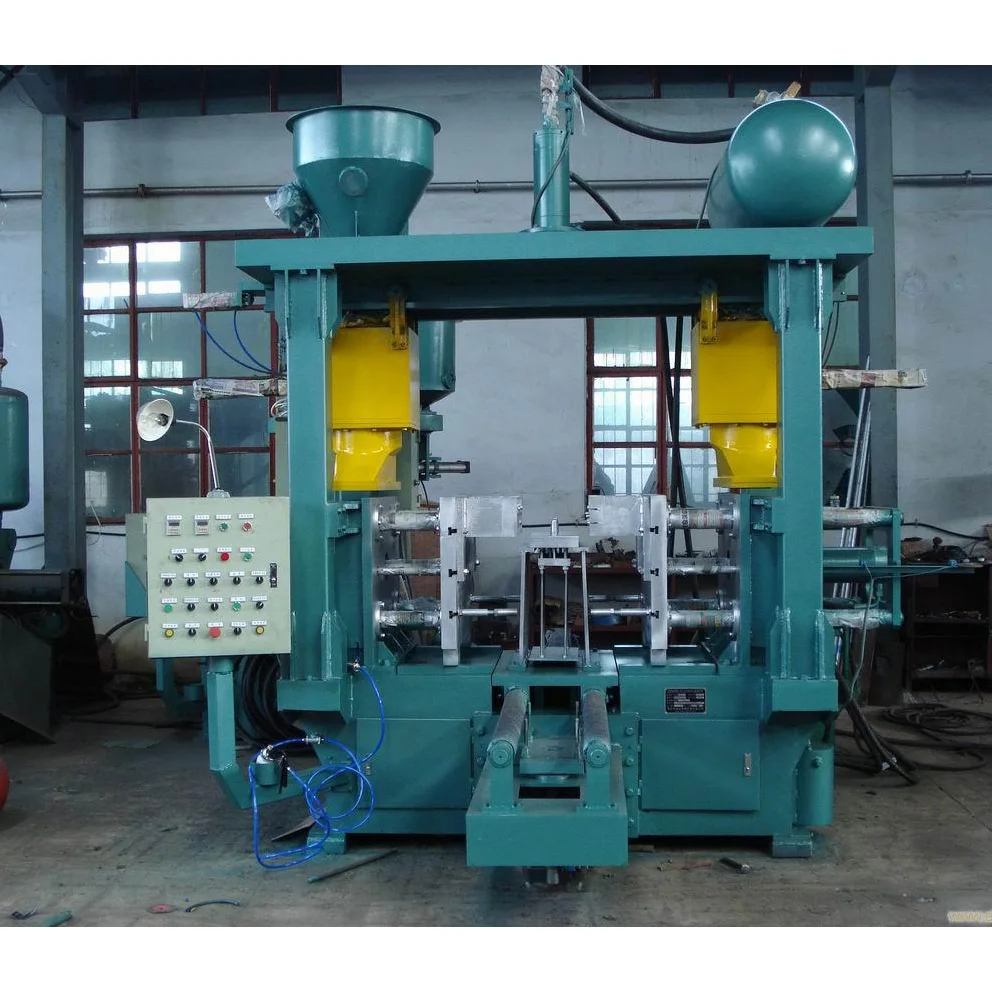

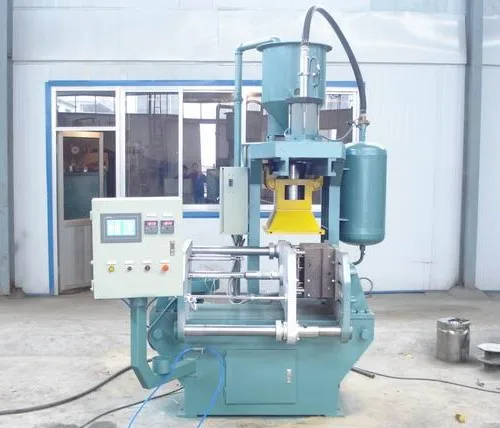

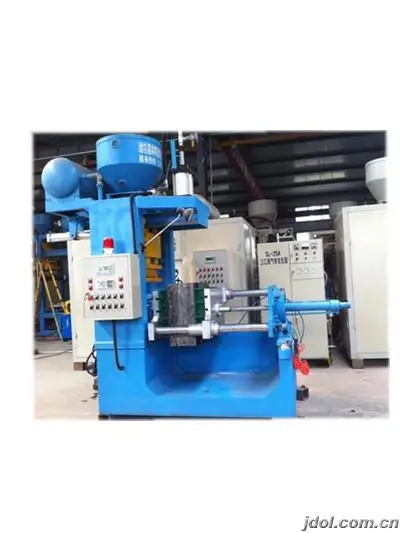

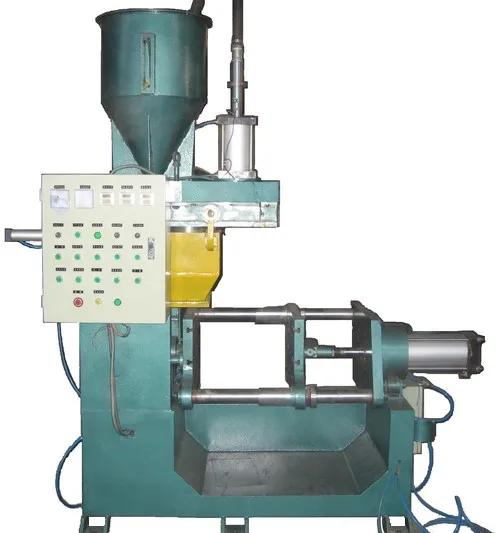

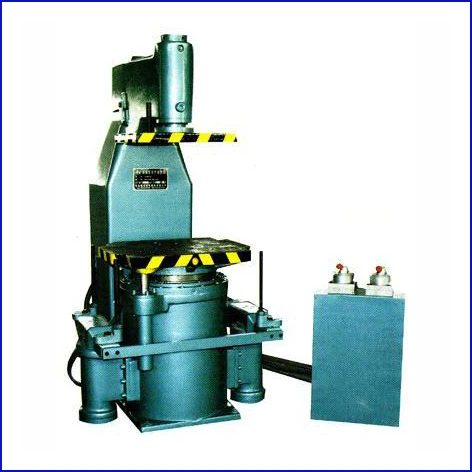

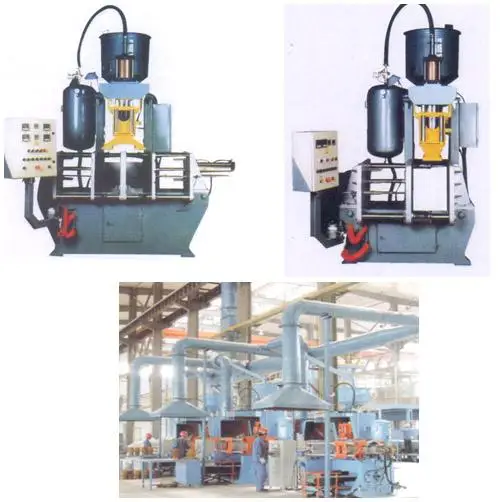

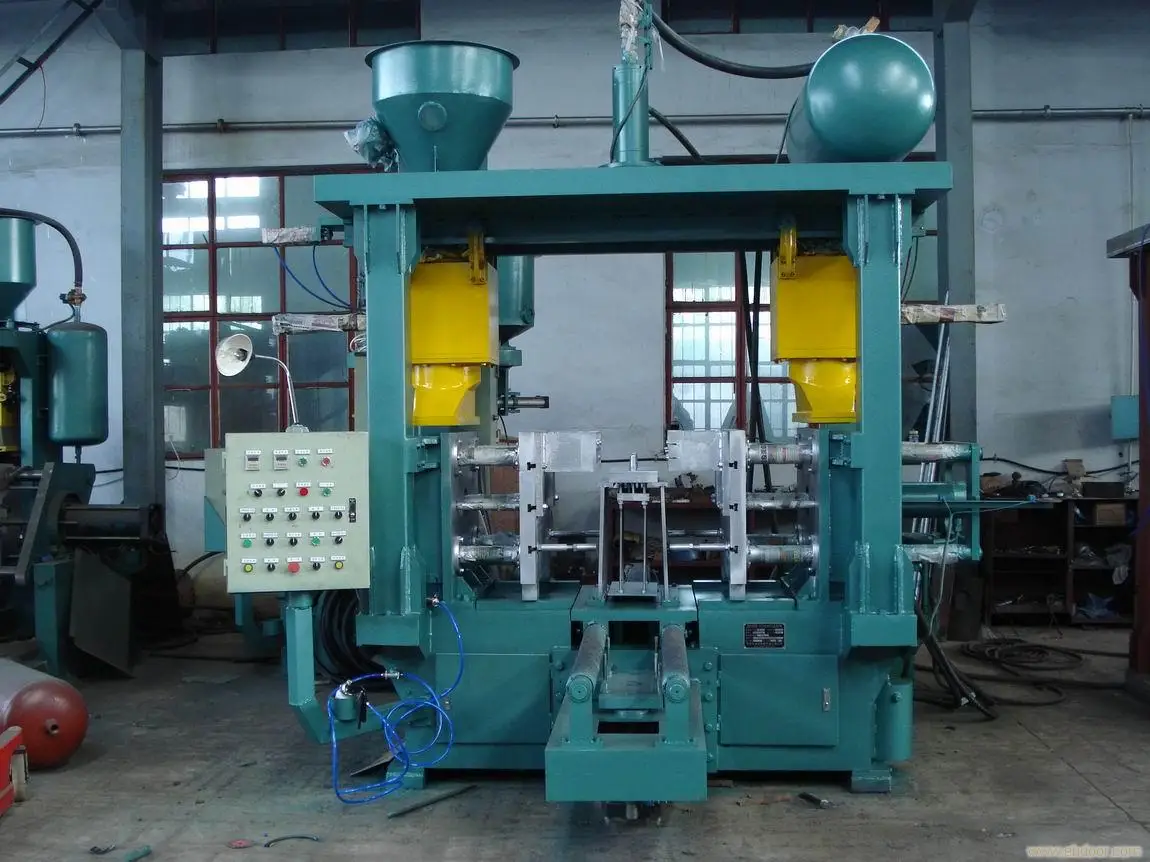

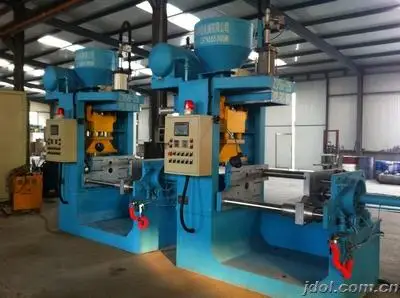

Shell core casting machine
- Category: Metal Casting Machinery >>>
- Supplier: Qingdao Proway Industrial Co. Ltd.
Share on (60005345791):
Product Overview
Description
The technical parameters of the Z95 series full automatic shell core machine:
Meet the needs of shell mould, shell core
PLC programmable control
Adjustable about the technical parameters
Adopt the permanent baffle board
Ltem | Z954 | Z955 | Z956 | Z957 | Z958 |
core box size(mm) | 450*400*300 | 500*400*300 | 600*400*400 | 700*500*400 | 850*500 |
shooting the maximum weight(Kg) | 15 | 15 | 25 | 30 | 40 |
open and close template size(mm) | Max500 Min190 | Max560 Min190 | Max700 Min330 | Max700 Min330 | Max840 Min420 |
core box maximum clamping force(kg) | 1300 | 1300 | 1300 | 1300 | 3500 |
Productivity | 60S | 60s | 80s | 80s | 80s |
use of pressure(mpa) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
shooting pressure(mpa) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
Power(AC) | 380v | 380v | 380v | 380v | 380v |
heating mode | electric heating | electric heating | electric heating | electric heating | electric heating |
heating power | 20 | 25 | 30 | 40 | 50 |
