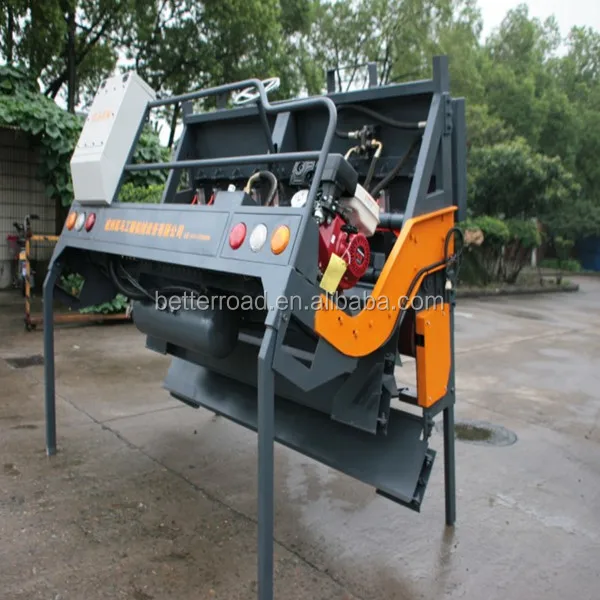

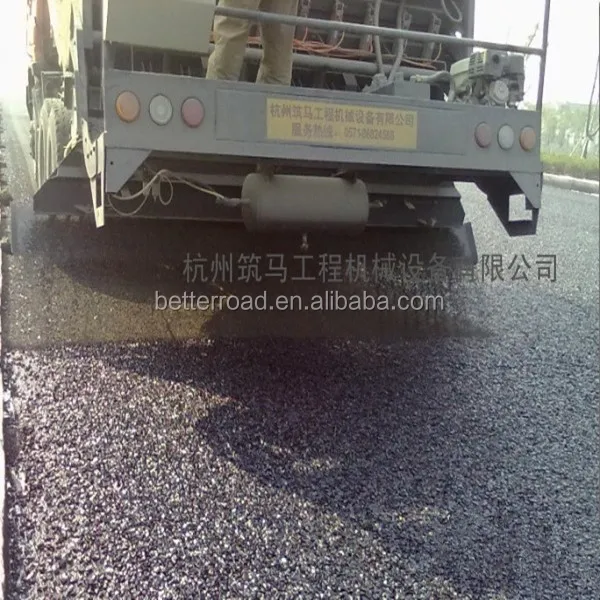

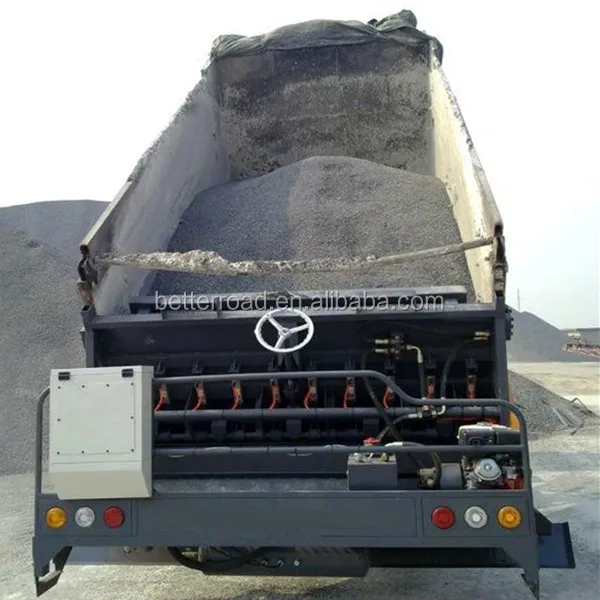

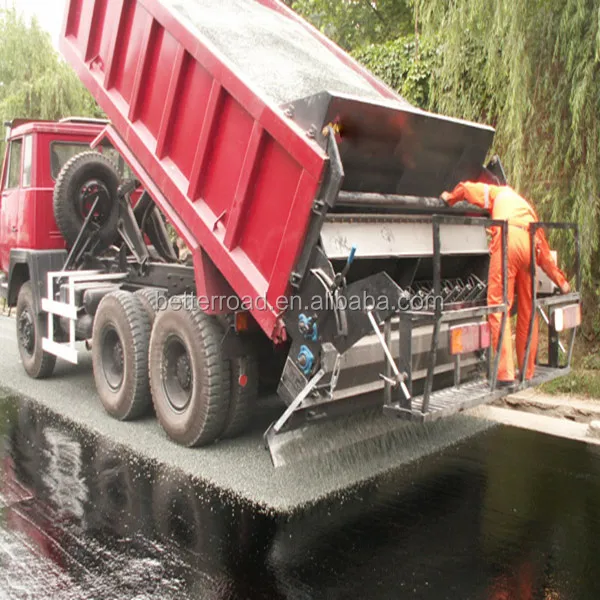

Stone Chips Spreader is mainly used for asphalt pavement as underlying seal coat, stone chip seal layer, surface coat of road construction, it is mounted on the rear of drives backward during working.
Innovative:Wireless remote control device, control the loading door open and close.
Spray width maximum is 3100mm, aggregate size:3-25mm.
Chipping spreading uniformity.
Parameters of Stone Chips Spreader
1
Dimension
2500×2000×1900(mm)
2
Chipping Size
5~20(mm)
3
Spreading Width
MAX 3100(mm)
4
Total Weight
1150(Kg)
5
Shipping Dimension
2650×2150×2050(For reference)
Main Fitting
1
Hydraulic drive system
2
OMR-80 Gerotor Motor
3
CBN-E3 Gear Pump
4
VFc001-2025Lr/c Preference Diverter Valve
5
“Open” Pneumatic Cylinder
6
GX270 Gasoline Engine
7
One position switch
Optional
Working Lamp
Interphone
Monitor
Company Information
Hangzhou icom Construction Machinery Co.,Ltd is located in hangzhou, it was the branch comany of CHINA NATIONA COMMERCIAL AUTOMOBILE CO.,LTD(CACAC), The CNCAC passed the ISO9001:2000 international quality system certification and products 3C authentication, the products cover semi-trailer, dump truck, car, transportation, tank car transport, waste garbage collection vehicles and a waste transfer station equipment sanitation equipment), a. (flow stage car, cinema, books, such special cultural car, mobile power, electrical power, such training, medical treatment of municipal tractors a. a. etc, a total of 150 various models, and gradually realize the product standardization and serialization and industrialization. ICOM is committed to offering high quality, reliable products and service on time .Your satisfaction is our commitment. Let us be your trusted partner.
Workship
Packaging & Shipping
Shipping Of Stone Chips Spreader
Our Services
Stone Chips Spreader has get relevant certification, the warranty time is 18 months with lifetime maintenance!
