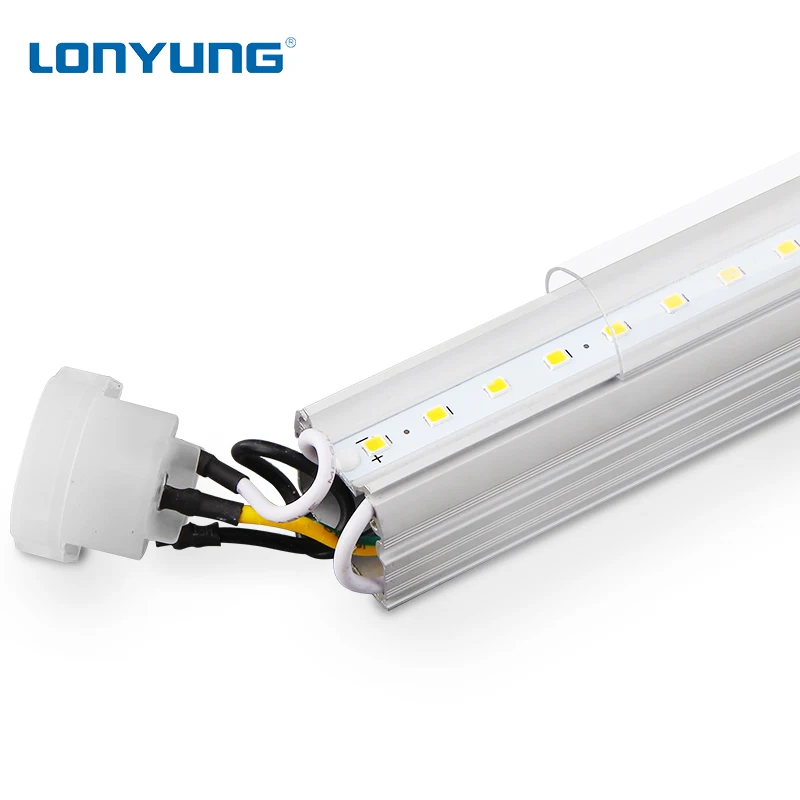

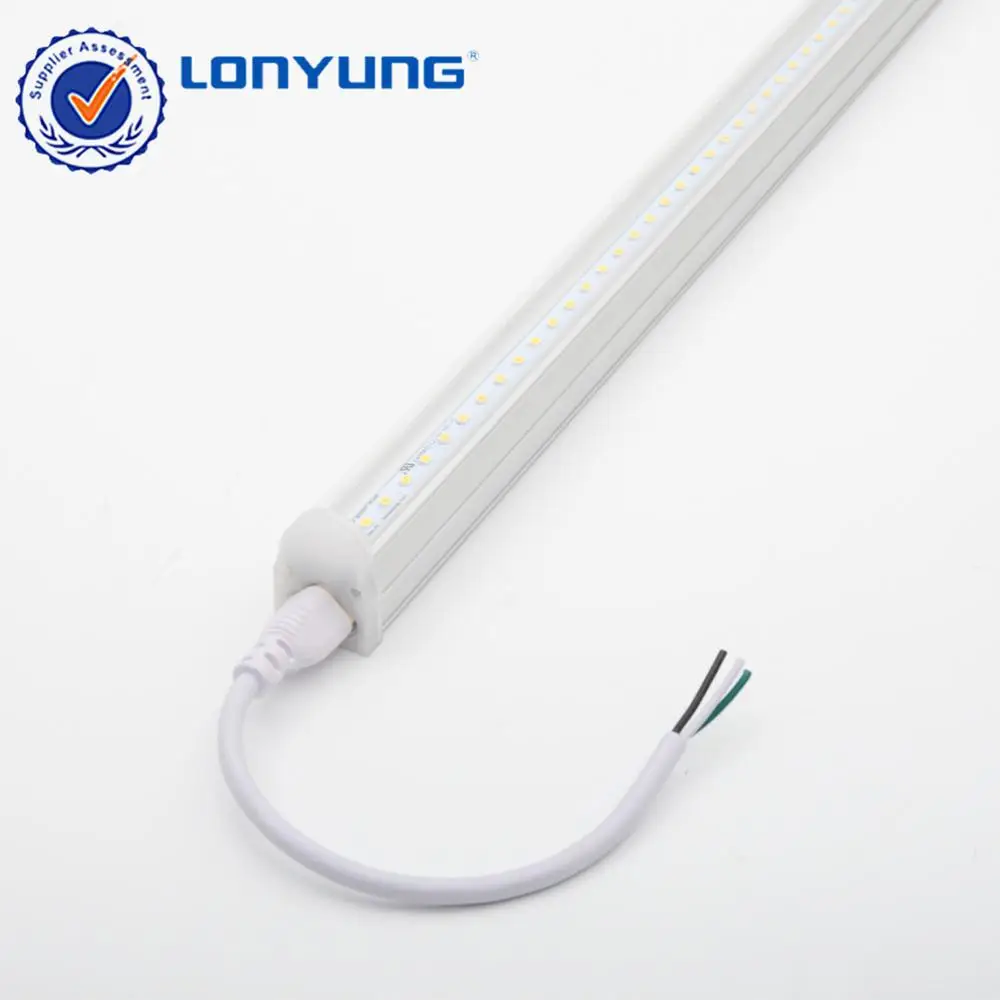

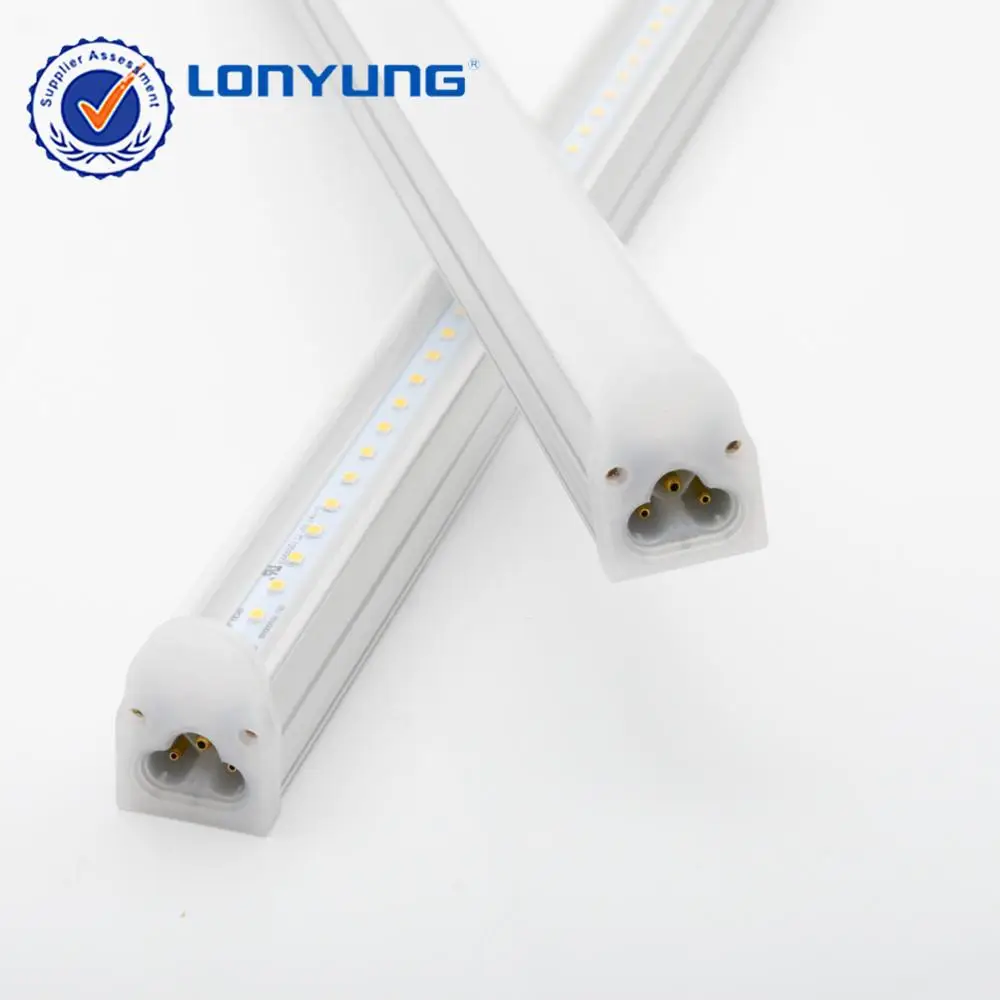

T5 led light 6500K T5 T8 led tube connectable batten 1.2m 15W SMD 2835 T5 integrated light
- Category: LED Tube Lights >>>
- Supplier: Guangdong Lonyung Led Lighting Co. Ltd.
Share on (60011744705):
Product Overview
Description
T5 led light 6500K T5 T8 led tube connectable batten 1.2m 15W SMD 2835 T5 integrated light
Product Description
Features

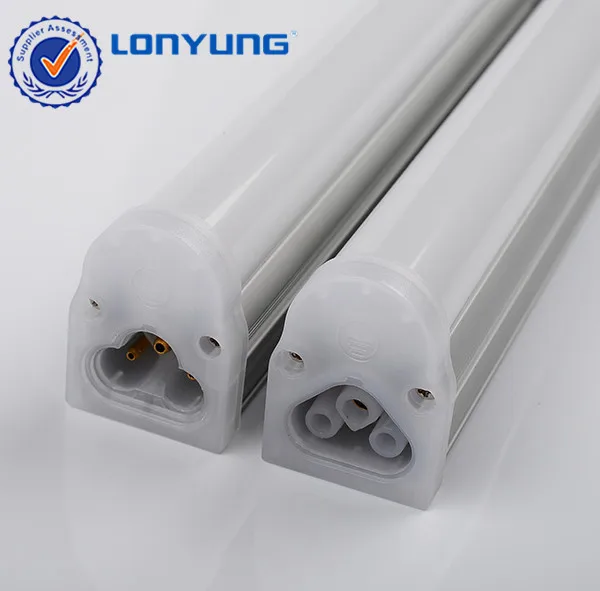

1.Patent Male-female linkable design
2.Seamless & No Dark in-line connection
3.UL ETL TUV SAA CE approved, DLC Listed
4.0.8mm aluminum housing for excellent heat dissipation
5.Heat protection system with excellent internal driver
6.Easy replacement and installation with brackets
Technical Specifications
1.Input Voltage: AC100-277V / AC100-240V 50/60Hz
2.Total harmonic distortion: THD<19%
3.Power Factor: PF>0.95
4.Efficiency: 120-140LM/W
5.Color Index: Ra>82
6.IP Rating: IP40
7.Life Span: 50,000 hours
8.Lumen maintenance @6000h: >80%
9.Switching Time: 100,000
10.Operation Temperature: -20°C ~ +50°C
| Item No. | Length | Power | Power Factor | Luminous flux(LM) | CRI |
| LY-T5DL600-7W | 2ft/600mm | 7W | PF>0.95 | 840-980lm | >82 |
| LY-T5DL900-12W | 3ft/900mm | 12W | PF>0.95 | 1440-1680lm | >82 |
| LY-T5DL1200-15W | 4ft/1200mm | 15w | PF>0.95 | 1800-2100lm | >82 |
| LY-T5DL1500-20W | 5ft/1500mm | 20W | PF>0.95 | 2400-2800lm | >82 |
| LY-T5DL1800-22W | 6ft/1800mm | 22W | PF>0.95 | 2400-2800lm | >82 |
| LY-T5DL2400-30W | 8ft/2400mm | 30W | PF>0.95 | 3600-4200lm | >82 |

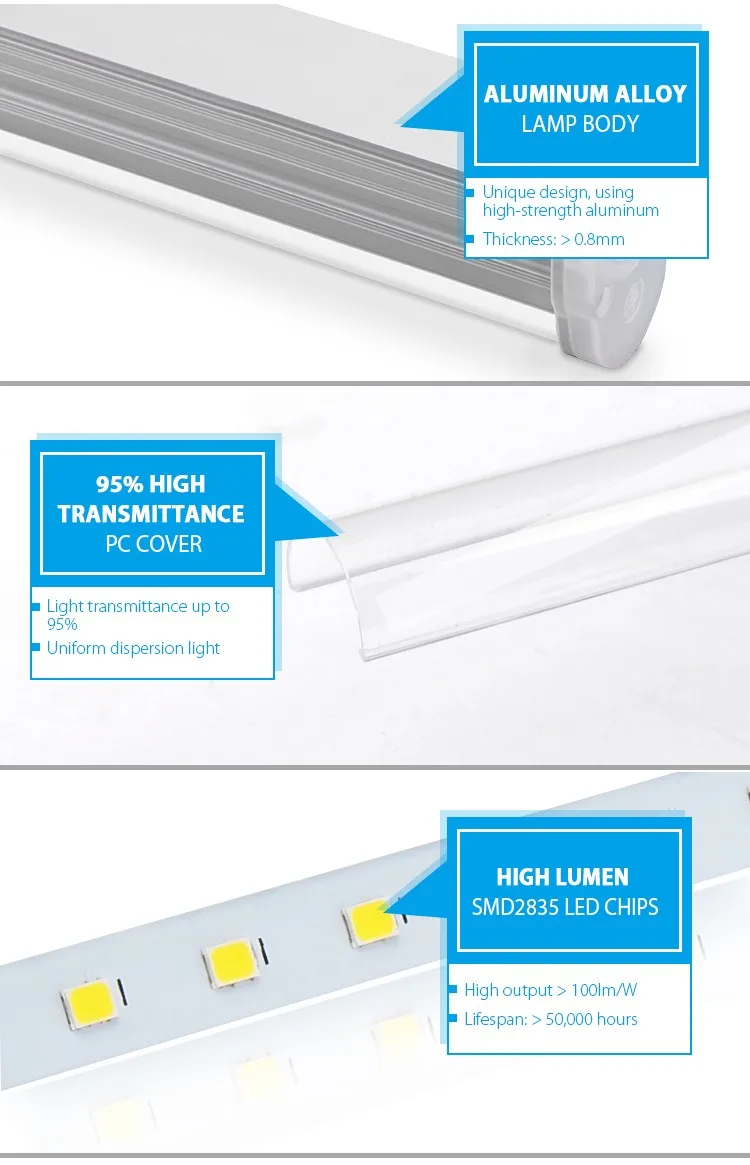

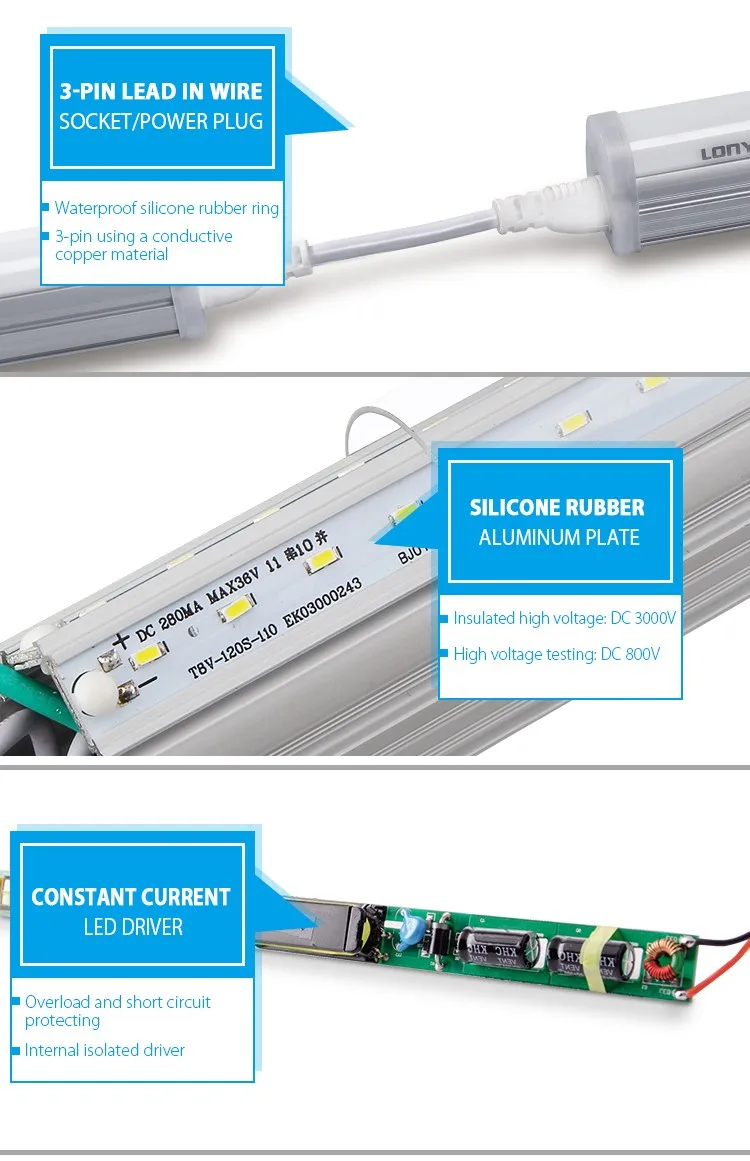

PRODUCT INNER STRUCTURE
Hight quality Integrated t5 led light led fluorescent tube and integrated t5 led light ul
Hight quality Integrated t5 led light led fluorescent tube and integrated t5 led light ul
PRODUCT DETAILS

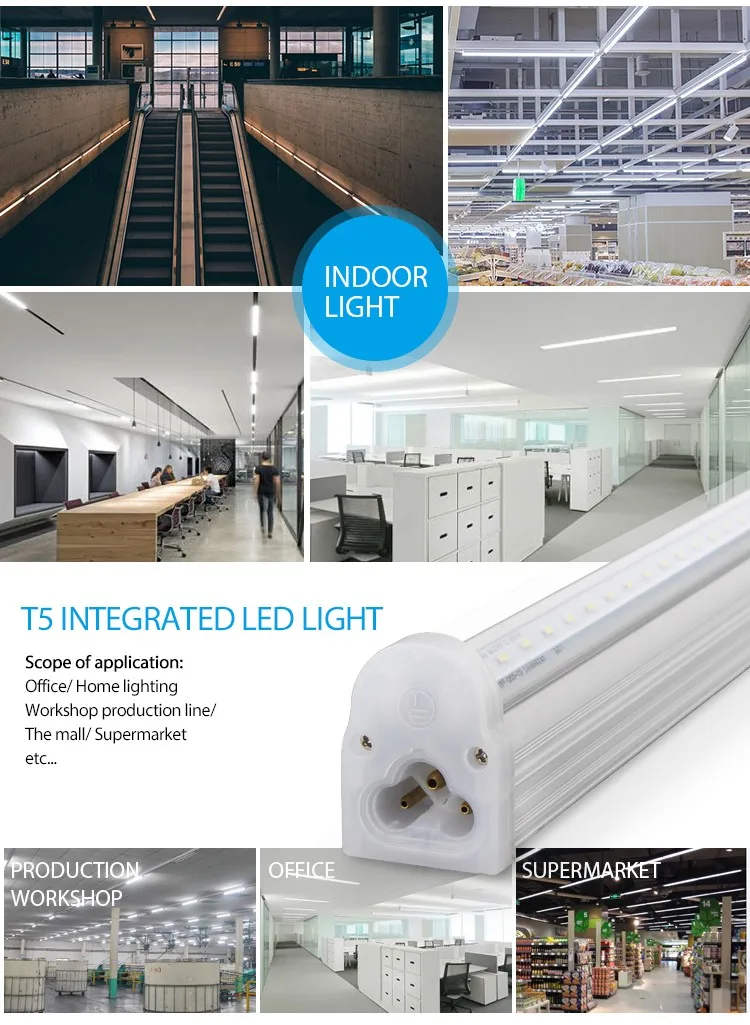

APPLICATION SCENARIOS
PRODUCT ACCESSORIES
Hight quality Integrated t5 led light led fluorescent tube and integrated t5 led light ul

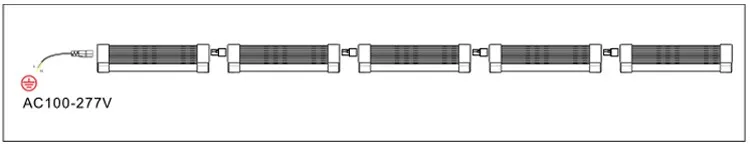

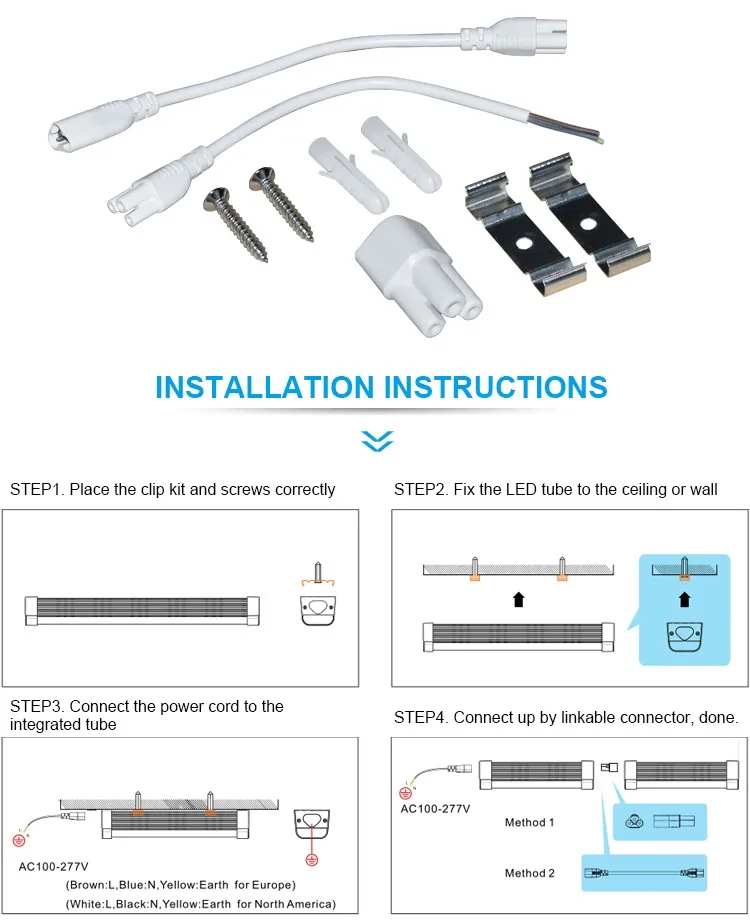

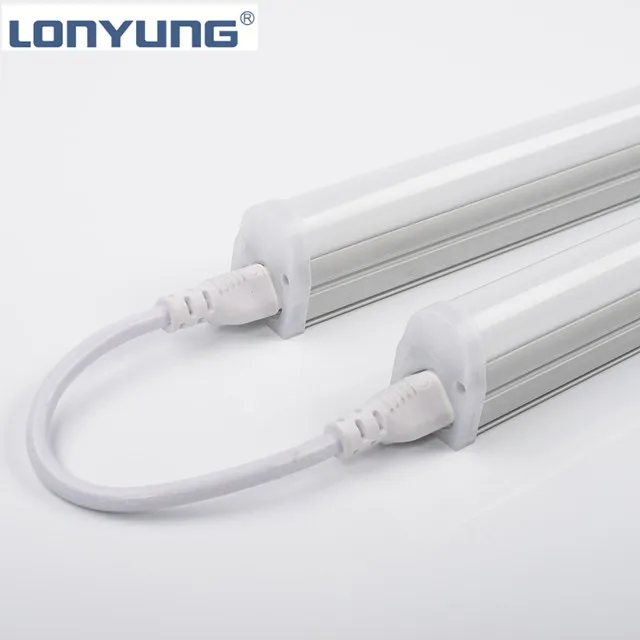

CONNECTION:
ATTENTION:
1. Total power inseries<=200w
2. After the connection, the sealing plug installed in each of the last lamp
3. If the product is a unusual working(flashing, of), please check the connections after taking off power.
Safety and Reliability
1. DLC Energy star ETL UL SAA TUV CE RoHS Approval.
2. Directly install with 100V, 120V,100-240V, 220V 230V 240V,100- 277V.
3. 100% High-Pot test of AC3500v for all tubes.
4. As long as 72h aging test with automatic switching before each shipment.
5. 100% vibratility test will make sure the fastness of the assembling.
6. 100% resist voltage test of AC85-305V.
7. More than 95% lumen maintenance based on the 6000h LM-80-08 test.
8. 40°C to 50°C(-40°F to 122°F) extreme environment compliant.

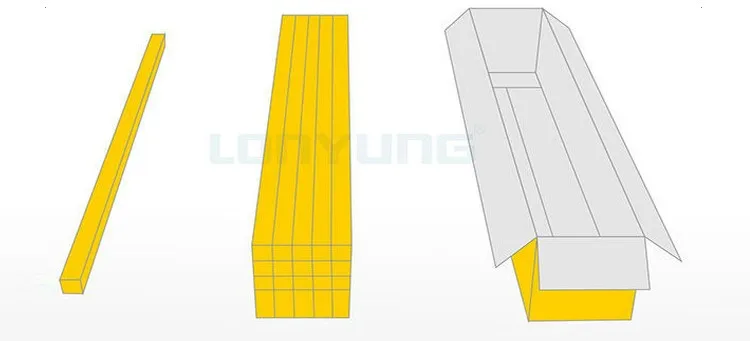

Packaging & Shipping
Packing & Shipping
Hight quality Integrated t5 led light led fluorescent tube and integrated t5 led light ul
Our Services
Before Sale Service
1. Your inquiry will be promptly replied within 24 hours.
2. Well-trained and experienced staffs will answer your questions in fluent English.
3. OEM&ODM welcomed.
4. Free design according to customer's demand.
After Sale Service
1. We promise 50000H 5 years warranty for our LED tube.
2. Any defective products within warranty will get maintenance or replacement unconditionally.
3. Protection of your sales area,ideas of design and all your private information.
Company Information

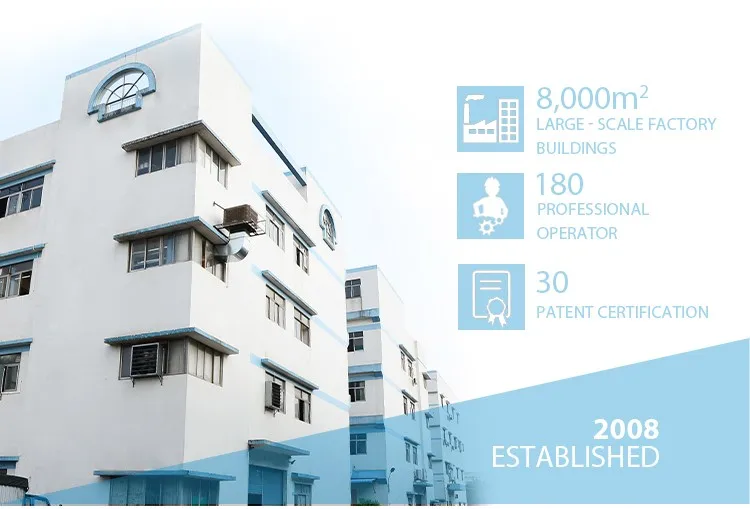

COMPANY PROFILE
LONYUNG LED LIGHTING CO., LTD. is a professional manufacturer of LED lighting products. We established in 2008
and dedicated in design, development, production and sales of LED products. We focus on LED Tube lights, LED
T5/T8 Integrated lights, LED tri-proof lights, etc... Manufacturing excellence and assuring the highest product standard
is paramount, and our efforts in upgrading our facility and our processes has been recognized with the awarding of the
ISO9001:2008 accreditation and Supplier Assessment Certificate by BV. Our modern state of manufacturing facility
covers 8,000 square meters plant. With more than 180 skilled workers, automatic SMT machine, IES testing system,
automatic Packaging unit, automatic aging lines, Laboratory, our monthly production capacity achieves above 300,000
pieces of LED products.
THE COMPANY CAN PROVIDE ONE-STOP SERVICES FOR
CUSTOMS CLEARANCE AND AGENT SERVICES.
FAQ
♥ Our service
1. OEM & ODM are offered.
2. 30 more R&D engineer. All your questions will be replied in 24 hours.
2. 30 more R&D engineer. All your questions will be replied in 24 hours.
3. Distributorship is offered for your unique design and some our currect models.
4. Protection of your sales area, Ideas of design and all your private information.
5. If the order more than 500pcs, we will return back the payment of samples.
2. 100% vibratility test will make sure the fastness of the assembling.
3. 100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v and 277v.
4. Protection of your sales area, Ideas of design and all your private information.
5. If the order more than 500pcs, we will return back the payment of samples.
♥ Reliability
1. As long as 72h aging test with automatic switching before each shipment.2. 100% vibratility test will make sure the fastness of the assembling.
3. 100% resist voltage test of AC85-305v makes sure those tubes compatible for both 120v and 277v.
4. More than 95% lumen maintenance based on the 6000h LM-80-08 test
5. -40°C to 50°C(-40°F to 122°F) extreme environment compliant.
♥ Shipping options
- By express: Such as DHL,UPS, TNT, FEDEX etc. The dispatch time is about 3-7 working days.
- We will search for an economical shipping company to transport the goods safely.
- Air Freight: When you order more than 100kg which will be more economical than express.
- Agent designated by client: Please tell us the contact details of your shipping agent/forwarder
♥ Trade Terms
- Payment: T/T , 30% deposits before production, 70% balance to be paid before delivery.
- Production lead time for 100~500pcs: 7days, 500~1000pcs:10days
- Sample can be delivered in 3 days
- Shipping port: ZHONGSHAN/SHENZHEN
- Discounts are offered based on order quantities
♥ Any questions & enquiries, please do not hesitate to contact with us directly!
