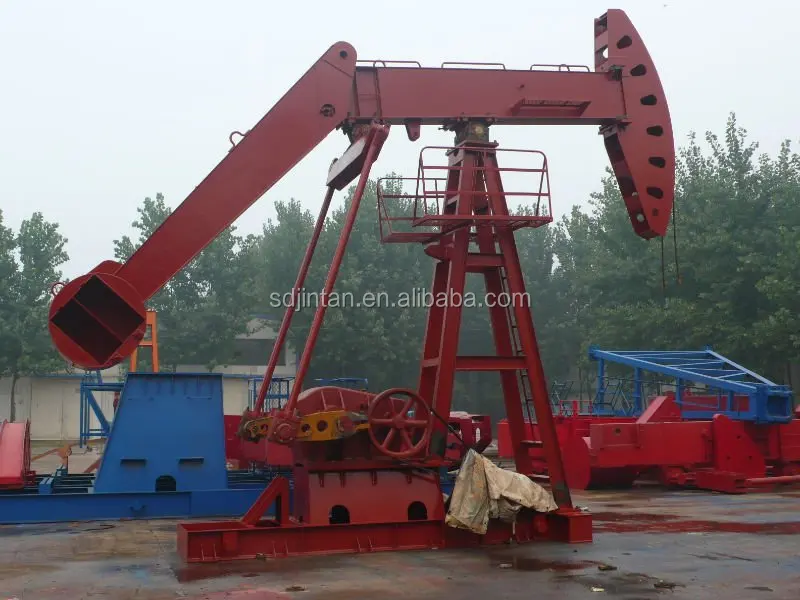

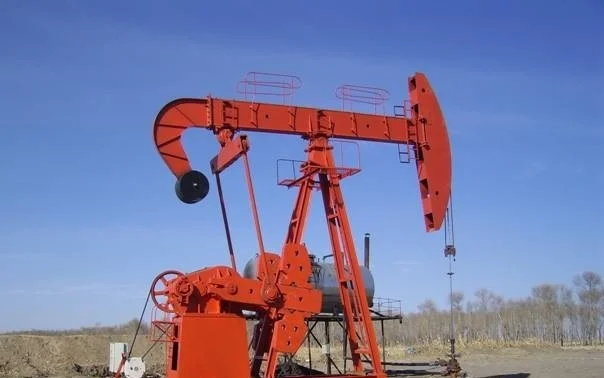

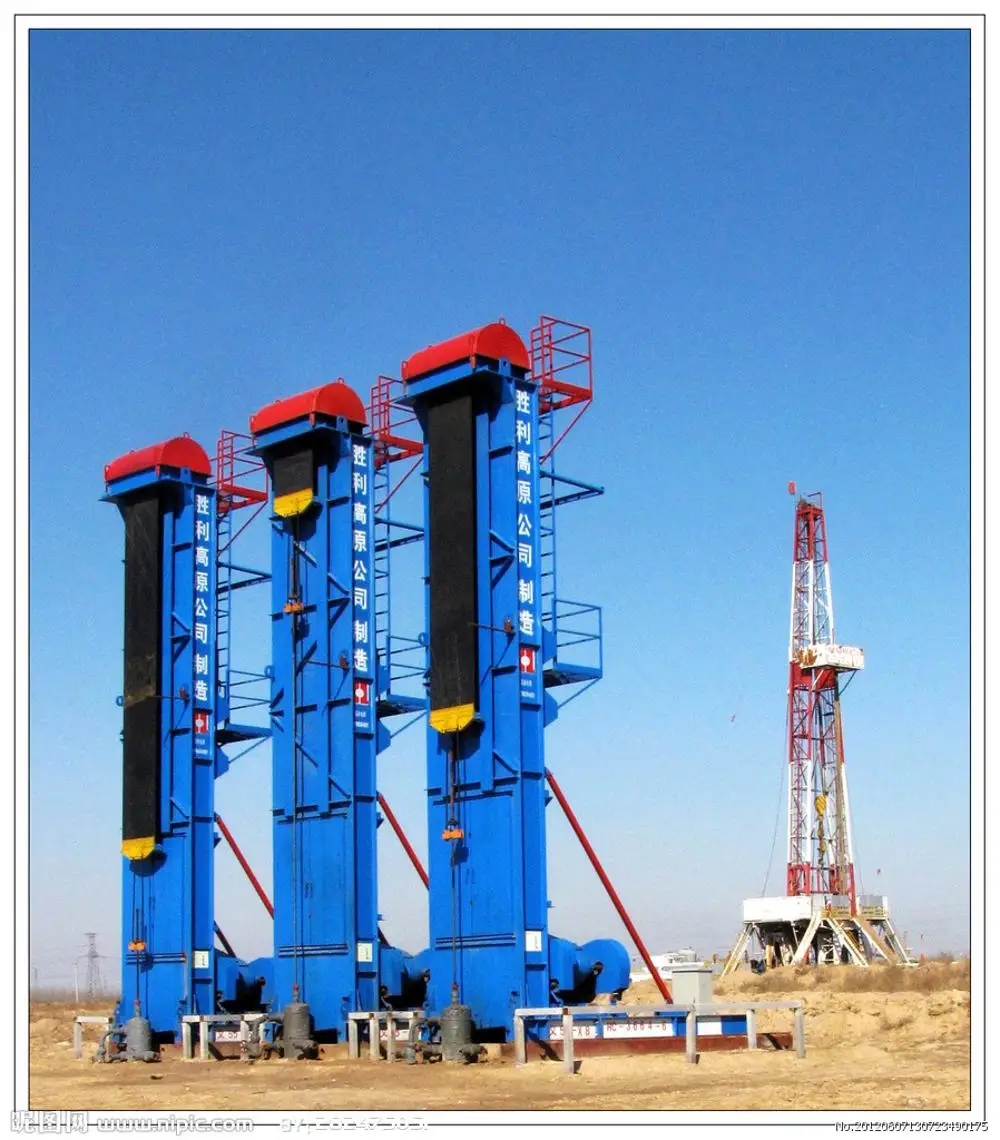

C series oil horse the overground drive for a reciprocating piston pump in an oil well

Product Overview

Description

1.Production Description:



 (double horse head) beam pumping unit using adjustable arc-shaped beam rear arm, between the beam and the beam connecting the special structure of the flexible member, the production strictly according to API Spec 11E or Q / SL 1361 - 2002 standards, with a stroke length, dynamic load is small, small torque fluctuations, high efficiency, low energy consumption, smooth, easy to start and so on. The aircraft is equipped with multi-function electrical cabinets, with short circuit and overload voltage protection, reactive power compensation, restoration from the start, the motor speed and other functions, low-powered devices are equipped with investment, easy maintenance and management. Saving 20-60% than conventional machines, installed power reduced by about 50%, and can save power system investment.



Mainly used for mining low-viscosity crude oil and high water content can also be mined for viscous crude oil.

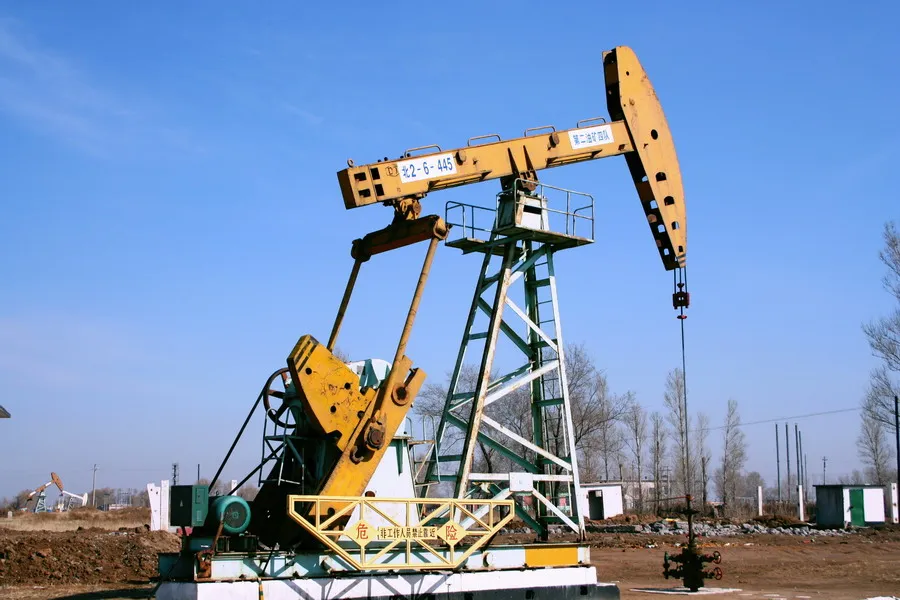

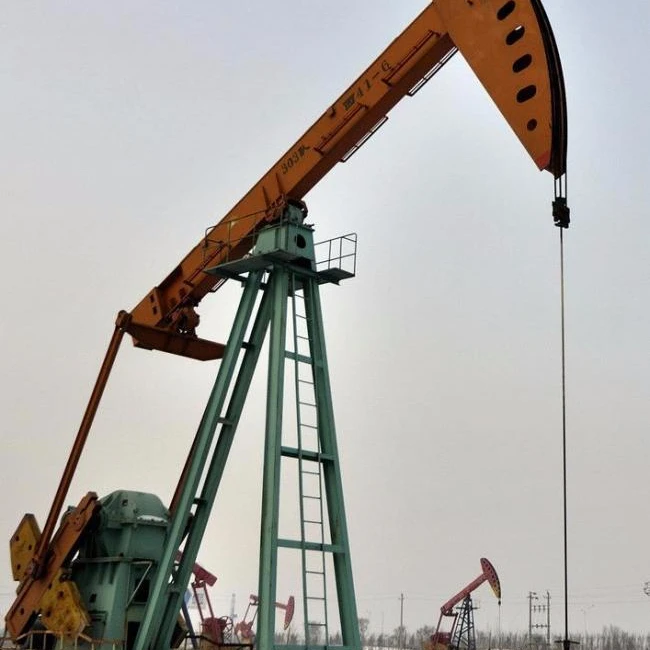

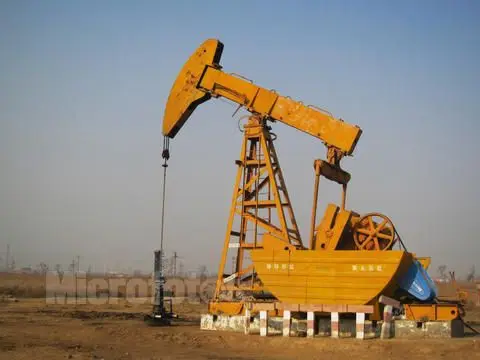

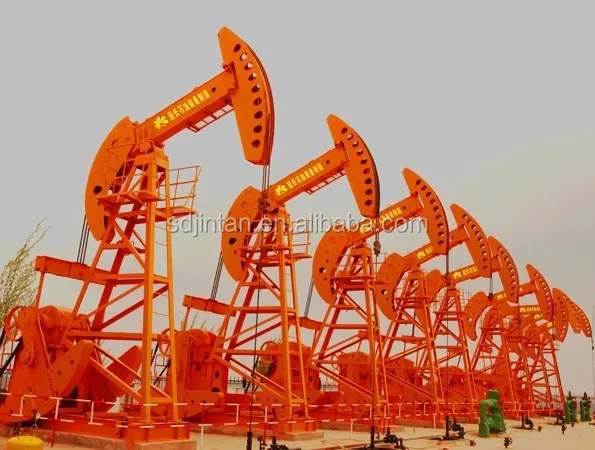

It is used to mechanically lift liquid out of the well if there is not enough bottom hole pressure for the liquid to flow all the way to the surface. The arrangement is commonly used for onshore wells producing little oil. Pumpjacks are common in oil-rich areas.



Depending on the size of the pump, it generally produces 5 to 40 litres of liquid at each stroke. Often this is an emulsion of crude oil and water. Pump size is also determined by the depth and weight of the oil to remove, with deeper extraction requiring more power to move the increased weight of the discharge column (discharge head).



A pumpjack converts the rotary mechanism of the motor to a vertical reciprocating motion to drive the pump shaft, and is exhibited in the characteristic nodding motion. The engineering term for this type of mechanism is a walking beam. It was often employed in stationary and marine steam engine designs in the 18th and 19th centuries.





The details of C160D-173-74



General dimension(in)

A

B

C

D

E

F

G

H

I

J

K

L

M

96

98.5

173

38

194

92.5

318

78

27.5

76

68.8

74

225

General data

Model

C160D-173-74

Polish Rod Capacity(lbs)

17300

Stroke Lengths(in)

74    64   54

Strokes Frequency(min-1)

10     12     14

Balance Mode

Crank balance

Gear  Box

Model

JS-160

Reducer Ratio

31.714

Peak Torque Rating( lbs .in)

160000

Sheave

4C

Motor

Model

Y225S-8

Power(Kw)

18.5

Rotational speed( r/min) )

730

Diameter of Sheave (mm)

325  390  455

Structural unbalance( lbs)

+780

Counter balance effect( lbs)

12000

Outline Dimensions(Length×Width×Height) (in×in×in)

318×80×225

Total weight( lbs)

28000

Note : the total weight excluding motor; the outline dimensions excluding crank guards.



2.Packaging and Shipping :

3.Our Seveice:



1.Your inquiry for Pumping Unit and other attachment will be replied in 24 hours.

2.OEM is accept

3. Best quality and competitive price.

4.After-sale service:18 months for whole machine.



If you need Pumping Unit ,please contact me.
