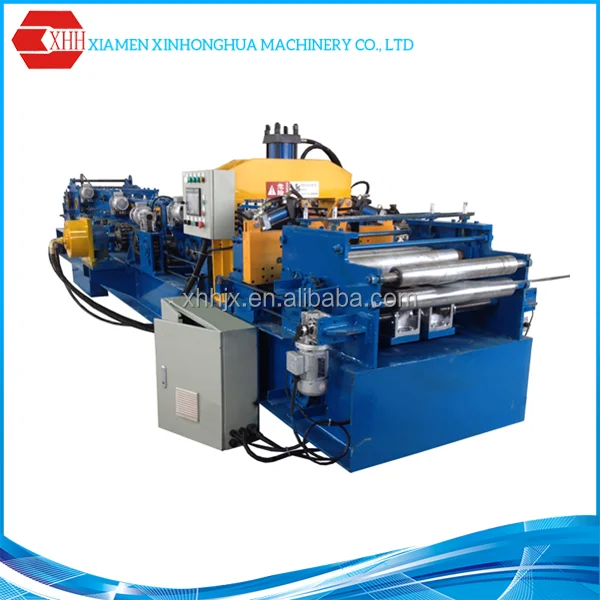

Automatic Adjustable C Z Purline Steel Metal Stud and Track Roll Forming Channel Keel Making Machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Xiamen Xinhonghua Machinery Co. Ltd.
Share on (60012590963):
Product Overview
Description
C60-250 Automatic Adjustable C Purline Forming Machine:
Main Technical Data:
| 1. | Motor Power | 18.5KW |
| 2. | Motor for changing models Power | 0.75KW*2 |
| 3. | Forming Steps | 16 |
| 4. | Working Speed | 14m/min |
| 5. | Material Thickness | 1.0-2.5mm |
| 6. | Height of C-shape Purline | 30mm to 70mm |
| 7. | Width of C-shape purline | 60mm to 250mm |
| 8. | Material | Galvanized coils |
| 9. | Usage | C purlines for steel structure of building projects |
Feature: Can Automatcally Adjust and Make C Purline as Variable Size from 60mm to 250mm by controlling PLC computer controller.
