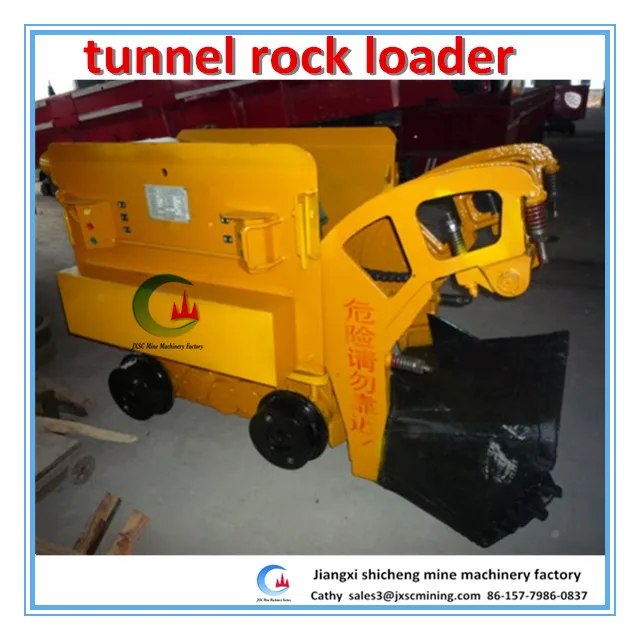

 Gold Mining Rock Loader, Electric Tunnel Mucking Machine



Jiangxi shicheng mine machinery factory



concentrate in mining equipments since 1985









 introduction of  gold mining rock loader, electric tunnel mucking machine



The tunnel electric rock loader is rail wheel type for underground tunneling and mining field light loading equipment. It is compact, adaptable, reliable, easy operation and maintenance, all the general rock, gravel, iron ore,coal ore,  gold ore, granite and other metal or non-metal mines can be load.







Loaded blocks of up to 500mm,  when fragmentation when 100-400mm, the highest loading efficiency, it is suitable for a variety of levels of the mine tunnel (slope <8 °).





The tunnel electric rock loader is bucket style with front loading and back unloading, self-propelled. This type of electric rock loader is suitable for nonferrous, gold mining various types of mine area or diversion tunnel project, with high durability, long life and other advantages. This machine is not explosion-proof products, don't use in the environment with methane and other flammable gases etc.









Safty requirement of  gold mining rock loader, electric tunnel mucking machine





1. Strictly prohibit other people to operate the machine expect the technicist.



2. Strictly prohibit two people work at each side together.



3. Strictly prohibit check the machine before the electric motor put off.



4. Scope of application: section of the tunnel: width: >=1.8m, Height: >=2.0m.







Advantage of  gold mining rock loader, electric tunnel mucking machine



1.The electric rock  loader is compack in structure which stafied narrow roadway .it is  stable in operation,with no need of  maintenance  at the front  2000 hours



2.The Z20 electric rock loader can load wide range of materials .it is of high efficiency.



3.The electric rock have great humidity resistance. it can be used in dry or damp places



4.The electric rock loader adopt alloy wear resistance materials which   can be in utilization for a long time







Structure of  gold mining rock loader, electric tunnel mucking machine









Specification of  gold mining rock loader, electric tunnel mucking machine





	Model	Z20	Z30
parameter
load capacity		40cbm/h	60cbm/h
bucket capacity		0.2cbm	0.3cbm
loading Width		1900mm	2200-2500mm
Discharge height (H)		1250mm	1300mm
Dumping reach (S)		350mm	350mm
Max operating height (H2)		1940mm	2250mm
Travel speed		0.99m/s	0.99m/s
motor model		JI2-8	JI2-8
motor power		2x10.5kw	2x13kw
track gauge		600mm (customized)	600mm (customized)
overall diamension	L (bucket is down)	2120mm	2590mm
	W	1070mm	1200mm
	H (bucket is down)	1305mm	1443mm
machine weight		3400kg	4300kg

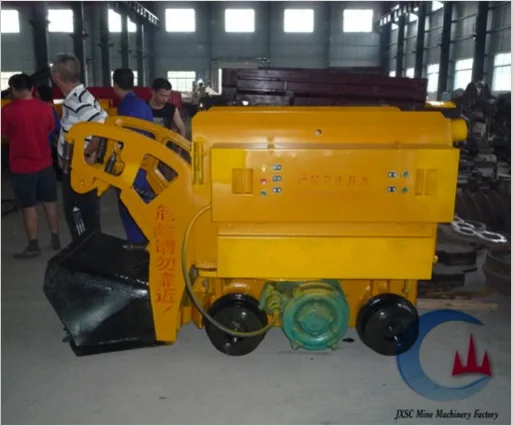

usersite picture of   gold mining rock loader, electric tunnel mucking machine







The safety operation regulations of gold mining rock loader, electric tunnel mucking machine:



1. before the operation, the driver must check carefully the wiring connecting the machine ministries conditions and electrical equipment is good to observe the tunnel blasting, check the track gauge is correct, laying length is sufficient, make sure there is no problem operable rear.





2. during the operation, where the manipulation of the driver side, from the side wall of rock loader and roadway needs in 300mm or more, otherwise not allowed to operate, in order to avoid crushing the driver.



3. prohibit any person close to the bucket of range of motion.



4. checking, oiling and repairing rock machine, rock loader must firstenable the various components are in a stable condition, is prohibited oiling or cleaning rock dust while the machine is working.



5. prohibit any work under the bucket when the bucket alone traction chain instituted.



6. without electrician, the driver don't remove or repair electrical equipment by yourself.



7. do not manipulate a rock loader by 2 person.



8. if not a loader driver, do not press the button of loader without any driver.



9. before you leave the rock loader, you must cut off the power to the electric machine should notify staff around.



10. before blasting, rock loader must retreat to a safe distance.



11. such as the need to open the lid to manipulate child maintenance, must first turn off the power, and then use the electroscope inspection before overhaul confirm power outages.



12 contactor is burning more serious, should be replaced on time.



13 rock loader when moving, the driver must pay attention to the location of the cable to avoid being crushed by rail wheels.



14 during operation, such as the failure should be immediately stopped, identify the cause and repair, before the discovery of thefault do not eliminated shall continue to use it.



15. tunnel must match the standard requirements, straight and not open to help pull the end of the phenomenon. If you do not match the specifications, should be reworked.
