Polystyrene xps tile backer board

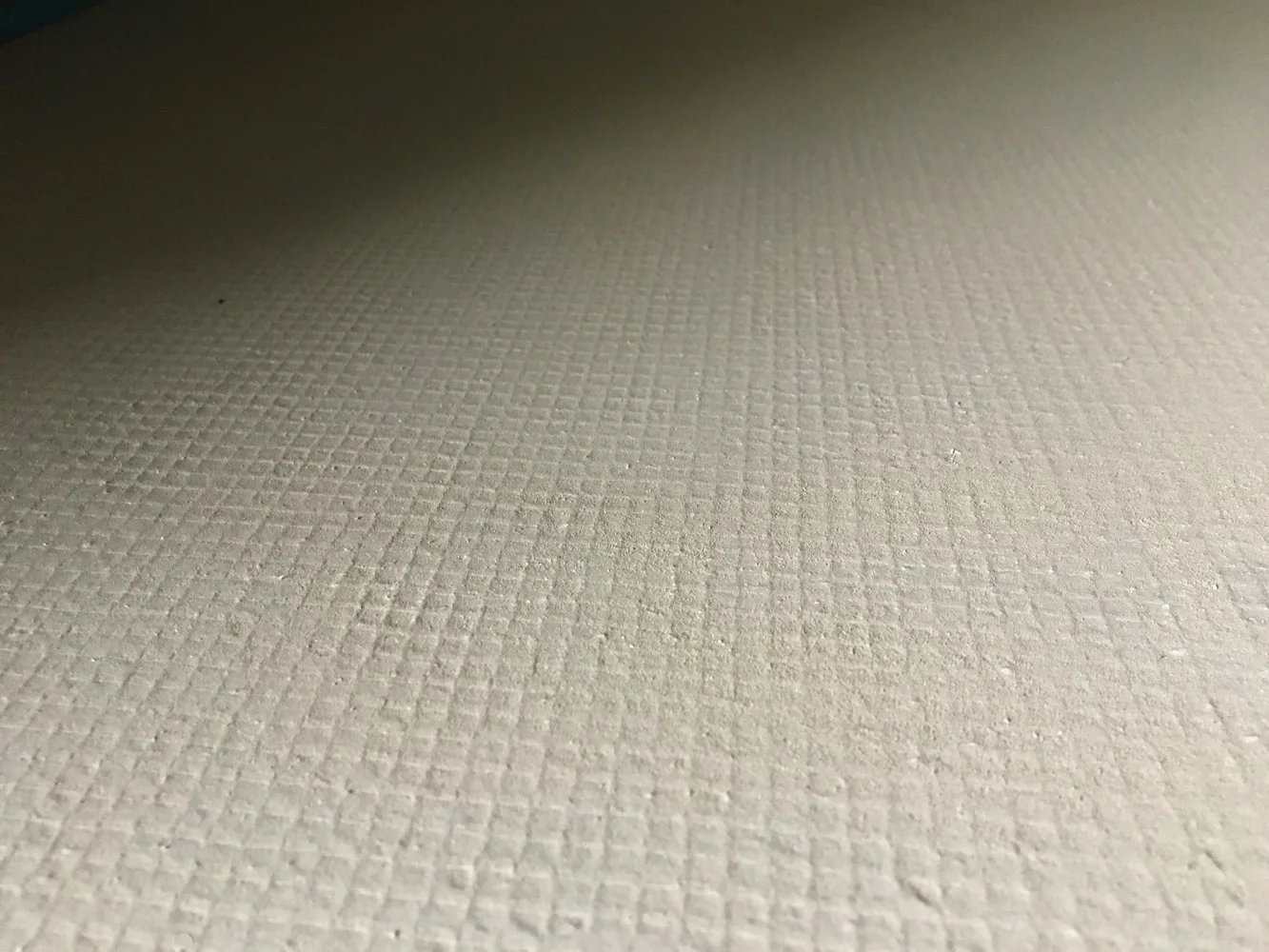

  2440*600 tile backer board australia  are made from rigid extruded polystyrene foam with a closed cellular structure,it has  a 0.5mm coating on either side comprising a glass fibre mesh embedded in a polymer-cement mortar. It is ideal for wet-zone and damp zone in a bathroom, washroom and shower area.





Characteristics






  • Waterproof and dimensionally stable

  • Low weight, one board(1200*600*6mm) is around 1.8KG

  • Easy to cut(by knife or Saw)

  • Excellent for bath rooms,kitchen,floor heating

  • Excellent sound insulation(12mm board, 20 db)

  • Environment friendly(free of CFC and HCFC)

  • Easy to be tiled

  • Customized samples are accepted




Certificate

CE / ITS/SGS / ISO9001 / ISO14001





Available Size and detail package
















































































Thickness



Width



Length



Weight(kg/m²)



Pcs/cartons



4mm



600mm



1200/1220mm






2.45



20



6mm



2.50



20



8mm



2.55



20



10mm



600mm



2440/2500/2600mm



2.60



10



12mm



2.67



10



20mm



600/1200mm



2.92



10



30mm



3.06



5



40mm



3.50



5



50mm



3.94



5



60mm



4.38



5



70mm



4.82



5



80mm



5.26



5



Other sizes could be produced according to the requirement also.










Technical Date























































































Property                                          AssessedtoRating
Thermal Conductivity (> 5yrs) GB/T10294 (BS EN 13164)0.033 - 0.036 Watt/mK
Compressive Strength (10% deflection)GB/T8813 (BSEN 826)Minimum of 0.30N/mm2
Bond Strength N/A0.3N/mm2
Maximum Tile Loading WeightN/A62kg/m2
Flexural Strength ASTM C2032.05  ± 0.02 Mpa
Water Vapour Permeability (Sd) GB/T2411 (DIN EN 12086)3.2m
Resistance to body Impact  N/A3 x 120N/m
Bending Stiffness, EI     (20mm / 30mm)N/A601KNmm / 1285 kN/mm2
Coefficient of linear expansionN/A30 x 10-6 K-1
Flammability                                       GB/T2406 (DIN 4102)B1
Impact Sound Reduction N/AdLw = 21
Shear Bond Strength N/A3.32kg/cm2
Quality Management system  ISO9001PASS
Environment Management system  ISO14001
PASS
Working temperatureN/A-50°c to 75°c











 Application





XPS.S-JSB install





 Warehouse










Equipment and machinery














Shipping &Package


Payment: T/T, L/C, D/P


Shipping terms: FOB Shanghai/Ningbo, CIF, FCA, EXW


Delivery Time:


Samples delivery:


1-7 working days for XPS foam board.


XPS shower tray board: 10-15working days.


Order delivery:


7-10days for XPS foam board


25-30days for xps tile backer board, shower tray board, toilet tank backer board, shower curb, wall niche et.


Package for XPS tile backer board


6mm thickness: 10pcs/ctn


10mm thickness: 5pcs/ctn


12mm thickness: 5pcs/ctn


20mm thickness: 5pcs/ctn


30mm thickness: 5pcs/ctn


40mm thickness: 5pcs/ctn


50mm thickness: 5pcs/ctn


Package for XPS Shower tray board


1pcs/box, 5boxes/carton


Package for Toilet Tank Backer board


1pc/box, 10boxes/carton


or 10pcs/carton


Package for Shower Wall Niche without flange


10pcs/carton


Package for Shower Wall Niche with flange


2pcs/box, 5boxes/carton


Package for Shower curb


10 or 20pcs /carton


Package for Flexible Board


5pcs/carton


Package for XPS foam board for width 600mm and lenght less than 2500mm.


Thickness 20mm: 20pcs/plastic bag


Thickness 25mm: 18pcs/plastic bag


Thickness 30mm: 15pcs/plastic bag


Thickness 40mm: 11pcs/plastic bag


Thickness 50mm: 9pcs/plastic bag


Thickness 60mm: 7pcs/plastic bag


Thickness 70mm: 6pcs/plastic bag


Thickness 80mm: 5pcs/plastic bag


Thickness 90mm: 4pcs/plastic bag


Thickness 100mm: 4pcs/plastic bag








Fast Delivery


Samples delivery:


           1-7 working days for XPS foam board.


          XPS shower tray board: 10-15working days.


Order: 7-15days  for XPS foam board


          20-25 days for xps tile backer board


          25-30days for xps shower tray board
