Автоматизация, яркая стальная машина для волочения проволоки с прямой линией/машина для изготовления ногтей
- Category: Wire Drawing Machines >>>
- Supplier: Wuxi Wandeshun Machine Co. Ltd.
Share on (60014904923):
Product Overview
Description

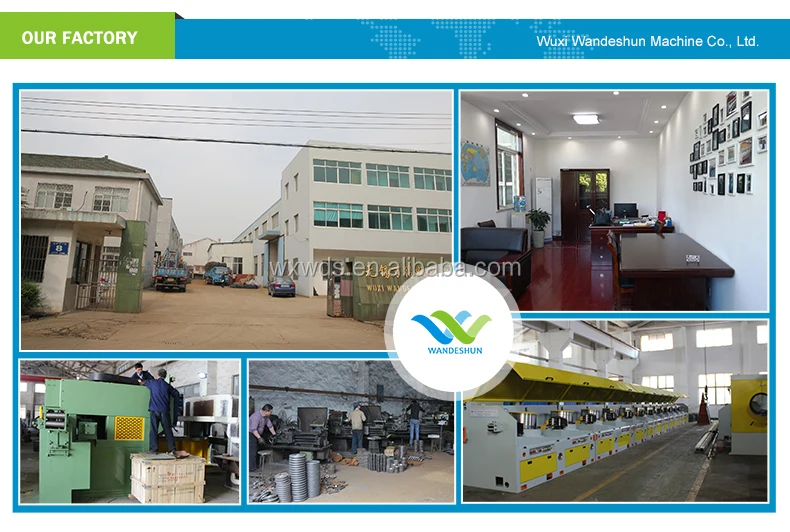

Wuxi Wandeshun Machine Co., Ltd (we are factory)
1. About us
Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.
We had more than 60% market share in China wire drawing industry in accordance with the industry statistic report by China Wire & Cable research institutions. In overseas market, Our machines have been exported to more than 20 countries such as Korea ,Peru, Argentina, Columbia, Poland, Italy, Georgia, Bulgaria, Serbia, Qatar, Qatar ,Egypt, Syria, Saudi Arabia, India, Malaysia, Indonesia, Philippines, Vietnam, Thailand, Korea, Uzbekistan ,Tajikistan,Kazakhstan,Brazil,South Africa, Ethiopia, turkey Puerto Rico ,Bolivia, Senegal ,etc.
Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.
My contact way
My mobile: 86-13921534531
Whatsapp: 86-13921534531
Skype: jeaqueline998
trademanager: wxwds
Email:sales(at)wxwds.com
QQ:349791577
Product Details
Automation Bright steel Straight Line Wire Drawing machine/Nail Making Machine
1.Bright steel machine
2.For low,medium,high carbon
3.Max inlet dia:16mm.Min outlet dia:0.7mm
4.Capstan dia:350~1200mm

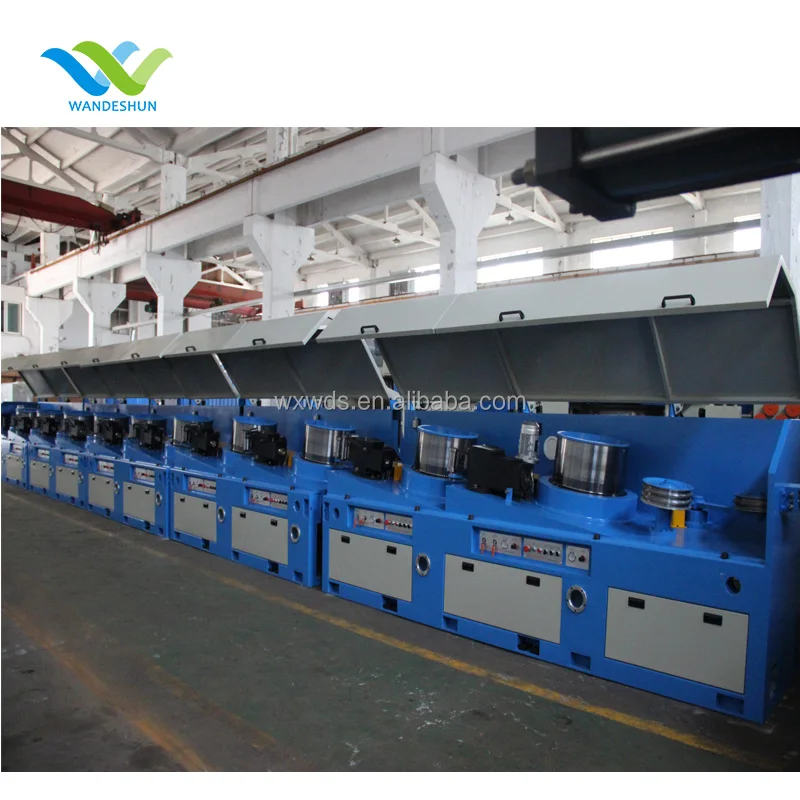

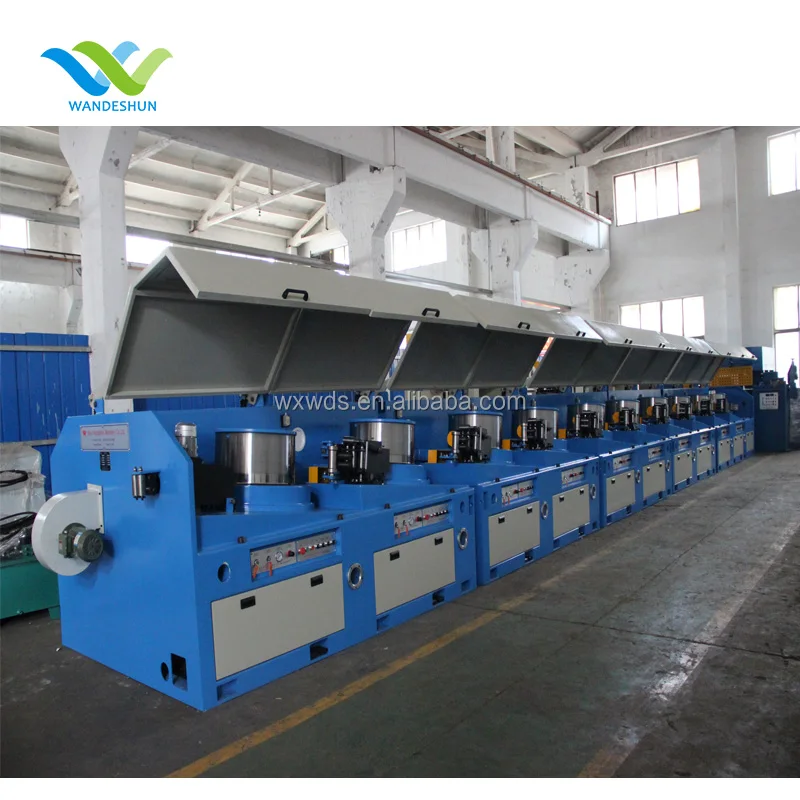

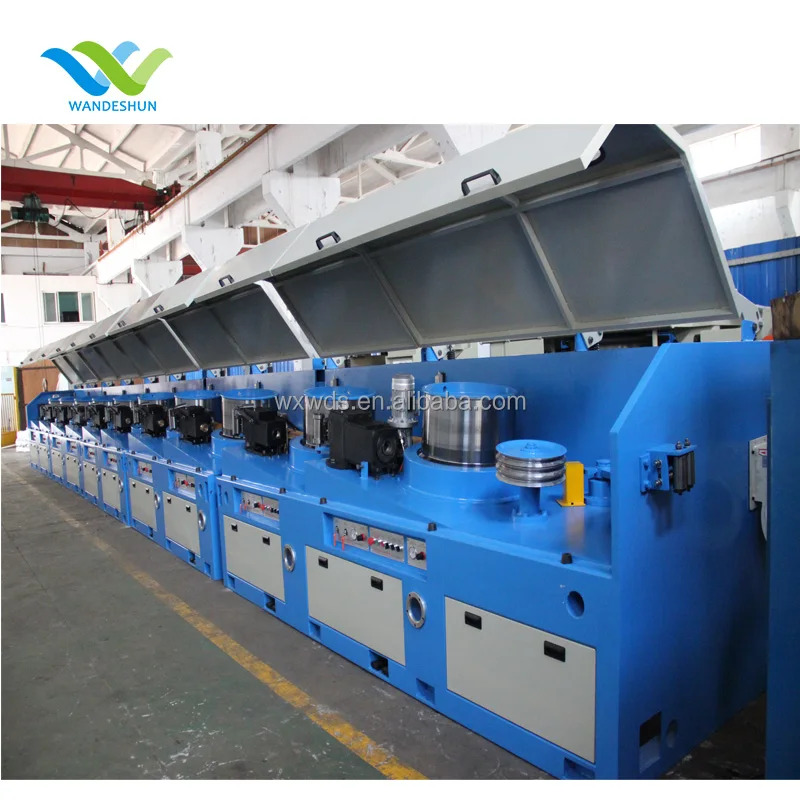

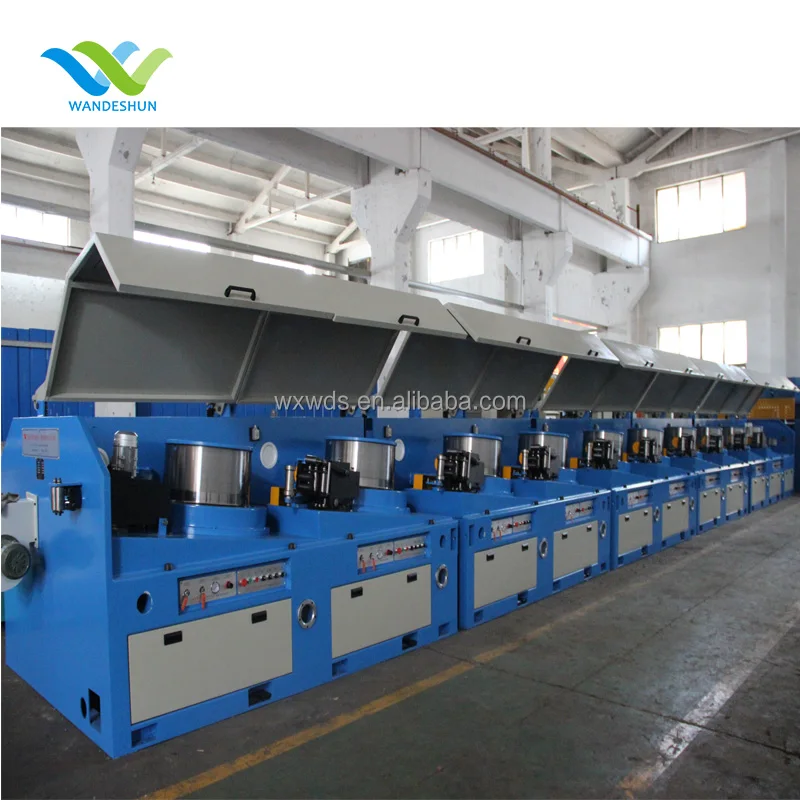

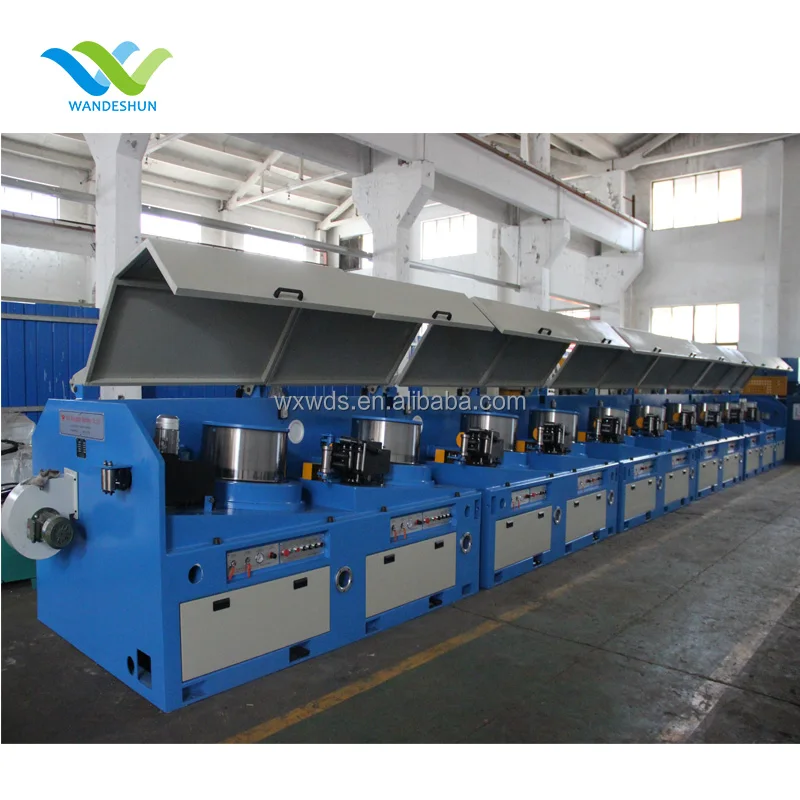

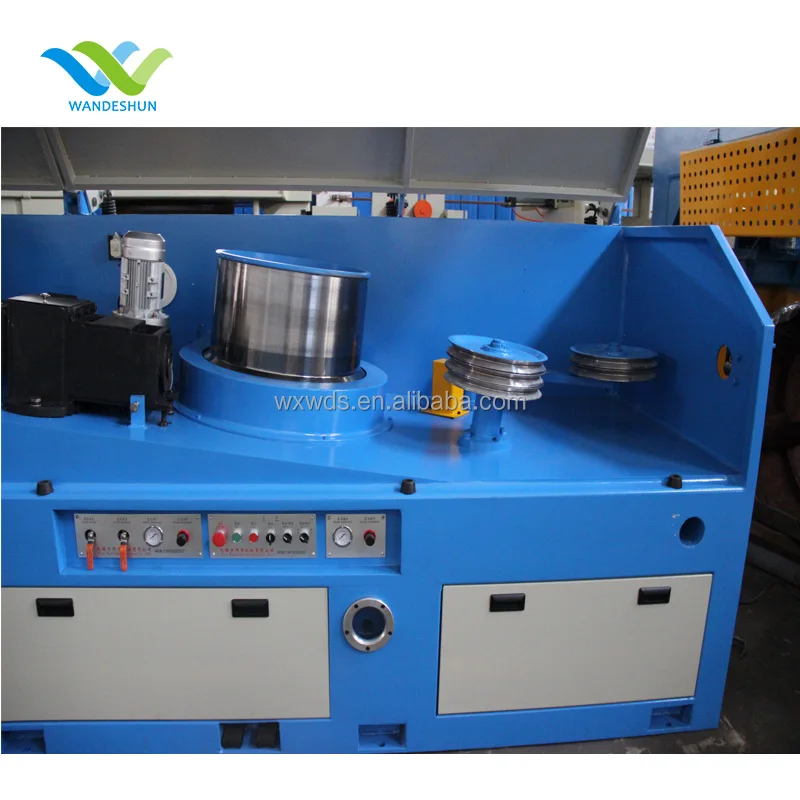

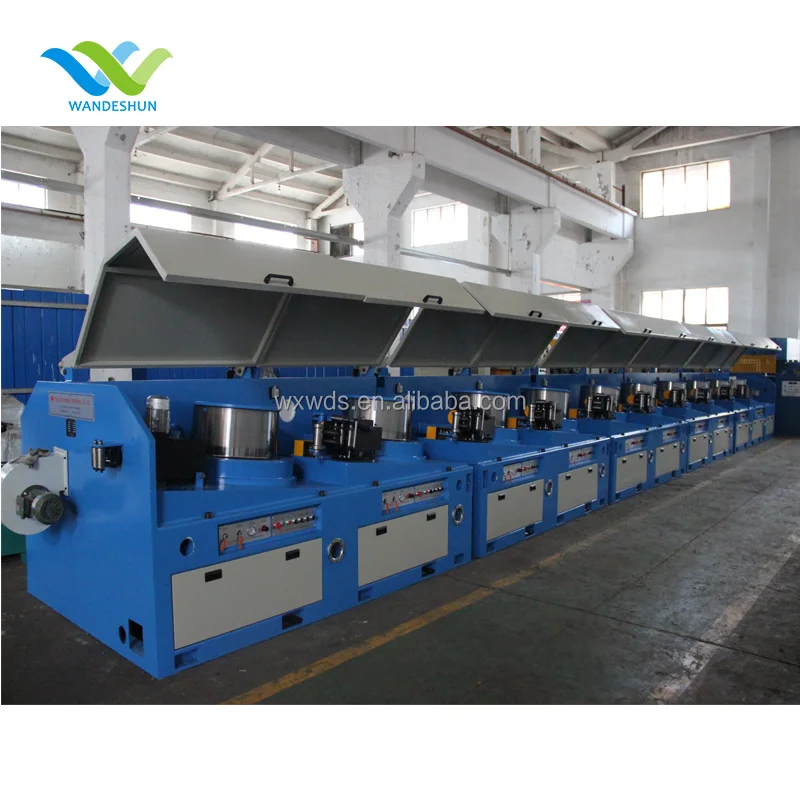

Bright steel machine(Straight line wire drawing machine)
3.Max inlet dia:16mm.Min outlet dia:0.7mm
4.Capstan dia:350~1200mm
Bright steel machine(Straight line wire drawing machine)
Features of high/low carbon steel wire drawing machinery:
1.Drive: Host straight line wire drawing machine, power by the AC frequency motor through high-frequency joint narrow V-belts, spread by the hardened reducer to capstan. Or power by the AC frequency motor through two high-frequency joint narrow V-belt to capstan.
2.Brake: Clamp brake mounted on the motor pulley, quick stop or emergency stop wire drawing machine, which can effectively brake. Its role not only as a brake, but also to prevent the reel reverse brake, release the clip close to the solenoid valve control clamp brake cylinder.

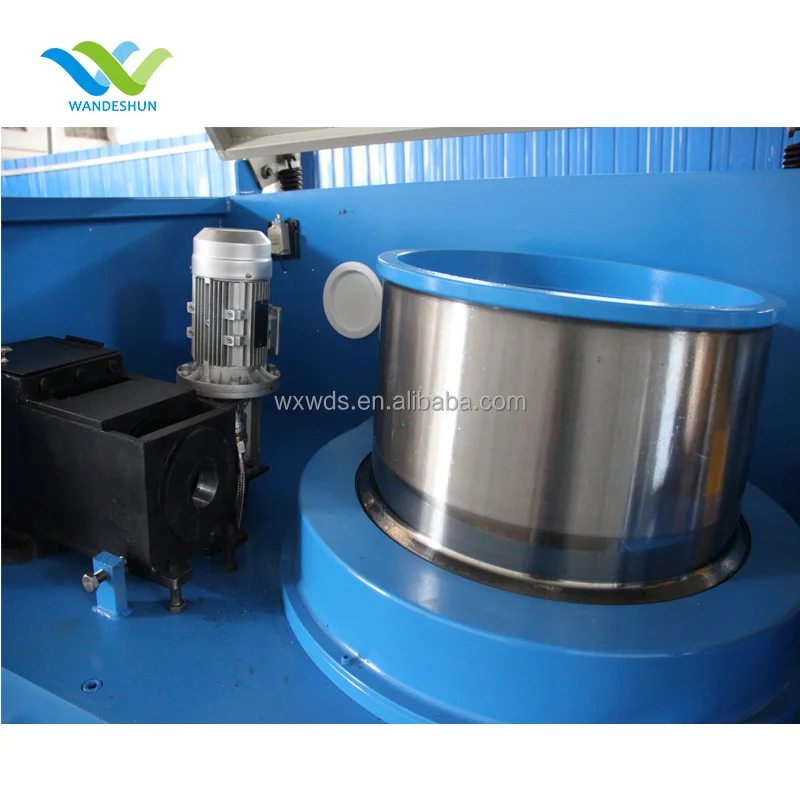

3.Capstan: The material is ZG45 steel, surface is build-up welded, the surface is brightness, smooth, wear-resistant surfacing height of 150mm, long service life; hub height of 150-200mm.

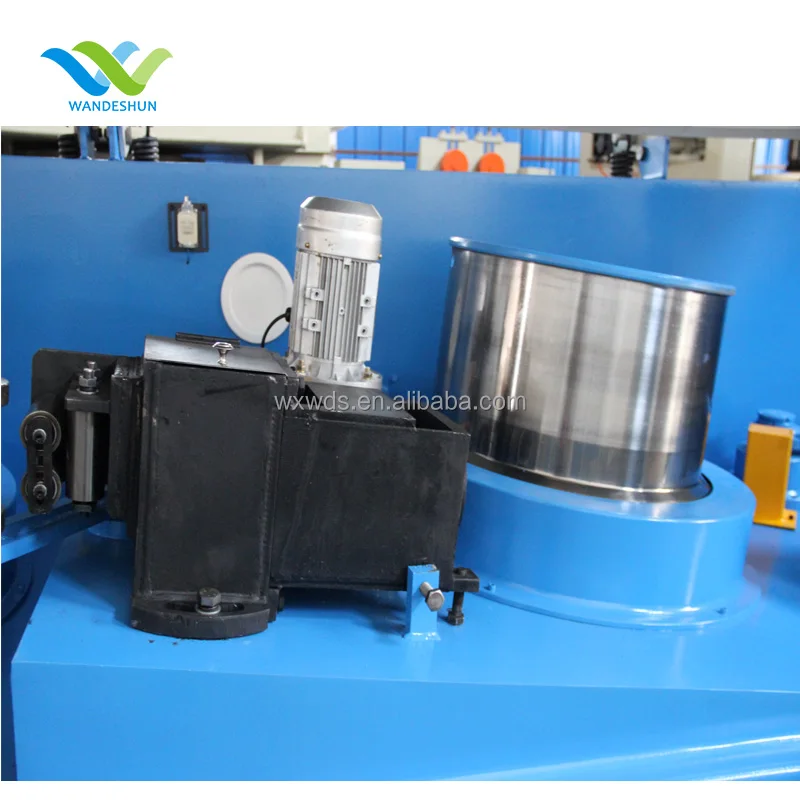

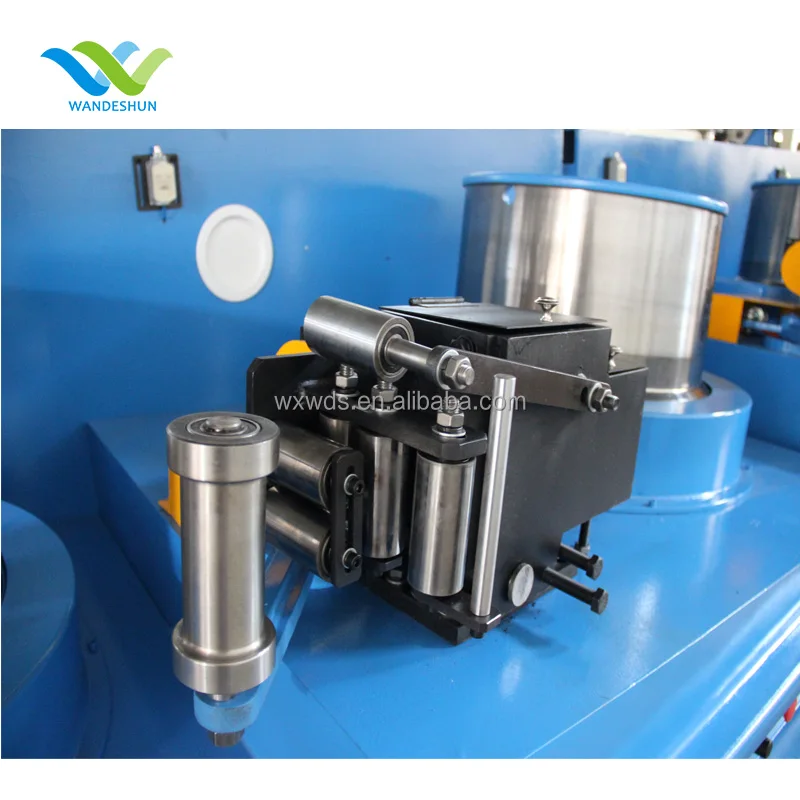

4.Drawing die box: Die box is welded structure, into two cavities. The guide roller is mounted into the side to ensure that steel wire can straight into the drawing die, die holder should be adjusted to wire tangent to enter the drawing rolls tuning roller installed at the entry end of the mold base tuning roll by a small cylinder put power, tuning the swing of the roller, so that the corresponding sensor output signal to fine-tune the speed of change. Tuning roller wire tension by adjusting the air pressure change, regulation range 0.15-0.6Mpa. The mold box is also equipped with a stirring device. Tuning roller side of the mold box, a gear reducer single-phase capacitance running motor through a sprocket, power passed to the stirring arm to stir the mold box, lubrication powder, without agglomeration affect lubrication.
5.Jump-mode device: When drawn wire specifications total compression rate is less than the required times drawing, can throw a drawing. Rejection mode principles: Inlet is small, outlet is fine, then dumped in front of passes; Inlet is big, outlet is rough, then throw behind the times. When the need dumped mold, the steel wire after the need to jump-mode machine mode box, and then into the next need to pull the mold box so that the wire can be within the effective stroke of the arm swing, thus ensuring the sensor can detect and adjust to match adjacent reel speed.
6.Capstan cooling: Inside of the capstan use narrow slit water cooling, cooling ring fixed in the body, capstan run through the spindle, when the water flow at high speed, during which water turbulence, and emitted from the narrow gap high-speed, high heat transfer efficiency, so that the rolls to cool; outside of the capstan use wind cooling by fan. Capstan tilt installation, increase the capstan product wire to extend the wire and the air heat exchange time.
7.Mold cooling: Drawing Die use open direct water-cooled, adjust the inlet valve to control the water height, when you need to replace the wire drawing dies, close the inlet valve, fast water emptying, and then change the mode, before and after the wire drawing dies, seals available copper pad or aluminum pad.
The straight line drawing machine applies advanced international technology, with digestion and absorption, the drawing machine is applicable for high intensity and performance demand. It mainly applied for the production of steel curtain wire, tyre steel wire, steel wire for rope, spring steel wire, stainless steel wire, gas welding wire, arc welding wire, etc. The capstan diameter of the series products is φ350-φ1200mm with maximum inlet diameter of φ14mm and minimum outlet diameter of 0.7mm.
Features:
Applicable for continuous drawing;
Material: High/medium/low carbon steel wire, alloy steel wire, stainless steel wire
PLC control, automatic
Could provide pay-off & take-up machine
Could provide pre-treatment machines(Mechanical descaler, pickling, boron coating

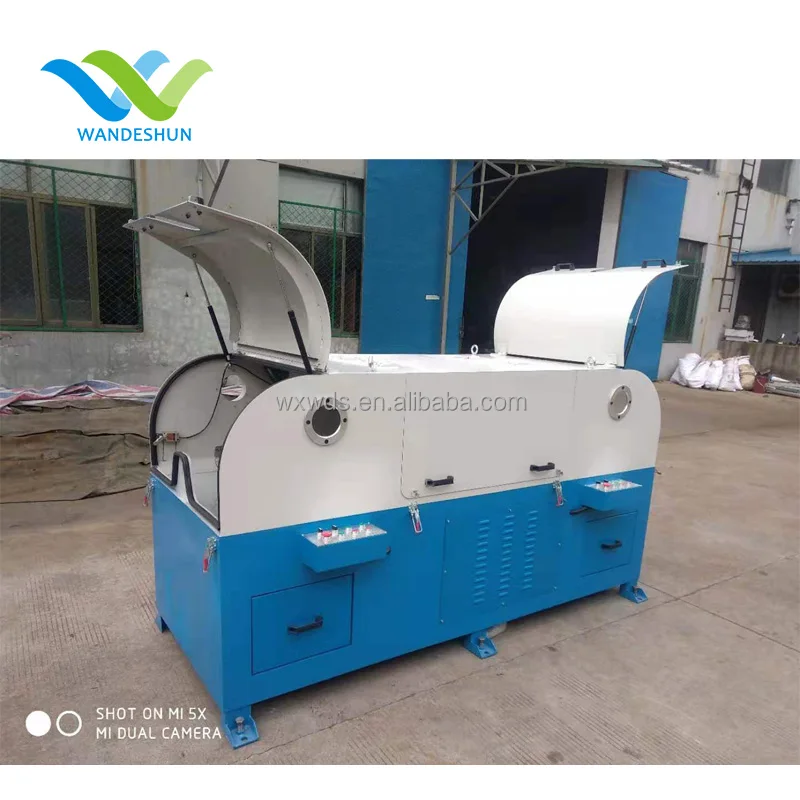

sand belt machine to make bright wire

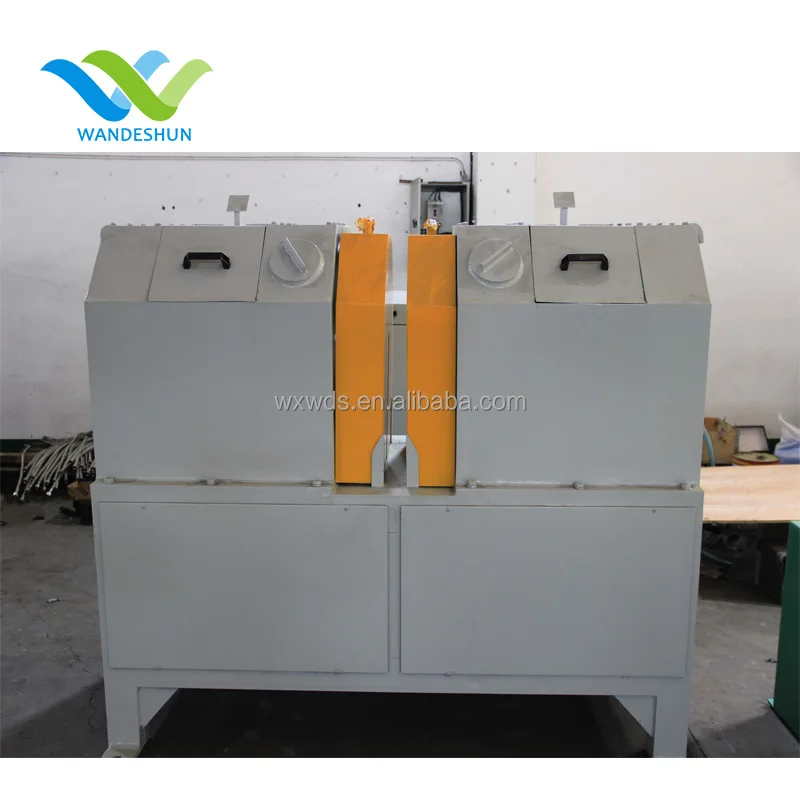

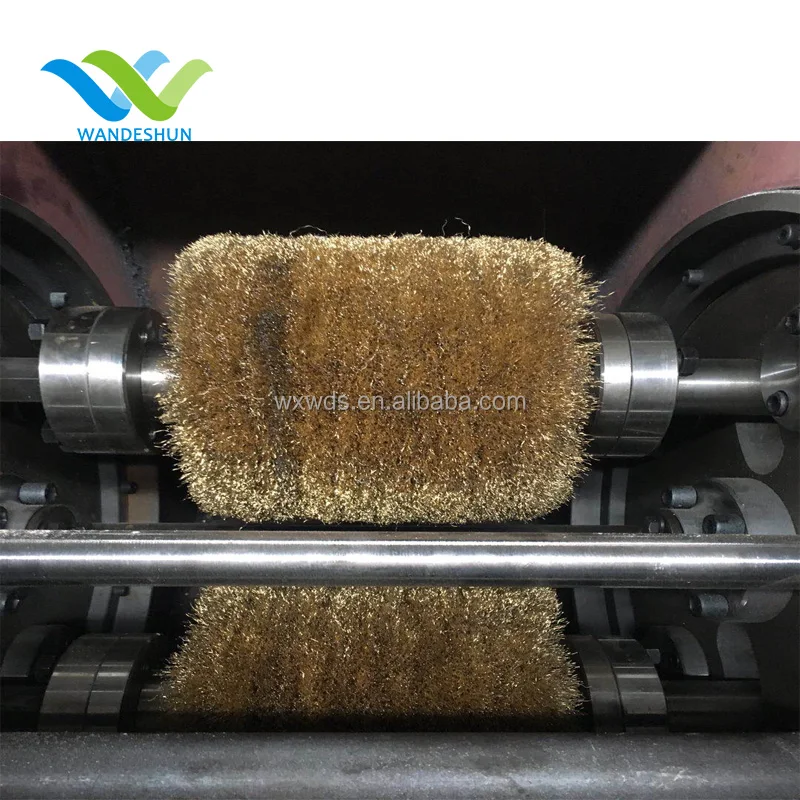

wire descaling and steel brush machine to make bright wire
Automation Bright steel Straight Line Wire Drawing machine/Nail Making Machine
Main Technical Parameters:
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |

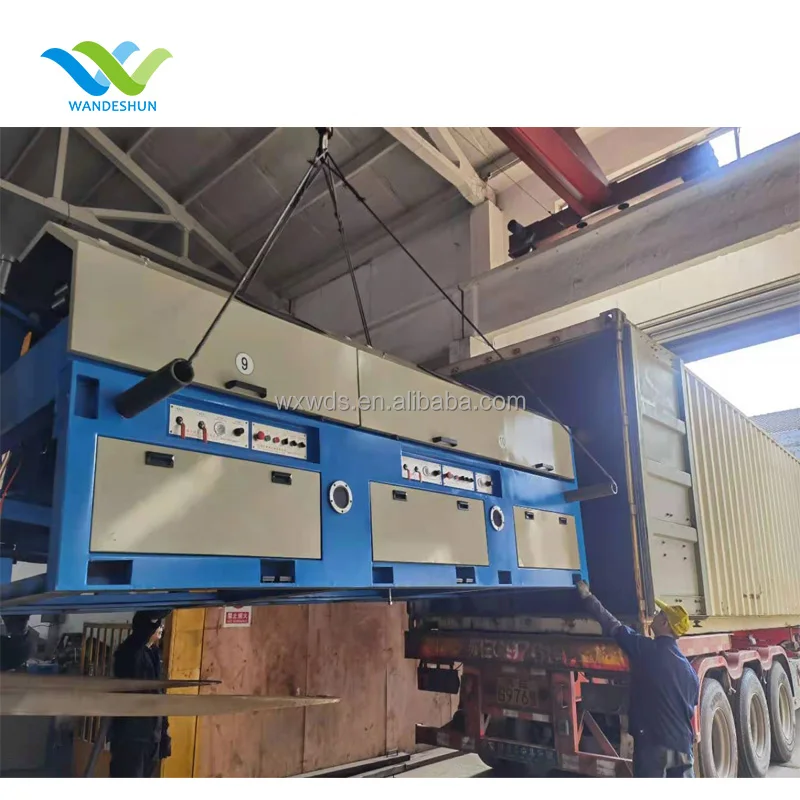

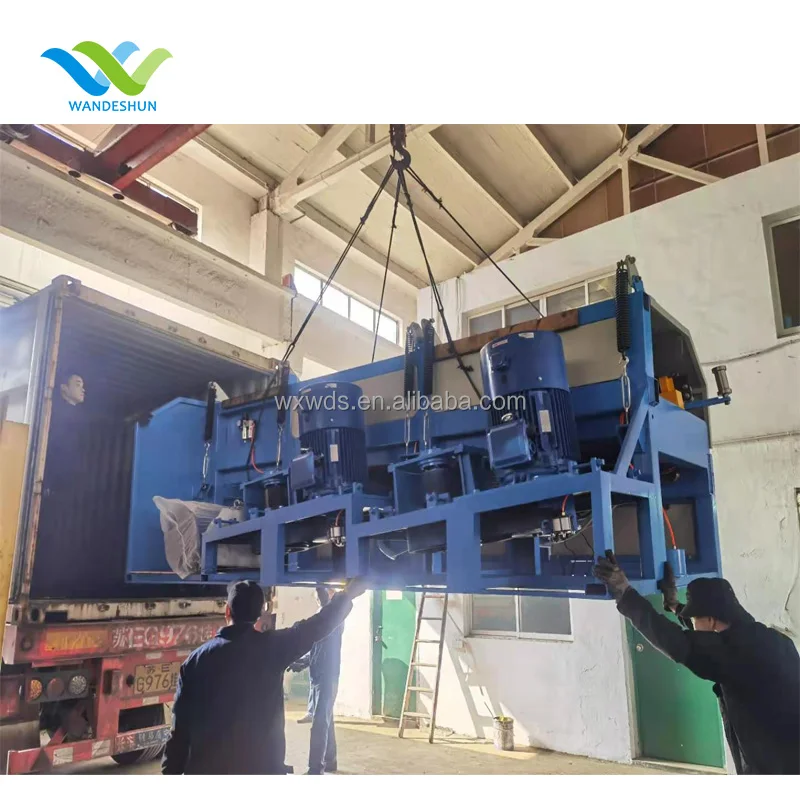

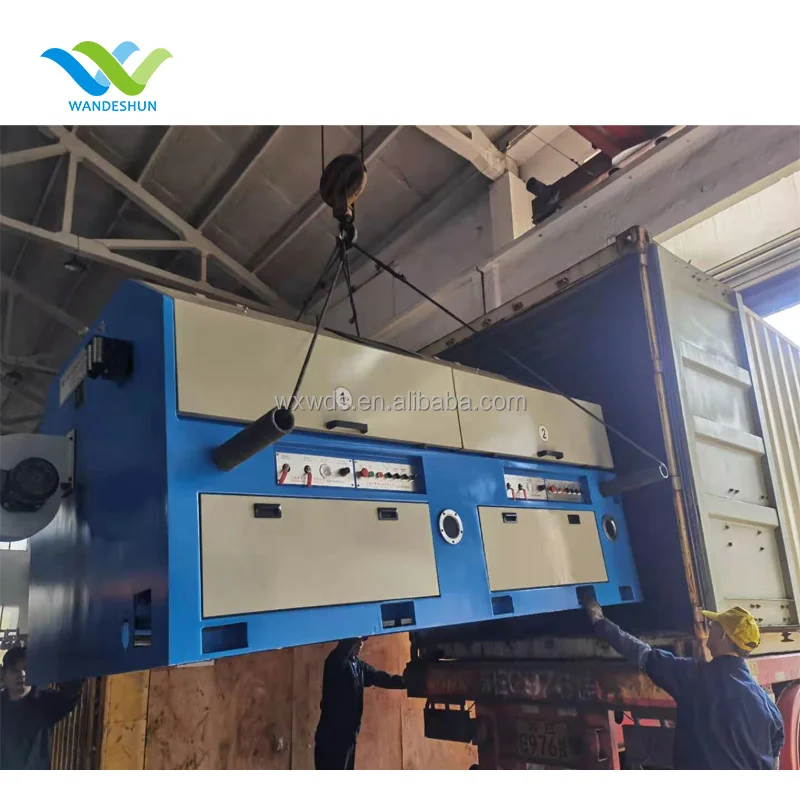

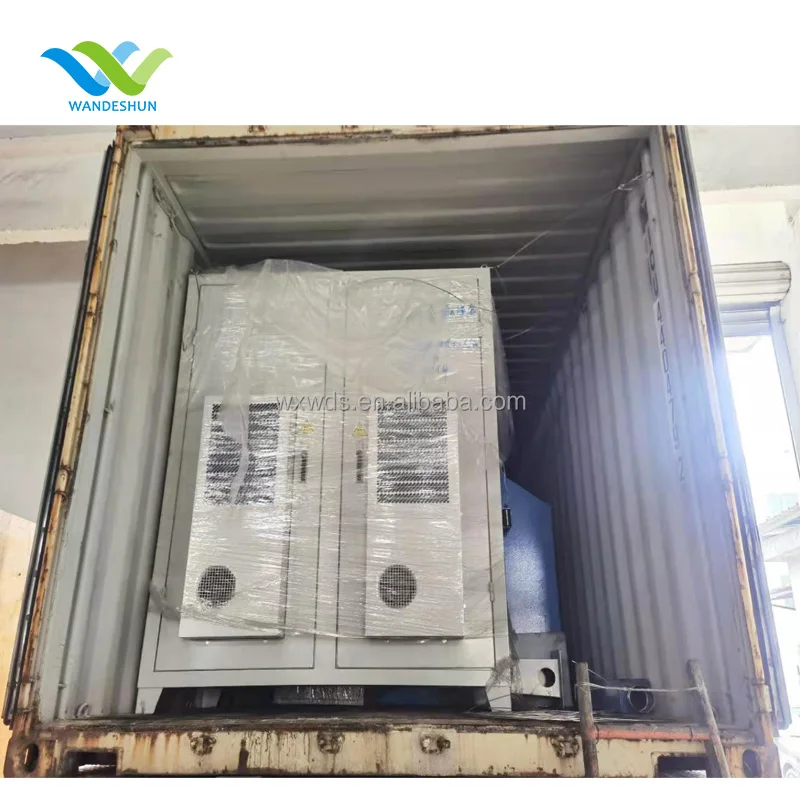

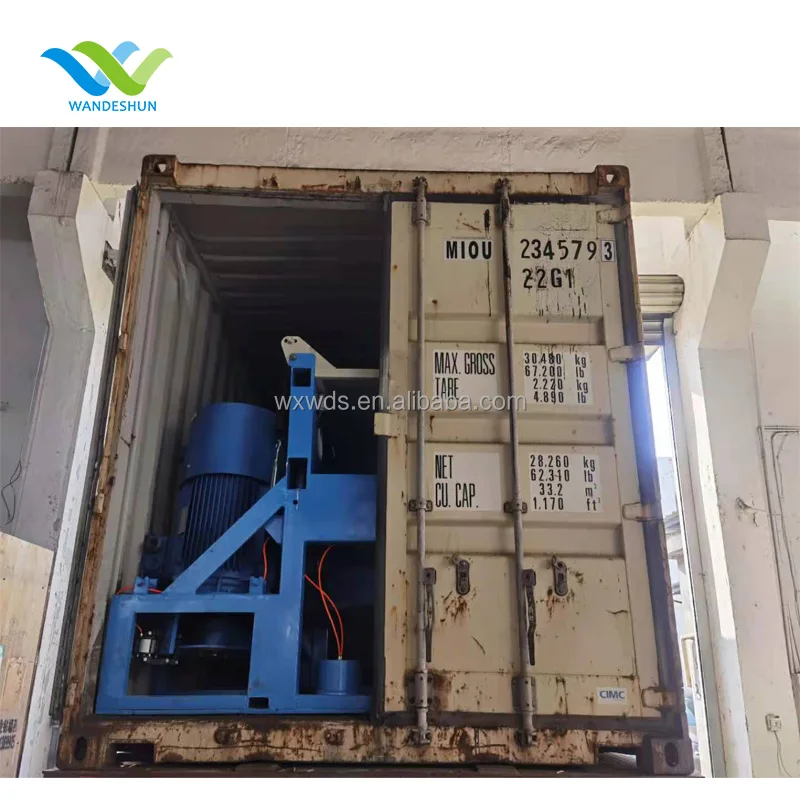

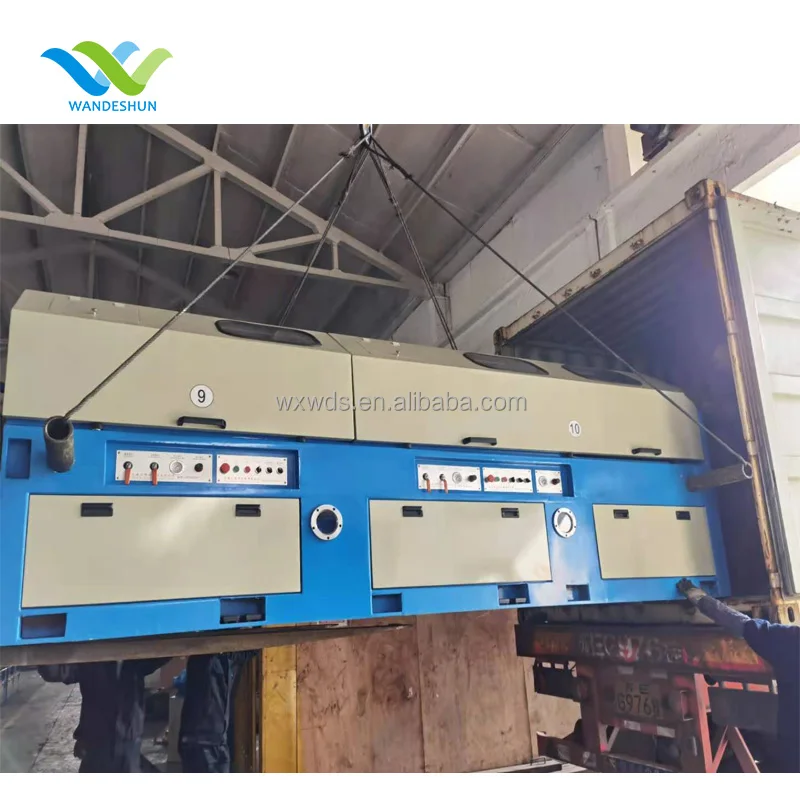

our loading and shipment photos
FAQ
1.How about our quality ?
We continuously develop and improve our products and are widely used in many fields such as industrial, technical, medical and aerospace. Quality is at the world's leading level
2.How about the price ?
Very low price, don’t worry about it, All fees you pay will be used on your machine. The price depends on your expectations of the machine.
3.How about our service?
Once we get your inquiry for our products, we will make offer within one hour ,and for reply you any doubt at any time
4.How about the brand of electric parts of machine?
We use famous brand as following
Siemens / HD motor
Siemens /ABB / Inovance inverter
Siemens/ Inovance touch screen
Schneider low voltage electric. etc.
5.How about packaging?
1.Plastic wrap with dryer agent
2.Plywood box with plastic wrap and dryer agent
3.Carton with plastic wrap and dryer agent
4.SEA , TRAIN , AIR according to clients requirement
6.How about the delivery?
We promise that we provide wire machine, mold, brushed powder machine test operation service in the workshop, and then free shipping, you carefully check and then ship
7.How about delivery time?
It is 30 days. According to your specific requirements for the machine.
8.How about the after service?
When the machine has a problem, the Engineers available to service machinery overseas
9.How to prove what you said?
If you are convenient, you can visit our factory at any time, and when you visit us, you will see the running machine in our factory.
10.Where is our factory?
Wuxi city China
Our company is only 5 minutes away from ShuoFang International Airport in southern Jiangsu, we can pick you up when you come to this airport
11.How about the invitation letter?
We will do that according to your request , and give you invitation letter in one week.
12.Please provide following information if you want to directly quotation:
1. Wire Material:
2. Inlet Wire Diameter range:
3. Outlet wire Diameter range:
4. Where and what does the wire use for:
